DtReflectedGenericObject Class Reference

Instances of DtReflectedGenericObject are used to represent "GenericObject" objects simulated remotely, that we hear about through the RTI. More...

Inheritance diagram for DtReflectedGenericObject:

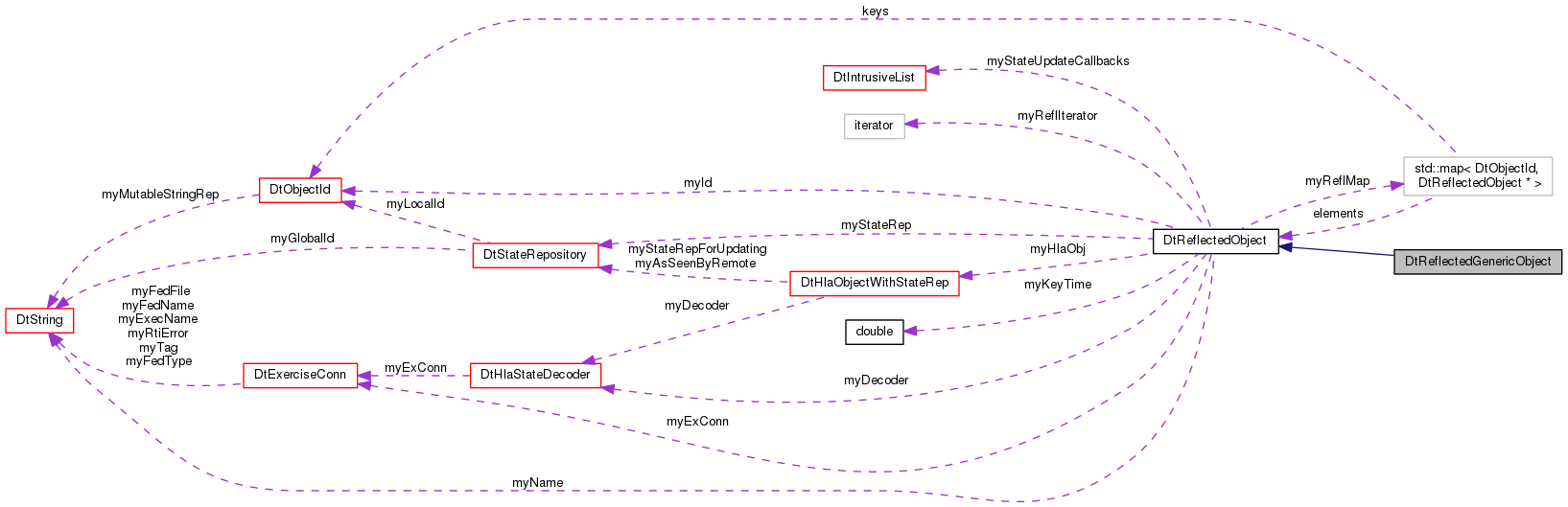

Collaboration diagram for DtReflectedGenericObject:

Public Member Functions
	DtReflectedGenericObject (DtHlaObject *obj, DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedGenericObject ()
	destructor More...
virtual DtStateRepository *	genericStateRep () const
	Returns a pointer to the DtStateRepository, through which you can inspect current state information. More...
virtual DtStateRepository *	gsr () const
	Synonym for genericStateRep(). More...
virtual DtReflectedGenericObject *	next () const
	Functions to get the next and previous objects in the list. More...
virtual DtReflectedGenericObject *	prev () const
virtual DtReflectedGenericObject *	wrapNext () const
virtual DtReflectedGenericObject *	wrapPrev () const
virtual void	addPostUpdateCallback (DtGenericObjectCallbackFunction cb, void *userData)
	Registration/deregistration of postUpdate callbacks. More...
virtual void	removePostUpdateCallback (DtGenericObjectCallbackFunction cb, void *userData)
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual const DtString &	lastProducingFederate () const
	Get the name of the last federate that produced a reflected update. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...
virtual DtTime	keyTime () const
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...
virtual void	setKeyTime (DtTime timeValue)
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...

Protected Member Functions
	DtReflectedGenericObject (const DtReflectedGenericObject &other)
	Copy Ctor – Not Implemented. More...
DtReflectedGenericObject &	operator= (const DtReflectedGenericObject &other)
	Assignment Operator – Not Implemented. More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Additional Inherited Members
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...
Static Protected Member Functions inherited from DtReflectedObject
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtTime	myKeyTime
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

Instances of DtReflectedGenericObject are used to represent "GenericObject" objects simulated remotely, that we hear about through the RTI.

Instances are created and deleted automatically by DtReflectedGenericObjectList in response to discover and remove RTI service invocations. This class is derived from DtDtReflectedObject, which does most of the work. The derived class mostly exists to provide type safety, and to configure the base class object.

Constructor & Destructor Documentation

DtReflectedGenericObject::DtReflectedGenericObject	(	DtHlaObject *	obj,
		DtExerciseConn *	conn
	)

constructor

virtual DtReflectedGenericObject::~DtReflectedGenericObject ( )

virtual

destructor

DtReflectedGenericObject::DtReflectedGenericObject ( const DtReflectedGenericObject &  other )

protected

Copy Ctor – Not Implemented.

Member Function Documentation

virtual void DtReflectedGenericObject::addPostUpdateCallback ( DtGenericObjectCallbackFunction  cb, void *  userData  )

virtual

Registration/deregistration of postUpdate callbacks.

virtual DtStateRepository* DtReflectedGenericObject::genericStateRep ( ) const

virtual

Returns a pointer to the DtStateRepository, through which you can inspect current state information.

virtual DtStateRepository* DtReflectedGenericObject::gsr ( ) const

virtual

Synonym for genericStateRep().

virtual DtReflectedGenericObject* DtReflectedGenericObject::next ( ) const

virtual

Functions to get the next and previous objects in the list.

The "wrap" functions cycle to the beginning/end of the list.

DtReflectedGenericObject& DtReflectedGenericObject::operator= ( const DtReflectedGenericObject &  other )

protected

Assignment Operator – Not Implemented.

virtual DtReflectedGenericObject* DtReflectedGenericObject::prev ( ) const

virtual

virtual void DtReflectedGenericObject::removePostUpdateCallback ( DtGenericObjectCallbackFunction  cb, void *  userData  )

virtual

virtual DtReflectedGenericObject* DtReflectedGenericObject::wrapNext ( ) const

virtual

virtual DtReflectedGenericObject* DtReflectedGenericObject::wrapPrev ( ) const

virtual

---

The documentation for this class was generated from the following file:

• reflectedGenericObject.h
