DtAerodromePdu Class Reference

Instances of DtAerodromePdu are used for DIS network packets which encode the DtAerodromeStateRepository repository. More...

Inheritance diagram for DtAerodromePdu:

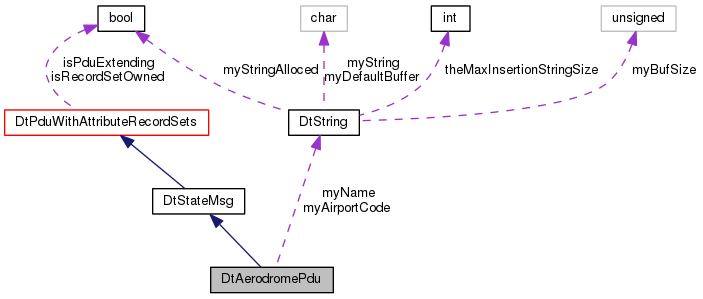

Collaboration diagram for DtAerodromePdu:

Public Member Functions
	DtAerodromePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...
	DtAerodromePdu (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
virtual	~DtAerodromePdu ()
	destructor More...
virtual void	setVersion (DtU16 val)
	Set the PDU version. More...
virtual DtU16	version () const
	Get the PDU version. More...
virtual void	setEntityId (const DtEntityIdentifier &val)
	Set the Entity Identifier. More...
virtual DtEntityIdentifier	entityId () const
virtual void	setUniqueId (const DtVrlUuid &val)
	Set the UniqueId. More...
DtVrlUuid	uniqueId () const
	Get the UniqueId. More...
virtual void	setAirportCode (const DtString &code)
	Set the Airport Code. More...
virtual const DtString &	airportCode () const
	Get the airport code. More...
virtual void	setForceId (DtForceType force)
	Set the Force ID. More...
virtual DtForceType	forceId () const
	Get the Force ID. More...
virtual void	setActive (bool active)
	Set if the Aerodrome is active or not. More...
virtual bool	active () const
	Get the active status of the Aerordrome. More...
virtual void	setApronLight (DtU8 lightIntensity)
	Set the apronLight intensity level 0-100. More...
virtual DtU8	apronLight () const
	Get the apronLight. More...
virtual void	setApronFloodLight (bool onOff)
	Set the apronFloodLight on or off. More...
virtual bool	apronFloodLight () const
	Get the apronFloodLight. More...
virtual void	setClearanceBarLight (DtU8 lightIntensity)
	Set the clearanceBarLight intensity level 0-100. More...
virtual DtU8	clearanceBarLight () const
	Get the clearanceBarLight. More...
virtual void	setTaxiwayCentreLight (DtU8 lightIntensity)
	Set the taxiwayCentreLight intensity level 0-100. More...
virtual DtU8	taxiwayCentreLight () const
	Get the taxiwayCentreLight. More...
virtual void	setTaxiwayEdgeLight (DtU8 lightIntensity)
	Set the taxiwayEdgeLight intensity level 0-100. More...
virtual DtU8	taxiwayEdgeLight () const
	Get the taxiwayEdgeLight. More...
virtual void	setTaxiwayIdentifierMarkerBoardLight (bool onOff)
	Set the taxiwayIdentifierMarkerBoardLight on or off. More...
virtual bool	taxiwayIdentifierMarkerBoardLight () const
	Get the taxiwayIdentifierMarkerBoardLight. More...
virtual void	setUndercarriageInspectionSystemLight (bool onOff)
	Set the UndercarriageInspectionSystemLight on or off. More...
virtual bool	undercarriageInspectionSystemLight () const
	Get the undercarriageInspectionSystemLight. More...
void	printData () const
	Print functions. More...
void	printDataToStream (std::ostream &stream) const
DtString	uniqueKey () const
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor More...
virtual	~DtStateMsg ()
	destructor More...
	DtStateMsg (const DtStateMsg &orig)
	copy constructor More...
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator More...
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...
virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...
virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...
virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...
virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	encode ()
	Encode method. More...
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...
virtual void	setAttributeStrategy (DtAttributePduStrategy strat)
virtual DtAttributePduStrategy	attributePduStrategy () const
virtual bool	shouldAttributePduBeCoupled () const
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...
virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...
virtual int	status () const
	Get PDU status. More...
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...
virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...
virtual DtTime	receivedTime () const
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...
virtual const char *	netRep () const
	Get network representation. More...
virtual int	length () const
	Get size of message. More...
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size)
	Changes the size of the message. More...
virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...
virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...
virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...
virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...
virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...
virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPduHeader *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a DtAerodromePdu. More...
static void	addCallback (DtExerciseConn *conn, DtAerodromePduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when a PDU is received. More...
static void	removeCallback (DtExerciseConn *conn, DtAerodromePduCb cb, void *usr)

Protected Member Functions
virtual unsigned int	fixedBytesSize () const
virtual char *	firstVarDatumStart () const
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class. More...
Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...
virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const
Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...
virtual void	initPdu (const void *initial, DtBufferPtr buffer, DtPduFactory *pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...
virtual void	clearData ()
	zeros out all bytes after the PDU header. More...
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...
virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...
virtual bool	isLVCApplicable () const
virtual bool	isCEIApplicable () const
virtual bool	isFTIApplicable () const
virtual bool	isDTIApplicable () const
virtual bool	isRAIApplicable () const
virtual bool	isIAIApplicable () const
virtual bool	isISMApplicable () const
virtual bool	isAIIApplicable () const

Static Protected Member Functions
static DtPduKind	internalGetPduKindImpl ()

Protected Attributes
DtString	myName
DtString	myAirportCode
Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...
bool	isRecordSetOwned
bool	isPduExtending
DtStandardVariableRecordFactory *	mySVRFactory
DtPduDecoder *	myAttributeDecoder
DtPduEncoder *	myAttributeEncoder
DtSimulationAddress	myAttributePduOriginatingSimulationAddress
DtAttributePduStrategy	myAttributePduStrategy
Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder
DtPduDecoder *	myDecoder
int	myOKStatus
DtTime	myReceivedTime
Protected Attributes inherited from DtBaseMsg
void *	myNetMsg
void *	myInternalBuff
int	myIntBuffSize
int	myMsgSize
int	myNetworkMsgSize

Private Member Functions
	DtAerodromePdu (const DtAerodromePdu &orig)
	Copy CTOR not implemented. More...
DtAerodromePdu &	operator= (const DtAerodromePdu &orig)
	Assignment operator not implemented. More...

Additional Inherited Members
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtAerodromePdu are used for DIS network packets which encode the DtAerodromeStateRepository repository.

The actual network layout occures in the DtNetAerodromePdu.

Constructor & Destructor Documentation

DtAerodromePdu::DtAerodromePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtAerodromePdu::DtAerodromePdu	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

virtual DtAerodromePdu::~DtAerodromePdu ( )

virtual

destructor

DtAerodromePdu::DtAerodromePdu ( const DtAerodromePdu &  orig )

private

Copy CTOR not implemented.

Member Function Documentation

virtual bool DtAerodromePdu::active ( ) const

virtual

Get the active status of the Aerordrome.

static void DtAerodromePdu::addCallback ( DtExerciseConn *  conn, DtAerodromePduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when a PDU is received.

virtual const DtString& DtAerodromePdu::airportCode ( ) const

virtual

Get the airport code.

virtual bool DtAerodromePdu::apronFloodLight ( ) const

virtual

Get the apronFloodLight.

virtual DtU8 DtAerodromePdu::apronLight ( ) const

virtual

Get the apronLight.

virtual DtU8 DtAerodromePdu::clearanceBarLight ( ) const

virtual

Get the clearanceBarLight.

static DtPdu* DtAerodromePdu::create ( const DtNetPduHeader *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create a DtAerodromePdu.

Caller is responsible for deletion.

virtual DtEntityIdentifier DtAerodromePdu::entityId ( ) const

virtual

virtual char* DtAerodromePdu::firstVarDatumStart ( ) const

protectedvirtual

virtual unsigned int DtAerodromePdu::fixedBytesSize ( ) const

protectedvirtual

virtual DtForceType DtAerodromePdu::forceId ( ) const

virtual

Get the Force ID.

DtPduKind DtAerodromePdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

static DtPduKind DtAerodromePdu::internalGetPduKindImpl ( )

inlinestaticprotected

References DtAerodromePduKind.

DtAerodromePdu& DtAerodromePdu::operator= ( const DtAerodromePdu &  orig )

private

Assignment operator not implemented.

void DtAerodromePdu::printData ( ) const

virtual

Print functions.

Reimplemented from DtPdu.

void DtAerodromePdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

static void DtAerodromePdu::removeCallback ( DtExerciseConn *  conn, DtAerodromePduCb  cb, void *  usr  )

static

virtual void DtAerodromePdu::setActive ( bool  active )

virtual

Set if the Aerodrome is active or not.

virtual void DtAerodromePdu::setAirportCode ( const DtString &  code )

virtual

Set the Airport Code.

virtual void DtAerodromePdu::setApronFloodLight ( bool  onOff )

virtual

Set the apronFloodLight on or off.

virtual void DtAerodromePdu::setApronLight ( DtU8  lightIntensity )

virtual

Set the apronLight intensity level 0-100.

virtual void DtAerodromePdu::setClearanceBarLight ( DtU8  lightIntensity )

virtual

Set the clearanceBarLight intensity level 0-100.

virtual void DtAerodromePdu::setEntityId ( const DtEntityIdentifier &  val )

virtual

Set the Entity Identifier.

virtual void DtAerodromePdu::setForceId ( DtForceType  force )

virtual

Set the Force ID.

virtual void DtAerodromePdu::setTaxiwayCentreLight ( DtU8  lightIntensity )

virtual

Set the taxiwayCentreLight intensity level 0-100.

virtual void DtAerodromePdu::setTaxiwayEdgeLight ( DtU8  lightIntensity )

virtual

Set the taxiwayEdgeLight intensity level 0-100.

virtual void DtAerodromePdu::setTaxiwayIdentifierMarkerBoardLight ( bool  onOff )

virtual

Set the taxiwayIdentifierMarkerBoardLight on or off.

virtual void DtAerodromePdu::setUndercarriageInspectionSystemLight ( bool  onOff )

virtual

Set the UndercarriageInspectionSystemLight on or off.

virtual void DtAerodromePdu::setUniqueId ( const DtVrlUuid &  val )

virtual

Set the UniqueId.

virtual void DtAerodromePdu::setVersion ( DtU16  val )

virtual

Set the PDU version.

virtual DtU8 DtAerodromePdu::taxiwayCentreLight ( ) const

virtual

Get the taxiwayCentreLight.

virtual DtU8 DtAerodromePdu::taxiwayEdgeLight ( ) const

virtual

Get the taxiwayEdgeLight.

virtual bool DtAerodromePdu::taxiwayIdentifierMarkerBoardLight ( ) const

virtual

Get the taxiwayIdentifierMarkerBoardLight.

virtual bool DtAerodromePdu::undercarriageInspectionSystemLight ( ) const

virtual

Get the undercarriageInspectionSystemLight.

DtVrlUuid DtAerodromePdu::uniqueId

(

)

const

Get the UniqueId.

DtString DtAerodromePdu::uniqueKey

(

)

const

virtual DtU16 DtAerodromePdu::version ( ) const

virtual

Get the PDU version.

Member Data Documentation

DtString DtAerodromePdu::myAirportCode

mutableprotected

DtString DtAerodromePdu::myName

mutableprotected

---

The documentation for this class was generated from the following file:

• aerodromePdu.h
