This class meant to encapsulate user callbacks on ownership management services. More...

Inheritance diagram for DtDefaultOwnershipHandler:

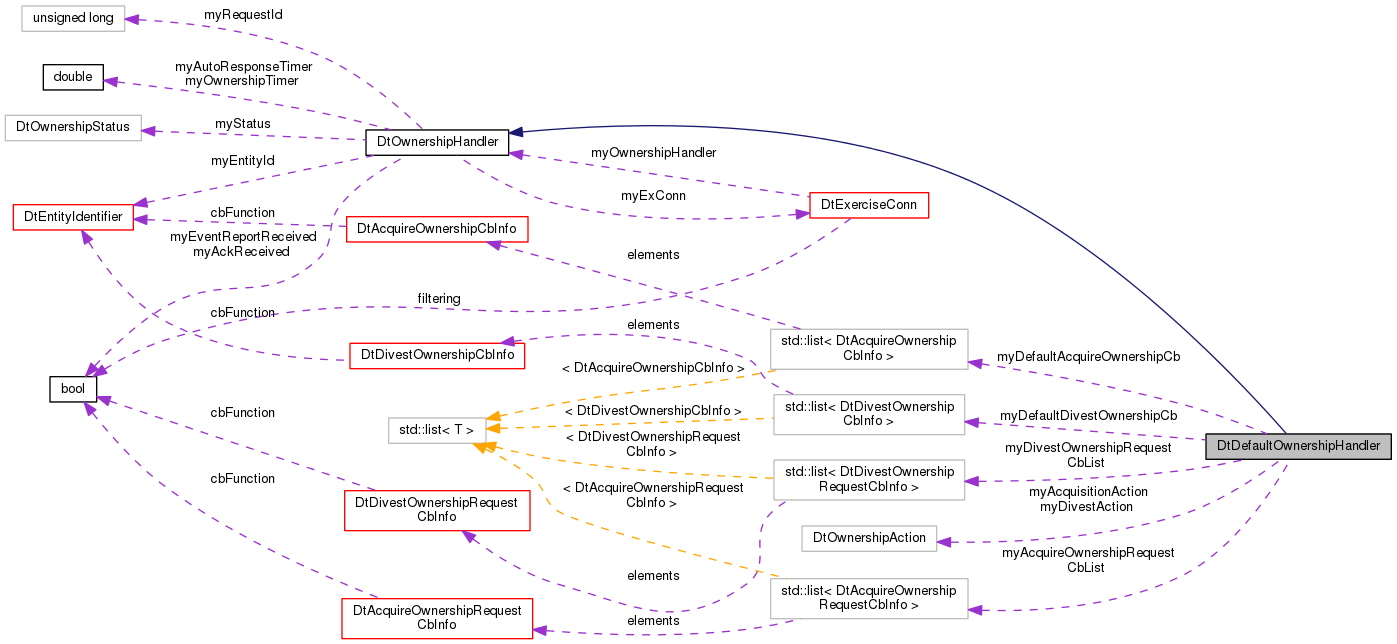

Collaboration diagram for DtDefaultOwnershipHandler:

Public Member Functions
	DtDefaultOwnershipHandler ()
	Constructor. More...

virtual	~DtDefaultOwnershipHandler ()
	Destructor. More...

virtual DtOwnershipHandler *	clone () const
	Clone copy. More...

	DtDefaultOwnershipHandler (const DtDefaultOwnershipHandler &other)
	Copy constructor. More...

DtDefaultOwnershipHandler &	operator= (const DtDefaultOwnershipHandler &other)
	Assignment operator. More...

virtual void	setOwnershipAcquisitionAction (DtOwnershipAction)
	Set the default action when someone offers an object to acquire Your three options are, accept, deny, or send a callback to ask for this information. More...

virtual void	setOwnershipDivestitudeAction (DtOwnershipAction)
	Set the default action when someone requests your object to acquire Your three options are, accept, deny, or send a callback to ask for this information. More...

virtual void	gainOwnership ()
	Called whenever the local federate has gained ownership of an object. More...

virtual void	loseOwnership ()
	Called whenever the local federate has lost ownership of an object. More...

virtual void	addAcquireOwnershipCallback (DtAcquireOwnershipCb cb, void *usr)
	Callback for Acquiring ownership. More...

virtual void	removeAcquireOwnershipCallback (DtAcquireOwnershipCb cb, void *usr)

virtual void	addDivestOwnershipCallback (DtDivestOwnershipCb cb, void *usr)
	Callback for divesting ownership. More...

virtual void	removeDivestOwnershipCallback (DtDivestOwnershipCb cb, void *usr)

virtual void	addAcquireOwnershipRequestCallback (DtAcquireOwnershipRequestCb cb, void *usr)
	Callback for acquiring and divesting requests. More...

virtual void	removeAcquireOwnershipRequestCallback (DtAcquireOwnershipRequestCb cb, void *usr)

virtual void	addDivestOwnershipRequestCallback (DtDivestOwnershipRequestCb cb, void *usr)

virtual void	removeDivestOwnershipRequestCallback (DtDivestOwnershipRequestCb cb, void *usr)

virtual bool	requestOwnershipRelease ()

virtual bool	requestOwnershipAssumption ()

Public Member Functions inherited from DtOwnershipHandler
	DtOwnershipHandler ()
	Constructor. More...

virtual	~DtOwnershipHandler ()
	Destructor. More...

	DtOwnershipHandler (const DtOwnershipHandler &other)
	Copy constructor. More...

DtOwnershipHandler &	operator= (const DtOwnershipHandler &other)
	Assignment operator. More...

virtual void	divestObject (DtU16 siteTarget, DtU16 applicationTarget)
	Begin a DIS 7 push request for this object The entire process will by default be automated from here. More...

virtual void	acquireObject ()
	Begin a DIS 7 pull request for this object The entire process will by default be automated from here. More...

virtual void	setExConn (DtExerciseConn *exConn)

virtual void	setEntityId (const DtEntityIdentifier &entityId)

virtual void	setAutoResponseTimer (double time)
	By default DIS 7 allows for 5 seconds for transfer ownership to happen before it gets cancelled. More...

Protected Attributes
DtOwnershipAction	myAcquisitionAction

DtOwnershipAction	myDivestAction

std::list < DtAcquireOwnershipCbInfo >	myDefaultAcquireOwnershipCb

std::list < DtDivestOwnershipCbInfo >	myDefaultDivestOwnershipCb

std::list < DtAcquireOwnershipRequestCbInfo >	myAcquireOwnershipRequestCbList

std::list < DtDivestOwnershipRequestCbInfo >	myDivestOwnershipRequestCbList

Protected Attributes inherited from DtOwnershipHandler
DtOwnershipStatus	myStatus

DtTime	myOwnershipTimer

double	myAutoResponseTimer

DtU32	myRequestId

DtExerciseConn *	myExConn

DtEntityIdentifier	myEntityId

bool	myAckReceived

bool	myEventReportReceived

Additional Inherited Members
Protected Member Functions inherited from DtOwnershipHandler
virtual void	acknowledgeCallback (DtAcknowledgeRPdu *ack)

virtual void	setRecordCallback (DtSetRecordPdu *setRec)

virtual void	eventReportCallback (DtEventReportPdu *setRec)

virtual void	transferOwnershipCallback (DtTransferControlRequestPdu *transfer)

virtual void	transferFailed ()
	Sent whenever a transfer did not complete. More...

Static Protected Member Functions inherited from DtOwnershipHandler
static void	acknowledgeRCb (DtAcknowledgeRPdu ack, void usr)
	The following callbacks are used internally to handle the back and forth messaging required in a DIS ownership transfer. More...

static void	setRecordCb (DtSetRecordPdu setRec, void usr)

static void	eventReportCb (DtEventReportPdu setRec, void usr)

static void	transferOwnershipCb (DtTransferControlRequestPdu setRec, void usr)

Detailed Description

This class meant to encapsulate user callbacks on ownership management services.

It allows users to automatically accept or deny ownership requests, as well as globally register callbacks related to ownership management.

Constructor & Destructor Documentation

DtDefaultOwnershipHandler::DtDefaultOwnershipHandler ( )

Constructor.

virtual DtDefaultOwnershipHandler::~DtDefaultOwnershipHandler ( )

virtual

Destructor.

DtDefaultOwnershipHandler::DtDefaultOwnershipHandler ( const DtDefaultOwnershipHandler & other )

Copy constructor.

Member Function Documentation

virtual void DtDefaultOwnershipHandler::addAcquireOwnershipCallback	(	DtAcquireOwnershipCb	cb,
		void *	usr
	)

virtual

Callback for Acquiring ownership.

These callbacks will be called whenever this federate acquires an object's attributes. Users of this function should create a new DtEntityPublisher, and remove the reflected entities from their lists.

virtual void DtDefaultOwnershipHandler::addAcquireOwnershipRequestCallback	(	DtAcquireOwnershipRequestCb	cb,
		void *	usr
	)

virtual

Callback for acquiring and divesting requests.

Are only called if you have OWNERSHIP_CALLBACK defined Allows you to decide if you should accept or reject this ownership request. While there may be many callbacks, this will accept if just a single one returns true.

virtual void DtDefaultOwnershipHandler::addDivestOwnershipCallback	(	DtDivestOwnershipCb	cb,
		void *	usr
	)

virtual

Callback for divesting ownership.

These callbacks will be called whenever this federate divests an object's attributes

virtual void DtDefaultOwnershipHandler::addDivestOwnershipRequestCallback	(	DtDivestOwnershipRequestCb	cb,
		void *	usr
	)

virtual

virtual DtOwnershipHandler* DtDefaultOwnershipHandler::clone ( ) const

virtual

Clone copy.

Reimplemented from DtOwnershipHandler.

virtual void DtDefaultOwnershipHandler::gainOwnership ( )

virtual

Called whenever the local federate has gained ownership of an object.

Reimplemented from DtOwnershipHandler.

virtual void DtDefaultOwnershipHandler::loseOwnership ( )

virtual

Called whenever the local federate has lost ownership of an object.

Reimplemented from DtOwnershipHandler.

DtDefaultOwnershipHandler& DtDefaultOwnershipHandler::operator= ( const DtDefaultOwnershipHandler & other )

Assignment operator.

virtual void DtDefaultOwnershipHandler::removeAcquireOwnershipCallback	(	DtAcquireOwnershipCb	cb,
		void *	usr
	)

virtual

virtual void DtDefaultOwnershipHandler::removeAcquireOwnershipRequestCallback	(	DtAcquireOwnershipRequestCb	cb,
		void *	usr
	)

virtual

virtual void DtDefaultOwnershipHandler::removeDivestOwnershipCallback	(	DtDivestOwnershipCb	cb,
		void *	usr
	)

virtual

virtual void DtDefaultOwnershipHandler::removeDivestOwnershipRequestCallback	(	DtDivestOwnershipRequestCb	cb,
		void *	usr
	)

virtual

virtual bool DtDefaultOwnershipHandler::requestOwnershipAssumption ( )

virtual

Reimplemented from DtOwnershipHandler.

virtual bool DtDefaultOwnershipHandler::requestOwnershipRelease ( )

virtual

Reimplemented from DtOwnershipHandler.

virtual void DtDefaultOwnershipHandler::setOwnershipAcquisitionAction ( DtOwnershipAction )

virtual

Set the default action when someone offers an object to acquire Your three options are, accept, deny, or send a callback to ask for this information.

virtual void DtDefaultOwnershipHandler::setOwnershipDivestitudeAction ( DtOwnershipAction )

virtual

Set the default action when someone requests your object to acquire Your three options are, accept, deny, or send a callback to ask for this information.

Member Data Documentation

std::list<DtAcquireOwnershipRequestCbInfo> DtDefaultOwnershipHandler::myAcquireOwnershipRequestCbList

protected

DtOwnershipAction DtDefaultOwnershipHandler::myAcquisitionAction

protected

std::list<DtAcquireOwnershipCbInfo> DtDefaultOwnershipHandler::myDefaultAcquireOwnershipCb

protected

std::list<DtDivestOwnershipCbInfo> DtDefaultOwnershipHandler::myDefaultDivestOwnershipCb

protected

DtOwnershipAction DtDefaultOwnershipHandler::myDivestAction

protected

std::list<DtDivestOwnershipRequestCbInfo> DtDefaultOwnershipHandler::myDivestOwnershipRequestCbList

protected

The documentation for this class was generated from the following file:

defaultOwnershipHandlerDIS.h
