Instances of DtEntityStateEncoder are used to take state information from a DtEntityStateRepository and place it into an entity state PDU. More...

Inheritance diagram for DtEntityStateEncoder:

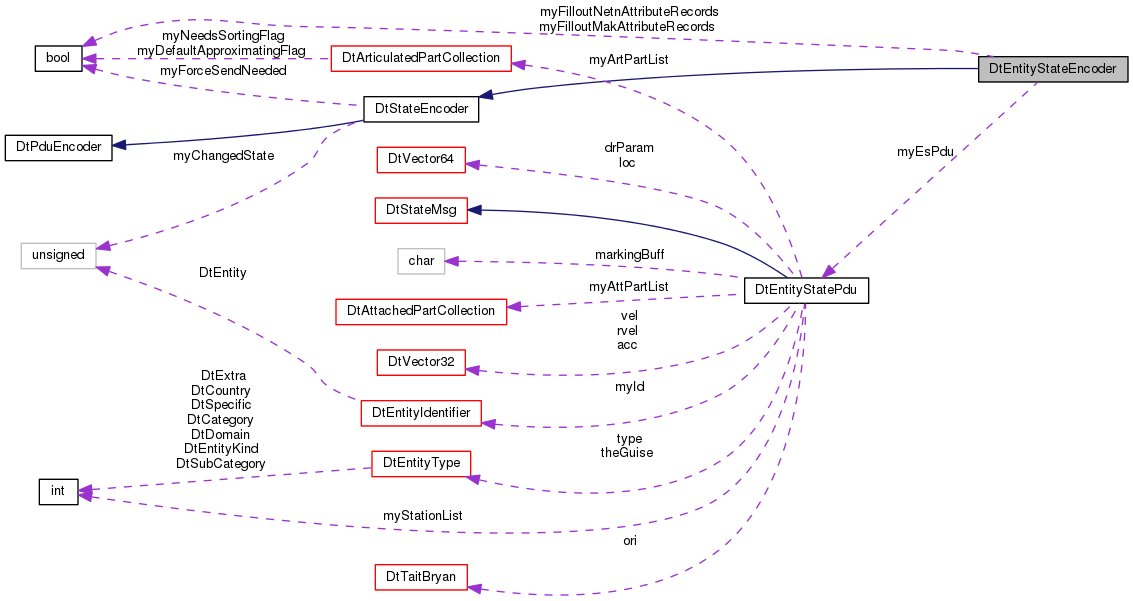

Collaboration diagram for DtEntityStateEncoder:

Public Member Functions
	DtEntityStateEncoder ()
	CTOR. More...

	DtEntityStateEncoder (const DtEntityStateEncoder &orig)
	Copy CTOR. More...

virtual	~DtEntityStateEncoder ()
	Virtual DTOR. More...

DtEntityStateEncoder &	operator= (const DtEntityStateEncoder &orig)
	Assignment operator. More...

virtual DtEntityStatePdu *	stateMsg (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...

	DtCLONE_ENCODER (DtEntityStateEncoder)

Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...

virtual	~DtStateEncoder ()
	Destructor. More...

	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...

DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...

virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...

virtual DtU32	changedState () const

virtual void	clearChangedState ()

virtual bool	isChangedStateBit (DtU32 st) const

virtual void	resetChangedStateBit (DtU32 st)

virtual void	setChangedStateBit (DtU32 st)

virtual DtPduEncoder *	clone () const =0
	clone. More...

virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...

virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...

virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...

Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Returns true if a PDU needs to be sent, (based on thresholds, etc) false otherwise. More...

virtual void	fillOut (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote, DtEntityStatePdu *pdu)
	Copy current ESR data to the pdu. More...

virtual bool	artPartsNeedUpdating (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Returns true if art part info is out of date, false otherwise. More...

virtual bool	attPartsNeedUpdating (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Returns true if art part info is out of date, false otherwise. More...

virtual bool	netnNeedsUpdating (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Returns true if NETN attributes needs updating. More...

virtual bool	makExtensionsNeedUpdating (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Returns true if MAK Extended attributes need updating. More...

virtual bool	variableDatumNeedsUpdating (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Returns true if the DIS 7 Variable Datum is out of date, false otherwise. More...

virtual void	fillOutDeadReckoningParams (const DtEntityStateRepository &stateRep, DtEntityStatePdu *pdu)
	DIS 7 requires filling the Params structure with derived values for speed in decoding. More...

virtual void	fillOutArtAndAttParts (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote, DtEntityStatePdu *pdu)
	Copies current articulated and attached part info from the ESR to the PDU. More...

virtual void	fillOutNetnAttributes (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Filling out the attribute Records with NETN values. More...

virtual void	fillOutMakExtendedAttributes (const DtEntityStateRepository &stateRep, const DtEntityStateRepository &asSeenByRemote)
	Filling out the attribute Records with custom MAK Extension records. More...

Protected Attributes
DtEntityStatePdu	myEsPdu

bool	myFilloutMakAttributeRecords

bool	myFilloutNetnAttributeRecords

Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded

DtU32	myChangedState

Detailed Description

Instances of DtEntityStateEncoder are used to take state information from a DtEntityStateRepository and place it into an entity state PDU.

Constructor & Destructor Documentation

DtEntityStateEncoder::DtEntityStateEncoder ( )

CTOR.

DtEntityStateEncoder::DtEntityStateEncoder ( const DtEntityStateEncoder & orig )

Copy CTOR.

virtual DtEntityStateEncoder::~DtEntityStateEncoder ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual bool DtEntityStateEncoder::artPartsNeedUpdating	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Returns true if art part info is out of date, false otherwise.

virtual bool DtEntityStateEncoder::attPartsNeedUpdating	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Returns true if art part info is out of date, false otherwise.

DtEntityStateEncoder::DtCLONE_ENCODER ( DtEntityStateEncoder )

virtual void DtEntityStateEncoder::fillOut	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote,
		DtEntityStatePdu *	pdu
	)

protectedvirtual

Copy current ESR data to the pdu.

virtual void DtEntityStateEncoder::fillOutArtAndAttParts	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote,
		DtEntityStatePdu *	pdu
	)

protectedvirtual

Copies current articulated and attached part info from the ESR to the PDU.

virtual void DtEntityStateEncoder::fillOutDeadReckoningParams	(	const DtEntityStateRepository &	stateRep,
		DtEntityStatePdu *	pdu
	)

protectedvirtual

DIS 7 requires filling the Params structure with derived values for speed in decoding.

It is filled in this function.

virtual void DtEntityStateEncoder::fillOutMakExtendedAttributes	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Filling out the attribute Records with custom MAK Extension records.

virtual void DtEntityStateEncoder::fillOutNetnAttributes	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Filling out the attribute Records with NETN values.

virtual bool DtEntityStateEncoder::makExtensionsNeedUpdating	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Returns true if MAK Extended attributes need updating.

virtual bool DtEntityStateEncoder::netnNeedsUpdating	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Returns true if NETN attributes needs updating.

DtEntityStateEncoder& DtEntityStateEncoder::operator= ( const DtEntityStateEncoder & orig )

Assignment operator.

virtual bool DtEntityStateEncoder::sendNeeded	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Returns true if a PDU needs to be sent, (based on thresholds, etc) false otherwise.

virtual DtEntityStatePdu* DtEntityStateEncoder::stateMsg	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

virtual

Constructs a PDU from the state repository.

stateMsg determines whether an Entity State PDU needs to be sent and constructs one of it does.

Returns: PDU if send is needed, and NULL if not

virtual bool DtEntityStateEncoder::variableDatumNeedsUpdating	(	const DtEntityStateRepository &	stateRep,
		const DtEntityStateRepository &	asSeenByRemote
	)

protectedvirtual

Returns true if the DIS 7 Variable Datum is out of date, false otherwise.

Member Data Documentation

DtEntityStatePdu DtEntityStateEncoder::myEsPdu

protected

bool DtEntityStateEncoder::myFilloutMakAttributeRecords

protected

bool DtEntityStateEncoder::myFilloutNetnAttributeRecords

protected

The documentation for this class was generated from the following file:

entityStateEncoder.h
