DtIffAtcNavaidsModeSTransponder Class Reference

DtIffAtcNavaidsModeSTransponder is a class which contains layer of the IFF/ATC/NAVAIDS PDU. More...

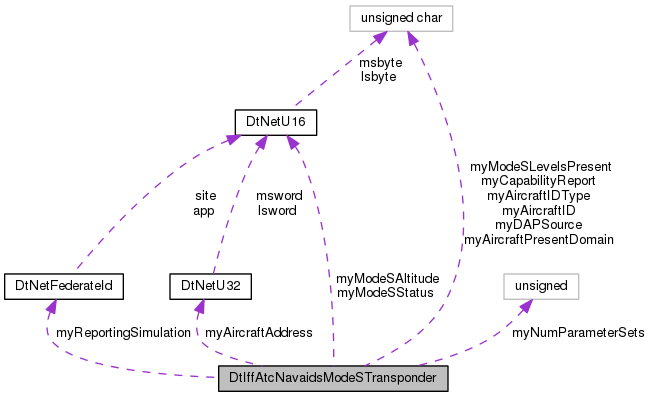

Collaboration diagram for DtIffAtcNavaidsModeSTransponder:

Public Member Functions
	DtIffAtcNavaidsModeSTransponder ()
	Constructors. More...
	DtIffAtcNavaidsModeSTransponder (const DtIffAtcNavaidsModeSTransponder &orig)
DtIffAtcNavaidsModeSTransponder &	operator= (const DtIffAtcNavaidsModeSTransponder &orig)
	Assignment operators. More...
DtIffAtcNavaidsModeSTransponder &	operator= (const DtNetIffAtcNavaidsPduLayer4Transponder &orig)
virtual	~DtIffAtcNavaidsModeSTransponder ()
	Destructor. More...
virtual void	setReportingSimulation (DtSimulationAddress value)
	Set/Get reportingSimulation. More...
virtual DtSimulationAddress	reportingSimulation () const
virtual void	setModeSStatus (DtNetU16 value)
	Set/Get ModeSStatus. More...
virtual DtNetU16	modeSStatus () const
virtual void	setModeSStatusBit (DtIffAtcNavaidsModeSTransponderStatus bit, bool value)
virtual bool	modeSStatusBit (DtIffAtcNavaidsModeSTransponderStatus bit) const
virtual void	setModeSLevelsPresent (DtIffAtcNavaidsModeSLevelsPresent value)
	Set/Get ModeSLevelsPresent. More...
virtual DtIffAtcNavaidsModeSLevelsPresent	modeSLevelsPresent () const
virtual void	setAircraftPresentDomain (DtIffAtcNavaidsAircraftPresentDomain value)
	Set/Get AircraftPresentDomain. More...
virtual DtIffAtcNavaidsAircraftPresentDomain	aircraftPresentDomain () const
virtual void	setAircraftID (const DtU8 *value)
	Set/Get AircraftID.. Value needs to be an array of size 8. More...
virtual const DtU8 *	aircraftID () const
virtual void	setAircraftAddress (DtU32 value)
	Set/Get AircraftAddress. More...
virtual DtU32	aircraftAddress () const
virtual void	setAircraftIDType (DtIffAtcNavaidsAircraftIdentificationType value)
	Set/Get AircraftIDType. More...
virtual DtIffAtcNavaidsAircraftIdentificationType	aircraftIDType () const
virtual void	setDAPSource (DtIffAtcNavaidsDAPSource value)
	Set/Get DAPSournce. More...
virtual DtIffAtcNavaidsDAPSource	dapSource () const
virtual void	setModeSAltitude (DtU16 value)
	Set/Get ModeSAltitude. More...
virtual DtU16	modeSAltitude () const
virtual void	setCapabilityReport (DtIffAtcNavaidsCapabilityReport value)
	Set/Get CapabilityReport. More...
virtual DtIffAtcNavaidsCapabilityReport	capabilityReport () const
virtual void	setNumParameterSets (DtU16)
	Get the number of parameter sets. More...
virtual DtU16	numParameterSets () const
virtual void	print () const
	Print the information contained in the record. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print the information to a stream. More...
virtual void	unloadNetRecord (const DtNetIffAtcNavaidsPduLayer4Transponder &record)
	Load/Unload data from a packet record. More...
virtual void	loadNetRecord (DtNetIffAtcNavaidsPduLayer4Transponder &record) const

Protected Attributes
DtNetFederateId	myReportingSimulation
	Data members: More...
DtNetU16	myModeSStatus
DtNetU8	myModeSLevelsPresent
DtNetU8	myAircraftPresentDomain
DtNetU8	myAircraftID [8]
DtNetU32	myAircraftAddress
DtNetU8	myAircraftIDType
DtNetU8	myDAPSource
DtNetU16	myModeSAltitude
DtNetU8	myCapabilityReport
DtU16	myNumParameterSets

Detailed Description

DtIffAtcNavaidsModeSTransponder is a class which contains layer of the IFF/ATC/NAVAIDS PDU.

Constructor & Destructor Documentation

DtIffAtcNavaidsModeSTransponder::DtIffAtcNavaidsModeSTransponder

(

)

Constructors.

DtIffAtcNavaidsModeSTransponder::DtIffAtcNavaidsModeSTransponder

(

const DtIffAtcNavaidsModeSTransponder &

orig

)

virtual DtIffAtcNavaidsModeSTransponder::~DtIffAtcNavaidsModeSTransponder ( )

virtual

Destructor.

Member Function Documentation

virtual DtU32 DtIffAtcNavaidsModeSTransponder::aircraftAddress ( ) const

virtual

virtual const DtU8* DtIffAtcNavaidsModeSTransponder::aircraftID ( ) const

virtual

virtual DtIffAtcNavaidsAircraftIdentificationType DtIffAtcNavaidsModeSTransponder::aircraftIDType ( ) const

virtual

virtual DtIffAtcNavaidsAircraftPresentDomain DtIffAtcNavaidsModeSTransponder::aircraftPresentDomain ( ) const

virtual

virtual DtIffAtcNavaidsCapabilityReport DtIffAtcNavaidsModeSTransponder::capabilityReport ( ) const

virtual

virtual DtIffAtcNavaidsDAPSource DtIffAtcNavaidsModeSTransponder::dapSource ( ) const

virtual

virtual void DtIffAtcNavaidsModeSTransponder::loadNetRecord ( DtNetIffAtcNavaidsPduLayer4Transponder &  record ) const

virtual

virtual DtU16 DtIffAtcNavaidsModeSTransponder::modeSAltitude ( ) const

virtual

virtual DtIffAtcNavaidsModeSLevelsPresent DtIffAtcNavaidsModeSTransponder::modeSLevelsPresent ( ) const

virtual

virtual DtNetU16 DtIffAtcNavaidsModeSTransponder::modeSStatus ( ) const

virtual

virtual bool DtIffAtcNavaidsModeSTransponder::modeSStatusBit ( DtIffAtcNavaidsModeSTransponderStatus  bit ) const

virtual

virtual DtU16 DtIffAtcNavaidsModeSTransponder::numParameterSets ( ) const

virtual

DtIffAtcNavaidsModeSTransponder& DtIffAtcNavaidsModeSTransponder::operator=

(

const DtIffAtcNavaidsModeSTransponder &

orig

)

Assignment operators.

DtIffAtcNavaidsModeSTransponder& DtIffAtcNavaidsModeSTransponder::operator=

(

const DtNetIffAtcNavaidsPduLayer4Transponder &

orig

)

virtual void DtIffAtcNavaidsModeSTransponder::print ( ) const

virtual

Print the information contained in the record.

virtual void DtIffAtcNavaidsModeSTransponder::printDataToStream ( std::ostream &  stream ) const

virtual

Print the information to a stream.

virtual DtSimulationAddress DtIffAtcNavaidsModeSTransponder::reportingSimulation ( ) const

virtual

virtual void DtIffAtcNavaidsModeSTransponder::setAircraftAddress ( DtU32  value )

virtual

Set/Get AircraftAddress.

virtual void DtIffAtcNavaidsModeSTransponder::setAircraftID ( const DtU8 *  value )

virtual

Set/Get AircraftID.. Value needs to be an array of size 8.

virtual void DtIffAtcNavaidsModeSTransponder::setAircraftIDType ( DtIffAtcNavaidsAircraftIdentificationType  value )

virtual

Set/Get AircraftIDType.

virtual void DtIffAtcNavaidsModeSTransponder::setAircraftPresentDomain ( DtIffAtcNavaidsAircraftPresentDomain  value )

virtual

Set/Get AircraftPresentDomain.

virtual void DtIffAtcNavaidsModeSTransponder::setCapabilityReport ( DtIffAtcNavaidsCapabilityReport  value )

virtual

Set/Get CapabilityReport.

virtual void DtIffAtcNavaidsModeSTransponder::setDAPSource ( DtIffAtcNavaidsDAPSource  value )

virtual

Set/Get DAPSournce.

virtual void DtIffAtcNavaidsModeSTransponder::setModeSAltitude ( DtU16  value )

virtual

Set/Get ModeSAltitude.

virtual void DtIffAtcNavaidsModeSTransponder::setModeSLevelsPresent ( DtIffAtcNavaidsModeSLevelsPresent  value )

virtual

Set/Get ModeSLevelsPresent.

virtual void DtIffAtcNavaidsModeSTransponder::setModeSStatus ( DtNetU16  value )

virtual

Set/Get ModeSStatus.

virtual void DtIffAtcNavaidsModeSTransponder::setModeSStatusBit ( DtIffAtcNavaidsModeSTransponderStatus  bit, bool  value  )

virtual

virtual void DtIffAtcNavaidsModeSTransponder::setNumParameterSets ( DtU16  )

virtual

Get the number of parameter sets.

virtual void DtIffAtcNavaidsModeSTransponder::setReportingSimulation ( DtSimulationAddress  value )

virtual

Set/Get reportingSimulation.

virtual void DtIffAtcNavaidsModeSTransponder::unloadNetRecord ( const DtNetIffAtcNavaidsPduLayer4Transponder &  record )

virtual

Load/Unload data from a packet record.

Member Data Documentation

DtNetU32 DtIffAtcNavaidsModeSTransponder::myAircraftAddress

protected

DtNetU8 DtIffAtcNavaidsModeSTransponder::myAircraftID[8]

protected

DtNetU8 DtIffAtcNavaidsModeSTransponder::myAircraftIDType

protected

DtNetU8 DtIffAtcNavaidsModeSTransponder::myAircraftPresentDomain

protected

DtNetU8 DtIffAtcNavaidsModeSTransponder::myCapabilityReport

protected

DtNetU8 DtIffAtcNavaidsModeSTransponder::myDAPSource

protected

DtNetU16 DtIffAtcNavaidsModeSTransponder::myModeSAltitude

protected

DtNetU8 DtIffAtcNavaidsModeSTransponder::myModeSLevelsPresent

protected

DtNetU16 DtIffAtcNavaidsModeSTransponder::myModeSStatus

protected

DtU16 DtIffAtcNavaidsModeSTransponder::myNumParameterSets

protected

DtNetFederateId DtIffAtcNavaidsModeSTransponder::myReportingSimulation

protected

Data members:

---

The documentation for this class was generated from the following file:

• iffAtcNavaidsModeSTransponder.h
