DtModeSStateRepository Class Reference

Instances of DtModeSStateRepository are used to store state data for IFFData.ModeS objects. More...

Inheritance diagram for DtModeSStateRepository:

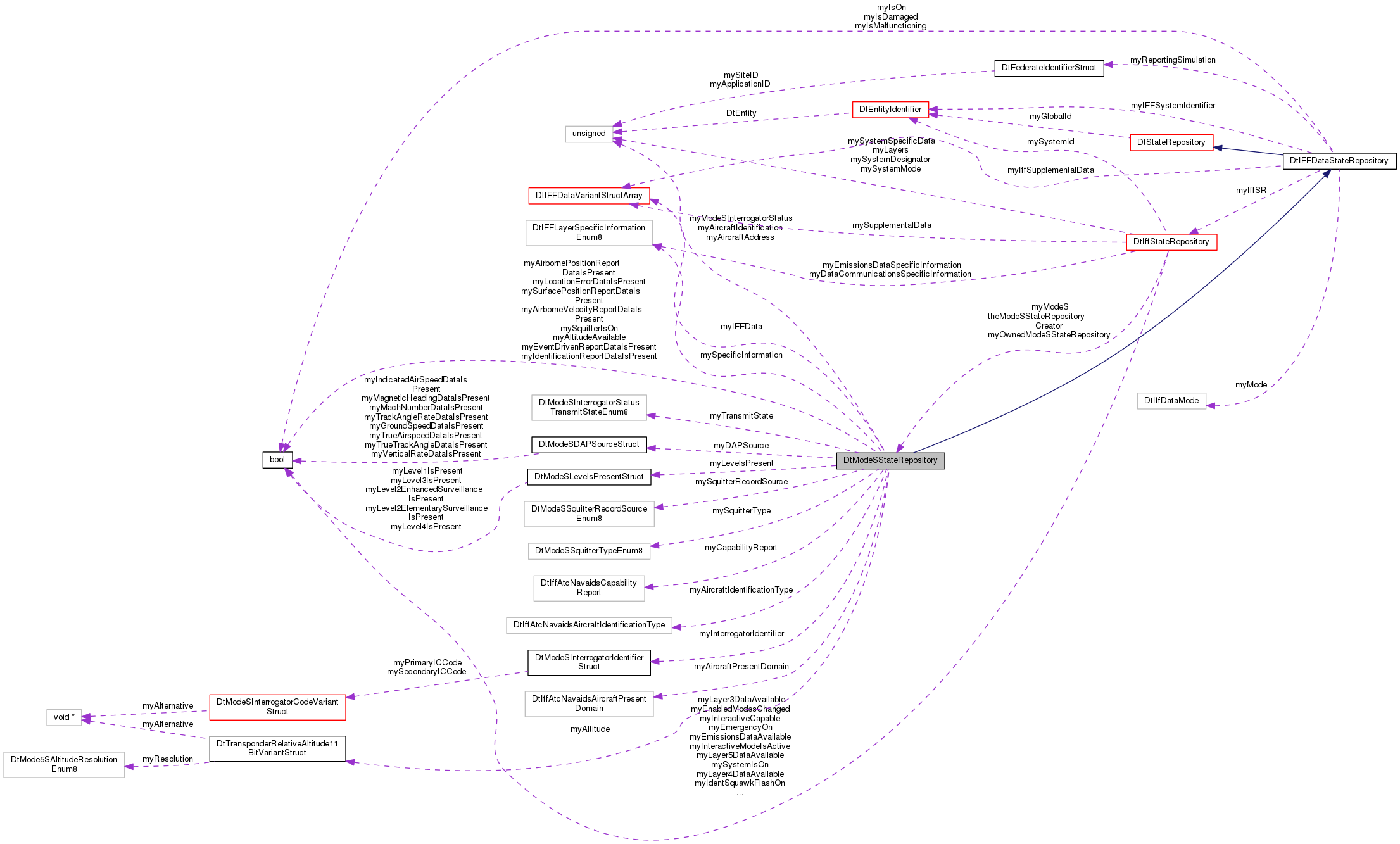

Collaboration diagram for DtModeSStateRepository:

Public Member Functions
	DtModeSStateRepository ()
	Constructor. More...
virtual	~DtModeSStateRepository ()
	Destructor. More...
	DtModeSStateRepository (const DtModeSStateRepository &orig)
	Copy Constructor. More...
DtModeSStateRepository &	operator= (const DtModeSStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setSpecificInformation (const DtIFFLayerSpecificInformationEnum8 &val)
	Set the SpecificInformation. More...
virtual const DtIFFLayerSpecificInformationEnum8 &	specificInformation () const
	Get the SpecificInformation. More...
virtual void	setLevelsPresent (const DtModeSLevelsPresentStruct &val)
	Set the LevelsPresent. More...
virtual void	setLevelsPresent (std::vector< DtIffAtcNavaidsModeSLevelsPresent > val)
	Set LevelsPresent Convenience function. More...
virtual const DtModeSLevelsPresentStruct &	levelsPresent () const
	Get the LevelsPresent. More...
virtual void	setModeSLevelsPresent (const DtU8 val)
	Get/Set ModeSLevelsPresent used by DIS Encoder/Decoder. More...
virtual const DtIffAtcNavaidsModeSLevelsPresent	modeSLevelsPresent () const
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	//DIS Layer 4 More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFData. More...
ModeS Transponder-Specific Attributes
virtual void	setAircraftAddress (DtU32 val)
	Set the AircraftAddress. More...
virtual DtU32	aircraftAddress () const
	Get the AircraftAddress. More...
virtual void	setAircraftIdentificationType (const DtIffAtcNavaidsAircraftIdentificationType &val)
	Set the AircraftIdentificationType. More...
virtual const DtIffAtcNavaidsAircraftIdentificationType &	aircraftIdentificationType () const
	Get the AircraftIdentificationType. More...
virtual void	setAircraftIdentification (const DtU8 *val)
	Set the AircraftIdentification. More...
virtual const DtU8 *	aircraftIdentification () const
	Get the AircraftIdentification. More...
virtual void	setSquitterIsOn (bool val)
	Set the SquitterIsOn. More...
virtual bool	squitterIsOn () const
	Get the SquitterIsOn. More...
virtual void	setSquitterType (const DtModeSSquitterTypeEnum8 &val)
	Set the SquitterType. More...
virtual const DtModeSSquitterTypeEnum8 &	squitterType () const
	Get the SquitterType. More...
virtual void	setCapabilityReport (const DtIffAtcNavaidsCapabilityReport &val)
	Set the CapabilityReport. More...
virtual const DtIffAtcNavaidsCapabilityReport &	capabilityReport () const
	Get the CapabilityReport. More...
virtual void	setAircraftPresentDomain (const DtIffAtcNavaidsAircraftPresentDomain &val)
	Set the AircraftPresentDomain. More...
virtual const DtIffAtcNavaidsAircraftPresentDomain &	aircraftPresentDomain () const
	Set the AircraftAddress. More...
virtual void	setAltitudeAvailable (bool val)
	Set the AltitudeAvailable. More...
virtual bool	altitudeAvailable () const
	Get the AltitudeAvailable. More...
virtual void	setAltitude (const DtTransponderRelativeAltitude11BitVariantStruct &val)
	Set the Altitude. More...
virtual void	setAltitude (const DtU16 value)
	Set Altitude. More...
virtual void	setAltitude (const DtU16 altitude, const DtMode5SAltitudeResolutionEnum8 &resolution)
	Set the Altitude. More...
virtual const DtTransponderRelativeAltitude11BitVariantStruct &	altitude () const
	Get the Altitude. More...
virtual const DtU16	modeSAltitude () const
	Get the Altitude for DIS PDU. More...
virtual void	setSquitterRecordSource (const DtModeSSquitterRecordSourceEnum8 &val)
	Set the SquitterRecordSource. More...
virtual const DtModeSSquitterRecordSourceEnum8 &	squitterRecordSource () const
	Get the SquitterRecordSource. More...
virtual void	setAirbornePositionReportDataIsPresent (bool val)
	Set the AirbornePositionReportDataIsPresent. More...
virtual bool	airbornePositionReportDataIsPresent () const
	Get the AirbornePositionReportDataIsPresent. More...
virtual void	setAirborneVelocityReportDataIsPresent (bool val)
	Set the AirborneVelocityReportDataIsPresent. More...
virtual bool	airborneVelocityReportDataIsPresent () const
	Get the AirborneVelocityReportDataIsPresent. More...
virtual void	setSurfacePositionReportDataIsPresent (bool val)
	Set the SurfacePositionReportDataIsPresent. More...
virtual bool	surfacePositionReportDataIsPresent () const
	Get the SurfacePositionReportDataIsPresent. More...
virtual void	setIdentificationReportDataIsPresent (bool val)
	Set the IdentificationReportDataIsPresent. More...
virtual bool	identificationReportDataIsPresent () const
	Get the IdentificationReportDataIsPresent. More...
virtual void	setEventDrivenReportDataIsPresent (bool val)
	Set the EventDrivenReportDataIsPresent. More...
virtual bool	eventDrivenReportDataIsPresent () const
	Get the EventDrivenReportDataIsPresent. More...
virtual void	setDAPSource (const DtModeSDAPSourceStruct &val)
	Set the DAPSource. More...
virtual void	setDAPSource (std::vector< DtIffAtcNavaidsDAPSource > dapSource)
	Set DAPSource Convenience function. More...
virtual const DtModeSDAPSourceStruct &	dapSource () const
	Get the DAPSource. More...
virtual void	setModeSDapSource (const DtU8 value)
	Set/Get DAPSource. Used by DIS Encoder/Decoders. More...
virtual const DtIffAtcNavaidsDAPSource	modeSDapSource () const
	Set the AircraftAddress. More...
virtual void	setLocationErrorDataIsPresent (bool val)
	Set the LocationErrorDataIsPresent. More...
virtual bool	locationErrorDataIsPresent () const
	Get the EventDrivenReportDataIsPresent. More...
ModeS Interrogator-Specific Attributes
Set the InterrogatorIdentifier Parameters val Mode S Interrogator Code (IC) information
virtual void	setInterrogatorIdentifier (const DtModeSInterrogatorIdentifierStruct &val)
	Get the InterrogatorIdentifier. More...
virtual const DtModeSInterrogatorIdentifierStruct &	interrogatorIdentifier () const
	Get the InterrogatorIdentifier. More...
virtual void	setTransmitState (const DtModeSInterrogatorStatusTransmitStateEnum8 &val)
	Set the TransmitState. More...
virtual const DtModeSInterrogatorStatusTransmitStateEnum8 &	transmitState () const
	Get the TransmitState. More...
DIS Layer 4 Transponder Attributes (Mode S)
Only used by Layer 4 (Mode S) Transponder Sets/Gets the 16-bit Mode S Transponder Status Record which contains much of the Mode S information These include: Squitter Status, Squitter Type, Squitter Record Source, Airborne Position Report Indicator, Airborne Velocity Report Indicator, Surface Position Report Indicator, Identification Report Indicator, Evnet-Driven Report Indicator, On/Off Status, Damage Status, and Malfunction Status
virtual void	setModeSTransponderStatus (DtU16 b)
virtual DtU16	modeSTransponderStatus () const
DIS Layer 4 Interrogator Attributes (Mode S)
Only used by Layer 4 (Mode S) Interrogator
virtual void	setModeSInterrogatorStatus (DtU8 b)
virtual DtU8	modeSInterrogatorStatus () const
virtual void	setModeSTransponderStatusBit (DtIffAtcNavaidsModeSTransponderStatus bit, bool value)
virtual bool	modeSTransponderStatusBit (DtIffAtcNavaidsModeSTransponderStatus bit)
virtual void	setModeSInterrogatorStatusBit (DtIffAtcNavaidsModeSInterrogatorStatus bit, bool value)
virtual bool	modeSInterrogatorStatusBit (DtIffAtcNavaidsModeSInterrogatorStatus bit) const
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtModeSStateRepository *	create ()
	Create a DtModeSStateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtIFFLayerSpecificInformationEnum8	mySpecificInformation
DtModeSLevelsPresentStruct	myLevelsPresent
DtIFFDataVariantStructArray	myIFFData
DtModeSInterrogatorIdentifierStruct	myInterrogatorIdentifier
DtModeSInterrogatorStatusTransmitStateEnum8	myTransmitState
DtU32	myAircraftAddress
DtIffAtcNavaidsAircraftIdentificationType	myAircraftIdentificationType
DtU8	myAircraftIdentification [8]
bool	mySquitterIsOn
DtModeSSquitterTypeEnum8	mySquitterType
DtIffAtcNavaidsCapabilityReport	myCapabilityReport
DtIffAtcNavaidsAircraftPresentDomain	myAircraftPresentDomain
bool	myAltitudeAvailable
DtTransponderRelativeAltitude11BitVariantStruct	myAltitude
DtModeSSquitterRecordSourceEnum8	mySquitterRecordSource
bool	myAirbornePositionReportDataIsPresent
bool	myAirborneVelocityReportDataIsPresent
bool	mySurfacePositionReportDataIsPresent
bool	myIdentificationReportDataIsPresent
bool	myEventDrivenReportDataIsPresent
DtModeSDAPSourceStruct	myDAPSource
bool	myLocationErrorDataIsPresent
DtU8	myModeSInterrogatorStatus
	Layer 4 (Mode S) Transponder. More...
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtModeSStateRepository are used to store state data for IFFData.ModeS objects.

Constructor & Destructor Documentation

DtModeSStateRepository::DtModeSStateRepository

(

)

Constructor.

virtual DtModeSStateRepository::~DtModeSStateRepository ( )

virtual

Destructor.

DtModeSStateRepository::DtModeSStateRepository

(

const DtModeSStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual bool DtModeSStateRepository::airbornePositionReportDataIsPresent ( ) const

virtual

Get the AirbornePositionReportDataIsPresent.

virtual bool DtModeSStateRepository::airborneVelocityReportDataIsPresent ( ) const

virtual

Get the AirborneVelocityReportDataIsPresent.

virtual DtU32 DtModeSStateRepository::aircraftAddress ( ) const

virtual

Get the AircraftAddress.

virtual const DtU8* DtModeSStateRepository::aircraftIdentification ( ) const

virtual

Get the AircraftIdentification.

virtual const DtIffAtcNavaidsAircraftIdentificationType& DtModeSStateRepository::aircraftIdentificationType ( ) const

virtual

Get the AircraftIdentificationType.

virtual const DtIffAtcNavaidsAircraftPresentDomain& DtModeSStateRepository::aircraftPresentDomain ( ) const

virtual

Set the AircraftAddress.

Parameters

val	A unique ICAO Mode S Aircraft Address

virtual const DtTransponderRelativeAltitude11BitVariantStruct& DtModeSStateRepository::altitude ( ) const

virtual

Get the Altitude.

virtual bool DtModeSStateRepository::altitudeAvailable ( ) const

virtual

Get the AltitudeAvailable.

virtual const DtIffAtcNavaidsCapabilityReport& DtModeSStateRepository::capabilityReport ( ) const

virtual

Get the CapabilityReport.

virtual DtStateRepository* DtModeSStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

static DtModeSStateRepository* DtModeSStateRepository::create ( )

static

Create a DtModeSStateRepository.

virtual const DtModeSDAPSourceStruct& DtModeSStateRepository::dapSource ( ) const

virtual

Get the DAPSource.

virtual bool DtModeSStateRepository::eventDrivenReportDataIsPresent ( ) const

virtual

Get the EventDrivenReportDataIsPresent.

virtual bool DtModeSStateRepository::identificationReportDataIsPresent ( ) const

virtual

Get the IdentificationReportDataIsPresent.

virtual const DtIFFDataVariantStructArray& DtModeSStateRepository::IFFData ( ) const

virtual

Get the IFFData.

Reimplemented from DtIFFDataStateRepository.

virtual const DtModeSInterrogatorIdentifierStruct& DtModeSStateRepository::interrogatorIdentifier ( ) const

virtual

Get the InterrogatorIdentifier.

virtual const DtModeSLevelsPresentStruct& DtModeSStateRepository::levelsPresent ( ) const

virtual

Get the LevelsPresent.

virtual bool DtModeSStateRepository::locationErrorDataIsPresent ( ) const

virtual

Get the EventDrivenReportDataIsPresent.

virtual const DtU16 DtModeSStateRepository::modeSAltitude ( ) const

virtual

Get the Altitude for DIS PDU.

virtual const DtIffAtcNavaidsDAPSource DtModeSStateRepository::modeSDapSource ( ) const

virtual

Set the AircraftAddress.

Parameters

val	A unique ICAO Mode S Aircraft Address

virtual DtU8 DtModeSStateRepository::modeSInterrogatorStatus ( ) const

virtual

virtual bool DtModeSStateRepository::modeSInterrogatorStatusBit ( DtIffAtcNavaidsModeSInterrogatorStatus  bit ) const

virtual

virtual const DtIffAtcNavaidsModeSLevelsPresent DtModeSStateRepository::modeSLevelsPresent ( ) const

virtual

virtual DtU16 DtModeSStateRepository::modeSTransponderStatus ( ) const

virtual

virtual bool DtModeSStateRepository::modeSTransponderStatusBit ( DtIffAtcNavaidsModeSTransponderStatus  bit )

virtual

DtModeSStateRepository& DtModeSStateRepository::operator=

(

const DtModeSStateRepository &

orig

)

Assignment Operator.

virtual void DtModeSStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtModeSStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtModeSStateRepository::setAirbornePositionReportDataIsPresent ( bool  val )

virtual

Set the AirbornePositionReportDataIsPresent.

Parameters

val	Indicates whether there is a Squitter Airborne Position Report IFF Data record either Present (1) or Not Present (0) in the SupplementalData array attribute

virtual void DtModeSStateRepository::setAirborneVelocityReportDataIsPresent ( bool  val )

virtual

Set the AirborneVelocityReportDataIsPresent.

Parameters

val	Indicates whether there is a Squitter Airborne Velocity Report IFF Data record either Present (1) or Not Present (0) in the SupplementalData array attribute

virtual void DtModeSStateRepository::setAircraftAddress ( DtU32  val )

virtual

Set the AircraftAddress.

Parameters

val	A unique ICAO Mode S Aircraft Address

virtual void DtModeSStateRepository::setAircraftIdentification ( const DtU8 *  val )

virtual

Set the AircraftIdentification.

Parameters

val

The International Civil Aviation Organization (ICAO) flight identity of the aircraft, either the flight ID (i.e., call sign) or the registration number (also referred to as the tail number) of the aircraft. This attribute shall consist of an eight-element American Standard Code for Information Interchange (ASCII) character string consisting of the letters A to Z and the numbers 0 to 9. An aircraft identification may be less than eight characters. This string shall begin with the left-most character located at the lowest index. Unused characters shall be indicated by Null (0) values

virtual void DtModeSStateRepository::setAircraftIdentificationType ( const DtIffAtcNavaidsAircraftIdentificationType &  val )

virtual

Set the AircraftIdentificationType.

Parameters

val	The aircraft identification type

virtual void DtModeSStateRepository::setAircraftPresentDomain ( const DtIffAtcNavaidsAircraftPresentDomain &  val )

virtual

Set the AircraftPresentDomain.

Parameters

val	Indicates the present domain of the aircraft as either No Statement(0), Airborne(1), or On Ground / Surface(2). This field is referred to as Flight Status in ICAO Publications

virtual void DtModeSStateRepository::setAltitude ( const DtTransponderRelativeAltitude11BitVariantStruct &  val )

virtual

Set the Altitude.

Parameters

val	The actual Mode S altitude as determined by the Mode S transponder model, represented as a binary coded altitude referenced to -1000 feet

virtual void DtModeSStateRepository::setAltitude ( const DtU16  value )

virtual

Set Altitude.

DIS Layer 4 Mode S Transponder Altitude record expected as param.

Parameters

value

Indicated by an 11-bit unsigned integer where bits 0-10 set the Mode S Altitude and bit 11 is a 1-bit enumeration denoting the resolution as either 100-foot (0) or 25-foot (1) increments

virtual void DtModeSStateRepository::setAltitude ( const DtU16  altitude, const DtMode5SAltitudeResolutionEnum8 &  resolution  )

virtual

Set the Altitude.

Parameters

altitude	16-bit unsigned integer denoting Mode S Altitude
resolution	Indicates the Mode S altitude resolution as being reported in either 100-foot(0) or 25-foot(1) increments

virtual void DtModeSStateRepository::setAltitudeAvailable ( bool  val )

virtual

Set the AltitudeAvailable.

Parameters

val	Indicates whether the actual Mode S altitude is available in the attribute Altitude or is to be derived from entity truth data

virtual void DtModeSStateRepository::setCapabilityReport ( const DtIffAtcNavaidsCapabilityReport &  val )

virtual

Set the CapabilityReport.

Parameters

val	The Mode S Transponder Capability Report. The numeric values are from Annex 10 to ICAO Vol. IV, para 3.1.2.5.2.2.1, except for No Statement. If no specific capability is indicated, this field shall be set to No Statement (255)

virtual void DtModeSStateRepository::setDAPSource ( const DtModeSDAPSourceStruct &  val )

virtual

Set the DAPSource.

Parameters

val	Indicates whether IFF Data records are present in the SupplementalData array attribute that can be used as the source for Mode S Downlink of Aircraft Parameters (DAP)

virtual void DtModeSStateRepository::setDAPSource ( std::vector< DtIffAtcNavaidsDAPSource >  dapSource )

virtual

Set DAPSource Convenience function.

Parameters

dapSource

Vector of DtIffAtcNavaidsDAPSource enums

virtual void DtModeSStateRepository::setEventDrivenReportDataIsPresent ( bool  val )

virtual

Set the EventDrivenReportDataIsPresent.

Parameters

val	Indicates whether there is a Squitter Event-Driven Report IFF Data record either Present (1) or Not Present (0) in the SupplementalData array attribute

virtual void DtModeSStateRepository::setIdentificationReportDataIsPresent ( bool  val )

virtual

Set the IdentificationReportDataIsPresent.

Parameters

val	Indicates whether there is a Squitter Identification Report IFF Data record either Present (1) or Not Present (0) in the SupplementalData array attribute

virtual void DtModeSStateRepository::setIFFData ( const DtIFFDataVariantStructArray &  val )

virtual

//DIS Layer 4

Set the IFFData

Parameters

val	Mode S IFF Data

Reimplemented from DtIFFDataStateRepository.

virtual void DtModeSStateRepository::setInterrogatorIdentifier ( const DtModeSInterrogatorIdentifierStruct &  val )

virtual

Get the InterrogatorIdentifier.

virtual void DtModeSStateRepository::setLevelsPresent ( const DtModeSLevelsPresentStruct &  val )

virtual

Set the LevelsPresent.

virtual void DtModeSStateRepository::setLevelsPresent ( std::vector< DtIffAtcNavaidsModeSLevelsPresent >  val )

virtual

Set LevelsPresent Convenience function.

Parameters

val	Vector of DtIffAtcNavaidsModeSLevelsPresent enums

virtual void DtModeSStateRepository::setLocationErrorDataIsPresent ( bool  val )

virtual

Set the LocationErrorDataIsPresent.

Parameters

val	Indicates whether there are location errors associated with Mode S latitude, longitude, or altitude present in a Transponder Location Error IFF Data record in the SupplementalData array attribute (1), or No Location Errors are provided (0)

virtual void DtModeSStateRepository::setModeSDapSource ( const DtU8  value )

virtual

Set/Get DAPSource. Used by DIS Encoder/Decoders.

virtual void DtModeSStateRepository::setModeSInterrogatorStatus ( DtU8  b )

virtual

virtual void DtModeSStateRepository::setModeSInterrogatorStatusBit ( DtIffAtcNavaidsModeSInterrogatorStatus  bit, bool  value  )

virtual

virtual void DtModeSStateRepository::setModeSLevelsPresent ( const DtU8  val )

virtual

Get/Set ModeSLevelsPresent used by DIS Encoder/Decoder.

virtual void DtModeSStateRepository::setModeSTransponderStatus ( DtU16  b )

virtual

virtual void DtModeSStateRepository::setModeSTransponderStatusBit ( DtIffAtcNavaidsModeSTransponderStatus  bit, bool  value  )

virtual

virtual void DtModeSStateRepository::setSpecificInformation ( const DtIFFLayerSpecificInformationEnum8 &  val )

virtual

Set the SpecificInformation.

virtual void DtModeSStateRepository::setSquitterIsOn ( bool  val )

virtual

Set the SquitterIsOn.

Parameters

val	Indicates whether the squitter is On (1) or Off (0)

virtual void DtModeSStateRepository::setSquitterRecordSource ( const DtModeSSquitterRecordSourceEnum8 &  val )

virtual

Set the SquitterRecordSource.

Parameters

val	Indicates whether the squitter records are only present as (layer 4) Squitter Report IFF Data records (0) or are also included as (layer 5) GICB IFF Data records in the SupplementalData array attribute (1)

virtual void DtModeSStateRepository::setSquitterType ( const DtModeSSquitterTypeEnum8 &  val )

virtual

Set the SquitterType.

Parameters

val	Indicates the type of Mode S squitter

virtual void DtModeSStateRepository::setSurfacePositionReportDataIsPresent ( bool  val )

virtual

Set the SurfacePositionReportDataIsPresent.

Parameters

val	Indicates whether there is a Squitter Surface Position Report IFF Data record either Present (1) or Not Present (0) in the SupplementalData array attribute

virtual void DtModeSStateRepository::setTransmitState ( const DtModeSInterrogatorStatusTransmitStateEnum8 &  val )

virtual

Set the TransmitState.

Parameters

val	The state of the Mode S interrogator. This field shall be set to No Statement (0) when the Mode S interrogator simulation is operating in the Regeneration Mode. It may be set to other values if operating in the Interactive Mode

virtual const DtIFFLayerSpecificInformationEnum8& DtModeSStateRepository::specificInformation ( ) const

virtual

Get the SpecificInformation.

virtual bool DtModeSStateRepository::squitterIsOn ( ) const

virtual

Get the SquitterIsOn.

virtual const DtModeSSquitterRecordSourceEnum8& DtModeSStateRepository::squitterRecordSource ( ) const

virtual

Get the SquitterRecordSource.

virtual const DtModeSSquitterTypeEnum8& DtModeSStateRepository::squitterType ( ) const

virtual

Get the SquitterType.

virtual bool DtModeSStateRepository::surfacePositionReportDataIsPresent ( ) const

virtual

Get the SurfacePositionReportDataIsPresent.

virtual const DtModeSInterrogatorStatusTransmitStateEnum8& DtModeSStateRepository::transmitState ( ) const

virtual

Get the TransmitState.

Member Data Documentation

bool DtModeSStateRepository::myAirbornePositionReportDataIsPresent

protected

bool DtModeSStateRepository::myAirborneVelocityReportDataIsPresent

protected

DtU32 DtModeSStateRepository::myAircraftAddress

protected

DtU8 DtModeSStateRepository::myAircraftIdentification[8]

protected

DtIffAtcNavaidsAircraftIdentificationType DtModeSStateRepository::myAircraftIdentificationType

protected

DtIffAtcNavaidsAircraftPresentDomain DtModeSStateRepository::myAircraftPresentDomain

protected

DtTransponderRelativeAltitude11BitVariantStruct DtModeSStateRepository::myAltitude

protected

bool DtModeSStateRepository::myAltitudeAvailable

protected

DtIffAtcNavaidsCapabilityReport DtModeSStateRepository::myCapabilityReport

protected

DtModeSDAPSourceStruct DtModeSStateRepository::myDAPSource

protected

bool DtModeSStateRepository::myEventDrivenReportDataIsPresent

protected

bool DtModeSStateRepository::myIdentificationReportDataIsPresent

protected

DtIFFDataVariantStructArray DtModeSStateRepository::myIFFData

protected

DtModeSInterrogatorIdentifierStruct DtModeSStateRepository::myInterrogatorIdentifier

protected

DtModeSLevelsPresentStruct DtModeSStateRepository::myLevelsPresent

protected

bool DtModeSStateRepository::myLocationErrorDataIsPresent

protected

DtU8 DtModeSStateRepository::myModeSInterrogatorStatus

protected

Layer 4 (Mode S) Transponder.

Layer 4 (Mode S) Interrogator

DtIFFLayerSpecificInformationEnum8 DtModeSStateRepository::mySpecificInformation

protected

bool DtModeSStateRepository::mySquitterIsOn

protected

DtModeSSquitterRecordSourceEnum8 DtModeSStateRepository::mySquitterRecordSource

protected

DtModeSSquitterTypeEnum8 DtModeSStateRepository::mySquitterType

protected

bool DtModeSStateRepository::mySurfacePositionReportDataIsPresent

protected

DtModeSInterrogatorStatusTransmitStateEnum8 DtModeSStateRepository::myTransmitState

protected

---

The documentation for this class was generated from the following file:

• iffModeSStateRepository.h
