DtPduCallbackManager Class Reference

class DtPduCallbackManager: More...

Inheritance diagram for DtPduCallbackManager:

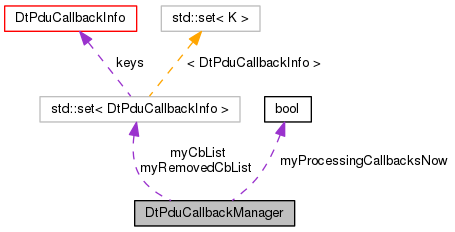

Collaboration diagram for DtPduCallbackManager:

Public Member Functions
	DtPduCallbackManager ()
	default constructor More...
virtual	~DtPduCallbackManager ()
	destructor More...
	DtPduCallbackManager (const DtPduCallbackManager &orig)
	copy constructor More...
DtPduCallbackManager &	operator= (const DtPduCallbackManager &orig)
	assignment operator More...
virtual void	addPduCallback (DtPduKind k, DtPduCallbackFcn fcn, void *usr)
	Add/Remove a function to be called when a particular PDU kind is received. More...
virtual void	removePduCallback (DtPduKind k, DtPduCallbackFcn fcn, void *usr)
virtual void	processPdu (const DtPdu &pdu)
	Call the callbacks registered for the PDU's kind. More...
virtual int	numCallbacks (DtPduKind k) const
	Get the number of callbacks registered for the PDU kind. More...

Protected Member Functions
virtual void	addPduCallback (DtPduKind k, DtPduCallbackInfo *info)
	Add/Remove callback info for a particular PDU kind. More...
virtual void	removePduCallback (DtPduKind k, const DtPduCallbackInfo &info)
void	emptyList ()
	Empty the list. More...
void	copyList (const DtPduCallbackManager &orig)
	Copy the list. More...

Protected Attributes
bool	myProcessingCallbacksNow [DtMAX_PDU_KINDS]
std::set< DtPduCallbackInfo >	myCbList [DtMAX_PDU_KINDS]
std::set< DtPduCallbackInfo >	myRemovedCbList [DtMAX_PDU_KINDS]

Detailed Description

class DtPduCallbackManager:

Instances of DtPduCallbackManager are used to manage callbacks on the PDU kinds for the exercise connection.

Constructor & Destructor Documentation

DtPduCallbackManager::DtPduCallbackManager

(

)

default constructor

virtual DtPduCallbackManager::~DtPduCallbackManager ( )

virtual

destructor

DtPduCallbackManager::DtPduCallbackManager

(

const DtPduCallbackManager &

orig

)

copy constructor

Member Function Documentation

virtual void DtPduCallbackManager::addPduCallback ( DtPduKind  k, DtPduCallbackFcn  fcn, void *  usr  )

virtual

Add/Remove a function to be called when a particular PDU kind is received.

virtual void DtPduCallbackManager::addPduCallback ( DtPduKind  k, DtPduCallbackInfo *  info  )

protectedvirtual

Add/Remove callback info for a particular PDU kind.

void DtPduCallbackManager::copyList ( const DtPduCallbackManager &  orig )

protected

Copy the list.

Non-virtual, since called in ctor.

void DtPduCallbackManager::emptyList ( )

protected

Empty the list.

Non-virtual, since called in dtor.

virtual int DtPduCallbackManager::numCallbacks ( DtPduKind  k ) const

virtual

Get the number of callbacks registered for the PDU kind.

DtPduCallbackManager& DtPduCallbackManager::operator=

(

const DtPduCallbackManager &

orig

)

assignment operator

virtual void DtPduCallbackManager::processPdu ( const DtPdu &  pdu )

virtual

Call the callbacks registered for the PDU's kind.

Reimplemented in DtIffPduCallbackManager.

virtual void DtPduCallbackManager::removePduCallback ( DtPduKind  k, DtPduCallbackFcn  fcn, void *  usr  )

virtual

virtual void DtPduCallbackManager::removePduCallback ( DtPduKind  k, const DtPduCallbackInfo &  info  )

protectedvirtual

Member Data Documentation

std::set<DtPduCallbackInfo> DtPduCallbackManager::myCbList[DtMAX_PDU_KINDS]

protected

bool DtPduCallbackManager::myProcessingCallbacksNow[DtMAX_PDU_KINDS]

protected

std::set<DtPduCallbackInfo> DtPduCallbackManager::myRemovedCbList[DtMAX_PDU_KINDS]

protected

---

The documentation for this class was generated from the following file:

• pduCallbackManager.h
