DtPduDecoderFactory Class Reference

Instances of DtPduDecoderFactory are used to create Decoders which know how to encode a state repository (or host representation) into a DIS Pdu (or network representation). More...

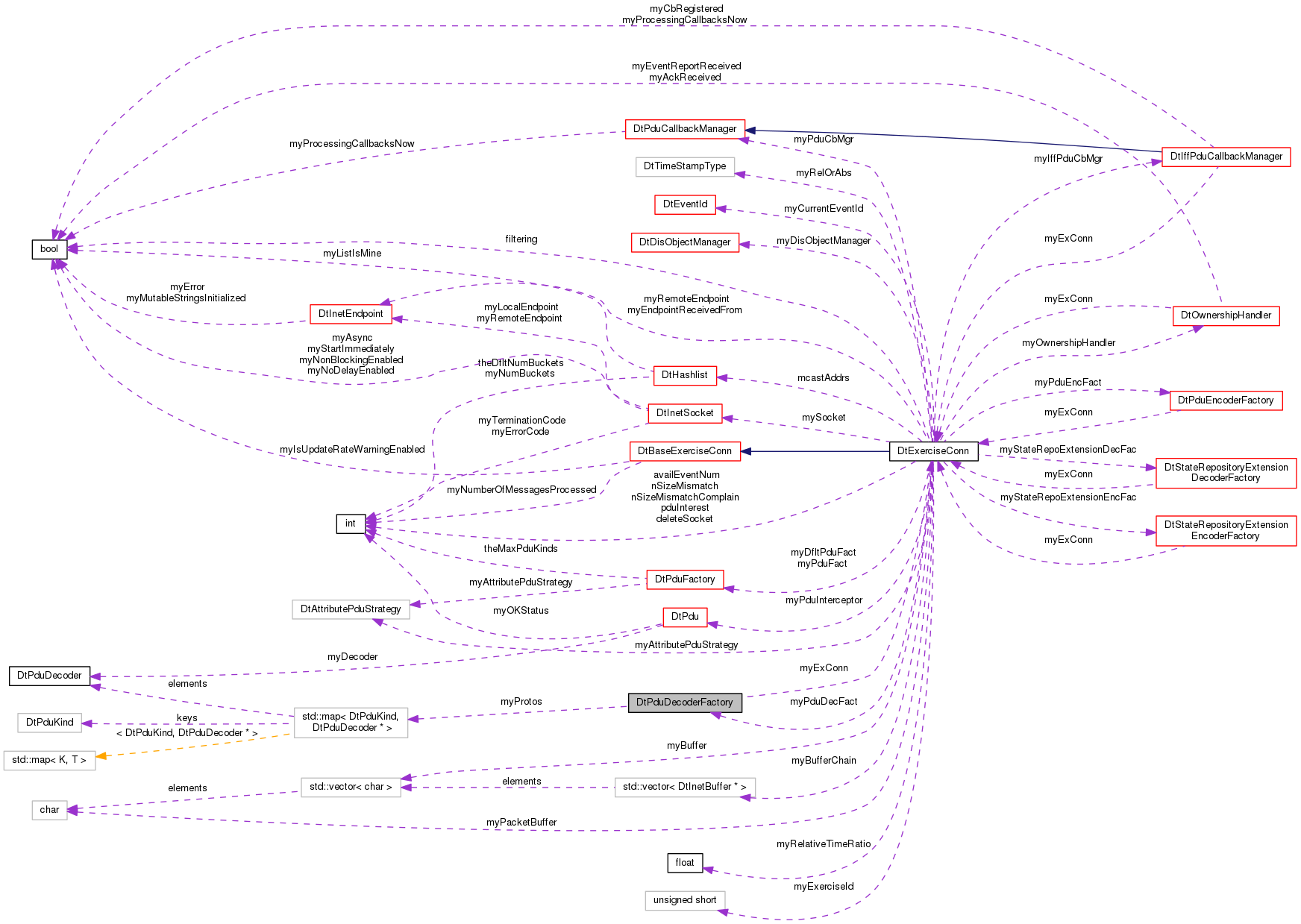

Collaboration diagram for DtPduDecoderFactory:

Public Member Functions
	DtPduDecoderFactory (DtExerciseConn *exConn)
	constructor More...
virtual	~DtPduDecoderFactory ()
	destructor More...
virtual void	initialize ()
virtual DtPduDecoder *	createDecoder (DtPduKind kind)
	Create an Decoder for the specified object class. More...
virtual DtPduDecoder *	addDecoder (DtPduKind kind, DtPduDecoder *Decoder)
	Add a Decoder prototype to the factory. More...
virtual void	clearDecoder (DtPduKind kind)
	remove this specific decoder from the factory. More...
virtual DtPduDecoder *	decoder (DtPduKind kind)
	Returns the Decoder prototype associated with handle by a previous call to addDecoder. More...

Protected Types
typedef std::map< DtPduKind, DtPduDecoder * >	PduToDecoderMap

Protected Attributes
PduToDecoderMap	myProtos
DtExerciseConn *	myExConn

Private Member Functions
	DtPduDecoderFactory (const DtPduDecoderFactory &orig)
	copy constructor - not implemented. More...
DtPduDecoderFactory &	operator= (const DtPduDecoderFactory &orig)
	assignment operator - not implemented. More...

Detailed Description

Instances of DtPduDecoderFactory are used to create Decoders which know how to encode a state repository (or host representation) into a DIS Pdu (or network representation).

Member Typedef Documentation

typedef std::map<DtPduKind, DtPduDecoder*> DtPduDecoderFactory::PduToDecoderMap

protected

Constructor & Destructor Documentation

DtPduDecoderFactory::DtPduDecoderFactory

(

DtExerciseConn *

exConn

)

constructor

virtual DtPduDecoderFactory::~DtPduDecoderFactory ( )

virtual

destructor

DtPduDecoderFactory::DtPduDecoderFactory ( const DtPduDecoderFactory &  orig )

private

copy constructor - not implemented.

Member Function Documentation

virtual DtPduDecoder* DtPduDecoderFactory::addDecoder ( DtPduKind  kind, DtPduDecoder *  Decoder  )

virtual

Add a Decoder prototype to the factory.

The Decoder prototype will be cloned by createDecoder when called for the appropriate handle. Caller deletes the Decoder, but AFTER the Decoder factory no longer needs it. Returns any previous Decoder which was replaced by the add.

virtual void DtPduDecoderFactory::clearDecoder ( DtPduKind  kind )

virtual

remove this specific decoder from the factory.

If another encoder is not added then this pdu will not decode correctly.

virtual DtPduDecoder* DtPduDecoderFactory::createDecoder ( DtPduKind  kind )

virtual

Create an Decoder for the specified object class.

Note: Caller is responsible for deleting. Returns NULL if Decoder creation function is not in the factory.

virtual DtPduDecoder* DtPduDecoderFactory::decoder ( DtPduKind  kind )

virtual

Returns the Decoder prototype associated with handle by a previous call to addDecoder.

virtual void DtPduDecoderFactory::initialize ( )

virtual

DtPduDecoderFactory& DtPduDecoderFactory::operator= ( const DtPduDecoderFactory &  orig )

private

assignment operator - not implemented.

Member Data Documentation

DtExerciseConn* DtPduDecoderFactory::myExConn

protected

PduToDecoderMap DtPduDecoderFactory::myProtos

protected

---

The documentation for this class was generated from the following file:

• pduDecoderFactory.h
