DtPointObjectEncoder Class Reference

Provides encoding logic for the DtPointObjectStatePdu class. More...

Inheritance diagram for DtPointObjectEncoder:

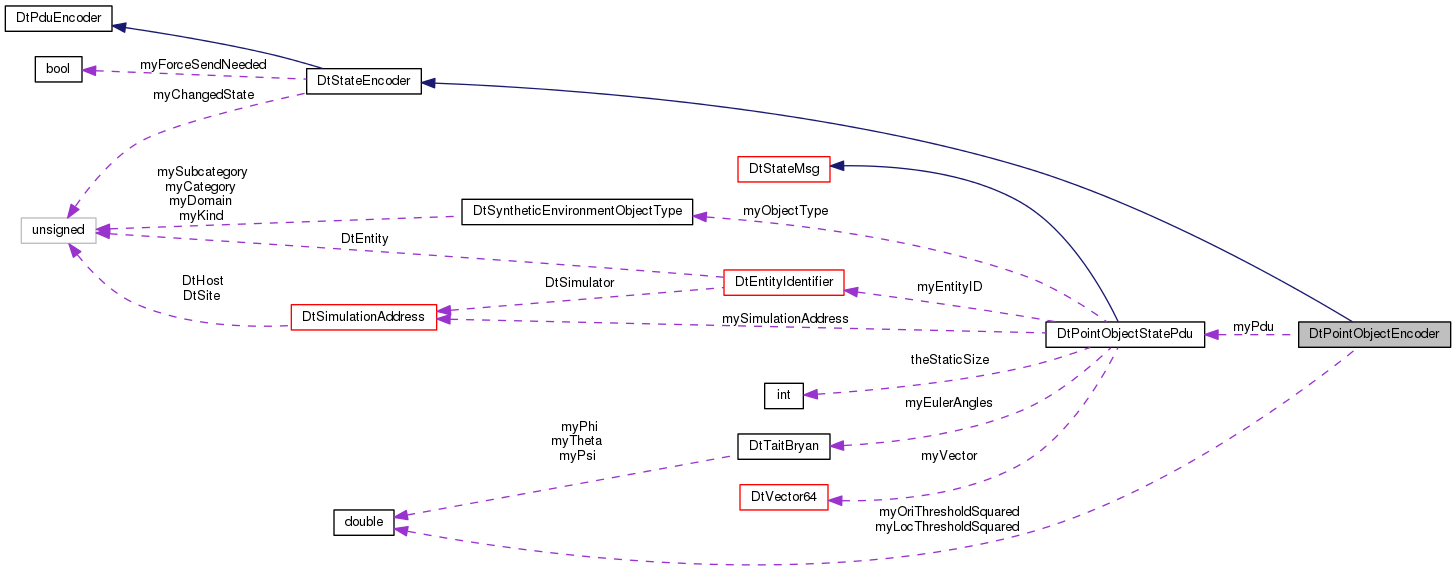

Collaboration diagram for DtPointObjectEncoder:

Public Member Functions
	DtPointObjectEncoder (double _locThreshold=1.0, double _oriThreshold=1.0)
	CTOR. More...
	DtPointObjectEncoder (const DtPointObjectEncoder &orig)
	Copy CTOR. More...
virtual	~DtPointObjectEncoder ()
	Virtual DTOR. More...
DtPointObjectEncoder &	operator= (const DtPointObjectEncoder &orig)
	Assignment operator. More...
virtual DtPointObjectStatePdu *	stateMsg (const DtPointObjectRepository &stateRep, const DtPointObjectRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
	DtCLONE_ENCODER (DtPointObjectEncoder)
virtual void	setLocThreshold (double val)
	Set/Query the value of the Location Update Threshold. More...
virtual double	locThreshold () const
	Set/Query the value of the Location Update Threshold. More...
virtual void	setOriThreshold (double val)
	Set/Query the value of the Orientation Update Threshold. More...
virtual double	oriThreshold () const
	Set/Query the value of the Orientation Update Threshold. More...
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtPointObjectRepository &stateRep, const DtPointObjectRepository &asSeenByRemote)
	Determine if a state message needs to be sent. More...
virtual void	updateModifications (const DtPointObjectRepository &lclRep, const DtPointObjectRepository &remRep)
	Update the PDU's modification flags. More...

Protected Attributes
DtPointObjectStatePdu	myPdu
double	myLocThresholdSquared
double	myOriThresholdSquared
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Provides encoding logic for the DtPointObjectStatePdu class.

Constructor & Destructor Documentation

DtPointObjectEncoder::DtPointObjectEncoder	(	double	_locThreshold = 1.0,
		double	_oriThreshold = 1.0
	)

CTOR.

DtPointObjectEncoder::DtPointObjectEncoder

(

const DtPointObjectEncoder &

orig

)

Copy CTOR.

virtual DtPointObjectEncoder::~DtPointObjectEncoder ( )

virtual

Virtual DTOR.

Member Function Documentation

DtPointObjectEncoder::DtCLONE_ENCODER

(

DtPointObjectEncoder

)

double DtPointObjectEncoder::locThreshold ( ) const

inlinevirtual

Set/Query the value of the Location Update Threshold.

References myLocThresholdSquared.

DtPointObjectEncoder& DtPointObjectEncoder::operator=

(

const DtPointObjectEncoder &

orig

)

Assignment operator.

double DtPointObjectEncoder::oriThreshold ( ) const

inlinevirtual

Set/Query the value of the Orientation Update Threshold.

References myOriThresholdSquared.

virtual bool DtPointObjectEncoder::sendNeeded ( const DtPointObjectRepository &  stateRep, const DtPointObjectRepository &  asSeenByRemote  )

protectedvirtual

Determine if a state message needs to be sent.

void DtPointObjectEncoder::setLocThreshold ( double  val )

inlinevirtual

Set/Query the value of the Location Update Threshold.

References myLocThresholdSquared.

void DtPointObjectEncoder::setOriThreshold ( double  val )

inlinevirtual

Set/Query the value of the Orientation Update Threshold.

References myOriThresholdSquared.

virtual DtPointObjectStatePdu* DtPointObjectEncoder::stateMsg ( const DtPointObjectRepository &  stateRep, const DtPointObjectRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether a Designator PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

virtual void DtPointObjectEncoder::updateModifications ( const DtPointObjectRepository &  lclRep, const DtPointObjectRepository &  remRep  )

protectedvirtual

Update the PDU's modification flags.

Member Data Documentation

double DtPointObjectEncoder::myLocThresholdSquared

protected

Referenced by locThreshold(), and setLocThreshold().

double DtPointObjectEncoder::myOriThresholdSquared

protected

Referenced by oriThreshold(), and setOriThreshold().

DtPointObjectStatePdu DtPointObjectEncoder::myPdu

protected

---

The documentation for this class was generated from the following file:

• pointObjectEncoderDIS.h
