A DtArticulatedPartCollection is a collection of articulated parts typically of an entity. More...

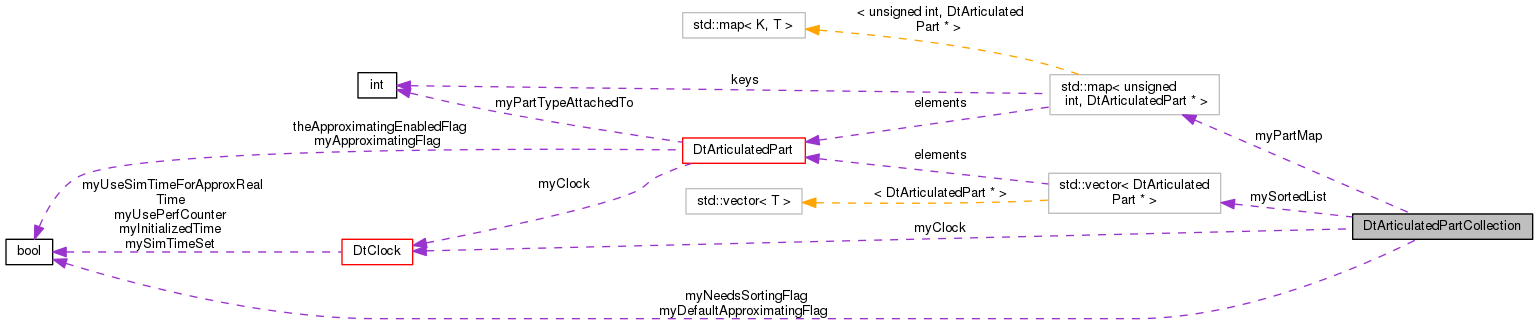

Collaboration diagram for DtArticulatedPartCollection:

Public Types
enum	DtAttachResult { DtAttachSuccess, DtAttachFailNullChild, DtAttachFailNullParent, DtAttachFailCycle }

typedef std::map< unsigned int, DtArticulatedPart * >	PartMap

typedef PartMap::const_iterator	const_iterator

typedef std::set< unsigned int >	PartTypeSet

Public Member Functions
	DtArticulatedPartCollection (DtClock *clock=0)
	CTOR. More...

	DtArticulatedPartCollection (const DtArticulatedPartCollection &)
	Copy CTOR. More...

DtArticulatedPartCollection &	operator= (const DtArticulatedPartCollection &)
	Assignment operator. More...

virtual	~DtArticulatedPartCollection ()
	DTOR. More...

bool	operator== (const DtArticulatedPartCollection &other) const

bool	operator!= (const DtArticulatedPartCollection &other) const

virtual void	getPartTypes (PartTypeSet &aSet)
	Get all of the part types by adding each part type to a part type set. More...

virtual DtArticulatedPart &	getPart (unsigned int partType)
	Get the art part of a part type. If the part type does not exist it will be created. More...

virtual void	removeAllParts ()
	Removes all parts. More...

virtual void	removePart (unsigned int partType)
	Remove a part. More...

virtual bool	attachPart (DtArticulatedPart childPart, DtArticulatedPart parentPart, DtAttachResult *attachResult=0)
	Attach a child part to a parent part. More...

bool	attachPart (unsigned int childPartType, unsigned int parentPartType, DtAttachResult *attachResult=0)
	Attach a child part to a parent part. More...

virtual bool	attachCreatesCycle (DtArticulatedPart childPart, DtArticulatedPart parentPart)
	Determine if attachment would create circular dependency (e.g, child == parent). More...

virtual unsigned int	totalParameterCount () const
	Get the sum of the number of parameters for all parts. More...

virtual unsigned int	partCount () const
	Get the number of parts. More...

virtual DtArticulatedPart *	createPart (DtArticulatedPart *copy=0) const
	Function used to create a part instance. More...

const_iterator	begin () const
	Get a constant iterator to the first part. More...

const_iterator	end () const
	Get a constant iterator beyond the last part. More...

virtual void	setClock (DtClock *clock, bool setForAllParts=true)
	Set the clock object. More...

bool	partsApproximateByDefault () const
	Get if parts approximate by default. More...

void	setPartsApproximateByDefault (bool deadReckonByDefault)
	Set whether parts approximate by default. More...

void	printDataToStream (std::ostream &stream) const
	Print the collection to a stream. More...

const std::vector < DtArticulatedPart * > &	getSortedList () const
	Get the parts in a sorted list useful for encoding. More...


virtual DtArticulatedPart *	findPart (unsigned int partType)
	Search for a particular part. More...

virtual const DtArticulatedPart *	findPart (unsigned int partType) const
	Search for a particular part. More...


DtClock *	clock ()
	Get the clock pointer, it may be NULL. More...

const DtClock *	clock () const
	Get the clock pointer, it may be NULL. More...

Protected Member Functions
virtual void	sortArtParts () const
	Sort the internal list. More...

virtual int	calculatePartDistance (const DtArticulatedPart *part) const
	Calculate distance to base. More...

virtual int	fixPartAttachment (DtArticulatedPart *part)
	Fix the part attachment (e.g., attached to missing part or cycle) Returns the part distance after being fixed. More...

Protected Attributes
PartMap	myPartMap

DtClock *	myClock

bool	myDefaultApproximatingFlag

std::vector< DtArticulatedPart * >	mySortedList

bool	myNeedsSortingFlag

Detailed Description

A DtArticulatedPartCollection is a collection of articulated parts typically of an entity.

Examples

Articulated Parts

Member Typedef Documentation

typedef PartMap::const_iterator DtArticulatedPartCollection::const_iterator

typedef std::map<unsigned int,DtArticulatedPart*> DtArticulatedPartCollection::PartMap

typedef std::set<unsigned int> DtArticulatedPartCollection::PartTypeSet

Member Enumeration Documentation

enum DtArticulatedPartCollection::DtAttachResult

Enumerator
DtAttachSuccess
DtAttachFailNullChild
DtAttachFailNullParent
DtAttachFailCycle

Constructor & Destructor Documentation

DtArticulatedPartCollection::DtArticulatedPartCollection ( DtClock * clock = 0 )

CTOR.

Parameters

Input
clock	is an optional parameter for setting the clock. The clock is passed to each newly create part.

DtArticulatedPartCollection::DtArticulatedPartCollection ( const DtArticulatedPartCollection & )

Copy CTOR.

Warning: If sub classing do not change the subclass copy constructor with this Copy CTOR as copying will not be done correctly. Chain the subclass with the default constructor and explicitly copy the internal parts using the desired class.

virtual DtArticulatedPartCollection::~DtArticulatedPartCollection ( )

virtual

DTOR.

Member Function Documentation

virtual bool DtArticulatedPartCollection::attachCreatesCycle	(	DtArticulatedPart *	childPart,
		DtArticulatedPart *	parentPart
	)

virtual

Determine if attachment would create circular dependency (e.g, child == parent).

If either parent or child is null, then no cycle is returned. Return bool: cycle would be created if parts were attached?

virtual bool DtArticulatedPartCollection::attachPart	(	DtArticulatedPart *	childPart,
		DtArticulatedPart *	parentPart,
		DtAttachResult *	attachResult = `0`
	)

virtual

Attach a child part to a parent part.

Attach fails if child or parent is null or attach will create a cycle (e.g. childPart == parentPart) If supplied, the attach result returns the result of the attach operation If an attach result parameter is not supplied, failure results print warnings Returns bool: attach succeeded?

Referenced by attachPart().

bool DtArticulatedPartCollection::attachPart	(	unsigned int	childPartType,
		unsigned int	parentPartType,
		DtArticulatedPartCollection::DtAttachResult *	attachResult = `0`
	)

inline

Attach a child part to a parent part.

Helper function which looks up via type. Attach fails if child or parent cannot be found or attach will create a cycle (e.g. childPart == parentPart) If supplied, the attach result returns the result of the attach operation If an attach result parameter is not supplied, failure results print warnings Returns bool: attach succeeded?

References attachPart(), and findPart().

const_iterator DtArticulatedPartCollection::begin ( ) const

Get a constant iterator to the first part.

virtual int DtArticulatedPartCollection::calculatePartDistance ( const DtArticulatedPart * part ) const

protectedvirtual

Calculate distance to base.

Returns the number of parts between given part and base.

DtClock* DtArticulatedPartCollection::clock ( )

Get the clock pointer, it may be NULL.

const DtClock* DtArticulatedPartCollection::clock ( ) const

Get the clock pointer, it may be NULL.

virtual DtArticulatedPart* DtArticulatedPartCollection::createPart ( DtArticulatedPart * copy = 0 ) const

virtual

Function used to create a part instance.

This is a separate function to allow subclasses to create the part instances.

Parameters

Input
copy	is an optional parameter which should be used with a copy constructor when copy is valid.

const_iterator DtArticulatedPartCollection::end ( ) const

Get a constant iterator beyond the last part.

virtual DtArticulatedPart* DtArticulatedPartCollection::findPart ( unsigned int partType )

virtual

Search for a particular part.

If the part does not exist the function will return null.

Return values

0	If the part is not found.

Warning: Do not delete the returned pointer it is owned and managed by the collection.; Do not hold on to the pointer it is owned and managed by the collection and may be deallocated anytime in the future.

Referenced by attachPart().

virtual const DtArticulatedPart* DtArticulatedPartCollection::findPart ( unsigned int partType ) const

virtual

Search for a particular part.

If the part does not exist the function will return null.

Return values

0	If the part is not found.

Warning: Do not delete the returned pointer it is owned and managed by the collection.; Do not hold on to the pointer it is owned and managed by the collection and may be deallocated anytime in the future.

virtual int DtArticulatedPartCollection::fixPartAttachment ( DtArticulatedPart * part )

protectedvirtual

Fix the part attachment (e.g., attached to missing part or cycle) Returns the part distance after being fixed.

virtual DtArticulatedPart& DtArticulatedPartCollection::getPart ( unsigned int partType )

virtual

Get the art part of a part type. If the part type does not exist it will be created.

virtual void DtArticulatedPartCollection::getPartTypes ( PartTypeSet & aSet )

virtual

Get all of the part types by adding each part type to a part type set.

This

Parameters

Output
aSet	is used to store the part types. Note aSet is not cleared.

const std::vector<DtArticulatedPart*>& DtArticulatedPartCollection::getSortedList ( ) const

Get the parts in a sorted list useful for encoding.

bool DtArticulatedPartCollection::operator!= ( const DtArticulatedPartCollection & other ) const

DtArticulatedPartCollection& DtArticulatedPartCollection::operator= ( const DtArticulatedPartCollection & )

Assignment operator.

bool DtArticulatedPartCollection::operator== ( const DtArticulatedPartCollection & other ) const

virtual unsigned int DtArticulatedPartCollection::partCount ( ) const

virtual

Get the number of parts.

bool DtArticulatedPartCollection::partsApproximateByDefault ( ) const

Get if parts approximate by default.

This is true by default for all articulated part collections.

void DtArticulatedPartCollection::printDataToStream ( std::ostream & stream ) const

Print the collection to a stream.

virtual void DtArticulatedPartCollection::removeAllParts ( )

virtual

Removes all parts.

Warning: This function invalidates all iterators.

virtual void DtArticulatedPartCollection::removePart ( unsigned int partType )

virtual

Remove a part.

If the part is not found the function does nothing.

Warning: This function may invalidate an iterator if it points to the part that was just removed.

virtual void DtArticulatedPartCollection::setClock	(	DtClock *	clock,
		bool	setForAllParts = `true`
	)

virtual

Set the clock object.

Optionally this will set the clock object for all existing parts.

Parameters

Input
clock	the clock pointer, which may be NULL.
setForAllParts	controls whether each existing part get the new clock pointer as well.

void DtArticulatedPartCollection::setPartsApproximateByDefault ( bool deadReckonByDefault )

Set whether parts approximate by default.

virtual void DtArticulatedPartCollection::sortArtParts ( ) const

protectedvirtual

Sort the internal list.

virtual unsigned int DtArticulatedPartCollection::totalParameterCount ( ) const

virtual

Get the sum of the number of parameters for all parts.

Member Data Documentation

DtClock* DtArticulatedPartCollection::myClock

protected

bool DtArticulatedPartCollection::myDefaultApproximatingFlag

protected

bool DtArticulatedPartCollection::myNeedsSortingFlag

mutableprotected

PartMap DtArticulatedPartCollection::myPartMap

protected

std::vector<DtArticulatedPart*> DtArticulatedPartCollection::mySortedList

mutableprotected

The documentation for this class was generated from the following file:

articulatedPartCollection.h
