Instances of DtEmitterSystemPublisher are used for local or source simulations of emitter systems, (i.e. More...

Inheritance diagram for DtEmitterSystemPublisher:

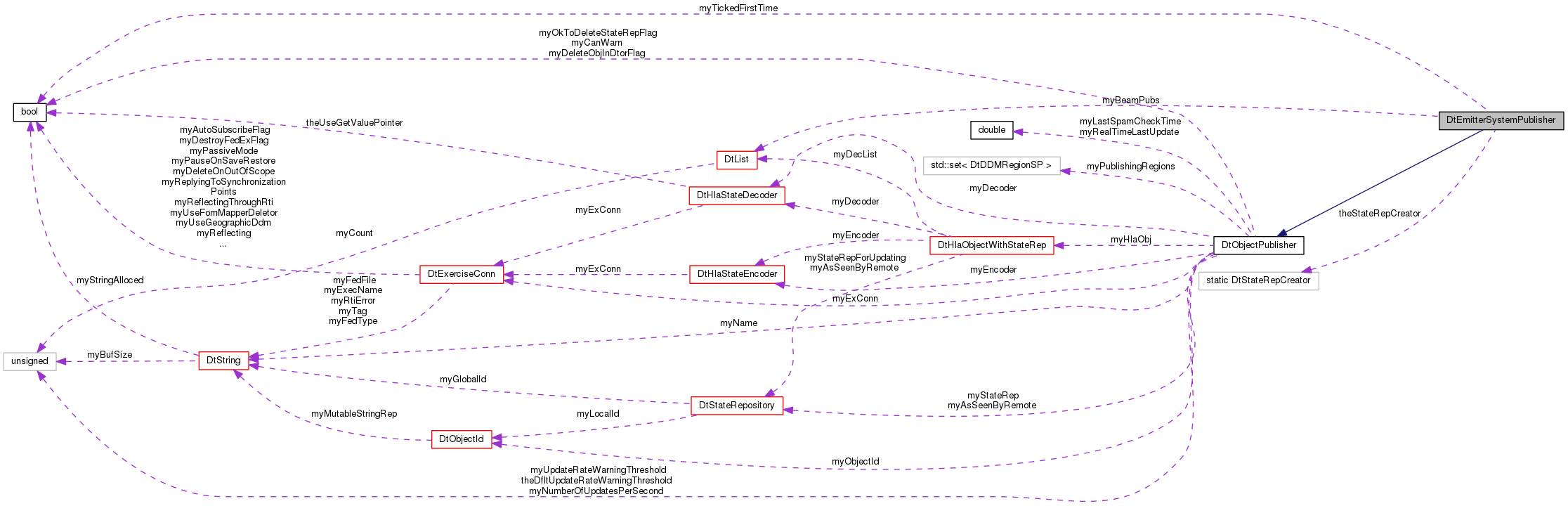

Collaboration diagram for DtEmitterSystemPublisher:

Public Types
typedef DtEmitterSystemRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories. More...

Public Member Functions
	DtEmitterSystemPublisher (DtEmitterSystemRepository stateRepToUse, DtExerciseConn conn, const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor. More...

	DtEmitterSystemPublisher (RTI::ObjectClassHandle h, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtEmitterSystemPublisher (DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtEmitterSystemPublisher (DtHlaObjectWithStateRep obj, DtExerciseConn conn)
	Constructor that creates a publisher for an existing DtHlaObject. More...

virtual	~DtEmitterSystemPublisher ()
	destructor More...

virtual DtEmitterSystemRepository *	emitterSystemRep ()
	Returns a pointer to the DtEmitterSystemRepository - through which you can set or inspect current state information. More...

virtual DtEmitterSystemRepository *	esr ()
	Synonym for emitterSystemRep(). More...

virtual const char *	classToUse () const
	Returns the name of the FOM object class to use. More...

virtual bool	tick ()
	syncBeamList and update beam objects as well as main system object. More...

virtual void	forceUpdate ()
	if called, at the next tick all attributes will be sent to the RTI This call differs from the base callback by also including a force update of all beam children. More...

virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
	If the attribute set is specified, forceUpdate will call through to DtObjectPublisher::forceUpdate and the beams children will not be updated. More...

Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...

virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...

virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...

virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...

virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...

virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual const DtObjectId &	id () const
	Get the object's local identifier. More...

virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...

virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...

virtual const DtString &	name () const
	Get the object's name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...

virtual bool	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...

virtual bool	deleteObjInDtorFlag () const

virtual const DtDDMRegionSet &	publishingRegions () const

virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...

virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...

virtual void	setUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets & overrides the default (static) updates per second for a specific instance If a negative integer is passed to it, it will use the difference of the max value of an unsigned short and the absolute value of the negative integer. More...

virtual unsigned short	updateRateWarningThreshold () const
	Returns the value of the overridden rate warning threshold. More...

virtual void	checkForUpdateRateWarning ()
	Helper function that determines whether or not to trigger a spam warning. More...

	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...

void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)

void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

static void	setDfltUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets the default (static) updates per second for any instance. More...

static unsigned short	dfltUpdateRateWarningThreshold ()
	Return the value of theDfltUpdateRateWarningThreshold. More...

Protected Member Functions
	DtEmitterSystemPublisher (const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor which does not include the DtExerciseConn and does not register the HLA object. More...

virtual void	syncBeamList ()
	Update myBeamPubs so that it has a publisher for all beamSRs in my systemSR, but no others. More...

virtual DtEmitterBeamPublisher *	publisherForBsr (DtEmitterBeamRepository *bsr)
	Returns the publisher responsible for publishing the indicated BSR, NULL if there is none. More...

virtual int	numBeams () const
	Return number of beam publishers. More...

Protected Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...

virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes
DtList	myBeamPubs
	List of DtEmitterBeamPubs. More...

bool	myTickedFirstTime

Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

DtHlaStateEncoder *	myEncoder

DtHlaStateDecoder *	myDecoder

DtObjectId	myObjectId

bool	myOkToDeleteStateRepFlag

DtString	myName

bool	myDeleteObjInDtorFlag

DtDDMRegionSet	myPublishingRegions

DtTime	myRealTimeLastUpdate

DtTime	myLastSpamCheckTime

unsigned short	myNumberOfUpdatesPerSecond

unsigned short	myUpdateRateWarningThreshold

bool	myCanWarn

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Static Protected Attributes inherited from DtObjectPublisher
static unsigned short	theDfltUpdateRateWarningThreshold
	Static member that holds the value of the number of updates to be sent to trigger a spam warning. More...

Private Member Functions
	DtEmitterSystemPublisher (const DtEmitterSystemPublisher &orig)
	copy constructor – not implemented More...

DtEmitterSystemPublisher &	operator= (const DtEmitterSystemPublisher &orig)
	assignment operator – not implemented More...

Detailed Description

Instances of DtEmitterSystemPublisher are used for local or source simulations of emitter systems, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These emitter systems send data to the network.

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtEmitterSystemPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

Constructor & Destructor Documentation

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtEmitterSystemRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtEmitterSystemPublisher::~DtEmitterSystemPublisher ( )

virtual

destructor

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

protected

Constructor which does not include the DtExerciseConn and does not register the HLA object.

This is typically not desired, but may be useful in certain cases when a derived publisher wants to better control how the object is published.

DtEmitterSystemPublisher::DtEmitterSystemPublisher ( const DtEmitterSystemPublisher & orig )

private

copy constructor – not implemented

Member Function Documentation

virtual const char* DtEmitterSystemPublisher::classToUse ( ) const

virtual

Returns the name of the FOM object class to use.

Default implementation is to ask the FOM Mapper.

DtEmitterSystemRepository * DtEmitterSystemPublisher::emitterSystemRep ( )

inlinevirtual

Returns a pointer to the DtEmitterSystemRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtEmitterSystemRepository * DtEmitterSystemPublisher::esr ( )

inlinevirtual

Synonym for emitterSystemRep().

References DtObjectPublisher::myStateRep.

virtual void DtEmitterSystemPublisher::forceUpdate ( )

virtual

if called, at the next tick all attributes will be sent to the RTI This call differs from the base callback by also including a force update of all beam children.

Reimplemented from DtObjectPublisher.

virtual void DtEmitterSystemPublisher::forceUpdate ( const RTI::AttributeHandleSet & set )

virtual

If the attribute set is specified, forceUpdate will call through to DtObjectPublisher::forceUpdate and the beams children will not be updated.

This function is added to prevent it from being hidden

Reimplemented from DtObjectPublisher.

virtual int DtEmitterSystemPublisher::numBeams ( ) const

protectedvirtual

Return number of beam publishers.

DtEmitterSystemPublisher& DtEmitterSystemPublisher::operator= ( const DtEmitterSystemPublisher & orig )

private

assignment operator – not implemented

virtual DtEmitterBeamPublisher* DtEmitterSystemPublisher::publisherForBsr ( DtEmitterBeamRepository * bsr )

protectedvirtual

Returns the publisher responsible for publishing the indicated BSR, NULL if there is none.

static DtStateRepCreator DtEmitterSystemPublisher::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

virtual void DtEmitterSystemPublisher::syncBeamList ( )

protectedvirtual

Update myBeamPubs so that it has a publisher for all beamSRs in my systemSR, but no others.

Called by tick() so that all beamPubs can be ticked after systemSR has been updated.

virtual bool DtEmitterSystemPublisher::tick ( )

virtual

syncBeamList and update beam objects as well as main system object.

Will return true if data was sent.

Reimplemented from DtObjectPublisher.

Member Data Documentation

DtList DtEmitterSystemPublisher::myBeamPubs

protected

List of DtEmitterBeamPubs.

bool DtEmitterSystemPublisher::myTickedFirstTime

protected

DtStateRepCreator DtEmitterSystemPublisher::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

emitterSystemPublisherHLA.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
