DtIffStateRepository Class Reference

Defines a protocol independent repository of attributes for IFF objects. More...

Inheritance diagram for DtIffStateRepository:

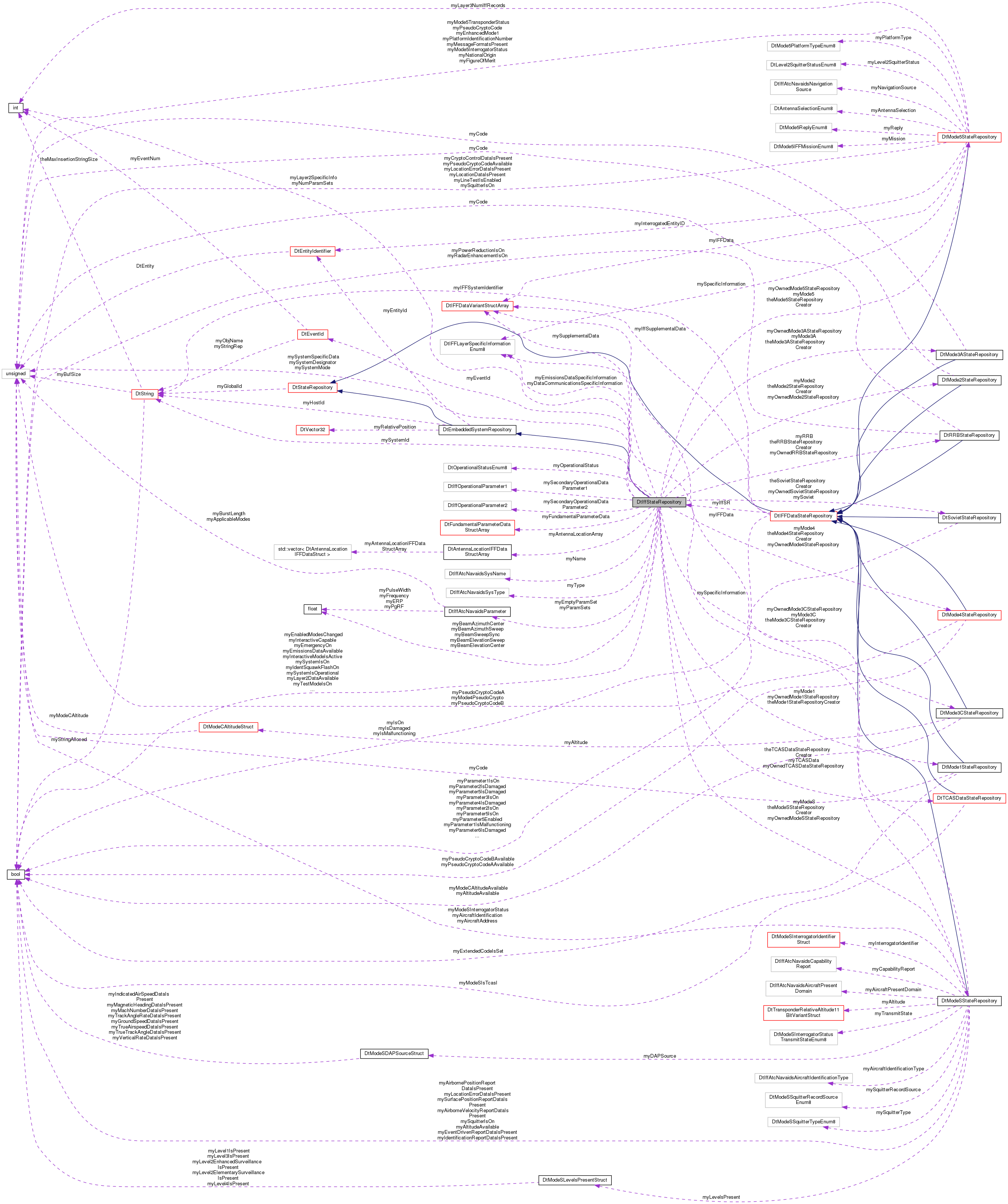

Collaboration diagram for DtIffStateRepository:

Public Member Functions
	DtIffStateRepository ()
	Default constructor. More...
virtual	~DtIffStateRepository ()
	Destructor. More...
	DtIffStateRepository (const DtIffStateRepository &orig)
	Copy constructor. More...
DtIffStateRepository &	operator= (const DtIffStateRepository &orig)
	Assignment operator. More...
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	prints the data to DtInfo More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	setEnabledModesChanged (bool changed)
	Flag to check if the enabled modes in this repository have changed. Used by the IFF System publisher. More...
virtual bool	enabledModesChanged ()
IFFSystem Object Attributes
Set/Get the attribute named "SystemType" Parameters type General type of IFF/SSR system in use
virtual void	setSystemType (DtIffAtcNavaidsSysType type)
	Set/Get the attribute named "SystemName". More...
virtual DtIffAtcNavaidsSysType	systemType () const
	Set/Get the attribute named "SystemName". More...
virtual void	setSystemName (DtIffAtcNavaidsSysName name)
	Set/Get the attribute named "SystemName". More...
virtual DtIffAtcNavaidsSysName	systemName () const
	Set/Get the attribute named "SystemName". More...
virtual void	setSystemDesignator (DtU8 designator)
	Set/Get the attribute named "SystemDesignator". More...
virtual DtU8	systemDesignator () const
	Set/Get the attribute named "SystemName". More...
virtual void	setInteractiveModeIsActive (bool isActive)
	Set/Get the attribute named "InteractiveModeIsActive" If Interactive Mode is set to true, simulation mode is Interactive. More...
virtual bool	interactiveModeIsActive () const
	Set/Get the attribute named "SystemName". More...
virtual void	setEventId (const DtEventId &eventId)
	Set/Get the attribute named "EventIdentifier". More...
virtual const DtEventId &	eventId () const
	Set/Get the attribute named "SystemName". More...
virtual void	setSystemIsOn (bool isOn)
	Set/Get the attribute named "SystemIsOn". More...
virtual bool	systemIsOn () const
	Set/Get the attribute named "SystemName". More...
virtual void	setSystemMode (DtU8 mode)
	Set/Get the attribute named "SystemMode". More...
virtual DtU8	systemMode () const
	Set/Get the attribute named "SystemName". More...
virtual void	setOperationalStatus (DtOperationalStatusEnum8 status)
	Set/Get the attribute named "OperationalStatus". More...
virtual DtOperationalStatusEnum8	operationalStatus () const
	Set/Get the attribute named "SystemName". More...
virtual void	setTestModeIsOn (bool isOn)
	Set/Get the attribute named "TestModeIsOn". More...
virtual bool	testModeIsOn () const
	Set/Get the attribute named "SystemName". More...
virtual void	setEmissionsDataAvailable (bool isAvailable)
	Set/Get the attribute named "EmissionsDataAvailable". More...
virtual bool	emissionsDataAvailable () const
	Set/Get the attribute named "SystemName". More...
virtual void	setBeamAzimuthCenter (DtFloat32 val)
	Set/Get BeamAzimuthCenter. More...
virtual DtFloat32	beamAzimuthCenter () const
	Set/Get the attribute named "SystemName". More...
virtual void	setBeamAzimuthSweep (DtFloat32 val)
	Set/Get BeamAzimuthSweep. More...
virtual DtFloat32	beamAzimuthSweep () const
	Set/Get the attribute named "SystemName". More...
virtual void	setBeamElevationCenter (DtFloat32 val)
	Set/Get BeamElevationCenter. More...
virtual DtFloat32	beamElevationCenter () const
	Set/Get the attribute named "SystemName". More...
virtual void	setBeamElevationSweep (DtFloat32 val)
	Set/Get beamElevationSweep. More...
virtual DtFloat32	beamElevationSweep () const
	Set/Get the attribute named "SystemName". More...
virtual void	setBeamSweepSync (DtFloat32 val)
	Set/Get beamSweepSync. More...
virtual DtFloat32	beamSweepSync () const
	Set/Get the attribute named "SystemName". More...
virtual void	setFundamentalParameterData (DtFundamentalParameterDataStructArray val)
	Set/Get FundamentalParameterData. More...
virtual DtFundamentalParameterDataStructArray	fundamentalParameterData () const
	Set/Get the attribute named "SystemName". More...
virtual void	setSupplementalData (DtIFFDataVariantStructArray val)
	Set/Get SupplementalData. More...
virtual DtIFFDataVariantStructArray	supplementalData () const
	Set/Get the attribute named "SystemName". More...
IFFSystem.Transponder Attributes
Set/Get the attribute named "EmergencyOn" Parameters val Set to True when the transponder has set Military Emergency to On
virtual void	setEmergencyOn (bool val)
	Set/Get the attribute named "IdentSquawkFlashOn". More...
virtual bool	isEmergencyOn () const
	Set/Get the attribute named "IdentSquawkFlashOn". More...
virtual void	setIdentSquawkFlashOn (bool val)
	Set/Get the attribute named "IdentSquawkFlashOn". More...
virtual bool	isIdentSquawkFlashOn () const
	Set/Get the attribute named "IdentSquawkFlashOn". More...
virtual void	setUnmannedAircraftOn (bool val)
	Set/Get the attribute named "UnmannedAircraftOn". More...
virtual bool	isUnmannedAircraftOn () const
	Set/Get the attribute named "IdentSquawkFlashOn". More...
IFFData Object Attributes
Set/Get the attribute named "SystemIdentifier" Parameters globalId The system's ID
virtual void	setSystemId (const DtGlobalObjectDesignator &globalId)
virtual const DtGlobalObjectDesignator &	systemId () const
IFFData Mode Object Accessors
General use Mode Accessor
virtual bool	hasMode (DtModeType modeType) const
	Mode 1 Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual void	enableMode (DtModeType modeType) const
	Mode 1 Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtMode1StateRepository *	mode1 () const
	Mode 1 Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtMode2StateRepository *	mode2 () const
	Mode 2 Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtMode3AStateRepository *	mode3A () const
	Mode 3A Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtMode3CStateRepository *	mode3C () const
	Mode 3C Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtMode4StateRepository *	mode4 () const
	Mode 4 Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtMode5StateRepository *	mode5 () const
	Mode 5 Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtModeSStateRepository *	modeS () const
	Mode S Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtTCASDataStateRepository *	tcasData () const
	TCAS Data Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtSovietStateRepository *	soviet () const
	Soviet Accessor If this mode has not been enabled, this will return a nullptr. More...
virtual DtRRBStateRepository *	rrb () const
	RRB Accessor If this mode has not been enabled, this will return a nullptr. More...
NatoIFF Object Accessors
virtual void	setModeEnabled (DtModeType modeType, bool val)
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual bool	modeEnabled (DtModeType modeType) const
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual void	setModeIsMalfunctioning (DtModeType modeType, bool val)
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual bool	modeIsMalfunctioning (DtModeType modeType) const
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual void	setModeIsDamaged (DtModeType modeType, bool val)
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual bool	modeIsDamaged (DtModeType modeType) const
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual void	setModeIsOn (DtModeType modeType, bool val)
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
virtual bool	modeIsOn (DtModeType modeType) const
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: More...
RPR 2.0-Specific IFF Attributes
Set/Get the attribute named "SystemIsOperational" RPR 3.0 uses attribute "OperationalStatus" with an enum param Parameters isOperational Whether the system is operational or whether it has experienced a system failure
virtual void	setSystemIsOperational (bool isOperational)
virtual bool	systemIsOperational () const
DIS Layer 1 IFF Attributes
virtual void	setIffSimulationMode (bool on)
	Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation. More...
virtual bool	iffSimulationMode () const
	Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation. More...
virtual void	setInteractiveCapable (bool on)
	Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation. More...
virtual bool	interactiveCapable () const
	Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation. More...
virtual void	setModeCode (DtModeType modeCodeNum, DtU16 val)
	This stores the mode code exactly as specified by the DIS 1278.1a and RPR FOM 2.x standard. More...
virtual DtU16	modeCode (DtModeType modeCodeNum) const
	Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation. More...
virtual void	setStiOn (bool onOff)
	Set/get Nato Transponder StiOn. More...
virtual bool	stiOn () const
	Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation. More...
DIS Layer 2 IFF Attributes (i.e. RPR 3.0 IFFSystem)
The Following Attributes are only useful to Layer 2 Data
virtual void	setLayer2DataAvailable (bool b)
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual bool	layer2DataAvailable () const
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual void	setLayer2SpecificInfo (unsigned int val)
	Set layer2 specific info - this is not well defined but needed by DIS. More...
virtual unsigned int	layer2SpecificInfo () const
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual void	setSecondaryOperationalDataParameter1 (DtIffOperationalParameter1 val)
	set/Get SecondaryOperationalDataParameter1 More...
virtual DtIffOperationalParameter1	secondaryOperationalDataParameter1 () const
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual void	setSecondaryOperationalDataParameter2 (DtIffOperationalParameter2 val)
	set/Get SecondaryOperationalDataParameter2 More...
virtual DtIffOperationalParameter2	secondaryOperationalDataParameter2 () const
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual int	numParameterSets () const
	Set/Get operational parameters record. More...
virtual void	setNumParameterSets (int n)
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual bool	setParamData (int parmIndex, const DtIffAtcNavaidsParameter &init)
	Set/Get the fundamental parameter data records for a selected layer. More...
virtual bool	getParamData (int parmIndex, DtIffAtcNavaidsParameter &record) const
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
virtual DtIffAtcNavaidsParameter	paramData (int paramIndex, bool *valid=NULL) const
	Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used. More...
IFF MODE State Repository Accessors
void	setMode1StateRepository (DtMode1StateRepository *r) const
DtMode1StateRepository *	mode1StateRepository () const
void	setMode2StateRepository (DtMode2StateRepository *r) const
DtMode2StateRepository *	mode2StateRepository () const
void	setMode3AStateRepository (DtMode3AStateRepository *r) const
DtMode3AStateRepository *	mode3AStateRepository () const
void	setMode3CStateRepository (DtMode3CStateRepository *r) const
DtMode3CStateRepository *	mode3CStateRepository () const
void	setMode4StateRepository (DtMode4StateRepository *r) const
DtMode4StateRepository *	mode4StateRepository () const
void	setMode5StateRepository (DtMode5StateRepository *r) const
DtMode5StateRepository *	mode5StateRepository () const
void	setModeSStateRepository (DtModeSStateRepository *r) const
DtModeSStateRepository *	modeSStateRepository () const
void	setTCASDataStateRepository (DtTCASDataStateRepository *r) const
DtTCASDataStateRepository *	tcasDataStateRepository () const
void	setSovietStateRepository (DtSovietStateRepository *r) const
DtSovietStateRepository *	sovietStateRepository () const
void	setRRBStateRepository (DtRRBStateRepository *r) const
DtRRBStateRepository *	rrbStateRepository () const
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor More...
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor More...
virtual	~DtEmbeddedSystemRepository ()
	destructor More...
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator More...
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier. More...
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier. More...
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier. More...
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier. More...
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity. More...
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtIffStateRepository *	create ()
	Create and return a new DtIffStateRepository. More...
Static Public Member Functions inherited from DtEmbeddedSystemRepository
static DtEmbeddedSystemRepository *	create ()
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Public Attributes
bool	myEnabledModesChanged
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes
static DtMode1StateRepository *(*	theMode1StateRepositoryCreator )()
static DtMode2StateRepository *(*	theMode2StateRepositoryCreator )()
static DtMode3AStateRepository *(*	theMode3AStateRepositoryCreator )()
static DtMode3CStateRepository *(*	theMode3CStateRepositoryCreator )()
static DtMode4StateRepository *(*	theMode4StateRepositoryCreator )()
static DtMode5StateRepository *(*	theMode5StateRepositoryCreator )()
static DtModeSStateRepository *(*	theModeSStateRepositoryCreator )()
static DtTCASDataStateRepository *(*	theTCASDataStateRepositoryCreator )()
static DtSovietStateRepository *(*	theSovietStateRepositoryCreator )()
static DtRRBStateRepository *(*	theRRBStateRepositoryCreator )()
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Protected Attributes
DtU8	mySystemSpecificData
bool	mySystemIsOperational
bool	myLayer2DataAvailable
int	myLayer2SpecificInfo
int	myNumParamSets
DtIffAtcNavaidsParameter *	myParamSets
DtIffAtcNavaidsParameter	myEmptyParamSet
bool	myIffSimulationMode
bool	myInteractiveCapable
DtGlobalObjectDesignator	mySystemId
IFFSystem Attribute Members
DtIffAtcNavaidsSysType	myType
	System Type (enum U16) More...
DtIffAtcNavaidsSysName	myName
	System Type (enum U16) More...
DtU8	mySystemDesignator
	System Name (enum U16) More...
bool	myInteractiveModeIsActive
	System Type (enum U16) More...
DtEventId	myEventId
	System Type (enum U16) More...
bool	mySystemIsOn
	System Type (enum U16) More...
DtU8	mySystemMode
	System Type (enum U16) More...
DtOperationalStatusEnum8	myOperationalStatus
	System Type (enum U16) More...
bool	myTestModeIsOn
	System Type (enum U16) More...
bool	myEmissionsDataAvailable
	System Type (enum U16) More...
DtAntennaLocationIFFDataStructArray	myAntennaLocationArray
	System Type (enum U16) More...
DtIFFLayerSpecificInformationEnum8	myDataCommunicationsSpecificInformation
	System Type (enum U16) More...
DtIFFDataVariantStructArray	mySupplementalData
	System Type (enum U16) More...
EmissionsDataAvailable Attributes (i.e. DIS IFF PDU layer 2) (i.e. RPR 3.0 IFFSystem)
DtIFFLayerSpecificInformationEnum8	myEmissionsDataSpecificInformation
DtFloat32	myBeamAzimuthCenter
DtFloat32	myBeamAzimuthSweep
DtFloat32	myBeamElevationCenter
DtFloat32	myBeamElevationSweep
DtFloat32	myBeamSweepSync
DtFundamentalParameterDataStructArray	myFundamentalParameterData
DIS Layer 2 and RPR 2.0 IFF Specific Attributes
(along with BeamAzimuthCenter, BeamAzimuthSweep, BeamElevationCenter, BeamElevationSweep, BeamSweepSync, FundamentalParameterData)
DtIffOperationalParameter1	mySecondaryOperationalDataParameter1
DtIffOperationalParameter2	mySecondaryOperationalDataParameter2
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtGlobalObjectDesignator	myHostId
DtVector32	myRelativePosition

Private Attributes
DtMode1StateRepository *	myOwnedMode1StateRepository
DtMode2StateRepository *	myOwnedMode2StateRepository
DtMode3AStateRepository *	myOwnedMode3AStateRepository
DtMode3CStateRepository *	myOwnedMode3CStateRepository
DtMode4StateRepository *	myOwnedMode4StateRepository
DtMode5StateRepository *	myOwnedMode5StateRepository
DtModeSStateRepository *	myOwnedModeSStateRepository
DtTCASDataStateRepository *	myOwnedTCASDataStateRepository
DtSovietStateRepository *	myOwnedSovietStateRepository
DtRRBStateRepository *	myOwnedRRBStateRepository

IFFData Mode State Repository
Used for NatoIFF Transponder
DtMode1StateRepository *	myMode1
DtMode2StateRepository *	myMode2
DtMode3AStateRepository *	myMode3A
DtMode3CStateRepository *	myMode3C
DtMode4StateRepository *	myMode4
DtMode5StateRepository *	myMode5
DtModeSStateRepository *	myModeS
DtTCASDataStateRepository *	myTCASData
DtSovietStateRepository *	mySoviet
DtRRBStateRepository *	myRRB
bool	myEmergencyOn
bool	myStiOn
bool	myIdentSquawkFlashOn
bool	myUnmannedAircraftOn

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Detailed Description

Defines a protocol independent repository of attributes for IFF objects.

Constructor & Destructor Documentation

DtIffStateRepository::DtIffStateRepository

(

)

Default constructor.

virtual DtIffStateRepository::~DtIffStateRepository ( )

virtual

Destructor.

DtIffStateRepository::DtIffStateRepository

(

const DtIffStateRepository &

orig

)

Copy constructor.

Member Function Documentation

virtual DtFloat32 DtIffStateRepository::beamAzimuthCenter ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtFloat32 DtIffStateRepository::beamAzimuthSweep ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtFloat32 DtIffStateRepository::beamElevationCenter ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtFloat32 DtIffStateRepository::beamElevationSweep ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtFloat32 DtIffStateRepository::beamSweepSync ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtStateRepository* DtIffStateRepository::clone ( bool  copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

static DtIffStateRepository* DtIffStateRepository::create ( )

static

Create and return a new DtIffStateRepository.

virtual bool DtIffStateRepository::emissionsDataAvailable ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual bool DtIffStateRepository::enabledModesChanged ( )

virtual

virtual void DtIffStateRepository::enableMode ( DtModeType  modeType ) const

virtual

Mode 1 Accessor If this mode has not been enabled, this will return a nullptr.

virtual const DtEventId& DtIffStateRepository::eventId ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtFundamentalParameterDataStructArray DtIffStateRepository::fundamentalParameterData ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual bool DtIffStateRepository::getParamData ( int  parmIndex, DtIffAtcNavaidsParameter &  record  ) const

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual bool DtIffStateRepository::hasMode ( DtModeType  modeType ) const

virtual

Mode 1 Accessor If this mode has not been enabled, this will return a nullptr.

virtual bool DtIffStateRepository::iffSimulationMode ( ) const

virtual

Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation.

virtual bool DtIffStateRepository::interactiveCapable ( ) const

virtual

Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation.

virtual bool DtIffStateRepository::interactiveModeIsActive ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual bool DtIffStateRepository::isEmergencyOn ( ) const

virtual

Set/Get the attribute named "IdentSquawkFlashOn".

Parameters

val	Set to True when the transponder has set the I/P to On. This is also referred to as the Special Process Indicator (SPI), "Squawk Flash" or "Squawk Ident"

virtual bool DtIffStateRepository::isIdentSquawkFlashOn ( ) const

virtual

Set/Get the attribute named "IdentSquawkFlashOn".

Parameters

val	Set to True when the transponder has set the I/P to On. This is also referred to as the Special Process Indicator (SPI), "Squawk Flash" or "Squawk Ident"

virtual bool DtIffStateRepository::isUnmannedAircraftOn ( ) const

virtual

Set/Get the attribute named "IdentSquawkFlashOn".

Parameters

val	Set to True when the transponder has set the I/P to On. This is also referred to as the Special Process Indicator (SPI), "Squawk Flash" or "Squawk Ident"

virtual bool DtIffStateRepository::layer2DataAvailable ( ) const

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual unsigned int DtIffStateRepository::layer2SpecificInfo ( ) const

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual DtMode1StateRepository* DtIffStateRepository::mode1 ( ) const

virtual

Mode 1 Accessor If this mode has not been enabled, this will return a nullptr.

DtMode1StateRepository* DtIffStateRepository::mode1StateRepository

(

)

const

virtual DtMode2StateRepository* DtIffStateRepository::mode2 ( ) const

virtual

Mode 2 Accessor If this mode has not been enabled, this will return a nullptr.

DtMode2StateRepository* DtIffStateRepository::mode2StateRepository

(

)

const

virtual DtMode3AStateRepository* DtIffStateRepository::mode3A ( ) const

virtual

Mode 3A Accessor If this mode has not been enabled, this will return a nullptr.

DtMode3AStateRepository* DtIffStateRepository::mode3AStateRepository

(

)

const

virtual DtMode3CStateRepository* DtIffStateRepository::mode3C ( ) const

virtual

Mode 3C Accessor If this mode has not been enabled, this will return a nullptr.

DtMode3CStateRepository* DtIffStateRepository::mode3CStateRepository

(

)

const

virtual DtMode4StateRepository* DtIffStateRepository::mode4 ( ) const

virtual

Mode 4 Accessor If this mode has not been enabled, this will return a nullptr.

DtMode4StateRepository* DtIffStateRepository::mode4StateRepository

(

)

const

virtual DtMode5StateRepository* DtIffStateRepository::mode5 ( ) const

virtual

Mode 5 Accessor If this mode has not been enabled, this will return a nullptr.

DtMode5StateRepository* DtIffStateRepository::mode5StateRepository

(

)

const

virtual DtU16 DtIffStateRepository::modeCode ( DtModeType  modeCodeNum ) const

virtual

Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation.

virtual bool DtIffStateRepository::modeEnabled ( DtModeType  modeType ) const

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual bool DtIffStateRepository::modeIsDamaged ( DtModeType  modeType ) const

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual bool DtIffStateRepository::modeIsMalfunctioning ( DtModeType  modeType ) const

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual bool DtIffStateRepository::modeIsOn ( DtModeType  modeType ) const

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual DtModeSStateRepository* DtIffStateRepository::modeS ( ) const

virtual

Mode S Accessor If this mode has not been enabled, this will return a nullptr.

DtModeSStateRepository* DtIffStateRepository::modeSStateRepository

(

)

const

virtual int DtIffStateRepository::numParameterSets ( ) const

virtual

Set/Get operational parameters record.

virtual DtOperationalStatusEnum8 DtIffStateRepository::operationalStatus ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

DtIffStateRepository& DtIffStateRepository::operator=

(

const DtIffStateRepository &

orig

)

Assignment operator.

virtual DtIffAtcNavaidsParameter DtIffStateRepository::paramData ( int  paramIndex, bool *  valid = NULL  ) const

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual void DtIffStateRepository::printData ( ) const

virtual

prints the data to DtInfo

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtIffStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual DtRRBStateRepository* DtIffStateRepository::rrb ( ) const

virtual

RRB Accessor If this mode has not been enabled, this will return a nullptr.

DtRRBStateRepository* DtIffStateRepository::rrbStateRepository

(

)

const

virtual DtIffOperationalParameter1 DtIffStateRepository::secondaryOperationalDataParameter1 ( ) const

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual DtIffOperationalParameter2 DtIffStateRepository::secondaryOperationalDataParameter2 ( ) const

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual void DtIffStateRepository::setBeamAzimuthCenter ( DtFloat32  val )

virtual

Set/Get BeamAzimuthCenter.

Parameters

val	The azimuth center of the IFF/SSR beam's scan volume relative to the IFF/SSR system

virtual void DtIffStateRepository::setBeamAzimuthSweep ( DtFloat32  val )

virtual

Set/Get BeamAzimuthSweep.

Parameters

val	The azimuth half-angle of the IFF/SSR beam's scan volume relative to the IFF/SSR system

virtual void DtIffStateRepository::setBeamElevationCenter ( DtFloat32  val )

virtual

Set/Get BeamElevationCenter.

Parameters

val	The elevation center of the IFF/SSR beam's scan volume relative to the IFF/SSR system

virtual void DtIffStateRepository::setBeamElevationSweep ( DtFloat32  val )

virtual

Set/Get beamElevationSweep.

Parameters

val	The elevation half-angle of the IFF/SSR beam's scan volume relative to the IFF/SSR system

virtual void DtIffStateRepository::setBeamSweepSync ( DtFloat32  val )

virtual

Set/Get beamSweepSync.

Parameters

val	The percentage of time a scan is through its pattern from its origin

virtual void DtIffStateRepository::setEmergencyOn ( bool  val )

virtual

Set/Get the attribute named "IdentSquawkFlashOn".

Parameters

val	Set to True when the transponder has set the I/P to On. This is also referred to as the Special Process Indicator (SPI), "Squawk Flash" or "Squawk Ident"

virtual void DtIffStateRepository::setEmissionsDataAvailable ( bool  isAvailable )

virtual

Set/Get the attribute named "EmissionsDataAvailable".

Parameters

isAvailable

Specifies if emissions data (DIS IFF PDU layer 2) is available for this IFF/SSR system. When set to True, then the EmissionsDataSpecificInformation, BeamAzimuthCenter, BeamAzimuthSweep, BeamElevationCenter, BeamElevationSweep, BeamSweepSync, and FundamentalParameterData attributes shall be generated

virtual void DtIffStateRepository::setEnabledModesChanged ( bool  changed )

virtual

Flag to check if the enabled modes in this repository have changed. Used by the IFF System publisher.

virtual void DtIffStateRepository::setEventId ( const DtEventId &  eventId )

virtual

Set/Get the attribute named "EventIdentifier".

Parameters

eventId

Used to associate related events

virtual void DtIffStateRepository::setFundamentalParameterData ( DtFundamentalParameterDataStructArray  val )

virtual

Set/Get FundamentalParameterData.

Parameters

val	The fundamental energy radiation characteristics of the IFF/SSR system

virtual void DtIffStateRepository::setIdentSquawkFlashOn ( bool  val )

virtual

Set/Get the attribute named "IdentSquawkFlashOn".

Parameters

val	Set to True when the transponder has set the I/P to On. This is also referred to as the Special Process Indicator (SPI), "Squawk Flash" or "Squawk Ident"

virtual void DtIffStateRepository::setIffSimulationMode ( bool  on )

virtual

Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation.

virtual void DtIffStateRepository::setInteractiveCapable ( bool  on )

virtual

Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation.

virtual void DtIffStateRepository::setInteractiveModeIsActive ( bool  isActive )

virtual

Set/Get the attribute named "InteractiveModeIsActive" If Interactive Mode is set to true, simulation mode is Interactive.

If Interactive Mode is set to false, simulation mode is Regeneration.

Parameters

isActive

Indicates whether or not the IFFSystem is currently operating in the Interactive Mode

virtual void DtIffStateRepository::setLayer2DataAvailable ( bool  b )

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual void DtIffStateRepository::setLayer2SpecificInfo ( unsigned int  val )

virtual

Set layer2 specific info - this is not well defined but needed by DIS.

void DtIffStateRepository::setMode1StateRepository

(

DtMode1StateRepository *

r

)

const

void DtIffStateRepository::setMode2StateRepository

(

DtMode2StateRepository *

r

)

const

void DtIffStateRepository::setMode3AStateRepository

(

DtMode3AStateRepository *

r

)

const

void DtIffStateRepository::setMode3CStateRepository

(

DtMode3CStateRepository *

r

)

const

void DtIffStateRepository::setMode4StateRepository

(

DtMode4StateRepository *

r

)

const

void DtIffStateRepository::setMode5StateRepository

(

DtMode5StateRepository *

r

)

const

virtual void DtIffStateRepository::setModeCode ( DtModeType  modeCodeNum, DtU16  val  )

virtual

This stores the mode code exactly as specified by the DIS 1278.1a and RPR FOM 2.x standard.

It is a packed octal value. For ModeCode1 there are 2 octal values with the right most value ranging from 0->3. None of these rules are enforced by the state rep. Please consult the correct standard what can be transmitted on the wire. Applicable to NatoIFF Modes 1,2,3A in RPR 2.0 Applicable to IFFData.Modes 1,2,3A in RPR 3.0

virtual void DtIffStateRepository::setModeEnabled ( DtModeType  modeType, bool  val  )

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual void DtIffStateRepository::setModeIsDamaged ( DtModeType  modeType, bool  val  )

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual void DtIffStateRepository::setModeIsMalfunctioning ( DtModeType  modeType, bool  val  )

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

virtual void DtIffStateRepository::setModeIsOn ( DtModeType  modeType, bool  val  )

virtual

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn:

Parameters

type	The mode type as a DtModeType Enum
val	The boolean value set to the parameter kind

void DtIffStateRepository::setModeSStateRepository

(

DtModeSStateRepository *

r

)

const

virtual void DtIffStateRepository::setNumParameterSets ( int  n )

virtual

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used.

virtual void DtIffStateRepository::setOperationalStatus ( DtOperationalStatusEnum8  status )

virtual

Set/Get the attribute named "OperationalStatus".

Parameters

status

Whether the system is operational or whether it has experienced a system failure

virtual bool DtIffStateRepository::setParamData ( int  parmIndex, const DtIffAtcNavaidsParameter &  init  )

virtual

Set/Get the fundamental parameter data records for a selected layer.

void DtIffStateRepository::setRRBStateRepository

(

DtRRBStateRepository *

r

)

const

virtual void DtIffStateRepository::setSecondaryOperationalDataParameter1 ( DtIffOperationalParameter1  val )

virtual

set/Get SecondaryOperationalDataParameter1

virtual void DtIffStateRepository::setSecondaryOperationalDataParameter2 ( DtIffOperationalParameter2  val )

virtual

set/Get SecondaryOperationalDataParameter2

void DtIffStateRepository::setSovietStateRepository

(

DtSovietStateRepository *

r

)

const

virtual void DtIffStateRepository::setStiOn ( bool  onOff )

virtual

Set/get Nato Transponder StiOn.

Depreciated as of DIS 7

virtual void DtIffStateRepository::setSupplementalData ( DtIFFDataVariantStructArray  val )

virtual

Set/Get SupplementalData.

Parameters

val	Supplemental variable data related to the IFF system

virtual void DtIffStateRepository::setSystemDesignator ( DtU8  designator )

virtual

Set/Get the attribute named "SystemDesignator".

Parameters

name	A unique decimal number assigned to this interrogator or transponder to distinguish it from multiple interrogators or transponders that are associated with the same entity.

virtual void DtIffStateRepository::setSystemId ( const DtGlobalObjectDesignator &  globalId )

virtual

virtual void DtIffStateRepository::setSystemIsOn ( bool  isOn )

virtual

Set/Get the attribute named "SystemIsOn".

Parameters

isOn	Whether or not the system is on

virtual void DtIffStateRepository::setSystemIsOperational ( bool  isOperational )

virtual

virtual void DtIffStateRepository::setSystemMode ( DtU8  mode )

virtual

Set/Get the attribute named "SystemMode".

Parameters

mode	Mode of operation

virtual void DtIffStateRepository::setSystemName ( DtIffAtcNavaidsSysName  name )

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual void DtIffStateRepository::setSystemType ( DtIffAtcNavaidsSysType  type )

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

void DtIffStateRepository::setTCASDataStateRepository

(

DtTCASDataStateRepository *

r

)

const

virtual void DtIffStateRepository::setTestModeIsOn ( bool  isOn )

virtual

Set/Get the attribute named "TestModeIsOn".

Parameters

isOn	Indicates whether the IFF/SSR system has been placed in the equipment test mode

virtual void DtIffStateRepository::setUnmannedAircraftOn ( bool  val )

virtual

Set/Get the attribute named "UnmannedAircraftOn".

Parameters

val	Set to True when the transponder has set the Unmanned Aircraft reply to On

virtual DtSovietStateRepository* DtIffStateRepository::soviet ( ) const

virtual

Soviet Accessor If this mode has not been enabled, this will return a nullptr.

DtSovietStateRepository* DtIffStateRepository::sovietStateRepository

(

)

const

virtual bool DtIffStateRepository::stiOn ( ) const

virtual

Occupies bit 4 of PDU Status Record as 1-bit enum in the Layer 1 PDU Header Mode4, Mode5 Related to Interactive Mode4, Mode5 Interrogation.

virtual DtIFFDataVariantStructArray DtIffStateRepository::supplementalData ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtU8 DtIffStateRepository::systemDesignator ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual const DtGlobalObjectDesignator& DtIffStateRepository::systemId ( ) const

virtual

virtual bool DtIffStateRepository::systemIsOn ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual bool DtIffStateRepository::systemIsOperational ( ) const

virtual

virtual DtU8 DtIffStateRepository::systemMode ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtIffAtcNavaidsSysName DtIffStateRepository::systemName ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtIffAtcNavaidsSysType DtIffStateRepository::systemType ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

virtual DtTCASDataStateRepository* DtIffStateRepository::tcasData ( ) const

virtual

TCAS Data Accessor If this mode has not been enabled, this will return a nullptr.

DtTCASDataStateRepository* DtIffStateRepository::tcasDataStateRepository

(

)

const

virtual bool DtIffStateRepository::testModeIsOn ( ) const

virtual

Set/Get the attribute named "SystemName".

Parameters

name	Particular named type of the IFF/SSR system in use

Member Data Documentation

DtAntennaLocationIFFDataStructArray DtIffStateRepository::myAntennaLocationArray

protected

System Type (enum U16)

DtFloat32 DtIffStateRepository::myBeamAzimuthCenter

protected

DtFloat32 DtIffStateRepository::myBeamAzimuthSweep

protected

DtFloat32 DtIffStateRepository::myBeamElevationCenter

protected

DtFloat32 DtIffStateRepository::myBeamElevationSweep

protected

DtFloat32 DtIffStateRepository::myBeamSweepSync

protected

DtIFFLayerSpecificInformationEnum8 DtIffStateRepository::myDataCommunicationsSpecificInformation

protected

System Type (enum U16)

bool DtIffStateRepository::myEmergencyOn

bool DtIffStateRepository::myEmissionsDataAvailable

protected

System Type (enum U16)

DtIFFLayerSpecificInformationEnum8 DtIffStateRepository::myEmissionsDataSpecificInformation

protected

DtIffAtcNavaidsParameter DtIffStateRepository::myEmptyParamSet

protected

bool DtIffStateRepository::myEnabledModesChanged

mutable

DtEventId DtIffStateRepository::myEventId

protected

System Type (enum U16)

DtFundamentalParameterDataStructArray DtIffStateRepository::myFundamentalParameterData

protected

bool DtIffStateRepository::myIdentSquawkFlashOn

bool DtIffStateRepository::myIffSimulationMode

protected

bool DtIffStateRepository::myInteractiveCapable

protected

bool DtIffStateRepository::myInteractiveModeIsActive

protected

System Type (enum U16)

bool DtIffStateRepository::myLayer2DataAvailable

protected

int DtIffStateRepository::myLayer2SpecificInfo

protected

DtMode1StateRepository* DtIffStateRepository::myMode1

mutableprotected

DtMode2StateRepository* DtIffStateRepository::myMode2

mutableprotected

DtMode3AStateRepository* DtIffStateRepository::myMode3A

mutableprotected

DtMode3CStateRepository* DtIffStateRepository::myMode3C

mutableprotected

DtMode4StateRepository* DtIffStateRepository::myMode4

mutableprotected

DtMode5StateRepository* DtIffStateRepository::myMode5

mutableprotected

DtModeSStateRepository* DtIffStateRepository::myModeS

mutableprotected

DtIffAtcNavaidsSysName DtIffStateRepository::myName

protected

System Type (enum U16)

int DtIffStateRepository::myNumParamSets

protected

DtOperationalStatusEnum8 DtIffStateRepository::myOperationalStatus

protected

System Type (enum U16)

DtMode1StateRepository* DtIffStateRepository::myOwnedMode1StateRepository

mutableprivate

DtMode2StateRepository* DtIffStateRepository::myOwnedMode2StateRepository

mutableprivate

DtMode3AStateRepository* DtIffStateRepository::myOwnedMode3AStateRepository

mutableprivate

DtMode3CStateRepository* DtIffStateRepository::myOwnedMode3CStateRepository

mutableprivate

DtMode4StateRepository* DtIffStateRepository::myOwnedMode4StateRepository

mutableprivate

DtMode5StateRepository* DtIffStateRepository::myOwnedMode5StateRepository

mutableprivate

DtModeSStateRepository* DtIffStateRepository::myOwnedModeSStateRepository

mutableprivate

DtRRBStateRepository* DtIffStateRepository::myOwnedRRBStateRepository

mutableprivate

DtSovietStateRepository* DtIffStateRepository::myOwnedSovietStateRepository

mutableprivate

DtTCASDataStateRepository* DtIffStateRepository::myOwnedTCASDataStateRepository

mutableprivate

DtIffAtcNavaidsParameter* DtIffStateRepository::myParamSets

protected

DtRRBStateRepository* DtIffStateRepository::myRRB

mutableprotected

DtIffOperationalParameter1 DtIffStateRepository::mySecondaryOperationalDataParameter1

protected

DtIffOperationalParameter2 DtIffStateRepository::mySecondaryOperationalDataParameter2

protected

DtSovietStateRepository* DtIffStateRepository::mySoviet

mutableprotected

bool DtIffStateRepository::myStiOn

DtIFFDataVariantStructArray DtIffStateRepository::mySupplementalData

protected

System Type (enum U16)

DtU8 DtIffStateRepository::mySystemDesignator

protected

System Name (enum U16)

DtGlobalObjectDesignator DtIffStateRepository::mySystemId

protected

bool DtIffStateRepository::mySystemIsOn

protected

System Type (enum U16)

bool DtIffStateRepository::mySystemIsOperational

protected

DtU8 DtIffStateRepository::mySystemMode

protected

System Type (enum U16)

DtU8 DtIffStateRepository::mySystemSpecificData

protected

DtTCASDataStateRepository* DtIffStateRepository::myTCASData

mutableprotected

bool DtIffStateRepository::myTestModeIsOn

protected

System Type (enum U16)

DtIffAtcNavaidsSysType DtIffStateRepository::myType

protected

System Type (enum U16)

bool DtIffStateRepository::myUnmannedAircraftOn

DtMode1StateRepository*(* DtIffStateRepository::theMode1StateRepositoryCreator)()

static

DtMode2StateRepository*(* DtIffStateRepository::theMode2StateRepositoryCreator)()

static

DtMode3AStateRepository*(* DtIffStateRepository::theMode3AStateRepositoryCreator)()

static

DtMode3CStateRepository*(* DtIffStateRepository::theMode3CStateRepositoryCreator)()

static

DtMode4StateRepository*(* DtIffStateRepository::theMode4StateRepositoryCreator)()

static

DtMode5StateRepository*(* DtIffStateRepository::theMode5StateRepositoryCreator)()

static

DtModeSStateRepository*(* DtIffStateRepository::theModeSStateRepositoryCreator)()

static

DtRRBStateRepository*(* DtIffStateRepository::theRRBStateRepositoryCreator)()

static

DtSovietStateRepository*(* DtIffStateRepository::theSovietStateRepositoryCreator)()

static

DtTCASDataStateRepository*(* DtIffStateRepository::theTCASDataStateRepositoryCreator)()

static

---

The documentation for this class was generated from the following file:

• iffStateRepository.h
