DtRprInteractionDecoderFactory Class Reference

If you define DtSIMPLE_RPR to 1, and include this file, then this file defines a class called DtSimpleRprInteractionDecoderFactory, which contains mappings for only the subset of RPR FOM that is used by most MAK tools. More...

Inheritance diagram for DtRprInteractionDecoderFactory:

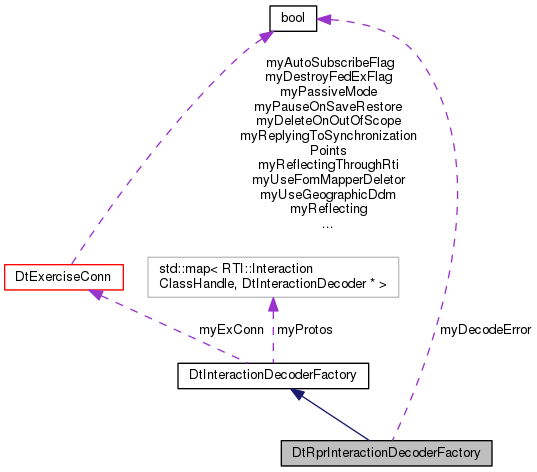

Collaboration diagram for DtRprInteractionDecoderFactory:

Public Member Functions
	DtRprInteractionDecoderFactory (DtExerciseConn *exConn)
	CTOR. More...
virtual	~DtRprInteractionDecoderFactory ()
	Virtual DTOR. More...
Public Member Functions inherited from DtInteractionDecoderFactory
	DtInteractionDecoderFactory (DtExerciseConn *exConn)
	constructor More...
virtual	~DtInteractionDecoderFactory ()
	destructor More...
	DtInteractionDecoderFactory (const DtInteractionDecoderFactory &orig)
	copy constructor Copies across added decoder creation functions. More...
DtInteractionDecoderFactory &	operator= (const DtInteractionDecoderFactory &orig)
	assignment operator Copies across added decoder creation functions. More...
virtual DtInteractionDecoder *	createDecoder (RTI::InteractionClassHandle hand)
	Create a decoder for the specified interaction class. More...
virtual DtInteractionDecoder *	addDecoder (RTI::InteractionClassHandle hand, DtInteractionDecoder *decoder)
	Add a decoder prototype to the factory. More...
virtual void	addParameterDecoder (RTI::InteractionClassHandle classHand, RTI::ParameterHandle paramHand, DtInteractionDecoder::DtParameterDecoder decoder, bool applyToSubclasses=true)
	This function is used to add a parameter decoder function to several prototype decoders all at once - namely, those associated with the interaction class denoted by hand, as well as all of its subclasses. More...
void	addParameterDecoder (char *className, RTI::ParameterHandle paramHand, DtInteractionDecoder::DtParameterDecoder func, bool applyToSubclasses=true)
	Same as above, but identify class by name. More...
void	addParameterDecoder (RTI::InteractionClassHandle classHand, char *paramName, DtInteractionDecoder::DtParameterDecoder func, bool applyToSubclasses=true)
	Same as above, but identify param by name. More...
void	addParameterDecoder (char *className, char *paramName, DtInteractionDecoder::DtParameterDecoder func, bool applyToSubclasses=true)
	Same as above, but identify class and param by name. More...
virtual DtInteractionDecoder *	decoder (RTI::InteractionClassHandle hand, bool copybase=false)
	Returns the decoder prototype associated with handle by a previous call to addDecoder. More...

Protected Attributes
bool	myDecodeError
Protected Attributes inherited from DtInteractionDecoderFactory
InterClassHandleToDecoderMap	myProtos
DtExerciseConn *	myExConn

Private Member Functions
	DtRprInteractionDecoderFactory (const DtRprInteractionDecoderFactory &orig)
	Copy constructor –not implemented. More...
DtRprInteractionDecoderFactory &	operator= (const DtRprInteractionDecoderFactory &orig)
	Assignment operator – not implemented. More...

Additional Inherited Members
Protected Types inherited from DtInteractionDecoderFactory
typedef std::map < RTI::InteractionClassHandle, DtInteractionDecoder * >	InterClassHandleToDecoderMap
	A list that maps class handles (DtIntHashKeys) to DtInteractionDecoder pointers. More...

Detailed Description

If you define DtSIMPLE_RPR to 1, and include this file, then this file defines a class called DtSimpleRprInteractionDecoderFactory, which contains mappings for only the subset of RPR FOM that is used by most MAK tools.

Instances of DtRprInteractionDecoderFactory are instances of DtInteractionDecoderFactories configured with the VR-Link's default set of Decoders.

Constructor & Destructor Documentation

DtRprInteractionDecoderFactory::DtRprInteractionDecoderFactory

(

DtExerciseConn *

exConn

)

CTOR.

Adds default RPR FOM decoders.

virtual DtRprInteractionDecoderFactory::~DtRprInteractionDecoderFactory ( )

virtual

Virtual DTOR.

DtRprInteractionDecoderFactory::DtRprInteractionDecoderFactory ( const DtRprInteractionDecoderFactory &  orig )

private

Copy constructor –not implemented.

Member Function Documentation

DtRprInteractionDecoderFactory& DtRprInteractionDecoderFactory::operator= ( const DtRprInteractionDecoderFactory &  orig )

private

Assignment operator – not implemented.

Member Data Documentation

bool DtRprInteractionDecoderFactory::myDecodeError

protected

---

The documentation for this class was generated from the following file:

• rprInteractionDecoderFactory.h
