DtEnvironmentalEllipsoidRecord Class Reference

DtEnvironmentalEllipsoidRecord implements the Environmental geometry record type "Ellipsoid Record 1." See Enumerated Bit Values document, section 12.3.4.8. More...

Inheritance diagram for DtEnvironmentalEllipsoidRecord:

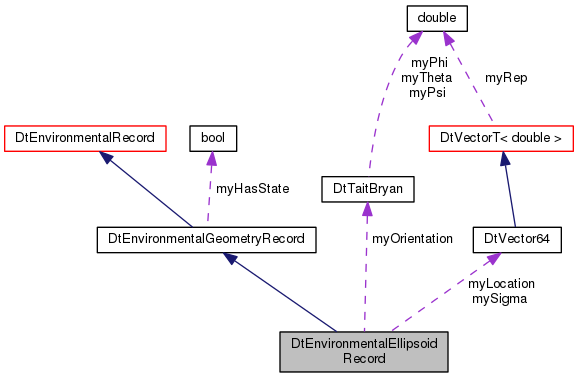

Collaboration diagram for DtEnvironmentalEllipsoidRecord:

Public Member Functions
	DtEnvironmentalEllipsoidRecord ()
	Constructor. More...
	DtEnvironmentalEllipsoidRecord (const DtEnvironmentalEllipsoidRecord &orig)
	Copy constructor. More...
const DtEnvironmentalEllipsoidRecord &	operator= (const DtEnvironmentalEllipsoidRecord &orig)
	Assignment Operator. More...
virtual	~DtEnvironmentalEllipsoidRecord ()
	Destructor. More...
virtual DtEnvironmentalRecord *	clone () const
	Clone. More...
virtual void	setLocation (const DtVector &location)
	Set/ get location. More...
virtual const DtVector &	location () const
virtual void	setSigma (const DtVector &sigma)
	Set get sigma (x, y, z) More...
virtual const DtVector &	sigma () const
virtual void	setOrientation (const DtTaitBryan &sigma)
	Set/ get orientation. More...
virtual const DtTaitBryan &	orientation () const
virtual bool	createNetworkRepresentation ()
	Create the record's network representation. More...
const DtNetEnvironmentalEllipsoidRecord *	ellipsoidNetRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalEllipsoidRecord *	ellipsoidNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer, int protocolVersion)
	used by the PDU class to fill in the network representation More...
virtual int	netRepSize () const
	returns the size of the net representation, in bytes. More...
Public Member Functions inherited from DtEnvironmentalGeometryRecord
	DtEnvironmentalGeometryRecord ()
	Constructor. More...
	DtEnvironmentalGeometryRecord (const DtEnvironmentalGeometryRecord &orig)
	Copy constructor. More...
const DtEnvironmentalGeometryRecord &	operator= (const DtEnvironmentalGeometryRecord &orig)
	Assignment Operator. More...
virtual	~DtEnvironmentalGeometryRecord ()
	Destructor. More...
virtual void	setHasState (bool hasState)
	Set/get a flag to indicate whether or not a state record is associated with this geometry record. More...
virtual bool	hasState () const
Public Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord ()
	Constructor. More...
	DtEnvironmentalRecord (const DtEnvironmentalRecord &orig)
	Copy constructor. More...
const DtEnvironmentalRecord &	operator= (const DtEnvironmentalRecord &orig)
	Assignment operator. More...
virtual	~DtEnvironmentalRecord ()
	Destructor. More...
virtual void	setType (DtU32 type)
virtual DtU32	type () const
virtual void	setLength (DtU16 length)
virtual DtU16	length () const
virtual void	setIndex (DtU8 index)
virtual DtU8	index () const
const DtNetEnvironmentalRecord *	netRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalRecord *	netRep ()

Protected Member Functions
DtEnvironmentalEllipsoidRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...
Protected Member Functions inherited from DtEnvironmentalRecord
virtual bool	checkAndCreate ()
	Checks to see if we need a representation, and creates it if we do Returns false, if the create fails, true otherwise. More...
virtual bool	resizeNetRep (int newSize)
	Resizes the network representation. More...
DtEnvironmentalRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

Protected Attributes
DtVector	myLocation
DtVector	mySigma
DtTaitBryan	myOrientation
Protected Attributes inherited from DtEnvironmentalGeometryRecord
bool	myHasState
Protected Attributes inherited from DtEnvironmentalRecord
DtNetEnvironmentalRecord *	myNetRep

Detailed Description

DtEnvironmentalEllipsoidRecord implements the Environmental geometry record type "Ellipsoid Record 1." See Enumerated Bit Values document, section 12.3.4.8.

Constructor & Destructor Documentation

DtEnvironmentalEllipsoidRecord::DtEnvironmentalEllipsoidRecord

(

)

Constructor.

DtEnvironmentalEllipsoidRecord::DtEnvironmentalEllipsoidRecord

(

const DtEnvironmentalEllipsoidRecord &

orig

)

Copy constructor.

virtual DtEnvironmentalEllipsoidRecord::~DtEnvironmentalEllipsoidRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtEnvironmentalRecord* DtEnvironmentalEllipsoidRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtEnvironmentalGeometryRecord.

virtual bool DtEnvironmentalEllipsoidRecord::createNetworkRepresentation ( )

virtual

Create the record's network representation.

Reimplemented from DtEnvironmentalRecord.

const DtNetEnvironmentalEllipsoidRecord* DtEnvironmentalEllipsoidRecord::ellipsoidNetRep

(

)

const

returns the network representation of the environmental record

DtNetEnvironmentalEllipsoidRecord* DtEnvironmentalEllipsoidRecord::ellipsoidNetRep

(

)

virtual const DtVector& DtEnvironmentalEllipsoidRecord::location ( ) const

virtual

virtual int DtEnvironmentalEllipsoidRecord::netRepSize ( ) const

virtual

returns the size of the net representation, in bytes.

Reimplemented from DtEnvironmentalRecord.

const DtEnvironmentalEllipsoidRecord& DtEnvironmentalEllipsoidRecord::operator=

(

const DtEnvironmentalEllipsoidRecord &

orig

)

Assignment Operator.

virtual const DtTaitBryan& DtEnvironmentalEllipsoidRecord::orientation ( ) const

virtual

DtEnvironmentalEllipsoidRecord* DtEnvironmentalEllipsoidRecord::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

virtual void DtEnvironmentalEllipsoidRecord::setFromNet ( const DtNetEnvironmentalRecord &  buffer, int  protocolVersion  )

virtual

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalEllipsoidRecord::setLocation ( const DtVector &  location )

virtual

Set/ get location.

virtual void DtEnvironmentalEllipsoidRecord::setOrientation ( const DtTaitBryan &  sigma )

virtual

Set/ get orientation.

virtual void DtEnvironmentalEllipsoidRecord::setSigma ( const DtVector &  sigma )

virtual

Set get sigma (x, y, z)

virtual const DtVector& DtEnvironmentalEllipsoidRecord::sigma ( ) const

virtual

Member Data Documentation

DtVector DtEnvironmentalEllipsoidRecord::myLocation

protected

DtTaitBryan DtEnvironmentalEllipsoidRecord::myOrientation

protected

DtVector DtEnvironmentalEllipsoidRecord::mySigma

protected

---

The documentation for this class was generated from the following file:

• environmentalEllipsoidRecord.h
