DtInteractionEncoder Class Reference

DtInteractionEncoder is used to provide encoding of an interaction into an RTI::ParameterHandleValuePairSet in an HLA (as opposed to DIS) environment. More...

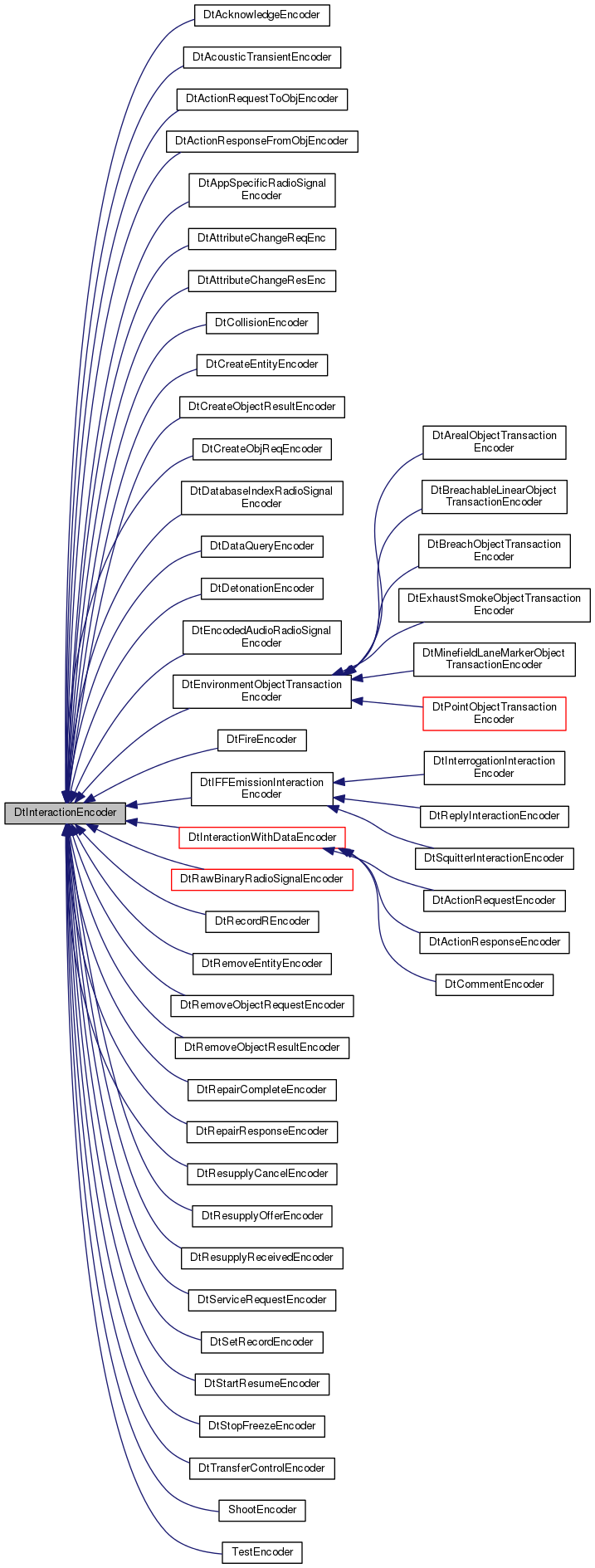

Inheritance diagram for DtInteractionEncoder:

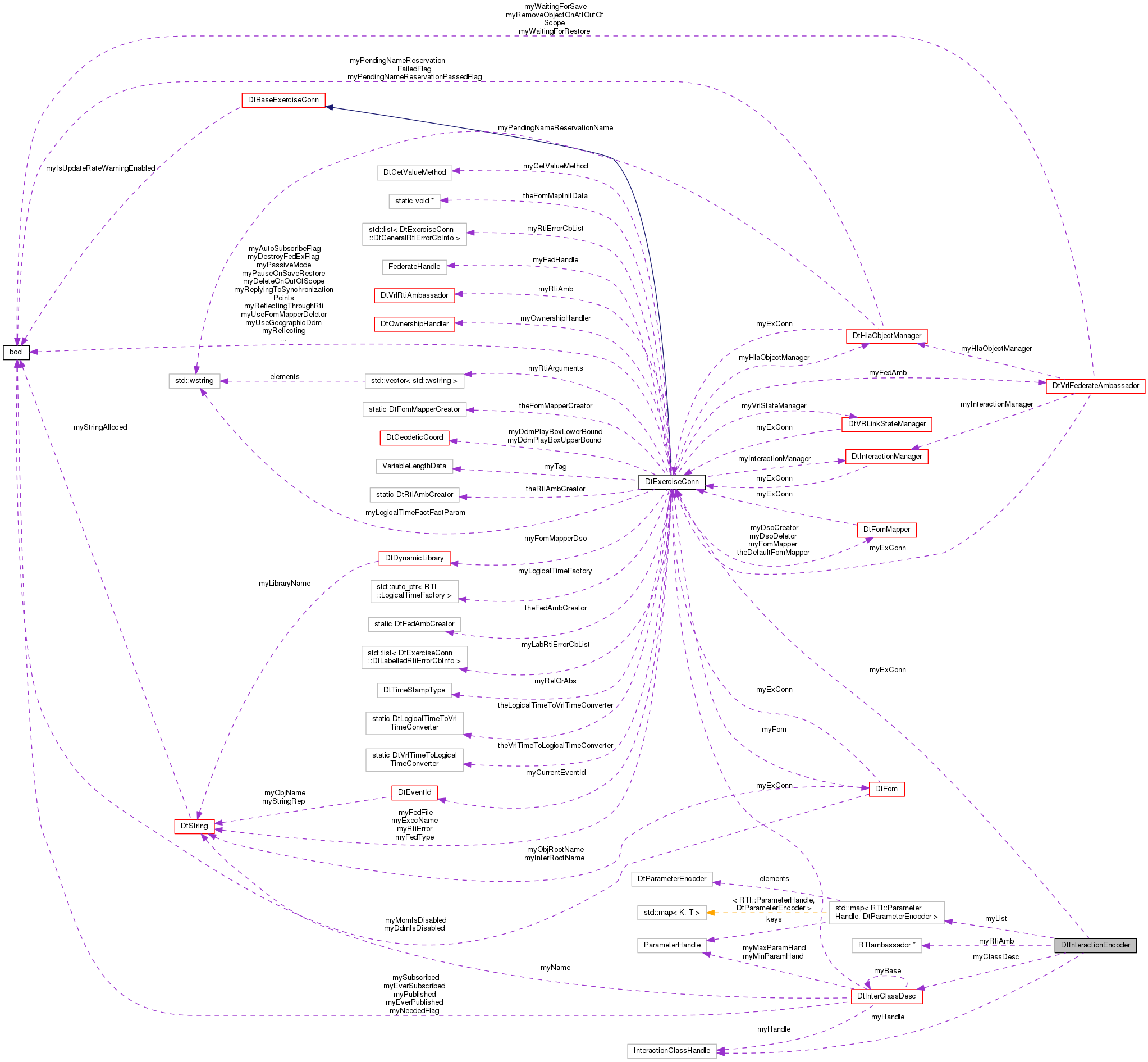

Collaboration diagram for DtInteractionEncoder:

Public Types
typedef void(*	DtParameterEncoder )(const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
	Attribute encoding function declaration. More...

Public Member Functions
	DtInteractionEncoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionEncoder ()
	destructor More...
	DtInteractionEncoder (const DtInteractionEncoder &orig)
	copy constructor More...
DtInteractionEncoder &	operator= (const DtInteractionEncoder &orig)
	assignment operator More...
virtual DtParameterEncoder	addEncoder (RTI::ParameterHandle hand, DtParameterEncoder func)
	Add a parameter encoder function by parameter handle. More...
virtual DtParameterEncoder	addEncoder (char *name, DtParameterEncoder proc)
	Add a parameter encoder function by parameter name. More...
virtual DtParameterEncoder	encoder (RTI::ParameterHandle hand)
	Get the parameter encoder for the specified handle. More...
virtual void	encode (const DtInteractionRep &inter, RTI::ParameterHandleValueMap &pvMap)
	Encode necessary values from the protocol-independent interaction. More...
virtual RTI::InteractionClassHandle	interClassHandle ()
	Get the object's class handle. More...
virtual DtInteractionEncoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionEncoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Static Public Member Functions
static void	encodeGenericParameter (const DtInteractionWithEncDec &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)

Protected Attributes
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::RTIambassador *	myRtiAmb
RTI::InteractionClassHandle	myHandle
std::map< RTI::ParameterHandle, DtParameterEncoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

DtInteractionEncoder is used to provide encoding of an interaction into an RTI::ParameterHandleValuePairSet in an HLA (as opposed to DIS) environment.

Member Typedef Documentation

typedef void(* DtInteractionEncoder::DtParameterEncoder)(const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)

Attribute encoding function declaration.

Constructor & Destructor Documentation

DtInteractionEncoder::DtInteractionEncoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

constructor

virtual DtInteractionEncoder::~DtInteractionEncoder ( )

virtual

destructor

DtInteractionEncoder::DtInteractionEncoder

(

const DtInteractionEncoder &

orig

)

copy constructor

Member Function Documentation

virtual DtParameterEncoder DtInteractionEncoder::addEncoder ( RTI::ParameterHandle  hand, DtParameterEncoder  func  )

virtual

Add a parameter encoder function by parameter handle.

Returns any previous parameter encoder function which was replaced by the add.

virtual DtParameterEncoder DtInteractionEncoder::addEncoder ( char *  name, DtParameterEncoder  proc  )

virtual

Add a parameter encoder function by parameter name.

Returns any previous parameter encoder function which was replaced by the add.

virtual DtInteractionEncoder* DtInteractionEncoder::clone ( ) const

virtual

Returns a new-ed clone of this object.

virtual DtInteractionEncoder* DtInteractionEncoder::clone ( DtInterClassDesc *  interDesc ) const

virtual

Returns a new-ed clone of this object which corresponds to the inter description interDesc.

Use this function if you want a subclass in the FOM to use the same encoder as its parent.

virtual void DtInteractionEncoder::encode ( const DtInteractionRep &  inter, RTI::ParameterHandleValueMap &  pvMap  )

virtual

Encode necessary values from the protocol-independent interaction.

static void DtInteractionEncoder::encodeGenericParameter ( const DtInteractionWithEncDec &  inter, RTI::ParameterHandleValuePairSet *  avlist, RTI::ParameterHandle  handle  )

static

DtInteractionEncoder::DtParameterEncoder DtInteractionEncoder::encoder ( RTI::ParameterHandle  hand )

inlinevirtual

Get the parameter encoder for the specified handle.

References myList.

RTI::InteractionClassHandle DtInteractionEncoder::interClassHandle ( )

inlinevirtual

Get the object's class handle.

References myHandle.

DtInteractionEncoder& DtInteractionEncoder::operator=

(

const DtInteractionEncoder &

orig

)

assignment operator

Member Data Documentation

DtInterClassDesc* DtInteractionEncoder::myClassDesc

protected

DtExerciseConn* DtInteractionEncoder::myExConn

protected

RTI::InteractionClassHandle DtInteractionEncoder::myHandle

protected

Referenced by interClassHandle().

std::map<RTI::ParameterHandle, DtParameterEncoder> DtInteractionEncoder::myList

protected

myList is an array of classDesc->maxParamHandle() items.

Referenced by encoder().

RTI::RTIambassador* DtInteractionEncoder::myRtiAmb

protected

---

The documentation for this class was generated from the following file:

• interactionEncoder.h
