DtVRLinkStateManager Class Reference

Instances of DtVRLinkStateManager use a list of DtReflectedVRLinkState objects to exercise initialization. More...

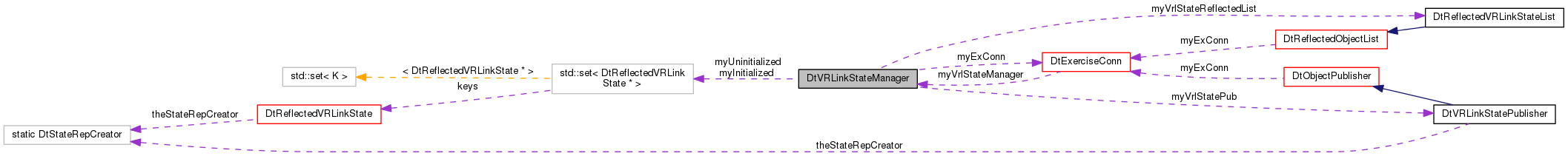

Collaboration diagram for DtVRLinkStateManager:

Public Member Functions
	DtVRLinkStateManager (DtExerciseConn &exConn)
virtual	~DtVRLinkStateManager ()
virtual bool	isInitialized () const
virtual void	add (DtReflectedVRLinkState *vrlObject)
virtual void	update (DtReflectedVRLinkState *vrlObject)
virtual void	remove (DtReflectedVRLinkState *vrlObject)
virtual void	setExecutionStatus (DtVRLExecutionStatus val)
	Set the ExecutionStatus. More...
virtual DtVRLExecutionStatus	executionStatus () const
	Get the ExecutionStatus.". More...
virtual bool	hasVrlStatePub () const
	Check if VRLinkStateManager has a VrlStatePublisher. More...

Static Public Member Functions
static bool	isInitialized (DtReflectedVRLinkState *vrlObject)

Protected Member Functions
virtual void	doPostDrainCb ()
virtual void	doPostDrainInitializeCb ()

Static Protected Member Functions
static void	vrlUpdateCb (DtReflectedVRLinkState *vrlObject, void *usr)
static void	vrlAddCb (DtReflectedObject *reflectedObject, void *usr)
static void	vrlRemoveCb (DtReflectedObject *reflectedObject, void *usr)
static void	postDrainCb (void *usr)
static void	postDrainInitializeCb (void *usr)

Protected Attributes
DtExerciseConn &	myExConn
DtVRLinkStatePublisher *	myVrlStatePub
DtReflectedVRLinkStateList *	myVrlStateReflectedList
std::set < DtReflectedVRLinkState * >	myInitialized
std::set < DtReflectedVRLinkState * >	myUninitialized

Detailed Description

Instances of DtVRLinkStateManager use a list of DtReflectedVRLinkState objects to exercise initialization.

Primarily it controls the invocation of request updates until all remote federates have finished registering and updating their initial objects.

Constructor & Destructor Documentation

DtVRLinkStateManager::DtVRLinkStateManager

(

DtExerciseConn &

exConn

)

virtual DtVRLinkStateManager::~DtVRLinkStateManager ( )

virtual

Member Function Documentation

virtual void DtVRLinkStateManager::add ( DtReflectedVRLinkState *  vrlObject )

virtual

virtual void DtVRLinkStateManager::doPostDrainCb ( )

protectedvirtual

virtual void DtVRLinkStateManager::doPostDrainInitializeCb ( )

protectedvirtual

virtual DtVRLExecutionStatus DtVRLinkStateManager::executionStatus ( ) const

virtual

Get the ExecutionStatus.".

virtual bool DtVRLinkStateManager::hasVrlStatePub ( ) const

virtual

Check if VRLinkStateManager has a VrlStatePublisher.

virtual bool DtVRLinkStateManager::isInitialized ( ) const

virtual

static bool DtVRLinkStateManager::isInitialized ( DtReflectedVRLinkState *  vrlObject )

static

static void DtVRLinkStateManager::postDrainCb ( void *  usr )

staticprotected

static void DtVRLinkStateManager::postDrainInitializeCb ( void *  usr )

staticprotected

virtual void DtVRLinkStateManager::remove ( DtReflectedVRLinkState *  vrlObject )

virtual

virtual void DtVRLinkStateManager::setExecutionStatus ( DtVRLExecutionStatus  val )

virtual

Set the ExecutionStatus.

virtual void DtVRLinkStateManager::update ( DtReflectedVRLinkState *  vrlObject )

virtual

static void DtVRLinkStateManager::vrlAddCb ( DtReflectedObject *  reflectedObject, void *  usr  )

staticprotected

static void DtVRLinkStateManager::vrlRemoveCb ( DtReflectedObject *  reflectedObject, void *  usr  )

staticprotected

static void DtVRLinkStateManager::vrlUpdateCb ( DtReflectedVRLinkState *  vrlObject, void *  usr  )

staticprotected

Member Data Documentation

DtExerciseConn& DtVRLinkStateManager::myExConn

protected

std::set<DtReflectedVRLinkState*> DtVRLinkStateManager::myInitialized

protected

std::set<DtReflectedVRLinkState*> DtVRLinkStateManager::myUninitialized

protected

DtVRLinkStatePublisher* DtVRLinkStateManager::myVrlStatePub

protected

DtReflectedVRLinkStateList* DtVRLinkStateManager::myVrlStateReflectedList

protected

---

The documentation for this class was generated from the following file:

• vrlinkStateManager.h
