VR-Link API Documentation for DIS
|
All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
|
VR-Link API Documentation for DIS
|
Instances of DtAerodromeEncoder encode data from DtAerodromeStateRepository objects to the net structures to be sent to the network. More...

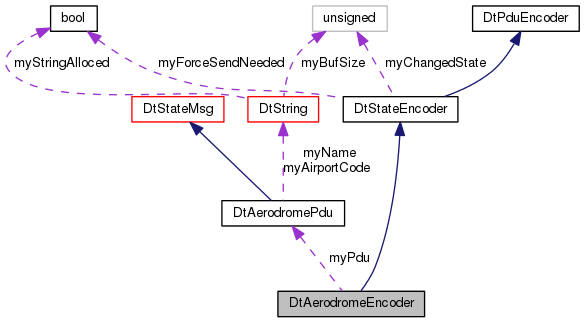

Inheritance diagram for DtAerodromeEncoder: Collaboration diagram for DtAerodromeEncoder:Public Member Functions | |
| DtAerodromeEncoder () | |
| Default constructor. More... | |
| virtual | ~DtAerodromeEncoder () |
| Destructor. More... | |
| DtAerodromeEncoder (const DtAerodromeEncoder &orig) | |
| Copy constructor. More... | |
| DtAerodromeEncoder & | operator= (const DtAerodromeEncoder &orig) |
| Assignment operator. More... | |
| virtual DtAerodromePdu * | stateMsg (const DtAerodromeStateRepository &stateRep, const DtAerodromeStateRepository &asSeenByRemote) |
| Constructs a PDU from the state repository. More... | |
| virtual void | setFinalPdu () |
| Sets the Final PDU status bit to indicate this is the last PDU for this object. More... | |
| Public Member Functions inherited from DtStateEncoder | |
| DtStateEncoder () | |
| Default constructor. More... | |
| virtual | ~DtStateEncoder () |
| Destructor. More... | |
| DtStateEncoder (const DtStateEncoder &orig) | |
| Copy constructor. More... | |
| DtStateEncoder & | operator= (const DtStateEncoder &orig) |
| Assignment operator. More... | |
| virtual void | setSendNeeded () |
| Sets myForceSendNeeded to true. More... | |
| virtual DtU32 | changedState () const |
| virtual void | clearChangedState () |
| virtual bool | isChangedStateBit (DtU32 st) const |
| virtual void | resetChangedStateBit (DtU32 st) |
| virtual void | setChangedStateBit (DtU32 st) |
| virtual DtPduEncoder * | clone () const =0 |
| clone. More... | |
| virtual void | encode (DtPdu *pdu) |
| This is a dummy method for backwards compatibility with DIS encoders. More... | |
| virtual void | fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true) |
| DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More... | |
| virtual bool | sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote) |
| In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More... | |
| Public Member Functions inherited from DtPduEncoder | |
| virtual | ~DtPduEncoder () |
Protected Member Functions | |
| virtual bool | sendNeeded (const DtAerodromeStateRepository &stateRep, const DtAerodromeStateRepository &asSeenByRemote) |
| virtual void | fillOut (const DtAerodromeStateRepository &stateRep, const DtAerodromeStateRepository &asSeenByRemote, DtAerodromePdu *pdu) |
Protected Attributes | |
| DtAerodromePdu | myPdu |
| Protected Attributes inherited from DtStateEncoder | |
| bool | myForceSendNeeded |
| DtU32 | myChangedState |
Instances of DtAerodromeEncoder encode data from DtAerodromeStateRepository objects to the net structures to be sent to the network.
| DtAerodromeEncoder::DtAerodromeEncoder | ( | ) |
Default constructor.
|
virtual |
Destructor.
| DtAerodromeEncoder::DtAerodromeEncoder | ( | const DtAerodromeEncoder & | orig | ) |
Copy constructor.
|
protectedvirtual |
| DtAerodromeEncoder& DtAerodromeEncoder::operator= | ( | const DtAerodromeEncoder & | orig | ) |
Assignment operator.
|
protectedvirtual |
|
virtual |
Sets the Final PDU status bit to indicate this is the last PDU for this object.
|
virtual |
Constructs a PDU from the state repository.
stateMsg determines whether an PDU needs to be sent and constructs one of it does.
|
protected |
