DtDIGuyCustomPduDecoder Class Reference

Inheritance diagram for DtDIGuyCustomPduDecoder:

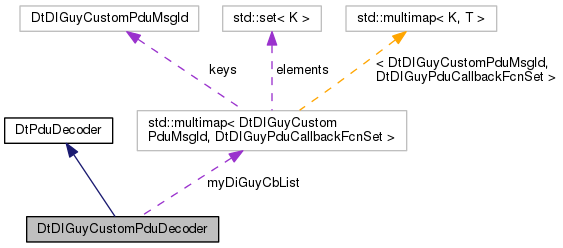

Collaboration diagram for DtDIGuyCustomPduDecoder:

Public Member Functions
	DtDIGuyCustomPduDecoder ()
virtual	~DtDIGuyCustomPduDecoder ()
virtual void	decode (DtPdu *pdu, DtEntityStateRepository *stateRep)
virtual DtPduDecoder *	clone () const
virtual void	clearCallbacks ()
virtual void	decode (DtPdu *pdu, DtPduFactory *pduFactory=0)
	This is a dummy method for backwards compatibility with DIS decoders. More...
virtual void	addDiGuyPduCallback (DtDIGuyCustomPduMsgId k, DtDIGuyPduCallbackFcn info)
	Add/Remove callback info for a particular DI Guy Message kind. More...
virtual void	removeDiGuyPduCallback (DtDIGuyCustomPduMsgId k, const DtDIGuyPduCallbackFcn &info)
Public Member Functions inherited from DtPduDecoder
virtual	~DtPduDecoder ()

Static Public Member Functions
static void	processDiGuyType (DtDIGuyCustomPdu *pdu, DtEntityStateRepository *pEsr)
static void	processDiGuyAppearance (DtDIGuyCustomPdu *pdu, DtEntityStateRepository *pEsr)
static void	processDiGuyAction (DtDIGuyCustomPdu *pdu, DtEntityStateRepository *pEsr)
static void	processDiGuyShapeVariations (DtDIGuyCustomPdu *pdu, DtEntityStateRepository *pEsr)
static void	processDiGuyCharacterScale (DtDIGuyCustomPdu *pdu, DtEntityStateRepository *pEsr)
static void	getDiGuyType (const DtDIGuyCustomPdu *pdu, DtString &type)
static void	getDiGuyAppearance (const DtDIGuyCustomPdu *pdu, DtString &appearance, DtString &headAppearance, DtString &itemAppearance, float &bodyWeight)
static void	getDiGuyAction (const DtDIGuyCustomPdu *pdu, DtString &action, bool &paused, float &speed, short &usePositioningFlag, DtVector &actionOffset)
static void	getDiGuyShapeVariations (const DtDIGuyCustomPdu *pdu, DtEntityStateRepository *pEsr)
static void	getDiGuyCharacterScale (const DtDIGuyCustomPdu *pdu, DtVector &scale)

Protected Types
typedef std::set < DtDIGuyPduCallbackFcn >	DtDIGuyPduCallbackFcnSet
typedef std::multimap < DtDIGuyCustomPduMsgId, DtDIGuyPduCallbackFcnSet >	DtDIGuyPduCallbackFcnMap

Protected Attributes
DtDIGuyPduCallbackFcnMap	myDiGuyCbList

Member Typedef Documentation

typedef std::multimap<DtDIGuyCustomPduMsgId,DtDIGuyPduCallbackFcnSet> DtDIGuyCustomPduDecoder::DtDIGuyPduCallbackFcnMap

protected

typedef std::set<DtDIGuyPduCallbackFcn> DtDIGuyCustomPduDecoder::DtDIGuyPduCallbackFcnSet

protected

Constructor & Destructor Documentation

DtDIGuyCustomPduDecoder::DtDIGuyCustomPduDecoder

(

)

virtual DtDIGuyCustomPduDecoder::~DtDIGuyCustomPduDecoder ( )

virtual

Member Function Documentation

virtual void DtDIGuyCustomPduDecoder::addDiGuyPduCallback ( DtDIGuyCustomPduMsgId  k, DtDIGuyPduCallbackFcn  info  )

virtual

Add/Remove callback info for a particular DI Guy Message kind.

By default processDiGuyAppearance, processDiGuyType, and processDiGuyAction are set.

virtual void DtDIGuyCustomPduDecoder::clearCallbacks ( )

virtual

virtual DtPduDecoder* DtDIGuyCustomPduDecoder::clone ( ) const

virtual

Implements DtPduDecoder.

virtual void DtDIGuyCustomPduDecoder::decode ( DtPdu *  pdu, DtEntityStateRepository *  stateRep  )

virtual

virtual void DtDIGuyCustomPduDecoder::decode ( DtPdu *  pdu, DtPduFactory *  pduFactory = 0  )

inlinevirtual

This is a dummy method for backwards compatibility with DIS decoders.

Implements DtPduDecoder.

static void DtDIGuyCustomPduDecoder::getDiGuyAction ( const DtDIGuyCustomPdu *  pdu, DtString &  action, bool &  paused, float &  speed, short &  usePositioningFlag, DtVector &  actionOffset  )

static

static void DtDIGuyCustomPduDecoder::getDiGuyAppearance ( const DtDIGuyCustomPdu *  pdu, DtString &  appearance, DtString &  headAppearance, DtString &  itemAppearance, float &  bodyWeight  )

static

static void DtDIGuyCustomPduDecoder::getDiGuyCharacterScale ( const DtDIGuyCustomPdu *  pdu, DtVector &  scale  )

static

static void DtDIGuyCustomPduDecoder::getDiGuyShapeVariations ( const DtDIGuyCustomPdu *  pdu, DtEntityStateRepository *  pEsr  )

static

static void DtDIGuyCustomPduDecoder::getDiGuyType ( const DtDIGuyCustomPdu *  pdu, DtString &  type  )

static

static void DtDIGuyCustomPduDecoder::processDiGuyAction ( DtDIGuyCustomPdu *  pdu, DtEntityStateRepository *  pEsr  )

static

static void DtDIGuyCustomPduDecoder::processDiGuyAppearance ( DtDIGuyCustomPdu *  pdu, DtEntityStateRepository *  pEsr  )

static

static void DtDIGuyCustomPduDecoder::processDiGuyCharacterScale ( DtDIGuyCustomPdu *  pdu, DtEntityStateRepository *  pEsr  )

static

static void DtDIGuyCustomPduDecoder::processDiGuyShapeVariations ( DtDIGuyCustomPdu *  pdu, DtEntityStateRepository *  pEsr  )

static

static void DtDIGuyCustomPduDecoder::processDiGuyType ( DtDIGuyCustomPdu *  pdu, DtEntityStateRepository *  pEsr  )

static

virtual void DtDIGuyCustomPduDecoder::removeDiGuyPduCallback ( DtDIGuyCustomPduMsgId  k, const DtDIGuyPduCallbackFcn &  info  )

virtual

Member Data Documentation

DtDIGuyPduCallbackFcnMap DtDIGuyCustomPduDecoder::myDiGuyCbList

protected

---

The documentation for this class was generated from the following file:

• diGuyCustomPduDecoder.h
