DtEmbeddedSystemRepository Class Reference

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems. More...

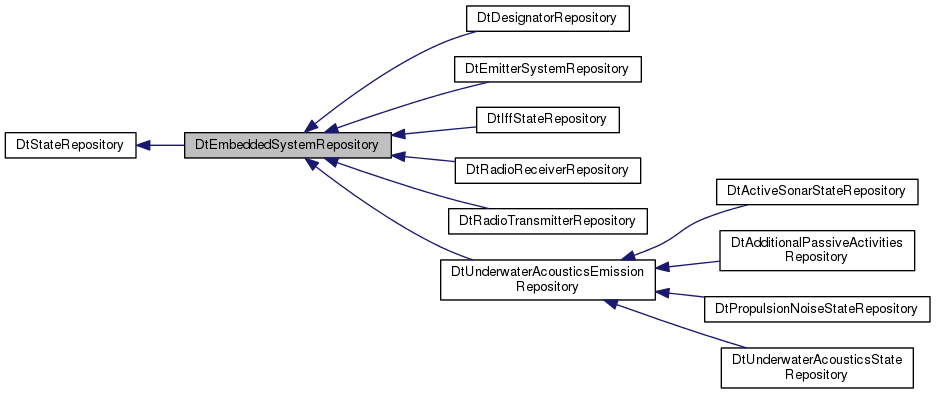

Inheritance diagram for DtEmbeddedSystemRepository:

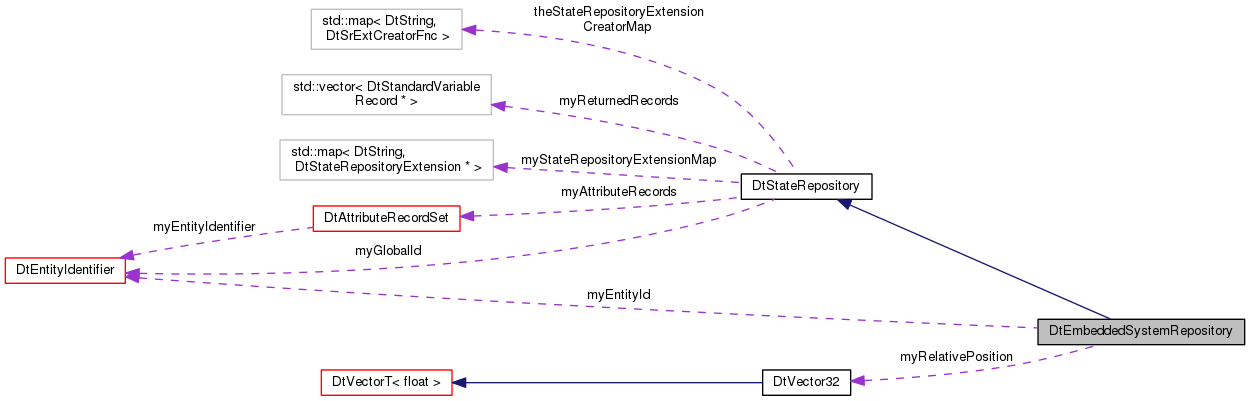

Collaboration diagram for DtEmbeddedSystemRepository:

Public Member Functions
	DtEmbeddedSystemRepository ()
	default constructor More...
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor More...
virtual	~DtEmbeddedSystemRepository ()
	destructor More...
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier. More...
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier. More...
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier. More...
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier. More...
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity. More...
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtEmbeddedSystemRepository *	create ()
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems.

An embedded system is an object which is a component of an entity: for example, a radar unit on an aircraft.

Constructor & Destructor Documentation

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

)

default constructor

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

const DtEmbeddedSystemRepository &

orig

)

copy constructor

virtual DtEmbeddedSystemRepository::~DtEmbeddedSystemRepository ( )

virtual

destructor

Member Function Documentation

virtual DtStateRepository* DtEmbeddedSystemRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtIffStateRepository, DtActiveSonarStateRepository, DtEmitterSystemRepository, DtRadioTransmitterRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

static DtEmbeddedSystemRepository* DtEmbeddedSystemRepository::create ( )

static

virtual const DtEntityIdentifier& DtEmbeddedSystemRepository::entityId ( ) const

virtual

Get the entity identifier.

In DIS this is the same as the HostID, but may not be used in HLA.

virtual const DtGlobalObjectDesignator& DtEmbeddedSystemRepository::hostId ( ) const

virtual

Get the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

DtEmbeddedSystemRepository& DtEmbeddedSystemRepository::operator=

(

const DtEmbeddedSystemRepository &

orig

)

assignment operator

virtual void DtEmbeddedSystemRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, and DtDesignatorRepository.

virtual void DtEmbeddedSystemRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print state data to the specified stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, and DtDesignatorRepository.

virtual const DtVector32& DtEmbeddedSystemRepository::relativePosition ( ) const

virtual

Get the position of the object relative to the entity.

virtual void DtEmbeddedSystemRepository::setEntityId ( const DtEntityIdentifier &  id )

virtual

Set the entity identifier.

In DIS this is the same as the HostID, used by RPR FOM, but may not be present in all FOMS.

Reimplemented in DtUnderwaterAcousticsStateRepository.

virtual void DtEmbeddedSystemRepository::setHostId ( const DtGlobalObjectDesignator &  id )

virtual

Set the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

Reimplemented in DtUnderwaterAcousticsStateRepository.

virtual void DtEmbeddedSystemRepository::setRelativePosition ( const DtVector32 &  position )

virtual

Set the position of the object relative to the entity.

Member Data Documentation

DtEntityIdentifier DtEmbeddedSystemRepository::myEntityId

protected

DtVector32 DtEmbeddedSystemRepository::myRelativePosition

protected

---

The documentation for this class was generated from the following file:

• embeddedSystemRepository.h
