DtEmitterSystemStateEncoder Class Reference

Instances of DtEmitterSystemStateEncoder are used to take state information from a DtEmitterSystemRepository and place it into an electromagnetic emissions PDU. More...

Inheritance diagram for DtEmitterSystemStateEncoder:

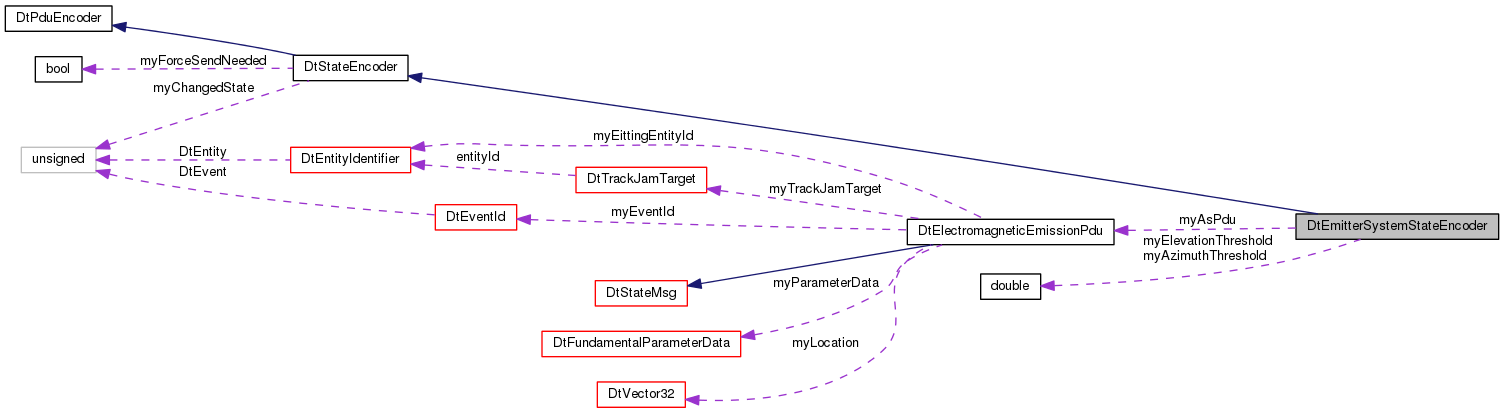

Collaboration diagram for DtEmitterSystemStateEncoder:

Public Member Functions
	DtEmitterSystemStateEncoder ()
	CTOR. More...
	DtEmitterSystemStateEncoder (const DtEmitterSystemStateEncoder &orig)
	Copy CTOR. More...
virtual	~DtEmitterSystemStateEncoder ()
	Virtual DTOR. More...
DtEmitterSystemStateEncoder &	operator= (const DtEmitterSystemStateEncoder &orig)
	Assignment operator. More...
virtual DtElectromagneticEmissionPdu *	stateMsg (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
virtual void	setAzimuthThreshold (double threshold)
	DEPRECATED - will be removed in a future version. More...
virtual double	azimuthThreshold () const
	DEPRECATED - will be removed in a future version. More...
virtual void	setElevationThreshold (double threshold)
	DEPRECATED - will be removed in a future version. More...
virtual double	elevationThreshold () const
	DEPRECATED - will be removed in a future version. More...
	DtCLONE_ENCODER (DtEmitterSystemStateEncoder)
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote)
	Determine if a state message needs to be sent. More...
virtual void	fillOut (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote, DtElectromagneticEmissionPdu *pdu)
	Fill out a state message which reflects a state repository. More...

Protected Attributes
DtElectromagneticEmissionPdu	myAsPdu
double	myAzimuthThreshold
double	myElevationThreshold
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Instances of DtEmitterSystemStateEncoder are used to take state information from a DtEmitterSystemRepository and place it into an electromagnetic emissions PDU.

Constructor & Destructor Documentation

DtEmitterSystemStateEncoder::DtEmitterSystemStateEncoder

(

)

CTOR.

DtEmitterSystemStateEncoder::DtEmitterSystemStateEncoder

(

const DtEmitterSystemStateEncoder &

orig

)

Copy CTOR.

virtual DtEmitterSystemStateEncoder::~DtEmitterSystemStateEncoder ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual double DtEmitterSystemStateEncoder::azimuthThreshold ( ) const

virtual

DEPRECATED - will be removed in a future version.

If corresponding threshold in beam state repository is greater than 0, this threshold is IGNORED. Returns the azimuth threshold (in radians).

DtEmitterSystemStateEncoder::DtCLONE_ENCODER

(

DtEmitterSystemStateEncoder

)

virtual double DtEmitterSystemStateEncoder::elevationThreshold ( ) const

virtual

DEPRECATED - will be removed in a future version.

If corresponding threshold in beam state repository is greater than 0, this threshold is IGNORED. Returns the elevation threshold (in radians).

virtual void DtEmitterSystemStateEncoder::fillOut ( const DtEmitterSystemRepository &  stateRep, const DtEmitterSystemRepository &  asSeenByRemote, DtElectromagneticEmissionPdu *  pdu  )

protectedvirtual

Fill out a state message which reflects a state repository.

DtEmitterSystemStateEncoder& DtEmitterSystemStateEncoder::operator=

(

const DtEmitterSystemStateEncoder &

orig

)

Assignment operator.

virtual bool DtEmitterSystemStateEncoder::sendNeeded ( const DtEmitterSystemRepository &  stateRep, const DtEmitterSystemRepository &  asSeenByRemote  )

protectedvirtual

Determine if a state message needs to be sent.

virtual void DtEmitterSystemStateEncoder::setAzimuthThreshold ( double  threshold )

virtual

DEPRECATED - will be removed in a future version.

If corresponding threshold in beam state repository is greater than 0, this threshold is IGNORED. Set the azimuth threshold (Default: 1 degree). threshold Threshold in radians.

virtual void DtEmitterSystemStateEncoder::setElevationThreshold ( double  threshold )

virtual

DEPRECATED - will be removed in a future version.

If corresponding threshold in beam state repository is greater than 0, this threshold is IGNORED. Set the elevation threshold (Default: 1 degree). threshold Threshold in radians.

virtual DtElectromagneticEmissionPdu* DtEmitterSystemStateEncoder::stateMsg ( const DtEmitterSystemRepository &  stateRep, const DtEmitterSystemRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

Determines whether an EE PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

Member Data Documentation

DtElectromagneticEmissionPdu DtEmitterSystemStateEncoder::myAsPdu

protected

double DtEmitterSystemStateEncoder::myAzimuthThreshold

protected

double DtEmitterSystemStateEncoder::myElevationThreshold

protected

---

The documentation for this class was generated from the following file:

• emitterSystemStateEncoder.h
