Instances of DtFedReader1516e are used to read a FED file, and fill in a DtFedTarget with the information read. More...

Inheritance diagram for DtFedReader1516e:

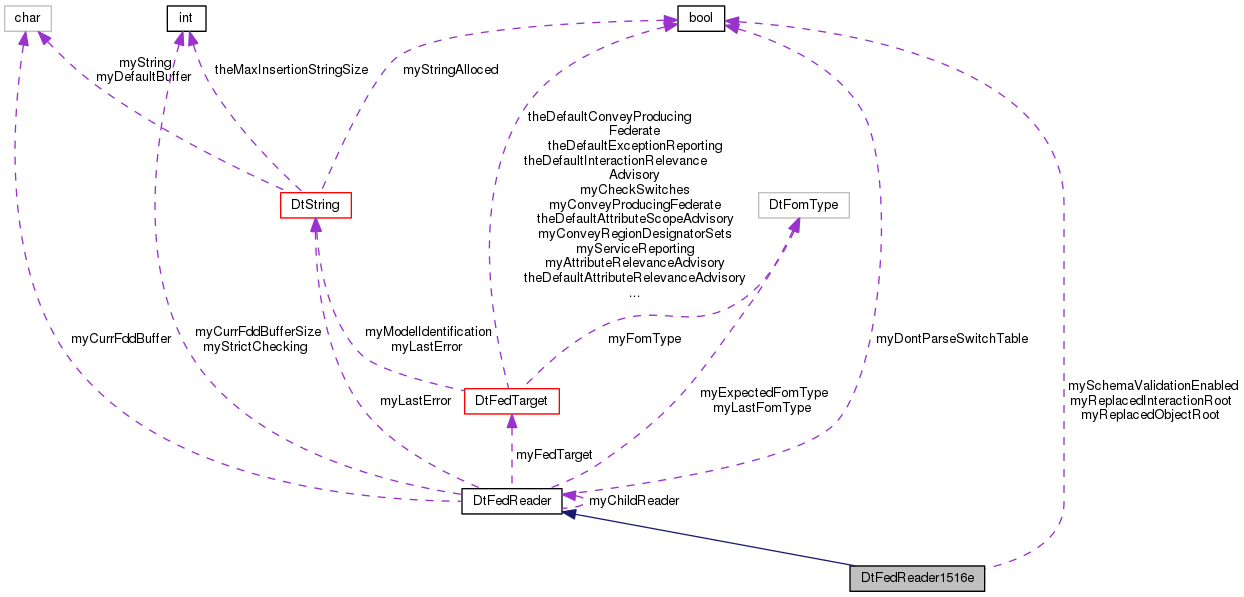

Collaboration diagram for DtFedReader1516e:

Public Types
typedef DtString	FOMDependency

Public Member Functions
	DtFedReader1516e ()
	Constructor. More...

virtual	~DtFedReader1516e ()
	Destructor. More...

virtual DtFedReadStatus	readFedFilePtr (FILE filePointer, DtFedTarget fedTarget, DtFilename fileName, unsigned int strictCheckingMask=DtFedReadStrictDisabled, bool useDTD=false, bool dontParseSwitches=false)
	Read the FED file fedFileName, setting values to fedTarget. More...

virtual void	setSchemaValidationEnabled (bool enabled)
	Sets whether or not schema validation should be performed. More...

bool	getChildrenContent (xmlNode *node, DtString &content) const

DtString	getChildrenContent (xmlNode *node) const

Public Member Functions inherited from DtFedReader
	DtFedReader ()
	Constructor. More...

virtual	~DtFedReader ()
	Destructor. More...

virtual DtFedReadStatus	readFed (const char fedFileName, DtFedTarget fedTarget, unsigned int strictCheckingMask=DtFedReadStrictDisabled, bool useDTD=false, bool dontParseSwitches=false)
	Read the FED file fedFileName, setting values to fedTarget. More...

virtual FILE *	openFedFileWithErrCheck (const char *fileName, bool isBinary=false)
	get the a file handle to the FED File for reading in text or binary mode More...

virtual unsigned int	setStrictChecking (unsigned int checkMask)
	Set status of strict checking. More...

virtual bool	strictChecking (unsigned int checkMask) const
	Returns bool: strictChecking enabled for types of checks provided. More...

virtual void	setExpectedFomType (DtFomType fomType)
	Set/Get expected FOM type. More...

virtual DtFomType	expectedFomType () const

virtual DtFomType	lastFomType () const
	Returns the FOM type of the last FOM read. More...

virtual const DtString &	lastError () const
	Get the last error. More...

char *	takeCurrFddData ()

Static Public Member Functions
static bool	isEvolvedFormat (void *fedFilePtr)

Static Public Member Functions inherited from DtFedReader
static DtFomType	checkFomType (const char fedFileName, void fedFilePtr)
	Get the FOM Type. More...

static FILE *	openFedFile (const char *fileName, bool isBinary=false)
	Open file from name and return FILE*. More...

static bool	readFileIntoBuffer (FILE fileHandle, char fileBuffer, unsigned int fileSize)
	Read the file from the FILE* into the buffer. More...

Protected Member Functions
virtual DtFedReadStatus	processXmlDocPtr (xmlDocPtr xmlDocument)

virtual DtFedReadStatus	parseTimeTree (xmlNode *currentNode)
	process the time directive More...

virtual DtFedReadStatus	parseSynchronizationsTree (xmlNode *currentNode)
	process the synchronization points directive More...

DtFedReadStatus	getSharingType (xmlNode *currentNode, DtSharingType &sharingType)
	get the data for the sharing type attribute of the current node More...

DtFedReadStatus	getSemantics (xmlNode *currentNode, DtString &semanticsVal)
	get the data for the semantics attribute of the current node More...

DtFedReadStatus	getNotes (xmlNode *currentNode, DtString &notesVal)
	get the data for the notes attribute of the current node More...

DtFedReadStatus	getOwnershipType (xmlNode *currentNode, DtOwnershipType &ownershipVal)

DtFedReadStatus	getUpdateCondition (xmlNode *currentNode, DtString &updateConditionVal)
	get the data for the update condition attribute of the current node More...

DtFedReadStatus	getUpdateType (xmlNode *currentNode, DtFomUpdateType &updateTypeVal)
	get the data for the update type attribute of the current node More...

virtual bool	schemaValidate (xmlDoc pDoc, const char schemaFile)
	Validate the file against the given DTD. More...

virtual DtFedReadStatus	processFed (xmlNode *fedObj)
	process the FED directive More...

virtual DtFedReadStatus	parseTransportationsList (xmlNode *currentNode)
	process the transportations directive More...

virtual DtFedReadStatus	processModelIdentification (xmlNode *currentNode)
	process the Model Identification directive More...

virtual DtFedReadStatus	processObjects (xmlNode *currentNode)
	process the Objects directive More...

virtual DtFedReadStatus	processInteractions (xmlNode *currentNode)
	process the Interactions directive More...

virtual DtFedReadStatus	parseObjectTree (xmlNode *currentNode, const DtString &parentName)
	process the list object of classes More...

virtual DtFedReadStatus	parseAttribute (xmlNode *currentNode, const DtString &parentName)
	process an attribute of an object class More...

virtual DtFedReadStatus	parseAttributeDimensions (xmlNode *currentNode, DtString const &objectClass, DtString const &attribute)
	process attribute dimension associations More...

virtual DtFedReadStatus	parseInteractionTree (xmlNode *currentNode, const DtString &parentName)
	process the list of interaction classes More...

virtual DtFedReadStatus	parseInteractionDimensions (xmlNode *currentNode, DtString const &interactionClass)
	process attribute dimension associations More...

virtual DtFedReadStatus	parseDimensionList (xmlNode *currentNode)
	process the list of dimensions More...

virtual DtFedReadStatus	parseDimension (xmlNode *currentNode)
	process a dimension More...

virtual DtFedReadStatus	parseSwitches (xmlNode *currentNode)
	process switches More...

virtual DtFedReadStatus	parseUpdateRates (xmlNode *currentNode)
	process update rates More...

virtual DtFedReadStatus	parseParameter (xmlNode *currentNode, const DtString &parentName)
	process a parameter of an interaction class More...

virtual DtFedReadStatus	parseDataTypeTree (xmlNode *currentNode)
	process the list of datatype classes More...

virtual DtFedReadStatus	parseNotesTree (xmlNode *currentNode)
	process the list of notes classes More...

virtual DtFedReadStatus	parseTagsTree (xmlNode *currentNode)
	process the list of user defined tags. More...

virtual DtFedReadStatus	parseBasicDataTypesTree (xmlNode *currentNode)
	process the list of basic data representations More...

virtual DtFedReadStatus	parseSimpleDataTypesTree (xmlNode *currentNode)
	process the list of simple data types More...

virtual DtFedReadStatus	parseArrayDataTypesTree (xmlNode *currentNode)
	process the list of array data types More...

virtual DtFedReadStatus	parseEnumeratedDataTypesTree (xmlNode *currentNode)
	process the list of enumerated data types More...

virtual DtFedReadStatus	parseFixedRecordDataTypesTree (xmlNode *currentNode)
	process the list of fixed record data types More...

virtual DtFedReadStatus	parseVariantRecordDataTypesTree (xmlNode *currentNode)
	process the list of variant record data types More...

virtual void	appendNodeProperties (xmlNode *currentNode, DtString &output) const
	Appends the list of properties attached to an XML node to the given string. More...

virtual void	appendNodeContent (xmlNode *node, DtString &output) const
	Appends the name and content of the given node to the given string. More...

virtual bool	isBlankText (xmlNode *node) const
	Return true if the node is blank text (space, tab, newline) More...

virtual const xmlChar *	propertyByName (xmlNode node, const xmlChar name)
	Return the data for the specified property of the given node. More...

virtual bool	getPropertyByName (xmlNode node, const xmlChar name, DtString &propertyContent)
	Fill in a string with the data for the specified property of the given node (empty string if property not found) Return true if property is found. More...

virtual bool	getChildContentByName (xmlNode node, const xmlChar name, DtString &childContent)
	Fill in a string with the data for the specified child of the given node (empty string if child not found) Return true if child is found. More...

virtual DtFedReadStatus	getTransportType (xmlNode *currentNode, DtTransportType &transportType, DtNameTypePair nameType, bool isAttribute)
	get the data for the Transportation attribute of the current node More...

virtual DtFedReadStatus	getOrderType (xmlNode *currentNode, DtOrderType &orderType)
	get the data for the Order attribute of the current node More...

bool	convertStringToULong (std::string numericString, unsigned long &value)

template<typename operandType >
void	clipPrefix (std::string &valueSpec, operandType c)

Protected Member Functions inherited from DtFedReader
void	appendErrorLine (xmlNode *node, DtString &output) const

Static Protected Member Functions
static xmlNode *	getNodeByName (xmlNode currentNode, const xmlChar nodeName)
	get the specified node More...

static const xmlChar *	childContentByName (xmlNode node, const xmlChar name)
	Return the data for the specified child of the given node. More...

Protected Attributes
bool	mySchemaValidationEnabled


bool	myReplacedObjectRoot
	Indicates when federation's FOM is 1.3 and root name has been replaced to match. More...

bool	myReplacedInteractionRoot
	Indicates when federation's FOM is 1.3 and root name has been replaced to match. More...

Protected Attributes inherited from DtFedReader
DtFedTarget *	myFedTarget

DtFedReader *	myChildReader

unsigned int	myStrictChecking

bool	myDontParseSwitchTable

DtFomType	myExpectedFomType
	When set, the FOM must conform to this type. More...

DtFomType	myLastFomType
	The type of FOM format that was last read. More...

DtString	myLastError
	Description of last encountered error. More...

Private Member Functions
	DtFedReader1516e (const DtFedReader1516e &)
	Copy constructor and Assignment operator - Unimplemented. More...

DtFedReader1516e &	operator= (const DtFedReader1516e &)

Additional Inherited Members
Public Attributes inherited from DtFedReader
char *	myCurrFddBuffer
	Buffer containing the most recently read FDD file. More...

unsigned int	myCurrFddBufferSize
	Size of the buffer for the most recently read FDD file. More...

Detailed Description

Instances of DtFedReader1516e are used to read a FED file, and fill in a DtFedTarget with the information read.

The FED file must be in the HLA Evolved XML file format

Member Typedef Documentation

typedef DtString DtFedReader1516e::FOMDependency

Constructor & Destructor Documentation

DtFedReader1516e::DtFedReader1516e ( )

Constructor.

virtual DtFedReader1516e::~DtFedReader1516e ( )

virtual

Destructor.

DtFedReader1516e::DtFedReader1516e ( const DtFedReader1516e & )

private

Copy constructor and Assignment operator - Unimplemented.

Member Function Documentation

virtual void DtFedReader1516e::appendNodeContent	(	xmlNode *	node,
		DtString &	output
	)		const

protectedvirtual

Appends the name and content of the given node to the given string.

virtual void DtFedReader1516e::appendNodeProperties	(	xmlNode *	currentNode,
		DtString &	output
	)		const

protectedvirtual

Appends the list of properties attached to an XML node to the given string.

static const xmlChar* DtFedReader1516e::childContentByName	(	xmlNode *	node,
		const xmlChar *	name
	)

staticprotected

Return the data for the specified child of the given node.

template<typename operandType >

void DtFedReader1516e::clipPrefix	(	std::string &	valueSpec,
		operandType	c
	)

protected

bool DtFedReader1516e::convertStringToULong	(	std::string	numericString,
		unsigned long &	value
	)

protected

virtual bool DtFedReader1516e::getChildContentByName	(	xmlNode *	node,
		const xmlChar *	name,
		DtString &	childContent
	)

protectedvirtual

Fill in a string with the data for the specified child of the given node (empty string if child not found) Return true if child is found.

bool DtFedReader1516e::getChildrenContent	(	xmlNode *	node,
		DtString &	content
	)		const

DtString DtFedReader1516e::getChildrenContent ( xmlNode * node ) const

static xmlNode* DtFedReader1516e::getNodeByName	(	xmlNode *	currentNode,
		const xmlChar *	nodeName
	)

staticprotected

get the specified node

DtFedReadStatus DtFedReader1516e::getNotes	(	xmlNode *	currentNode,
		DtString &	notesVal
	)

protected

get the data for the notes attribute of the current node

virtual DtFedReadStatus DtFedReader1516e::getOrderType	(	xmlNode *	currentNode,
		DtOrderType &	orderType
	)

protectedvirtual

get the data for the Order attribute of the current node

DtFedReadStatus DtFedReader1516e::getOwnershipType	(	xmlNode *	currentNode,
		DtOwnershipType &	ownershipVal
	)

protected

virtual bool DtFedReader1516e::getPropertyByName	(	xmlNode *	node,
		const xmlChar *	name,
		DtString &	propertyContent
	)

protectedvirtual

Fill in a string with the data for the specified property of the given node (empty string if property not found) Return true if property is found.

DtFedReadStatus DtFedReader1516e::getSemantics	(	xmlNode *	currentNode,
		DtString &	semanticsVal
	)

protected

get the data for the semantics attribute of the current node

DtFedReadStatus DtFedReader1516e::getSharingType	(	xmlNode *	currentNode,
		DtSharingType &	sharingType
	)

protected

get the data for the sharing type attribute of the current node

virtual DtFedReadStatus DtFedReader1516e::getTransportType	(	xmlNode *	currentNode,
		DtTransportType &	transportType,
		DtNameTypePair	nameType,
		bool	isAttribute
	)

protectedvirtual

get the data for the Transportation attribute of the current node

DtFedReadStatus DtFedReader1516e::getUpdateCondition	(	xmlNode *	currentNode,
		DtString &	updateConditionVal
	)

protected

get the data for the update condition attribute of the current node

DtFedReadStatus DtFedReader1516e::getUpdateType	(	xmlNode *	currentNode,
		DtFomUpdateType &	updateTypeVal
	)

protected

get the data for the update type attribute of the current node

virtual bool DtFedReader1516e::isBlankText ( xmlNode * node ) const

protectedvirtual

Return true if the node is blank text (space, tab, newline)

static bool DtFedReader1516e::isEvolvedFormat ( void * fedFilePtr )

static

DtFedReader1516e& DtFedReader1516e::operator= ( const DtFedReader1516e & )

private

virtual DtFedReadStatus DtFedReader1516e::parseArrayDataTypesTree ( xmlNode * currentNode )

protectedvirtual

process the list of array data types

virtual DtFedReadStatus DtFedReader1516e::parseAttribute	(	xmlNode *	currentNode,
		const DtString &	parentName
	)

protectedvirtual

process an attribute of an object class

virtual DtFedReadStatus DtFedReader1516e::parseAttributeDimensions	(	xmlNode *	currentNode,
		DtString const &	objectClass,
		DtString const &	attribute
	)

protectedvirtual

process attribute dimension associations

virtual DtFedReadStatus DtFedReader1516e::parseBasicDataTypesTree ( xmlNode * currentNode )

protectedvirtual

process the list of basic data representations

virtual DtFedReadStatus DtFedReader1516e::parseDataTypeTree ( xmlNode * currentNode )

protectedvirtual

process the list of datatype classes

virtual DtFedReadStatus DtFedReader1516e::parseDimension ( xmlNode * currentNode )

protectedvirtual

process a dimension

virtual DtFedReadStatus DtFedReader1516e::parseDimensionList ( xmlNode * currentNode )

protectedvirtual

process the list of dimensions

virtual DtFedReadStatus DtFedReader1516e::parseEnumeratedDataTypesTree ( xmlNode * currentNode )

protectedvirtual

process the list of enumerated data types

virtual DtFedReadStatus DtFedReader1516e::parseFixedRecordDataTypesTree ( xmlNode * currentNode )

protectedvirtual

process the list of fixed record data types

virtual DtFedReadStatus DtFedReader1516e::parseInteractionDimensions	(	xmlNode *	currentNode,
		DtString const &	interactionClass
	)

protectedvirtual

process attribute dimension associations

virtual DtFedReadStatus DtFedReader1516e::parseInteractionTree	(	xmlNode *	currentNode,
		const DtString &	parentName
	)

protectedvirtual

process the list of interaction classes

virtual DtFedReadStatus DtFedReader1516e::parseNotesTree ( xmlNode * currentNode )

protectedvirtual

process the list of notes classes

virtual DtFedReadStatus DtFedReader1516e::parseObjectTree	(	xmlNode *	currentNode,
		const DtString &	parentName
	)

protectedvirtual

process the list object of classes

virtual DtFedReadStatus DtFedReader1516e::parseParameter	(	xmlNode *	currentNode,
		const DtString &	parentName
	)

protectedvirtual

process a parameter of an interaction class

virtual DtFedReadStatus DtFedReader1516e::parseSimpleDataTypesTree ( xmlNode * currentNode )

protectedvirtual

process the list of simple data types

virtual DtFedReadStatus DtFedReader1516e::parseSwitches ( xmlNode * currentNode )

protectedvirtual

process switches

virtual DtFedReadStatus DtFedReader1516e::parseSynchronizationsTree ( xmlNode * currentNode )

protectedvirtual

process the synchronization points directive

virtual DtFedReadStatus DtFedReader1516e::parseTagsTree ( xmlNode * currentNode )

protectedvirtual

process the list of user defined tags.

virtual DtFedReadStatus DtFedReader1516e::parseTimeTree ( xmlNode * currentNode )

protectedvirtual

process the time directive

virtual DtFedReadStatus DtFedReader1516e::parseTransportationsList ( xmlNode * currentNode )

protectedvirtual

process the transportations directive

virtual DtFedReadStatus DtFedReader1516e::parseUpdateRates ( xmlNode * currentNode )

protectedvirtual

process update rates

virtual DtFedReadStatus DtFedReader1516e::parseVariantRecordDataTypesTree ( xmlNode * currentNode )

protectedvirtual

process the list of variant record data types

virtual DtFedReadStatus DtFedReader1516e::processFed ( xmlNode * fedObj )

protectedvirtual

process the FED directive

virtual DtFedReadStatus DtFedReader1516e::processInteractions ( xmlNode * currentNode )

protectedvirtual

process the Interactions directive

virtual DtFedReadStatus DtFedReader1516e::processModelIdentification ( xmlNode * currentNode )

protectedvirtual

process the Model Identification directive

virtual DtFedReadStatus DtFedReader1516e::processObjects ( xmlNode * currentNode )

protectedvirtual

process the Objects directive

virtual DtFedReadStatus DtFedReader1516e::processXmlDocPtr ( xmlDocPtr xmlDocument )

protectedvirtual

virtual const xmlChar* DtFedReader1516e::propertyByName	(	xmlNode *	node,
		const xmlChar *	name
	)

protectedvirtual

Return the data for the specified property of the given node.

virtual DtFedReadStatus DtFedReader1516e::readFedFilePtr	(	FILE *	filePointer,
		DtFedTarget *	fedTarget,
		DtFilename	fileName,
		unsigned int	strictCheckingMask = `DtFedReadStrictDisabled`,
		bool	useDTD = `false`,
		bool	dontParseSwitches = `false`
	)

virtual

Read the FED file fedFileName, setting values to fedTarget.

Note if fedTarget is NULL the fedfile will be read and verified only.

Implements DtFedReader.

virtual bool DtFedReader1516e::schemaValidate	(	xmlDoc *	pDoc,
		const char *	schemaFile
	)

protectedvirtual

Validate the file against the given DTD.

virtual void DtFedReader1516e::setSchemaValidationEnabled ( bool enabled )

virtual

Sets whether or not schema validation should be performed.

Member Data Documentation

bool DtFedReader1516e::myReplacedInteractionRoot

protected

Indicates when federation's FOM is 1.3 and root name has been replaced to match.

bool DtFedReader1516e::myReplacedObjectRoot

protected

Indicates when federation's FOM is 1.3 and root name has been replaced to match.

bool DtFedReader1516e::mySchemaValidationEnabled

protected

The documentation for this class was generated from the following file:

fedReader1516e.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
