DtGriddedDataEncoder Class Reference

Instances of DtGriddedDataEncoder are used to take state information from a DtGriddedDataRepository and place it into a gridded data PDU. More...

Inheritance diagram for DtGriddedDataEncoder:

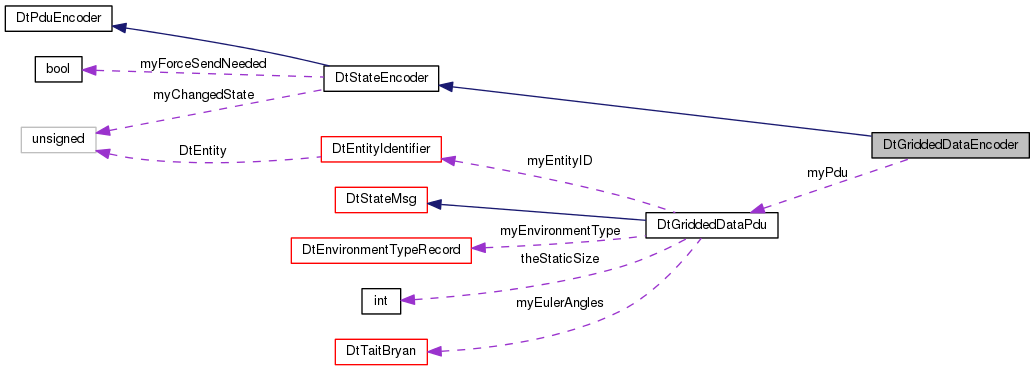

Collaboration diagram for DtGriddedDataEncoder:

Public Member Functions
	DtGriddedDataEncoder ()
	Constructor. More...
virtual	~DtGriddedDataEncoder ()
	Destructor. More...
	DtGriddedDataEncoder (const DtGriddedDataEncoder &orig)
	Copy constructor. More...
DtGriddedDataEncoder &	operator= (const DtGriddedDataEncoder &orig)
	Assignment operator. More...
virtual DtGriddedDataPdu *	stateMsg (const DtGriddedDataRepository &stateRep, const DtGriddedDataRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
	DtCLONE_ENCODER (DtGriddedDataEncoder)
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtGriddedDataRepository &stateRep, const DtGriddedDataRepository &asSeenByRemote)
	Returns true if a PDU needs to be sent, (based on thresholds, etc) false otherwise. More...
virtual bool	needGridAxisInfo (const DtGriddedDataRepository &stateRep, const DtGriddedDataRepository &asSeenByRemote, int index)
	Returns true if the grid axis info has changed. More...
virtual bool	needGridDataInfo (const DtGriddedDataRepository &stateRep, const DtGriddedDataRepository &asSeenByRemote, int index)
	Returns true if the grid data info has changed. More...

Protected Attributes
DtGriddedDataPdu	myPdu
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Instances of DtGriddedDataEncoder are used to take state information from a DtGriddedDataRepository and place it into a gridded data PDU.

Constructor & Destructor Documentation

DtGriddedDataEncoder::DtGriddedDataEncoder

(

)

Constructor.

virtual DtGriddedDataEncoder::~DtGriddedDataEncoder ( )

virtual

Destructor.

DtGriddedDataEncoder::DtGriddedDataEncoder

(

const DtGriddedDataEncoder &

orig

)

Copy constructor.

Member Function Documentation

DtGriddedDataEncoder::DtCLONE_ENCODER

(

DtGriddedDataEncoder

)

virtual bool DtGriddedDataEncoder::needGridAxisInfo ( const DtGriddedDataRepository &  stateRep, const DtGriddedDataRepository &  asSeenByRemote, int  index  )

protectedvirtual

Returns true if the grid axis info has changed.

virtual bool DtGriddedDataEncoder::needGridDataInfo ( const DtGriddedDataRepository &  stateRep, const DtGriddedDataRepository &  asSeenByRemote, int  index  )

protectedvirtual

Returns true if the grid data info has changed.

DtGriddedDataEncoder& DtGriddedDataEncoder::operator=

(

const DtGriddedDataEncoder &

orig

)

Assignment operator.

virtual bool DtGriddedDataEncoder::sendNeeded ( const DtGriddedDataRepository &  stateRep, const DtGriddedDataRepository &  asSeenByRemote  )

protectedvirtual

Returns true if a PDU needs to be sent, (based on thresholds, etc) false otherwise.

virtual DtGriddedDataPdu* DtGriddedDataEncoder::stateMsg ( const DtGriddedDataRepository &  stateRep, const DtGriddedDataRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether a Gridded Data PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

Member Data Documentation

DtGriddedDataPdu DtGriddedDataEncoder::myPdu

protected

---

The documentation for this class was generated from the following file:

• griddedDataEncoderDIS.h
