Instances of DtIffAtcNavaidsPdu are used to send information about simulated radio transponders and interrogators. More...

Inheritance diagram for DtIffAtcNavaidsPdu:

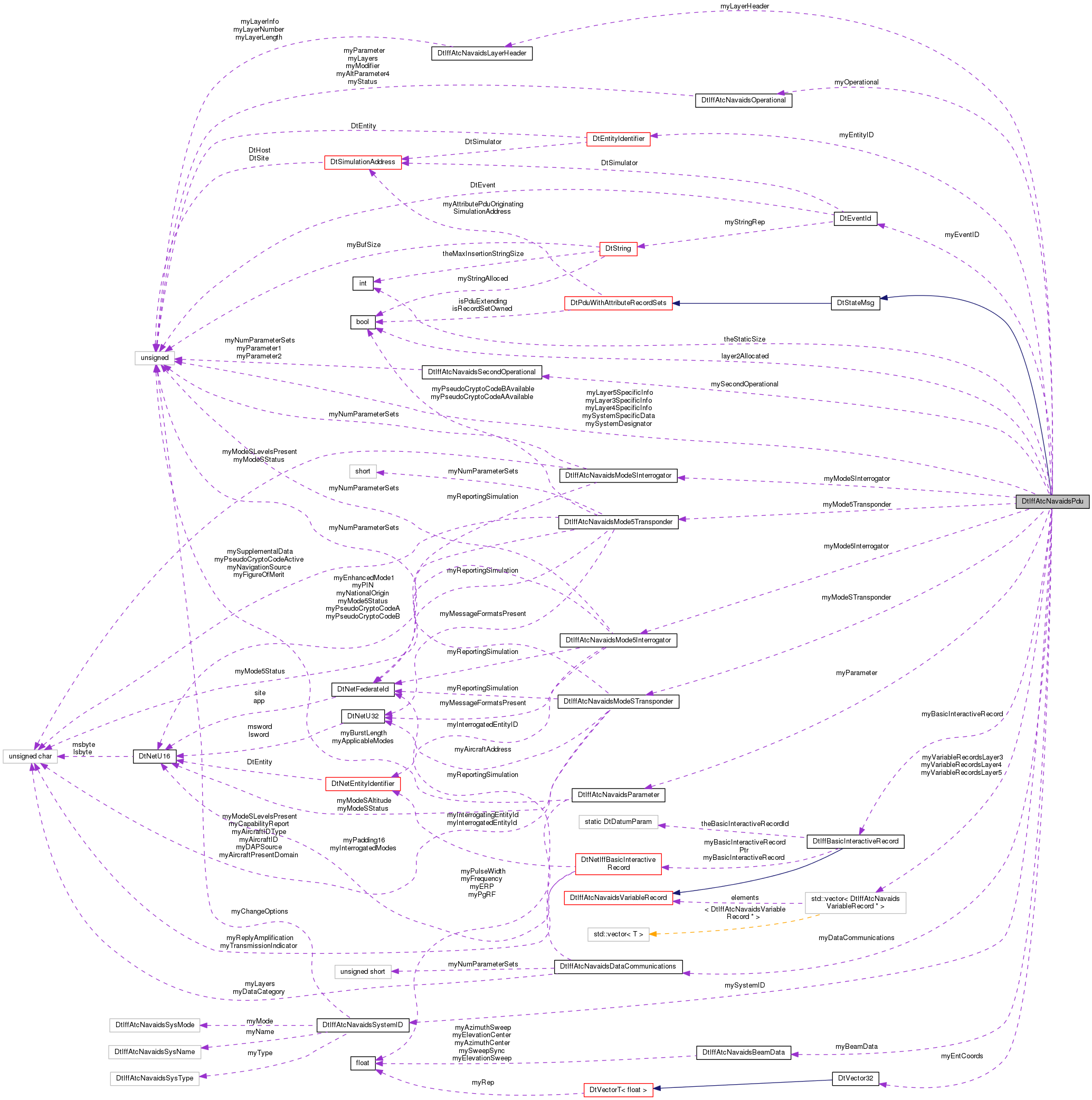

Collaboration diagram for DtIffAtcNavaidsPdu:

Public Member Functions
	DtIffAtcNavaidsPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...

	DtIffAtcNavaidsPdu (const DtNetIffAtcNavaidsPduLayer1 initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

	DtIffAtcNavaidsPdu (const DtIffAtcNavaidsPdu &orig)

virtual	~DtIffAtcNavaidsPdu ()
	destructor More...

DtIffAtcNavaidsPdu &	operator= (const DtIffAtcNavaidsPdu &orig)
	Assignment operator. More...

virtual void	setEmittingEntityID (const DtEntityIdentifier &entity)
	Set/Get emitting entity identifier. More...

virtual const DtEntityIdentifier &	emittingEntityID () const

virtual void	setEventId (const DtEventID &event)
	Set/Get event identifier. More...

virtual const DtEventID &	eventId () const

virtual void	setLocation (const DtVector32 &coords)
	Set/Get location. More...

virtual const DtVector32 &	location () const

virtual void	setSystemID (const DtIffAtcNavaidsSystemID &id)
	Set/Get system ID. More...

virtual const DtIffAtcNavaidsSystemID &	systemID () const

virtual void	setSystemDesignator (DtU8 id)
	Set/Get system Designator. More...

virtual DtU8	systemDesignator () const

virtual void	setSimulationMode (DtPduStatusIFFSimulationMode mode)
	Set/Get the Simulation Mode of the Change/Options record. More...

virtual DtPduStatusIFFSimulationMode	simulationMode () const

virtual bool	isInteractiveCapable () const
	Get Interactive Capable field from the Change/Options record where 1=Capable and 0=Not Capable Setting the Simulation Mode will set the Interactive Capable field accordingly. More...

virtual void	setSystemSpecificData (DtU8 id)
	Set/Get the Simulation Mode of the interrogation. More...

virtual DtU8	systemSpecificData () const

virtual void	setOperational (const DtIffAtcNavaidsOperational &oper)
	Set/Get fundamental operational data. More...

virtual const DtIffAtcNavaidsOperational &	operational () const

virtual void	setMode5Interrogator (const DtIffAtcNavaidsMode5Interrogator &oper)
	Set/Get Layer 3 information. More...

virtual const DtIffAtcNavaidsMode5Interrogator &	mode5Interrogator () const

virtual void	setMode5Transponder (const DtIffAtcNavaidsMode5Transponder &oper)

virtual const DtIffAtcNavaidsMode5Transponder &	mode5Transponder () const

virtual void	setModeSInterrogator (const DtIffAtcNavaidsModeSInterrogator &oper)
	Set/Get Layer 4 information. More...

virtual const DtIffAtcNavaidsModeSInterrogator &	modeSInterrogator () const

virtual void	setModeSTransponder (const DtIffAtcNavaidsModeSTransponder &oper)

virtual const DtIffAtcNavaidsModeSTransponder &	modeSTransponder () const

virtual void	setDataCommunications (const DtIffAtcNavaidsDataCommunications &oper)
	Set/Get Layer 5 information. More...

virtual const DtIffAtcNavaidsDataCommunications &	dataCommunications () const

virtual bool	layerPresent (int layer) const
	Query the layers field of the fundamental operational data record. More...

virtual bool	enableLayer2 (DtU8 layerSpecificInfo, int numRecords)
	Enable/Disable layer 2. More...

virtual bool	disableLayer2 ()

virtual bool	enableLayer3 (DtU8 layerSpecificInfo, int numRecords)
	Enable/Disable layer 3. More...

virtual bool	disableLayer3 ()

virtual bool	enableLayer4 (DtU8 layerSpecificInfo, int numRecords)
	Enable/Disable layer 4. More...

virtual bool	disableLayer4 ()

virtual bool	enableLayer5 (DtU8 layerSpecificInfo, int numRecords)
	Enable/Disable layer 5. More...

virtual bool	disableLayer5 ()

virtual DtU8	layer3SpecificInfo () const

virtual DtU8	layer4SpecificInfo () const

virtual DtU8	layer5SpecificInfo () const

virtual const DtIffAtcNavaidsLayerHeader &	layer2Header () const
	Note: the following accessor functions are for records in layer 2. More...

virtual void	setBeamData (const DtIffAtcNavaidsBeamData &beamData)
	Set/Get beam data. More...

virtual const DtIffAtcNavaidsBeamData &	beamData () const

virtual void	setSecondaryOperational (const DtIffAtcNavaidsSecondOperational &oper)
	Set/Get secondary operational parameters. More...

virtual const DtIffAtcNavaidsSecondOperational &	secondaryOperational () const

virtual DtU16	numParameterSets () const
	Get the number of fundamental parameter data records. More...

virtual bool	setParmData (int parmIndex, const DtIffAtcNavaidsParameter &init)
	Set/Get the fundamental parameter data records. More...

virtual bool	getParmData (int parmIndex, DtIffAtcNavaidsParameter &record) const

virtual bool	setIffRecord (unsigned int index, const DtIffAtcNavaidsVariableRecord &record, int layer)
	Adds a Record. More...

virtual DtIffAtcNavaidsVariableRecord *	getIffRecord (int parmIndex, int layer) const

virtual const DtIffBasicInteractiveRecord &	iffBasicInteractiveRecord () const

virtual void	setIffBasicInteractiveRecord (const DtIffBasicInteractiveRecord &record)

virtual void	setTransmissionIndicator (DtTransmissionIndicator data)
	Set Transmission Indicator. More...

virtual DtTransmissionIndicator	transmissionIndicator () const

virtual void	setInterrogatingId (DtObjectId data)
	Set Interrogating Entity Identifier. More...

virtual DtObjectId	interrogatingId () const

virtual void	setInterrogatedId (DtObjectId data)
	Set Interrogated Entity Identifier. More...

virtual DtObjectId	interrogatedId () const

virtual void	setInteractiveEventId (DtEventId status)
	Set Interactive Event Identifier. More...

virtual DtEventId	interactiveEventId () const

virtual void	setInterrogatedModes (const DtInterrogatedModesStruct &val)
	Set Interrogated Modes. More...

virtual const DtInterrogatedModesStruct &	interrogatedModesStruct () const

virtual const DtU16	interrogatedModes () const

virtual void	setReplyAmplification (DtReplyAmplification data)
	Set Reply Amplification. More...

virtual DtReplyAmplification	replyAmplification () const

virtual void	setLethal (bool val)
	Set Lethal Interrogation Indicates if this interrogation is a lethal interrogation. More...

virtual bool	isLethal () const
	Lethal accessor. More...

virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set/Get Reporting Simulation in Layer 3 (Mode 5) More...

virtual const DtFederateIdentifierStruct &	reportingSimulationStruct () const

virtual const DtSimulationAddress &	reportingSimulation () const

virtual DtU16	numIffRecords (int layer) const
	Get the number of iffRecords for a specific layer. More...

virtual void	printData () const
	Print the data contained by this PDU. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...

Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor More...

virtual	~DtStateMsg ()
	destructor More...

	DtStateMsg (const DtStateMsg &orig)
	copy constructor More...

DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator More...

Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...

	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...

DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...

virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...

virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...

virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...

virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...

virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...

virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...

virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...

virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...

virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...

virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...

virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...

virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...

virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...

virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...

virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...

virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...

virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...

virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...

virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...

virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const

virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...

virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...

virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...

virtual void	setAttributeStrategy (DtAttributePduStrategy strat)

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual bool	shouldAttributePduBeCoupled () const

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	Create a DtIffAtcNavaidsPdu. More...

static void	addCallback (DtExerciseConn conn, DtIffAtcNavaidsPduCb cb, void usr)
	Add (register)/Remove (unregister) function to be called when pdu is received. More...

static void	removeCallback (DtExerciseConn conn, DtIffAtcNavaidsPduCb cb, void usr)

static void	addIffCallback (DtExerciseConn conn, DtIffAtcNavaidsPduCb cb, DtIffInteractionType type, void usr)

static void	removeIffCallback (DtExerciseConn conn, DtIffAtcNavaidsPduCb cb, DtIffInteractionType type, void usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind. More...

virtual DtNetIffAtcNavaidsPduLayer1 *	netPduStruct () const
	Casts the netPdu element to our network struct. More...

virtual DtNetIffAtcNavaidsPduLayer2 *	netPduStructL2 () const
	Casts the netPdu element to our network struct. More...

DtIffAtcNavaidsPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

virtual DtNetIffAtcNavaidsParameter *	parameter () const
	Returns a pointer to the first parameter record (after static data) on Layer 2. More...

Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...

virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns. More...

DtEventID	myEventID

DtVector32	myEntCoords

DtIffAtcNavaidsSystemID	mySystemID

DtIffAtcNavaidsOperational	myOperational

DtIffAtcNavaidsLayerHeader	myLayerHeader

DtIffAtcNavaidsBeamData	myBeamData

DtIffAtcNavaidsSecondOperational	mySecondOperational

DtIffAtcNavaidsParameter	myParameter

DtIffAtcNavaidsMode5Transponder	myMode5Transponder

DtIffAtcNavaidsMode5Interrogator	myMode5Interrogator

DtIffAtcNavaidsModeSTransponder	myModeSTransponder

DtIffAtcNavaidsModeSInterrogator	myModeSInterrogator

DtIffAtcNavaidsDataCommunications	myDataCommunications

unsigned int	mySystemDesignator

unsigned int	mySystemSpecificData

DtIffBasicInteractiveRecord	myBasicInteractiveRecord

DtU8	myLayer3SpecificInfo

DtU8	myLayer4SpecificInfo

DtU8	myLayer5SpecificInfo

std::vector < DtIffAtcNavaidsVariableRecord * >	myVariableRecordsLayer3

std::vector < DtIffAtcNavaidsVariableRecord * >	myVariableRecordsLayer4

std::vector < DtIffAtcNavaidsVariableRecord * >	myVariableRecordsLayer5

bool	layer2Allocated

Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...

bool	isRecordSetOwned

bool	isPduExtending

DtStandardVariableRecordFactory *	mySVRFactory

DtPduDecoder *	myAttributeDecoder

DtPduEncoder *	myAttributeEncoder

DtSimulationAddress	myAttributePduOriginatingSimulationAddress

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records. More...

Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtIffAtcNavaidsPdu are used to send information about simulated radio transponders and interrogators.

Constructor & Destructor Documentation

DtIffAtcNavaidsPdu::DtIffAtcNavaidsPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtIffAtcNavaidsPdu::DtIffAtcNavaidsPdu	(	const DtNetIffAtcNavaidsPduLayer1 *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

DtIffAtcNavaidsPdu::DtIffAtcNavaidsPdu ( const DtIffAtcNavaidsPdu & orig )

virtual DtIffAtcNavaidsPdu::~DtIffAtcNavaidsPdu ( )

virtual

destructor

Member Function Documentation

static void DtIffAtcNavaidsPdu::addCallback	(	DtExerciseConn *	conn,
		DtIffAtcNavaidsPduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (unregister) function to be called when pdu is received.

static void DtIffAtcNavaidsPdu::addIffCallback	(	DtExerciseConn *	conn,
		DtIffAtcNavaidsPduCb	cb,
		DtIffInteractionType	type,
		void *	usr
	)

static

virtual const DtIffAtcNavaidsBeamData& DtIffAtcNavaidsPdu::beamData ( ) const

virtual

static DtPdu* DtIffAtcNavaidsPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

Create a DtIffAtcNavaidsPdu.

Caller is responsible for deletion.

virtual const DtIffAtcNavaidsDataCommunications& DtIffAtcNavaidsPdu::dataCommunications ( ) const

virtual

virtual bool DtIffAtcNavaidsPdu::disableLayer2 ( )

virtual

virtual bool DtIffAtcNavaidsPdu::disableLayer3 ( )

virtual

virtual bool DtIffAtcNavaidsPdu::disableLayer4 ( )

virtual

virtual bool DtIffAtcNavaidsPdu::disableLayer5 ( )

virtual

virtual const DtEntityIdentifier& DtIffAtcNavaidsPdu::emittingEntityID ( ) const

virtual

virtual bool DtIffAtcNavaidsPdu::enableLayer2	(	DtU8	layerSpecificInfo,
		int	numRecords
	)

virtual

Enable/Disable layer 2.

This method is also used to select the number of fundamental parameter data records for the second layer.

virtual bool DtIffAtcNavaidsPdu::enableLayer3	(	DtU8	layerSpecificInfo,
		int	numRecords
	)

virtual

Enable/Disable layer 3.

virtual bool DtIffAtcNavaidsPdu::enableLayer4	(	DtU8	layerSpecificInfo,
		int	numRecords
	)

virtual

Enable/Disable layer 4.

virtual bool DtIffAtcNavaidsPdu::enableLayer5	(	DtU8	layerSpecificInfo,
		int	numRecords
	)

virtual

Enable/Disable layer 5.

virtual const DtEventID& DtIffAtcNavaidsPdu::eventId ( ) const

virtual

virtual DtIffAtcNavaidsVariableRecord* DtIffAtcNavaidsPdu::getIffRecord	(	int	parmIndex,
		int	layer
	)		const

virtual

virtual bool DtIffAtcNavaidsPdu::getParmData	(	int	parmIndex,
		DtIffAtcNavaidsParameter &	record
	)		const

virtual

virtual const DtIffBasicInteractiveRecord& DtIffAtcNavaidsPdu::iffBasicInteractiveRecord ( ) const

virtual

virtual DtEventId DtIffAtcNavaidsPdu::interactiveEventId ( ) const

virtual

virtual DtPduKind DtIffAtcNavaidsPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual DtObjectId DtIffAtcNavaidsPdu::interrogatedId ( ) const

virtual

virtual const DtU16 DtIffAtcNavaidsPdu::interrogatedModes ( ) const

virtual

virtual const DtInterrogatedModesStruct& DtIffAtcNavaidsPdu::interrogatedModesStruct ( ) const

virtual

virtual DtObjectId DtIffAtcNavaidsPdu::interrogatingId ( ) const

virtual

virtual bool DtIffAtcNavaidsPdu::isInteractiveCapable ( ) const

virtual

Get Interactive Capable field from the Change/Options record where 1=Capable and 0=Not Capable Setting the Simulation Mode will set the Interactive Capable field accordingly.

virtual bool DtIffAtcNavaidsPdu::isLethal ( ) const

virtual

Lethal accessor.

virtual const DtIffAtcNavaidsLayerHeader& DtIffAtcNavaidsPdu::layer2Header ( ) const

virtual

Note: the following accessor functions are for records in layer 2.

If layer 2 is not enabled, the sets will do nothing and the gets will return undefined results. Get layer header for layers. This record is set automatically by the PDU class.

virtual DtU8 DtIffAtcNavaidsPdu::layer3SpecificInfo ( ) const

inlinevirtual

virtual DtU8 DtIffAtcNavaidsPdu::layer4SpecificInfo ( ) const

inlinevirtual

virtual DtU8 DtIffAtcNavaidsPdu::layer5SpecificInfo ( ) const

inlinevirtual

virtual bool DtIffAtcNavaidsPdu::layerPresent ( int layer ) const

virtual

Query the layers field of the fundamental operational data record.

virtual const DtVector32& DtIffAtcNavaidsPdu::location ( ) const

virtual

virtual const DtIffAtcNavaidsMode5Interrogator& DtIffAtcNavaidsPdu::mode5Interrogator ( ) const

virtual

virtual const DtIffAtcNavaidsMode5Transponder& DtIffAtcNavaidsPdu::mode5Transponder ( ) const

virtual

virtual const DtIffAtcNavaidsModeSInterrogator& DtIffAtcNavaidsPdu::modeSInterrogator ( ) const

virtual

virtual const DtIffAtcNavaidsModeSTransponder& DtIffAtcNavaidsPdu::modeSTransponder ( ) const

virtual

virtual DtNetIffAtcNavaidsPduLayer1* DtIffAtcNavaidsPdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtNetIffAtcNavaidsPduLayer2* DtIffAtcNavaidsPdu::netPduStructL2 ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtU16 DtIffAtcNavaidsPdu::numIffRecords ( int layer ) const

virtual

Get the number of iffRecords for a specific layer.

virtual DtU16 DtIffAtcNavaidsPdu::numParameterSets ( ) const

virtual

Get the number of fundamental parameter data records.

virtual const DtIffAtcNavaidsOperational& DtIffAtcNavaidsPdu::operational ( ) const

virtual

DtIffAtcNavaidsPdu& DtIffAtcNavaidsPdu::operator= ( const DtIffAtcNavaidsPdu & orig )

Assignment operator.

virtual DtNetIffAtcNavaidsParameter* DtIffAtcNavaidsPdu::parameter ( ) const

protectedvirtual

Returns a pointer to the first parameter record (after static data) on Layer 2.

virtual void DtIffAtcNavaidsPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtIffAtcNavaidsPdu::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

static void DtIffAtcNavaidsPdu::removeCallback	(	DtExerciseConn *	conn,
		DtIffAtcNavaidsPduCb	cb,
		void *	usr
	)

static

static void DtIffAtcNavaidsPdu::removeIffCallback	(	DtExerciseConn *	conn,
		DtIffAtcNavaidsPduCb	cb,
		DtIffInteractionType	type,
		void *	usr
	)

static

virtual DtReplyAmplification DtIffAtcNavaidsPdu::replyAmplification ( ) const

virtual

virtual const DtSimulationAddress& DtIffAtcNavaidsPdu::reportingSimulation ( ) const

virtual

virtual const DtFederateIdentifierStruct& DtIffAtcNavaidsPdu::reportingSimulationStruct ( ) const

virtual

virtual const DtIffAtcNavaidsSecondOperational& DtIffAtcNavaidsPdu::secondaryOperational ( ) const

virtual

DtIffAtcNavaidsPdu* DtIffAtcNavaidsPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual, since you can't override based on return type.

virtual void DtIffAtcNavaidsPdu::setBeamData ( const DtIffAtcNavaidsBeamData & beamData )

virtual

Set/Get beam data.

virtual void DtIffAtcNavaidsPdu::setDataCommunications ( const DtIffAtcNavaidsDataCommunications & oper )

virtual

Set/Get Layer 5 information.

virtual void DtIffAtcNavaidsPdu::setEmittingEntityID ( const DtEntityIdentifier & entity )

virtual

Set/Get emitting entity identifier.

virtual void DtIffAtcNavaidsPdu::setEventId ( const DtEventID & event )

virtual

Set/Get event identifier.

virtual void DtIffAtcNavaidsPdu::setIffBasicInteractiveRecord ( const DtIffBasicInteractiveRecord & record )

virtual

virtual bool DtIffAtcNavaidsPdu::setIffRecord	(	unsigned int	index,
		const DtIffAtcNavaidsVariableRecord &	record,
		int	layer
	)

virtual

Adds a Record.

virtual void DtIffAtcNavaidsPdu::setInteractiveEventId ( DtEventId status )

virtual

Set Interactive Event Identifier.

virtual void DtIffAtcNavaidsPdu::setInterrogatedId ( DtObjectId data )

virtual

Set Interrogated Entity Identifier.

virtual void DtIffAtcNavaidsPdu::setInterrogatedModes ( const DtInterrogatedModesStruct & val )

virtual

Set Interrogated Modes.

virtual void DtIffAtcNavaidsPdu::setInterrogatingId ( DtObjectId data )

virtual

Set Interrogating Entity Identifier.

virtual void DtIffAtcNavaidsPdu::setLethal ( bool val )

virtual

Set Lethal Interrogation Indicates if this interrogation is a lethal interrogation.

virtual void DtIffAtcNavaidsPdu::setLocation ( const DtVector32 & coords )

virtual

Set/Get location.

virtual void DtIffAtcNavaidsPdu::setMode5Interrogator ( const DtIffAtcNavaidsMode5Interrogator & oper )

virtual

Set/Get Layer 3 information.

virtual void DtIffAtcNavaidsPdu::setMode5Transponder ( const DtIffAtcNavaidsMode5Transponder & oper )

virtual

virtual void DtIffAtcNavaidsPdu::setModeSInterrogator ( const DtIffAtcNavaidsModeSInterrogator & oper )

virtual

Set/Get Layer 4 information.

virtual void DtIffAtcNavaidsPdu::setModeSTransponder ( const DtIffAtcNavaidsModeSTransponder & oper )

virtual

virtual void DtIffAtcNavaidsPdu::setOperational ( const DtIffAtcNavaidsOperational & oper )

virtual

Set/Get fundamental operational data.

virtual bool DtIffAtcNavaidsPdu::setParmData	(	int	parmIndex,
		const DtIffAtcNavaidsParameter &	init
	)

virtual

Set/Get the fundamental parameter data records.

virtual void DtIffAtcNavaidsPdu::setReplyAmplification ( DtReplyAmplification data )

virtual

Set Reply Amplification.

virtual void DtIffAtcNavaidsPdu::setReportingSimulation ( const DtFederateIdentifierStruct & val )

virtual

Set/Get Reporting Simulation in Layer 3 (Mode 5)

virtual void DtIffAtcNavaidsPdu::setSecondaryOperational ( const DtIffAtcNavaidsSecondOperational & oper )

virtual

Set/Get secondary operational parameters.

virtual void DtIffAtcNavaidsPdu::setSimulationMode ( DtPduStatusIFFSimulationMode mode )

virtual

Set/Get the Simulation Mode of the Change/Options record.

If Simulation Mode is set to Interactive(1), Interactive Capable will also be set to Capable(1) If Simulation Mode is set to Regeneration(0), Interactive Capable will also be set to Not Capable(0)

virtual void DtIffAtcNavaidsPdu::setSystemDesignator ( DtU8 id )

virtual

Set/Get system Designator.

virtual void DtIffAtcNavaidsPdu::setSystemID ( const DtIffAtcNavaidsSystemID & id )

virtual

Set/Get system ID.

virtual void DtIffAtcNavaidsPdu::setSystemSpecificData ( DtU8 id )

virtual

Set/Get the Simulation Mode of the interrogation.

virtual void DtIffAtcNavaidsPdu::setTransmissionIndicator ( DtTransmissionIndicator data )

virtual

Set Transmission Indicator.

virtual DtPduStatusIFFSimulationMode DtIffAtcNavaidsPdu::simulationMode ( ) const

virtual

virtual DtU8 DtIffAtcNavaidsPdu::systemDesignator ( ) const

virtual

virtual const DtIffAtcNavaidsSystemID& DtIffAtcNavaidsPdu::systemID ( ) const

virtual

virtual DtU8 DtIffAtcNavaidsPdu::systemSpecificData ( ) const

virtual

virtual DtTransmissionIndicator DtIffAtcNavaidsPdu::transmissionIndicator ( ) const

virtual

Member Data Documentation

bool DtIffAtcNavaidsPdu::layer2Allocated

protected

DtIffBasicInteractiveRecord DtIffAtcNavaidsPdu::myBasicInteractiveRecord

protected

DtIffAtcNavaidsBeamData DtIffAtcNavaidsPdu::myBeamData

protected

DtIffAtcNavaidsDataCommunications DtIffAtcNavaidsPdu::myDataCommunications

protected

DtVector32 DtIffAtcNavaidsPdu::myEntCoords

protected

DtEntityIdentifier DtIffAtcNavaidsPdu::myEntityID

protected

Temporary objects for reference returns.

DtEventID DtIffAtcNavaidsPdu::myEventID

protected

DtU8 DtIffAtcNavaidsPdu::myLayer3SpecificInfo

protected

DtU8 DtIffAtcNavaidsPdu::myLayer4SpecificInfo

protected

DtU8 DtIffAtcNavaidsPdu::myLayer5SpecificInfo

protected

DtIffAtcNavaidsLayerHeader DtIffAtcNavaidsPdu::myLayerHeader

protected

DtIffAtcNavaidsMode5Interrogator DtIffAtcNavaidsPdu::myMode5Interrogator

protected

DtIffAtcNavaidsMode5Transponder DtIffAtcNavaidsPdu::myMode5Transponder

protected

DtIffAtcNavaidsModeSInterrogator DtIffAtcNavaidsPdu::myModeSInterrogator

protected

DtIffAtcNavaidsModeSTransponder DtIffAtcNavaidsPdu::myModeSTransponder

protected

DtIffAtcNavaidsOperational DtIffAtcNavaidsPdu::myOperational

protected

DtIffAtcNavaidsParameter DtIffAtcNavaidsPdu::myParameter

protected

DtIffAtcNavaidsSecondOperational DtIffAtcNavaidsPdu::mySecondOperational

protected

unsigned int DtIffAtcNavaidsPdu::mySystemDesignator

protected

DtIffAtcNavaidsSystemID DtIffAtcNavaidsPdu::mySystemID

protected

unsigned int DtIffAtcNavaidsPdu::mySystemSpecificData

protected

std::vector<DtIffAtcNavaidsVariableRecord*> DtIffAtcNavaidsPdu::myVariableRecordsLayer3

protected

std::vector<DtIffAtcNavaidsVariableRecord*> DtIffAtcNavaidsPdu::myVariableRecordsLayer4

protected

std::vector<DtIffAtcNavaidsVariableRecord*> DtIffAtcNavaidsPdu::myVariableRecordsLayer5

protected

const int DtIffAtcNavaidsPdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

The documentation for this class was generated from the following file:

iffAtcNavaidsPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
