DtIffMode5TransponderLocationRecord Class Reference

Inheritance diagram for DtIffMode5TransponderLocationRecord:

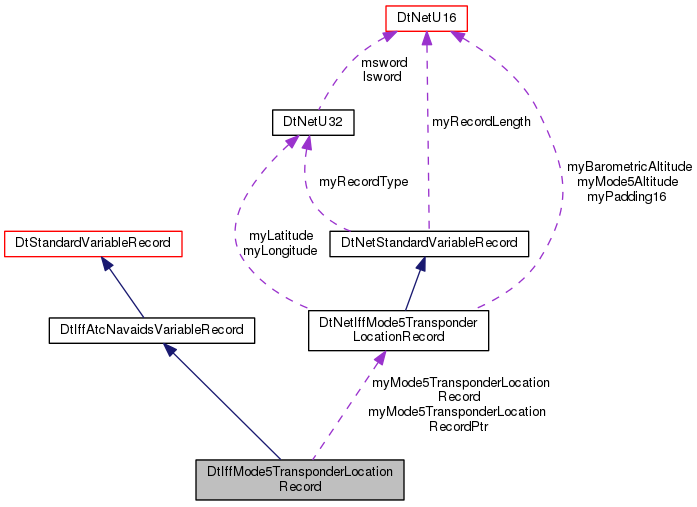

Collaboration diagram for DtIffMode5TransponderLocationRecord:

Public Member Functions
	DtIffMode5TransponderLocationRecord ()
	Constructor. More...
	DtIffMode5TransponderLocationRecord (const DtIffMode5TransponderLocationRecord &orig)
	Copy Constructor. More...
	DtIffMode5TransponderLocationRecord (void *ptr, unsigned int size)
	Net Constructor. More...
	DtIffMode5TransponderLocationRecord (DtNetIffMode5TransponderLocationRecord netRecord)
	NetType Constructor. More...
virtual DtIffMode5TransponderLocationRecord &	operator= (const DtIffMode5TransponderLocationRecord &record)
	Assignment Operator. More...
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &other)
	Assignment operator. More...
virtual bool	operator== (const DtIffMode5TransponderLocationRecord &record)
	Equals Operator. More...
virtual bool	operator== (const DtStandardVariableRecord &record)
	Equals Operator. More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Setters and Getters for Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Setters and Getters for Record Length. More...
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from Network Representation from the given location. More...
virtual unsigned	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual void	setLatitude (DtU32)
	Accessors. More...
virtual DtU32	latitude () const
virtual void	setLongitude (DtU32)
	This assumes that longitude has been correctly encoded based on the DIS 7 standard. More...
virtual DtU32	longitude () const
virtual void	setMode5Altitude (DtU16)
	This assumes that altitude has been correctly encoded based on the DIS 7 standard. More...
virtual DtU16	mode5Altitude () const
virtual void	setBarometricAltitude (DtU16)
	This assumes that altitude has been correctly encoded based on the DIS 7 standard. More...
virtual DtU16	barometricAltitude () const
Public Member Functions inherited from DtIffAtcNavaidsVariableRecord
	DtIffAtcNavaidsVariableRecord ()
	Constructor. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Create function used by Standard Variable Record Factory. More...

Protected Attributes
DtNetIffMode5TransponderLocationRecord	myMode5TransponderLocationRecord
DtNetIffMode5TransponderLocationRecord *	myMode5TransponderLocationRecordPtr
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Constructor & Destructor Documentation

DtIffMode5TransponderLocationRecord::DtIffMode5TransponderLocationRecord

(

)

Constructor.

DtIffMode5TransponderLocationRecord::DtIffMode5TransponderLocationRecord

(

const DtIffMode5TransponderLocationRecord &

orig

)

Copy Constructor.

DtIffMode5TransponderLocationRecord::DtIffMode5TransponderLocationRecord	(	void *	ptr,
		unsigned int	size
	)

Net Constructor.

DtIffMode5TransponderLocationRecord::DtIffMode5TransponderLocationRecord

(

DtNetIffMode5TransponderLocationRecord

netRecord

)

NetType Constructor.

Member Function Documentation

virtual DtU16 DtIffMode5TransponderLocationRecord::barometricAltitude ( ) const

virtual

virtual DtStandardVariableRecord* DtIffMode5TransponderLocationRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtIffMode5TransponderLocationRecord::create ( void *  addr, unsigned int  length  )

static

Create function used by Standard Variable Record Factory.

virtual DtU32 DtIffMode5TransponderLocationRecord::latitude ( ) const

virtual

virtual DtU32 DtIffMode5TransponderLocationRecord::longitude ( ) const

virtual

virtual DtU16 DtIffMode5TransponderLocationRecord::mode5Altitude ( ) const

virtual

virtual DtIffMode5TransponderLocationRecord& DtIffMode5TransponderLocationRecord::operator= ( const DtIffMode5TransponderLocationRecord &  record )

virtual

Assignment Operator.

virtual DtStandardVariableRecord& DtIffMode5TransponderLocationRecord::operator= ( const DtStandardVariableRecord &  other )

virtual

Assignment operator.

virtual bool DtIffMode5TransponderLocationRecord::operator== ( const DtIffMode5TransponderLocationRecord &  record )

virtual

Equals Operator.

virtual bool DtIffMode5TransponderLocationRecord::operator== ( const DtStandardVariableRecord &  record )

virtual

Equals Operator.

Implements DtStandardVariableRecord.

virtual void DtIffMode5TransponderLocationRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtIffMode5TransponderLocationRecord::recordLength ( ) const

virtual

Setters and Getters for Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtIffMode5TransponderLocationRecord::recordType ( ) const

virtual

Setters and Getters for Record Type.

Implements DtStandardVariableRecord.

virtual void DtIffMode5TransponderLocationRecord::setBarometricAltitude ( DtU16  )

virtual

This assumes that altitude has been correctly encoded based on the DIS 7 standard.

virtual void DtIffMode5TransponderLocationRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from Network Representation from the given location.

Implements DtStandardVariableRecord.

virtual void DtIffMode5TransponderLocationRecord::setLatitude ( DtU32  )

virtual

Accessors.

This assumes that latitude has been correctly encoded based on the DIS 7 standard

virtual void DtIffMode5TransponderLocationRecord::setLongitude ( DtU32  )

virtual

This assumes that longitude has been correctly encoded based on the DIS 7 standard.

virtual void DtIffMode5TransponderLocationRecord::setMode5Altitude ( DtU16  )

virtual

This assumes that altitude has been correctly encoded based on the DIS 7 standard.

virtual void DtIffMode5TransponderLocationRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtIffMode5TransponderLocationRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual unsigned DtIffMode5TransponderLocationRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

virtual void DtIffMode5TransponderLocationRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetIffMode5TransponderLocationRecord DtIffMode5TransponderLocationRecord::myMode5TransponderLocationRecord

protected

DtNetIffMode5TransponderLocationRecord* DtIffMode5TransponderLocationRecord::myMode5TransponderLocationRecordPtr

protected

---

The documentation for this class was generated from the following file:

• iffMode5TransponderLocationRecord.h
