Instances of DtIntercomControlPdu are used to communicate state information for simulated intercom devices. More...

Inheritance diagram for DtIntercomControlPdu:

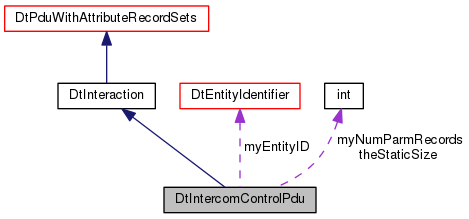

Collaboration diagram for DtIntercomControlPdu:

Public Member Functions
	DtIntercomControlPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...

	DtIntercomControlPdu (const DtNetIntercomControlPdu initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

	DtIntercomControlPdu (const DtIntercomControlPdu &orig)

virtual	~DtIntercomControlPdu ()
	destructor More...

DtIntercomControlPdu &	operator= (const DtIntercomControlPdu &orig)
	Assignment operator. More...

virtual void	setControlType (DtIntercomCtlType controlType)
	Set/Get intercom control type. More...

virtual DtIntercomCtlType	controlType () const

virtual void	setCommClass (DtIntercomCommClass commClass)
	Set/Get intercom communications channel class. More...

virtual DtIntercomCommClass	commClass () const

virtual void	setCommType (DtIntercomCommType commType)
	Set/Get intercom communications channel type. More...

virtual DtIntercomCommType	commType () const

virtual void	setSourceEntityID (const DtEntityIdentifier &entity)
	Set/Get source entity identifier. More...

virtual const DtEntityIdentifier &	sourceEntityID () const

virtual void	setSourceDeviceID (DtU16 deviceID)
	Set/Get source communications device ID. More...

virtual DtU16	sourceDeviceID () const

virtual void	setSourceLineID (DtU8 lineID)
	Set/Get source line ID. More...

virtual DtU8	sourceLineID () const

virtual void	setTransmitPriority (DtU8 transmitPriority)
	Set/Get transmit priority. More...

virtual DtU8	transmitPriority () const

virtual void	setTransmitLineState (DtIntercomTransLineState lineState)
	Set/Get transmit line state. More...

virtual DtIntercomTransLineState	transmitLineState () const

virtual void	setCmdType (DtIntercomCmdType cmdType)
	Set/Get intercom command type. More...

virtual DtIntercomCmdType	cmdType () const

virtual void	setMasterEntityID (const DtEntityIdentifier &entity)
	Set/Get master entity identifier. More...

virtual const DtEntityIdentifier &	masterEntityID () const

virtual void	setMasterDeviceID (DtU16 deviceID)
	Set/Get master communications device ID. More...

virtual DtU16	masterDeviceID () const

virtual void	setMasterChannelID (DtU16 channelID)
	Set/Get master channel ID. More...

virtual DtU16	masterChannelID () const

virtual DtU32	parmRecordsLength () const
	Get the parameters length. More...

virtual bool	setNumParmRecords (int numRecords)
	Set/Get number of parameter records (this is not a PDU field). More...

virtual int	numParmRecords () const

virtual bool	getRecordType (int parmIndex, DtIntercomCtlRecType &recordType) const
	Get the record type for parameter record parmIndex. More...

virtual bool	setParmRecord (int parmIndex, const DtIntercomEntityDestRec &init)
	Set/Get the parameter record type and values of record parmIndex to values specified by the initializer in the second argument. More...

virtual bool	getParmRecord (int parmIndex, DtIntercomEntityDestRec &record) const

virtual bool	setParmRecord (int parmIndex, const DtIntercomGroupDestRec &init)

virtual bool	getParmRecord (int parmIndex, DtIntercomGroupDestRec &record) const

virtual bool	setParmRecord (int parmIndex, const DtIntercomGroupAsgmtRec &init)

virtual bool	getParmRecord (int parmIndex, DtIntercomGroupAsgmtRec &record) const

virtual void	printData () const
	Print the data contained by this PDU. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...

	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...

DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...

virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...

virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...

virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...

virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...

virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...

virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...

virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...

virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...

virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...

virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...

virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...

virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...

virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...

virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...

virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...

virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...

virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...

virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...

virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...

virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const

virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...

virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...

virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...

virtual void	setAttributeStrategy (DtAttributePduStrategy strat)

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual bool	shouldAttributePduBeCoupled () const

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	Create a DtIntercomControlPdu. More...

static void	addCallback (DtExerciseConn conn, DtIntercomControlPduCb cb, void usr)
	Add (register)/Remove (deregister) function to be called when pdu is received. More...

static void	removeCallback (DtExerciseConn conn, DtIntercomControlPduCb cb, void usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind. More...

virtual DtNetIntercomControlPdu *	netPduStruct () const
	Casts the netPdu element to our network struct. More...

DtIntercomControlPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

virtual char *	var () const
	Returns a pointer to the first byte of variable length data. More...

virtual int	recordOffset (int recordIndex) const
	Returns the offset (in bytes) of the given parameter record. More...

virtual void	resizeRecord (DtNetIntercomParmRec *rec, int newSize)
	Resize a given parameter record to the size indicated. More...

Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...

virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

Protected Attributes
int	myNumParmRecords
	Number of parameter records in this PDU. More...

DtEntityIdentifier	myEntityID
	Temporary object for reference returns. More...

Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...

bool	isRecordSetOwned

bool	isPduExtending

DtStandardVariableRecordFactory *	mySVRFactory

DtPduDecoder *	myAttributeDecoder

DtPduEncoder *	myAttributeEncoder

DtSimulationAddress	myAttributePduOriginatingSimulationAddress

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records. More...

Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtIntercomControlPdu are used to communicate state information for simulated intercom devices.

Constructor & Destructor Documentation

DtIntercomControlPdu::DtIntercomControlPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtIntercomControlPdu::DtIntercomControlPdu	(	const DtNetIntercomControlPdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

DtIntercomControlPdu::DtIntercomControlPdu ( const DtIntercomControlPdu & orig )

virtual DtIntercomControlPdu::~DtIntercomControlPdu ( )

virtual

destructor

Member Function Documentation

static void DtIntercomControlPdu::addCallback	(	DtExerciseConn *	conn,
		DtIntercomControlPduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (deregister) function to be called when pdu is received.

virtual DtIntercomCmdType DtIntercomControlPdu::cmdType ( ) const

virtual

virtual DtIntercomCommClass DtIntercomControlPdu::commClass ( ) const

virtual

virtual DtIntercomCommType DtIntercomControlPdu::commType ( ) const

virtual

virtual DtIntercomCtlType DtIntercomControlPdu::controlType ( ) const

virtual

static DtPdu* DtIntercomControlPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

Create a DtIntercomControlPdu.

Caller is responsible for deletion.

virtual bool DtIntercomControlPdu::getParmRecord	(	int	parmIndex,
		DtIntercomEntityDestRec &	record
	)		const

virtual

virtual bool DtIntercomControlPdu::getParmRecord	(	int	parmIndex,
		DtIntercomGroupDestRec &	record
	)		const

virtual

virtual bool DtIntercomControlPdu::getParmRecord	(	int	parmIndex,
		DtIntercomGroupAsgmtRec &	record
	)		const

virtual

virtual bool DtIntercomControlPdu::getRecordType	(	int	parmIndex,
		DtIntercomCtlRecType &	recordType
	)		const

virtual

Get the record type for parameter record parmIndex.

If parmIndex is out of range or the parameter is invalid, then false is returned.

virtual DtPduKind DtIntercomControlPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual DtU16 DtIntercomControlPdu::masterChannelID ( ) const

virtual

virtual DtU16 DtIntercomControlPdu::masterDeviceID ( ) const

virtual

virtual const DtEntityIdentifier& DtIntercomControlPdu::masterEntityID ( ) const

virtual

virtual DtNetIntercomControlPdu* DtIntercomControlPdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual int DtIntercomControlPdu::numParmRecords ( ) const

virtual

DtIntercomControlPdu& DtIntercomControlPdu::operator= ( const DtIntercomControlPdu & orig )

Assignment operator.

virtual DtU32 DtIntercomControlPdu::parmRecordsLength ( ) const

virtual

Get the parameters length.

This field is automatically changed by the functions: setNumParmRecords(), and setParmRecord()

virtual void DtIntercomControlPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtIntercomControlPdu::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual int DtIntercomControlPdu::recordOffset ( int recordIndex ) const

protectedvirtual

Returns the offset (in bytes) of the given parameter record.

static void DtIntercomControlPdu::removeCallback	(	DtExerciseConn *	conn,
		DtIntercomControlPduCb	cb,
		void *	usr
	)

static

virtual void DtIntercomControlPdu::resizeRecord	(	DtNetIntercomParmRec *	rec,
		int	newSize
	)

protectedvirtual

Resize a given parameter record to the size indicated.

DtIntercomControlPdu* DtIntercomControlPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual void DtIntercomControlPdu::setCmdType ( DtIntercomCmdType cmdType )

virtual

Set/Get intercom command type.

virtual void DtIntercomControlPdu::setCommClass ( DtIntercomCommClass commClass )

virtual

Set/Get intercom communications channel class.

virtual void DtIntercomControlPdu::setCommType ( DtIntercomCommType commType )

virtual

Set/Get intercom communications channel type.

virtual void DtIntercomControlPdu::setControlType ( DtIntercomCtlType controlType )

virtual

Set/Get intercom control type.

virtual void DtIntercomControlPdu::setMasterChannelID ( DtU16 channelID )

virtual

Set/Get master channel ID.

virtual void DtIntercomControlPdu::setMasterDeviceID ( DtU16 deviceID )

virtual

Set/Get master communications device ID.

virtual void DtIntercomControlPdu::setMasterEntityID ( const DtEntityIdentifier & entity )

virtual

Set/Get master entity identifier.

virtual bool DtIntercomControlPdu::setNumParmRecords ( int numRecords )

virtual

Set/Get number of parameter records (this is not a PDU field).

If the required space would exceed the maximum space permitted for a PDU, then false may be returned.

virtual bool DtIntercomControlPdu::setParmRecord	(	int	parmIndex,
		const DtIntercomEntityDestRec &	init
	)

virtual

Set/Get the parameter record type and values of record parmIndex to values specified by the initializer in the second argument.

If parmIndex is out of bounds, or if the record type does not match the function (for a get), then false is returned. If the space would exceed the maximum space permitted for a PDU (for a set) then false may be returned.

virtual bool DtIntercomControlPdu::setParmRecord	(	int	parmIndex,
		const DtIntercomGroupDestRec &	init
	)

virtual

virtual bool DtIntercomControlPdu::setParmRecord	(	int	parmIndex,
		const DtIntercomGroupAsgmtRec &	init
	)

virtual

virtual void DtIntercomControlPdu::setSourceDeviceID ( DtU16 deviceID )

virtual

Set/Get source communications device ID.

virtual void DtIntercomControlPdu::setSourceEntityID ( const DtEntityIdentifier & entity )

virtual

Set/Get source entity identifier.

virtual void DtIntercomControlPdu::setSourceLineID ( DtU8 lineID )

virtual

Set/Get source line ID.

virtual void DtIntercomControlPdu::setTransmitLineState ( DtIntercomTransLineState lineState )

virtual

Set/Get transmit line state.

virtual void DtIntercomControlPdu::setTransmitPriority ( DtU8 transmitPriority )

virtual

Set/Get transmit priority.

virtual DtU16 DtIntercomControlPdu::sourceDeviceID ( ) const

virtual

virtual const DtEntityIdentifier& DtIntercomControlPdu::sourceEntityID ( ) const

virtual

virtual DtU8 DtIntercomControlPdu::sourceLineID ( ) const

virtual

virtual DtIntercomTransLineState DtIntercomControlPdu::transmitLineState ( ) const

virtual

virtual DtU8 DtIntercomControlPdu::transmitPriority ( ) const

virtual

virtual char* DtIntercomControlPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

Member Data Documentation

DtEntityIdentifier DtIntercomControlPdu::myEntityID

protected

Temporary object for reference returns.

int DtIntercomControlPdu::myNumParmRecords

protected

Number of parameter records in this PDU.

const int DtIntercomControlPdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

The documentation for this class was generated from the following file:

intercomControlPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
