DtMetocPdu Class Reference

Instances of DtMetocPdu are used for DIS network packets which encode the DtMetocRootStateRepository repository. More...

Inheritance diagram for DtMetocPdu:

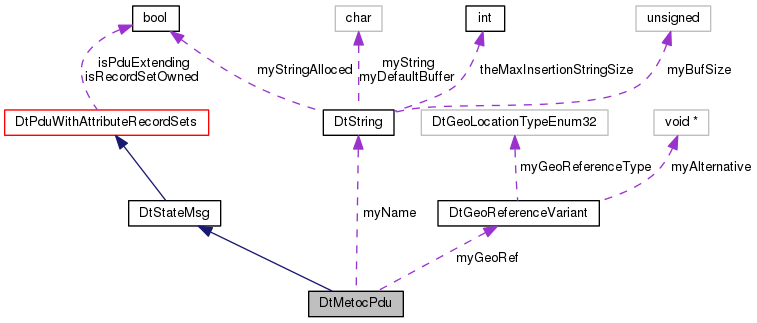

Collaboration diagram for DtMetocPdu:

Public Member Functions
	DtMetocPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...
	DtMetocPdu (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
virtual	~DtMetocPdu ()
	destructor More...
virtual void	setVersion (DtU16 val)
	Set the PDU version. More...
virtual DtU16	version () const
	Get the PDU version. More...
virtual void	setEntityId (const DtEntityIdentifier &val)
	Set the Entity Identifier. More...
virtual DtEntityIdentifier	entityId () const
	Get the Entity Identifier. More...
virtual void	setUniqueId (const DtVrlUuid &val)
	Set the UniqueId. More...
DtVrlUuid	uniqueId () const
	Get the UniqueId. More...
virtual void	setName (const DtString &val)
	Set the Name. More...
DtString	name () const
	Get the Name. More...
virtual void	setGeoReference (const DtGeoReferenceVariant &val)
	Set the GeoReference. More...
DtGeoReferenceVariant	geoReference () const
	Get the GeoReference. More...
virtual void	setTemperature (DtFloat32 val)
	Set the Temperature. More...
virtual DtFloat32	temperature () const
	Get the Temperature. More...
virtual void	setWind (const DtWindStruct &val)
	Set the Wind. More...
virtual DtWindStruct	wind () const
	Set the Wind. More...
virtual void	setPrecipitation (const DtPrecipitationStruct &val)
	Set the Precipitation. More...
virtual DtPrecipitationStruct	precipitation () const
	Get the Precipitation. More...
virtual void	setHaze (const DtHazeStruct &val)
	Set the Haze. More...
virtual DtHazeStruct	haze () const
	Get the Haze. More...
virtual void	setHumidity (DtFloat32 val)
	Set the Humidity. More...
virtual DtFloat32	humidity () const
	Get the Humidity. More...
virtual void	setBarometricPressure (DtFloat32 val)
	Set the Barometric Pressure. More...
virtual DtFloat32	barometricPressure () const
	Get the Barometric Pressure. More...
virtual void	setVisibilityRange (DtFloat32 val)
	Set the Visibility Range. More...
virtual DtFloat32	visibilityRange () const
	Get the Visibility Range. More...
virtual void	setMetocLayerRecord (DtMetocLayerRecord *rec)
	Set the METOC Layer Record. More...
virtual DtStandardVariableRecord *	metocLayerRecord (DtStandardVariableRecordFactory *varRecFac) const
	Get the METOC Layer Record. More...
virtual unsigned int	metocLayerRecordType () const
	Get the type of the METOC Layer Record in the PDU. More...
void	printData () const
	Print functions. More...
void	printDataToStream (std::ostream &stream) const
DtString	uniqueKey () const
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor More...
virtual	~DtStateMsg ()
	destructor More...
	DtStateMsg (const DtStateMsg &orig)
	copy constructor More...
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator More...
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...
virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...
virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...
virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...
virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	encode ()
	Encode method. More...
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...
virtual void	setAttributeStrategy (DtAttributePduStrategy strat)
virtual DtAttributePduStrategy	attributePduStrategy () const
virtual bool	shouldAttributePduBeCoupled () const
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...
virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...
virtual int	status () const
	Get PDU status. More...
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...
virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...
virtual DtTime	receivedTime () const
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...
virtual const char *	netRep () const
	Get network representation. More...
virtual int	length () const
	Get size of message. More...
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size)
	Changes the size of the message. More...
virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...
virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...
virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...
virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...
virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...
virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPduHeader *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a DtMetocPdu. More...
static void	addCallback (DtExerciseConn *conn, metocRootCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when a PDU is received. More...
static void	removeCallback (DtExerciseConn *conn, metocRootCb cb, void *usr)

Protected Member Functions
virtual unsigned int	fixedBytesSize () const
virtual char *	firstVarDatumStart () const
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class. More...
Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...
virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const
Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...
virtual void	initPdu (const void *initial, DtBufferPtr buffer, DtPduFactory *pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...
virtual void	clearData ()
	zeros out all bytes after the PDU header. More...
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...
virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...
virtual bool	isLVCApplicable () const
virtual bool	isCEIApplicable () const
virtual bool	isFTIApplicable () const
virtual bool	isDTIApplicable () const
virtual bool	isRAIApplicable () const
virtual bool	isIAIApplicable () const
virtual bool	isISMApplicable () const
virtual bool	isAIIApplicable () const

Static Protected Member Functions
static DtPduKind	internalGetPduKindImpl ()

Protected Attributes
DtString	myName
DtGeoReferenceVariant	myGeoRef
Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...
bool	isRecordSetOwned
bool	isPduExtending
DtStandardVariableRecordFactory *	mySVRFactory
DtPduDecoder *	myAttributeDecoder
DtPduEncoder *	myAttributeEncoder
DtSimulationAddress	myAttributePduOriginatingSimulationAddress
DtAttributePduStrategy	myAttributePduStrategy
Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder
DtPduDecoder *	myDecoder
int	myOKStatus
DtTime	myReceivedTime
Protected Attributes inherited from DtBaseMsg
void *	myNetMsg
void *	myInternalBuff
int	myIntBuffSize
int	myMsgSize
int	myNetworkMsgSize

Private Member Functions
	DtMetocPdu (const DtMetocPdu &orig)
	Copy CTOR not implemented. More...
DtMetocPdu &	operator= (const DtMetocPdu &orig)
	Assignment operator not implemented. More...

Additional Inherited Members
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtMetocPdu are used for DIS network packets which encode the DtMetocRootStateRepository repository.

The actual network layout occurs in the DtNetMetocPdu.

Constructor & Destructor Documentation

DtMetocPdu::DtMetocPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtMetocPdu::DtMetocPdu	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

virtual DtMetocPdu::~DtMetocPdu ( )

virtual

destructor

DtMetocPdu::DtMetocPdu ( const DtMetocPdu &  orig )

private

Copy CTOR not implemented.

Member Function Documentation

static void DtMetocPdu::addCallback ( DtExerciseConn *  conn, metocRootCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when a PDU is received.

virtual DtFloat32 DtMetocPdu::barometricPressure ( ) const

virtual

Get the Barometric Pressure.

static DtPdu* DtMetocPdu::create ( const DtNetPduHeader *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create a DtMetocPdu.

Caller is responsible for deletion.

virtual DtEntityIdentifier DtMetocPdu::entityId ( ) const

virtual

Get the Entity Identifier.

virtual char* DtMetocPdu::firstVarDatumStart ( ) const

protectedvirtual

virtual unsigned int DtMetocPdu::fixedBytesSize ( ) const

protectedvirtual

DtGeoReferenceVariant DtMetocPdu::geoReference

(

)

const

Get the GeoReference.

virtual DtHazeStruct DtMetocPdu::haze ( ) const

virtual

Get the Haze.

virtual DtFloat32 DtMetocPdu::humidity ( ) const

virtual

Get the Humidity.

DtPduKind DtMetocPdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

static DtPduKind DtMetocPdu::internalGetPduKindImpl ( )

inlinestaticprotected

References DtMetocPduKind.

virtual DtStandardVariableRecord* DtMetocPdu::metocLayerRecord ( DtStandardVariableRecordFactory *  varRecFac ) const

virtual

Get the METOC Layer Record.

virtual unsigned int DtMetocPdu::metocLayerRecordType ( ) const

virtual

Get the type of the METOC Layer Record in the PDU.

DtString DtMetocPdu::name

(

)

const

Get the Name.

DtMetocPdu& DtMetocPdu::operator= ( const DtMetocPdu &  orig )

private

Assignment operator not implemented.

virtual DtPrecipitationStruct DtMetocPdu::precipitation ( ) const

virtual

Get the Precipitation.

void DtMetocPdu::printData ( ) const

virtual

Print functions.

Reimplemented from DtPdu.

void DtMetocPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

static void DtMetocPdu::removeCallback ( DtExerciseConn *  conn, metocRootCb  cb, void *  usr  )

static

virtual void DtMetocPdu::setBarometricPressure ( DtFloat32  val )

virtual

Set the Barometric Pressure.

virtual void DtMetocPdu::setEntityId ( const DtEntityIdentifier &  val )

virtual

Set the Entity Identifier.

virtual void DtMetocPdu::setGeoReference ( const DtGeoReferenceVariant &  val )

virtual

Set the GeoReference.

virtual void DtMetocPdu::setHaze ( const DtHazeStruct &  val )

virtual

Set the Haze.

virtual void DtMetocPdu::setHumidity ( DtFloat32  val )

virtual

Set the Humidity.

virtual void DtMetocPdu::setMetocLayerRecord ( DtMetocLayerRecord *  rec )

virtual

Set the METOC Layer Record.

virtual void DtMetocPdu::setName ( const DtString &  val )

virtual

Set the Name.

virtual void DtMetocPdu::setPrecipitation ( const DtPrecipitationStruct &  val )

virtual

Set the Precipitation.

virtual void DtMetocPdu::setTemperature ( DtFloat32  val )

virtual

Set the Temperature.

virtual void DtMetocPdu::setUniqueId ( const DtVrlUuid &  val )

virtual

Set the UniqueId.

virtual void DtMetocPdu::setVersion ( DtU16  val )

virtual

Set the PDU version.

virtual void DtMetocPdu::setVisibilityRange ( DtFloat32  val )

virtual

Set the Visibility Range.

virtual void DtMetocPdu::setWind ( const DtWindStruct &  val )

virtual

Set the Wind.

virtual DtFloat32 DtMetocPdu::temperature ( ) const

virtual

Get the Temperature.

DtVrlUuid DtMetocPdu::uniqueId

(

)

const

Get the UniqueId.

DtString DtMetocPdu::uniqueKey

(

)

const

virtual DtU16 DtMetocPdu::version ( ) const

virtual

Get the PDU version.

virtual DtFloat32 DtMetocPdu::visibilityRange ( ) const

virtual

Get the Visibility Range.

virtual DtWindStruct DtMetocPdu::wind ( ) const

virtual

Set the Wind.

Member Data Documentation

DtGeoReferenceVariant DtMetocPdu::myGeoRef

mutableprotected

DtString DtMetocPdu::myName

mutableprotected

---

The documentation for this class was generated from the following file:

• metocPdu.h
