DtMode4StateRepository Class Reference

Instances of DtMode4StateRepository are used to store state data for IFFData.Mode4 objects. More...

Inheritance diagram for DtMode4StateRepository:

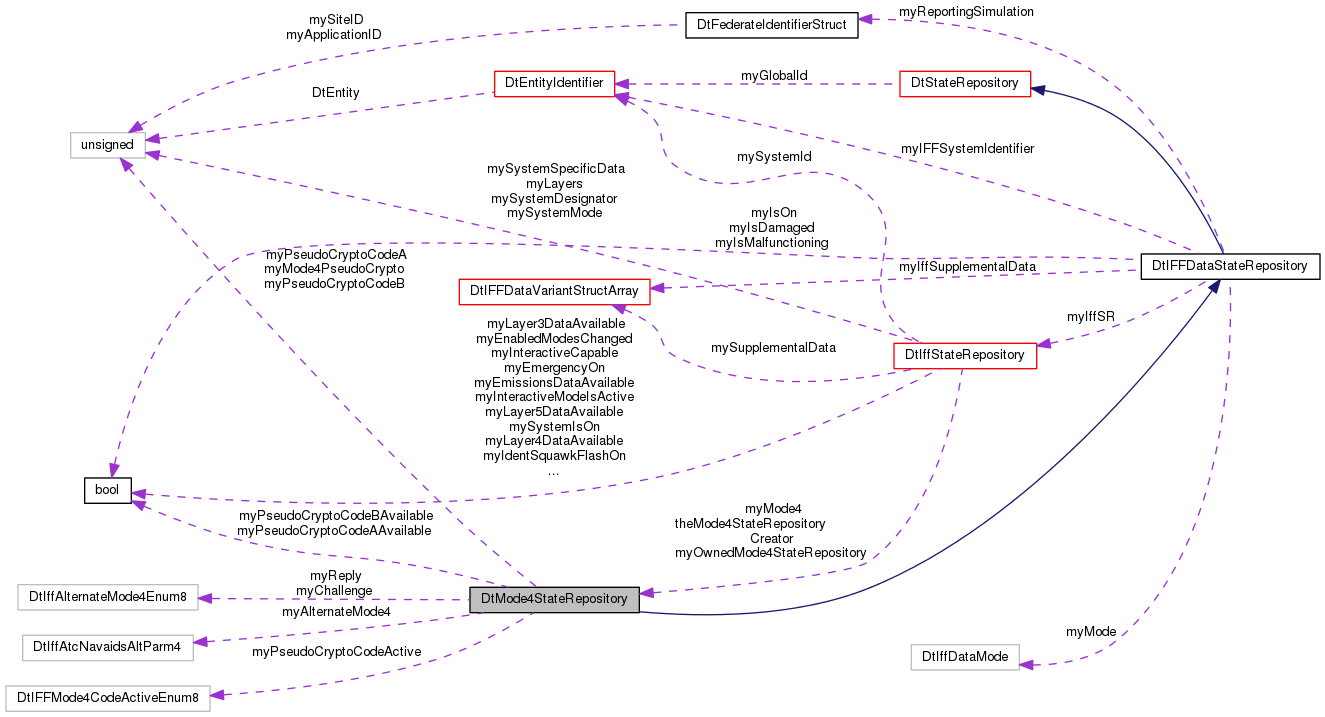

Collaboration diagram for DtMode4StateRepository:

Public Member Functions
	DtMode4StateRepository ()
	Constructor. More...
virtual	~DtMode4StateRepository ()
	Destructor. More...
	DtMode4StateRepository (const DtMode4StateRepository &orig)
	Copy Constructor. More...
DtMode4StateRepository &	operator= (const DtMode4StateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setPseudoCryptoCodeAAvailable (bool val)
	Set the PseudoCryptoCodeAAvailable. More...
virtual bool	pseudoCryptoCodeAAvailable () const
	Get the PseudoCryptoCodeAAvailable. More...
virtual void	setPseudoCryptoCodeA (DtU16 val)
	Set the PseudoCryptoCodeA. More...
virtual DtU16	pseudoCryptoCodeA () const
	Get the PseudoCryptoCodeA. More...
virtual void	setPseudoCryptoCodeBAvailable (bool val)
	Set the PseudoCryptoCodeBAvailable. More...
virtual bool	pseudoCryptoCodeBAvailable () const
	Get the PseudoCryptoCodeBAvailable. More...
virtual void	setPseudoCryptoCodeB (DtU16 val)
	Set the PseudoCryptoCodeB. More...
virtual DtU16	pseudoCryptoCodeB () const
	Get the PseudoCryptoCodeB. More...
virtual void	setPseudoCryptoCodeActive (const DtIFFMode4CodeActiveEnum8 &val)
	Set the PseudoCryptoCodeActive. More...
virtual const DtIFFMode4CodeActiveEnum8 &	pseudoCryptoCodeActive () const
	Get the PseudoCryptoCodeActive. More...
Mode4 Transponder-Specific Attributes
Set the Reply attribute Parameters val Reply from the Mode 4 Interrogator as Valid, Invalid, No Response, or Unable to Verify
virtual void	setReply (const DtIffAlternateMode4Enum8 &val)
	Get the Reply attribute. More...
virtual const DtIffAlternateMode4Enum8 &	reply () const
	Get the Reply attribute. More...
Mode4 Interrogator-Specific Attributes
Set the Challenge attribute Parameters val Indicates the validity of a Mode 4 interrogation as Valid or Invalid
virtual void	setChallenge (const DtIffAlternateMode4Enum8 &val)
	Get the Challenge attribute. More...
virtual const DtIffAlternateMode4Enum8 &	challenge () const
	Get the Challenge attribute. More...
RPR 2.0 NatoIFF-Specific Attributes
Set/Get the attribute named "AlternateMode4" Parameters useMode4 IFF Alternate Mode 4
virtual void	setAlternateMode4 (DtIffAtcNavaidsAltParm4 useMode4)
	Set/Get NatoIFF mode4PseudoCrypto. More...
virtual DtIffAtcNavaidsAltParm4	alternateMode4 () const
	Set/Get NatoIFF mode4PseudoCrypto. More...
virtual void	setMode4PseudoCrypto (DtU16 val)
	Set/Get NatoIFF mode4PseudoCrypto. More...
virtual DtU16	mode4PseudoCrypto () const
	Set/Get NatoIFF mode4PseudoCrypto. More...
virtual bool	mode4PseudoCryptoAvailable () const
	Get NatoIFF mode4PseudoCryptoAvailable no set as it is determined by the value of Mode 4 Code part of record. More...
virtual void	setMode4PseudoCryptoAvailable (DtU8 val)
	Set/Get NatoIFF mode4PseudoCrypto. More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the SupplementalData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtMode4StateRepository *	create ()
	Create a DtMode4StateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
bool	myPseudoCryptoCodeAAvailable
DtU16	myPseudoCryptoCodeA
bool	myPseudoCryptoCodeBAvailable
DtU16	myPseudoCryptoCodeB
DtIFFMode4CodeActiveEnum8	myPseudoCryptoCodeActive
DtIffAlternateMode4Enum8	myReply
DtIffAlternateMode4Enum8	myChallenge
DtIffAtcNavaidsAltParm4	myAlternateMode4
DtU16	myMode4PseudoCrypto
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtMode4StateRepository are used to store state data for IFFData.Mode4 objects.

Constructor & Destructor Documentation

DtMode4StateRepository::DtMode4StateRepository

(

)

Constructor.

virtual DtMode4StateRepository::~DtMode4StateRepository ( )

virtual

Destructor.

DtMode4StateRepository::DtMode4StateRepository

(

const DtMode4StateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtIffAtcNavaidsAltParm4 DtMode4StateRepository::alternateMode4 ( ) const

virtual

Set/Get NatoIFF mode4PseudoCrypto.

Parameters

val	Mode 4 Pseudo-Crypto value (0-4094)

virtual const DtIffAlternateMode4Enum8& DtMode4StateRepository::challenge ( ) const

virtual

Get the Challenge attribute.

Returns

Indicates the validity of a Mode 4 interrogation

virtual DtStateRepository* DtMode4StateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

static DtMode4StateRepository* DtMode4StateRepository::create ( )

static

Create a DtMode4StateRepository.

virtual DtU16 DtMode4StateRepository::mode4PseudoCrypto ( ) const

virtual

Set/Get NatoIFF mode4PseudoCrypto.

Parameters

val	Mode 4 Pseudo-Crypto value (0-4094)

virtual bool DtMode4StateRepository::mode4PseudoCryptoAvailable ( ) const

virtual

Get NatoIFF mode4PseudoCryptoAvailable no set as it is determined by the value of Mode 4 Code part of record.

Returns

Specifies whether or not Mode 4 pseudo-crypto value is available

DtMode4StateRepository& DtMode4StateRepository::operator=

(

const DtMode4StateRepository &

orig

)

Assignment Operator.

virtual void DtMode4StateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode4StateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual DtU16 DtMode4StateRepository::pseudoCryptoCodeA ( ) const

virtual

Get the PseudoCryptoCodeA.

virtual bool DtMode4StateRepository::pseudoCryptoCodeAAvailable ( ) const

virtual

Get the PseudoCryptoCodeAAvailable.

virtual const DtIFFMode4CodeActiveEnum8& DtMode4StateRepository::pseudoCryptoCodeActive ( ) const

virtual

Get the PseudoCryptoCodeActive.

virtual DtU16 DtMode4StateRepository::pseudoCryptoCodeB ( ) const

virtual

Get the PseudoCryptoCodeB.

virtual bool DtMode4StateRepository::pseudoCryptoCodeBAvailable ( ) const

virtual

Get the PseudoCryptoCodeBAvailable.

virtual const DtIffAlternateMode4Enum8& DtMode4StateRepository::reply ( ) const

virtual

Get the Reply attribute.

Returns

Reply received from the Mode 4 Interrogator

virtual void DtMode4StateRepository::setAlternateMode4 ( DtIffAtcNavaidsAltParm4  useMode4 )

virtual

Set/Get NatoIFF mode4PseudoCrypto.

Parameters

val	Mode 4 Pseudo-Crypto value (0-4094)

virtual void DtMode4StateRepository::setChallenge ( const DtIffAlternateMode4Enum8 &  val )

virtual

Get the Challenge attribute.

Returns

Indicates the validity of a Mode 4 interrogation

virtual void DtMode4StateRepository::setMode4PseudoCrypto ( DtU16  val )

virtual

Set/Get NatoIFF mode4PseudoCrypto.

Parameters

val	Mode 4 Pseudo-Crypto value (0-4094)

virtual void DtMode4StateRepository::setMode4PseudoCryptoAvailable ( DtU8  val )

inlinevirtual

Set/Get NatoIFF mode4PseudoCrypto.

Parameters

val	Mode 4 Pseudo-Crypto value (0-4094)

virtual void DtMode4StateRepository::setPseudoCryptoCodeA ( DtU16  val )

virtual

Set the PseudoCryptoCodeA.

Parameters

val	Mode 4 pseudo crypto code (A) in the range 0 to 4094 decimal

virtual void DtMode4StateRepository::setPseudoCryptoCodeAAvailable ( bool  val )

virtual

Set the PseudoCryptoCodeAAvailable.

Parameters

val	Indicates whether a Mode 4 pseudo crypto code (A) value is available in the attribute PseudoCryptoCodeA or that Challenge or Reply is to be used instead. If also a code B is available, the attribute PseudoCryptoCodeActive indicates which code is to be used

virtual void DtMode4StateRepository::setPseudoCryptoCodeActive ( const DtIFFMode4CodeActiveEnum8 &  val )

virtual

Set the PseudoCryptoCodeActive.

Parameters

val	Indicates whether Mode 4 Code A or Code B is active, or neither

virtual void DtMode4StateRepository::setPseudoCryptoCodeB ( DtU16  val )

virtual

Set the PseudoCryptoCodeB.

Parameters

val	Mode 4 pseudo crypto code B in the range 0 to 4094 decimal

virtual void DtMode4StateRepository::setPseudoCryptoCodeBAvailable ( bool  val )

virtual

Set the PseudoCryptoCodeBAvailable.

Parameters

val

Indicates whether or not a Mode 4 pseudo crypto code B value is available in the attribute PseudoCryptoCodeB. If available, PseudoCryptoCodeA must also be set to a valid value, PseudoCryptoCodeAAvailable to True, and PseudoCryptoCodeActive to indicate which code is to be used. If not, the PseudoCryptoCodeA is to be used, if available, or the Challenge or Reply attribute.

virtual void DtMode4StateRepository::setReply ( const DtIffAlternateMode4Enum8 &  val )

virtual

Get the Reply attribute.

Returns

Reply received from the Mode 4 Interrogator

Member Data Documentation

DtIffAtcNavaidsAltParm4 DtMode4StateRepository::myAlternateMode4

protected

DtIffAlternateMode4Enum8 DtMode4StateRepository::myChallenge

protected

DtU16 DtMode4StateRepository::myMode4PseudoCrypto

protected

DtU16 DtMode4StateRepository::myPseudoCryptoCodeA

protected

bool DtMode4StateRepository::myPseudoCryptoCodeAAvailable

protected

DtIFFMode4CodeActiveEnum8 DtMode4StateRepository::myPseudoCryptoCodeActive

protected

DtU16 DtMode4StateRepository::myPseudoCryptoCodeB

protected

bool DtMode4StateRepository::myPseudoCryptoCodeBAvailable

protected

DtIffAlternateMode4Enum8 DtMode4StateRepository::myReply

protected

---

The documentation for this class was generated from the following file:

• iffMode4StateRepository.h
