DtPduWithData provides the base class for all of the simulation management PDU's that have fixed/variable data. More...

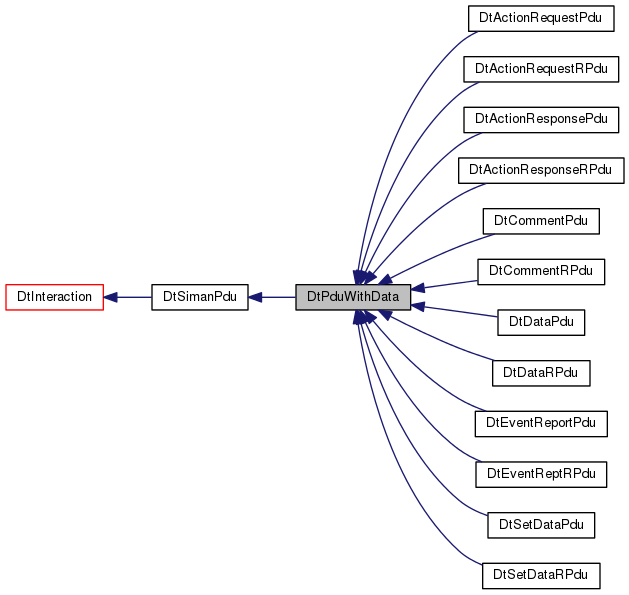

Inheritance diagram for DtPduWithData:

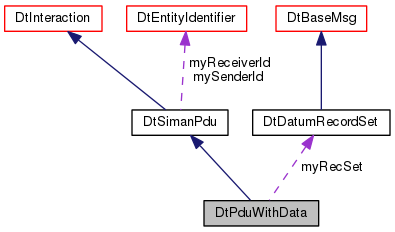

Collaboration diagram for DtPduWithData:

Public Types
enum	{ PduStaticSize =40 }

Public Member Functions
	DtPduWithData ()
	Constructor. More...

virtual	~DtPduWithData ()
	Destructor. More...

	DtPduWithData (const DtPduWithData &orig)

DtPduWithData &	operator= (const DtPduWithData &orig)
	Assignment operator. More...

virtual int	numFixedFields () const
	Returns number of fixed fields. More...

virtual int	numVarFields () const
	Returns number of variable length fields. More...

virtual DtDatumParam	varDatumId (int index) const
	Returns the datum param found in the index'th variable datum record. More...

virtual DtDatumParam	fixedDatumId (int index) const
	Returns the datum param found in the index'th fixed datum record. More...

virtual DtDatumParam	datumId (DtDatumRecordType fixedOrVar, int index) const
	Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR. More...

virtual int	datumSizeBits (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR. More...

virtual int	datumSizeBytes (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR. More...

virtual void	getIndex (DtDatumParam param, DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const
	Looks through all fixed and variable records for one containing param as the parameter ID. More...

virtual DtFloat32	datumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const
	***** INSPECTING DATUM VALUES BY INDEX ******* If you know the data type of the value contained in a particular record, use one of the following to return it. More...

virtual DtFloat64	datumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const

virtual unsigned long	datumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const

virtual long	datumValInt32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const

virtual const char *	datumValByteArray (DtDatumRecordType fixedOrVar, int index) const

virtual DtFloat32	datumValFloat32 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const
	***** INSPECTING DATUM VALUES BY PARAM ID ******* If you know the data type of the value contained in a particular record, use one of the following to return it. More...

virtual DtFloat64	datumValFloat64 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const

virtual unsigned long	datumValUnsigned32 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const

virtual long	datumValInt32 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const

virtual const char *	datumValByteArray (DtDatumParam param, DtDatumRetCode *retcode=NULL) const

virtual void	initDataSection (const DtDatumParam fixedParams, const DtVarDatumSpec specList)
	**************** MUTATOR FUNCTIONS **************** More...

virtual void	setNumFixedFields (int newNum)
	Sets the number of fixed or variable fields to newNum. More...

virtual void	setNumVarFields (int newNum)

virtual void	setDatumParam (DtDatumRecordType fixedOrVar, int index, DtDatumParam param, DtDatumRetCode *retcode=NULL)
	Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFIXED or DtVAR. More...

virtual void	setVarDataBytes (int index, int length, DtDatumRetCode *retcode=NULL)
	Allocates length bytes for the index'th variable datum record. More...

virtual void	setDatumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtFloat64 val, DtDatumRetCode *retcode=NULL)
	***** SETTING DATA VALUES BY INDEX ******* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data. More...

virtual void	setDatumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtFloat32 val, DtDatumRetCode *retcode=NULL)

virtual void	setDatumValInt32 (DtDatumRecordType fixedOrVar, int index, long val, DtDatumRetCode *retcode=NULL)

virtual void	setDatumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, unsigned long val, DtDatumRetCode *retcode=NULL)

virtual void	setDatumValByteArray (DtDatumRecordType fixedOrVar, int index, const char val, DtDatumRetCode retcode=NULL)

virtual void	setDatumValFloat64 (DtDatumParam param, DtFloat64 val, DtDatumRetCode *retcode=NULL)
	**** SETTING DATA VALUES BY PARAM ID ******* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data. More...

virtual void	setDatumValFloat32 (DtDatumParam param, DtFloat32 val, DtDatumRetCode *retcode=NULL)

virtual void	setDatumValInt32 (DtDatumParam param, long val, DtDatumRetCode *retcode=NULL)

virtual void	setDatumValUnsigned32 (DtDatumParam param, unsigned long val, DtDatumRetCode *retcode=NULL)

virtual void	setDatumValByteArray (DtDatumParam param, const char val, DtDatumRetCode retcode=NULL)

virtual void	printData () const
	Implements DtPdu's virtual function to print the PDU's data. More...

virtual void	printDataToStream (std::ostream &stream) const
	Prints the contents of the PDU to the specified stream. More...

virtual void	printDataSection () const
	Helper function that prints only the contents of the data records. More...

virtual void	printDataSectionToStream (std::ostream &stream) const

Public Member Functions inherited from DtSimanPdu
DtSimanPdu &	operator= (const DtSimanPdu &orig)
	Assignment operator. More...

virtual const DtEntityIdentifier &	senderId () const
	Get the sender ID. More...

virtual const DtEntityIdentifier &	receiverId () const
	Get the receiver ID. More...

virtual void	setSenderId (const DtEntityIdentifier &id)
	Set the sender ID. More...

virtual void	setReceiverId (const DtEntityIdentifier &id)
	Set the receiver ID. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...

	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...

DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...

virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...

virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...

virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...

virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...

virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...

virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...

virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...

virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...

virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...

virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...

virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...

virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...

virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...

virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...

virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...

virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...

virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...

virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...

virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...

virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const

virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...

virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...

virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...

virtual void	setAttributeStrategy (DtAttributePduStrategy strat)

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual bool	shouldAttributePduBeCoupled () const

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Protected Member Functions
virtual DtDatumRecordSet *	datumRecSet ()
	Returns our datum record set helper object. More...

virtual const DtDatumRecordSet *	datumRecSet () const
	Const version of above. More...

virtual DtNetDataPduTail *	dataSection () const =0
	Returns a pointer to the data section of the PDU - the part that starts with the numberOfFixedFields field. More...

virtual DtNetFixDatum *	nthFixedDataRecord (int index) const
	Return a pointer to the index'th fixed data record in the network representation. More...

virtual DtNetVarDatum *	nthVarDataRecord (int index) const
	Return a pointer to the index'th variable data record in the network representation. More...

virtual void *	datumValPtr (DtDatumRecordType fixedOrVar, int index) const
	Returns a pointer to the index'th fixed or variable record in the network representation, depending on whether fixedOrVar is DtFIXED or DtVAR. More...

Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...

virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtPduKind	internalGetPduKind () const =0
	Returns the PDU kind associated with the derived PDU class. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

Protected Attributes
DtDatumRecordSet *	myRecSet

Protected Attributes inherited from DtSimanPdu
DtEntityIdentifier	mySenderId

DtEntityIdentifier	myReceiverId

Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...

bool	isRecordSetOwned

bool	isPduExtending

DtStandardVariableRecordFactory *	mySVRFactory

DtPduDecoder *	myAttributeDecoder

DtPduEncoder *	myAttributeEncoder

DtSimulationAddress	myAttributePduOriginatingSimulationAddress

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Friends
class	DtPduDatumRecordSet

Additional Inherited Members
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

DtPduWithData provides the base class for all of the simulation management PDU's that have fixed/variable data.

Member Enumeration Documentation

anonymous enum

Enumerator
PduStaticSize

Constructor & Destructor Documentation

DtPduWithData::DtPduWithData ( )

Constructor.

virtual DtPduWithData::~DtPduWithData ( )

virtual

Destructor.

DtPduWithData::DtPduWithData ( const DtPduWithData & orig )

Member Function Documentation

virtual DtNetDataPduTail* DtPduWithData::dataSection ( ) const

protectedpure virtual

Returns a pointer to the data section of the PDU - the part that starts with the numberOfFixedFields field.

Implemented in DtActionResponsePdu, DtActionRequestRPdu, DtDataRPdu, DtSetDataRPdu, DtActionRequestPdu, DtActionResponseRPdu, DtCommentRPdu, DtCommentPdu, DtEventReportPdu, DtEventReptRPdu, DtDataPdu, and DtSetDataPdu.

virtual DtDatumParam DtPduWithData::datumId	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const

virtual

Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

virtual DtDatumRecordSet* DtPduWithData::datumRecSet ( )

protectedvirtual

Returns our datum record set helper object.

virtual const DtDatumRecordSet* DtPduWithData::datumRecSet ( ) const

protectedvirtual

Const version of above.

virtual int DtPduWithData::datumSizeBits	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const

virtual

Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.

If DtFIXED, the answer is always 32.

virtual int DtPduWithData::datumSizeBytes	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const

virtual

Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.

If DtFIXED, the answer is always 4.

virtual const char* DtPduWithData::datumValByteArray	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const

virtual

virtual const char* DtPduWithData::datumValByteArray	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual DtFloat32 DtPduWithData::datumValFloat32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

******* INSPECTING DATUM VALUES BY INDEX ********* If you know the data type of the value contained in a particular record, use one of the following to return it.

fixedOrVar (either DtFIXED or DtVAR) and index (between 1 and numRecords) indicate which record you are inspecting. datumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It returns a pointer to a character string containing the exact bytes in the PDU's network representation that represent the value being inspected. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully inspected, and DtDATUM_BAD_LENGTH if either the index was invalid, or the size of the data indicated that it could not be interpreted as the chosen data type.

virtual DtFloat32 DtPduWithData::datumValFloat32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

******* INSPECTING DATUM VALUES BY PARAM ID ********* If you know the data type of the value contained in a particular record, use one of the following to return it.

The particular record inspected will be the first one containing param as the datum ID. datumValByteArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It returns a pointer to a character string containing the exact bytes in the PDU's network representation that represent the value being inspected. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully inspected, and DtDATUM_BAD_LENGTH if either param was not found, or the size of the data indicated that it could not be interpreted as the chosen data type.

virtual DtFloat64 DtPduWithData::datumValFloat64	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual DtFloat64 DtPduWithData::datumValFloat64	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual long DtPduWithData::datumValInt32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual long DtPduWithData::datumValInt32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual void* DtPduWithData::datumValPtr	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const

protectedvirtual

Returns a pointer to the index'th fixed or variable record in the network representation, depending on whether fixedOrVar is DtFIXED or DtVAR.

virtual unsigned long DtPduWithData::datumValUnsigned32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual unsigned long DtPduWithData::datumValUnsigned32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

virtual DtDatumParam DtPduWithData::fixedDatumId ( int index ) const

virtual

Returns the datum param found in the index'th fixed datum record.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

virtual void DtPduWithData::getIndex	(	DtDatumParam	param,
		DtDatumRecordType *	fixedOrVar,
		int *	index,
		DtDatumRetCode *	retcode = `NULL`
	)		const

virtual

Looks through all fixed and variable records for one containing param as the parameter ID.

If it finds one, fills supplied fixedOrVar pointer with DtFIXED or DtVAR, and index with the index to indicate which record was found, and fills retcode with DtDATUM_VALID. If param was not found, retcode is filled with DtDATUM_BAD_ID, and index and fixedOrVar are invalid.

virtual void DtPduWithData::initDataSection	(	const DtDatumParam *	fixedParams,
		const DtVarDatumSpec *	specList
	)

virtual

****************** MUTATOR FUNCTIONS ******************

Initialize the data section of the PDU to reflect the fixed parameters and variable parameters and sizes indicated. fixedParams is a NULL- terminated array of DtDatumParams. specList is an array of DtVarDatumSpecs terminated with the DtNullVarDatumSpec constant. This call can be made instead of calls to setNumVarDatumRecords, setNumFixedDatumRecord, and repeated calls to setDatumParam and setVarDataBytes.

virtual DtNetFixDatum* DtPduWithData::nthFixedDataRecord ( int index ) const

protectedvirtual

Return a pointer to the index'th fixed data record in the network representation.

Index is between 1 and numRecords.

virtual DtNetVarDatum* DtPduWithData::nthVarDataRecord ( int index ) const

protectedvirtual

Return a pointer to the index'th variable data record in the network representation.

Index is between 1 and numRecords.

virtual int DtPduWithData::numFixedFields ( ) const

virtual

Returns number of fixed fields.

virtual int DtPduWithData::numVarFields ( ) const

virtual

Returns number of variable length fields.

DtPduWithData& DtPduWithData::operator= ( const DtPduWithData & orig )

inline

Assignment operator.

References DtPdu::operator=().

virtual void DtPduWithData::printData ( ) const

virtual

Implements DtPdu's virtual function to print the PDU's data.

Reimplemented from DtSimanPdu.

Reimplemented in DtActionResponsePdu, DtActionRequestPdu, DtActionRequestRPdu, DtSetDataPdu, DtDataRPdu, DtSetDataRPdu, DtActionResponseRPdu, DtDataPdu, DtEventReportPdu, and DtEventReptRPdu.

virtual void DtPduWithData::printDataSection ( ) const

virtual

Helper function that prints only the contents of the data records.

virtual void DtPduWithData::printDataSectionToStream ( std::ostream & stream ) const

virtual

virtual void DtPduWithData::printDataToStream ( std::ostream & stream ) const

virtual

Prints the contents of the PDU to the specified stream.

Reimplemented from DtSimanPdu.

Reimplemented in DtActionResponsePdu, DtActionRequestPdu, DtActionRequestRPdu, DtSetDataPdu, DtDataRPdu, DtSetDataRPdu, DtActionResponseRPdu, DtDataPdu, DtEventReportPdu, and DtEventReptRPdu.

virtual void DtPduWithData::setDatumParam	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumParam	param,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFIXED or DtVAR.

Supplied retcode pointer is filled with DtDATUM_VALID if successful, or DtDATUM_ BAD_INDEX if the index is not valid.

virtual void DtPduWithData::setDatumValByteArray	(	DtDatumRecordType	fixedOrVar,
		int	index,
		const char *	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValByteArray	(	DtDatumParam	param,
		const char *	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValFloat32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtFloat32	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValFloat32	(	DtDatumParam	param,
		DtFloat32	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValFloat64	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtFloat64	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

******* SETTING DATA VALUES BY INDEX ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.

fixedOrVar (either DtFIXED or DtVAR) and index (between 1 and numRecords) indicate which record you are modifying. setDatumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It takes a pointer to a character string containing the exact bytes that should be used in the PDU's network representation. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully set, DtDATUM_BAD_INDEX if the index is invalid, and DtDATUM_BAD_LENGTH if the size of the data indicated that it could not be set from as the chosen data type.

virtual void DtPduWithData::setDatumValFloat64	(	DtDatumParam	param,
		DtFloat64	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

****** SETTING DATA VALUES BY PARAM ID ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.

The particular record modified will be the first one containing param as its parameter ID. setDatumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It takes a pointer to a character string containing the exact bytes that should be used in the PDU's network representation. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully set, DtDATUM_BAD_ID if param is invalid, and DtDATUM_BAD_LENGTH if the size of the data indicated that it could not be set from the chosen data type.

virtual void DtPduWithData::setDatumValInt32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		long	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValInt32	(	DtDatumParam	param,
		long	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValUnsigned32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		unsigned long	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setDatumValUnsigned32	(	DtDatumParam	param,
		unsigned long	val,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

virtual void DtPduWithData::setNumFixedFields ( int newNum )

virtual

Sets the number of fixed or variable fields to newNum.

Previously existing fixed fields with indices greater than newNum are deleted. If newNum exceeds the number of existing fields, trailing new fields are created with zeros as datum params, sizes (for var only) and values.

virtual void DtPduWithData::setNumVarFields ( int newNum )

virtual

virtual void DtPduWithData::setVarDataBytes	(	int	index,
		int	length,
		DtDatumRetCode *	retcode = `NULL`
	)

virtual

Allocates length bytes for the index'th variable datum record.

Should be called before using one of the setDatumVal functions to actually set the data. Supplied retcode pointer is set to DtDATUM_VALID if successful, or DtDATUM_BAD_INDEX if the index is not valid.

virtual DtDatumParam DtPduWithData::varDatumId ( int index ) const

virtual

Returns the datum param found in the index'th variable datum record.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

Friends And Related Function Documentation

friend class DtPduDatumRecordSet

friend

Member Data Documentation

DtDatumRecordSet* DtPduWithData::myRecSet

protected

The documentation for this class was generated from the following file:

pduWithData.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
