DtRRBStateRepository Class Reference

Instances of DtRRBStateRepository are used to store state data for IFFData.RRB objects. More...

Inheritance diagram for DtRRBStateRepository:

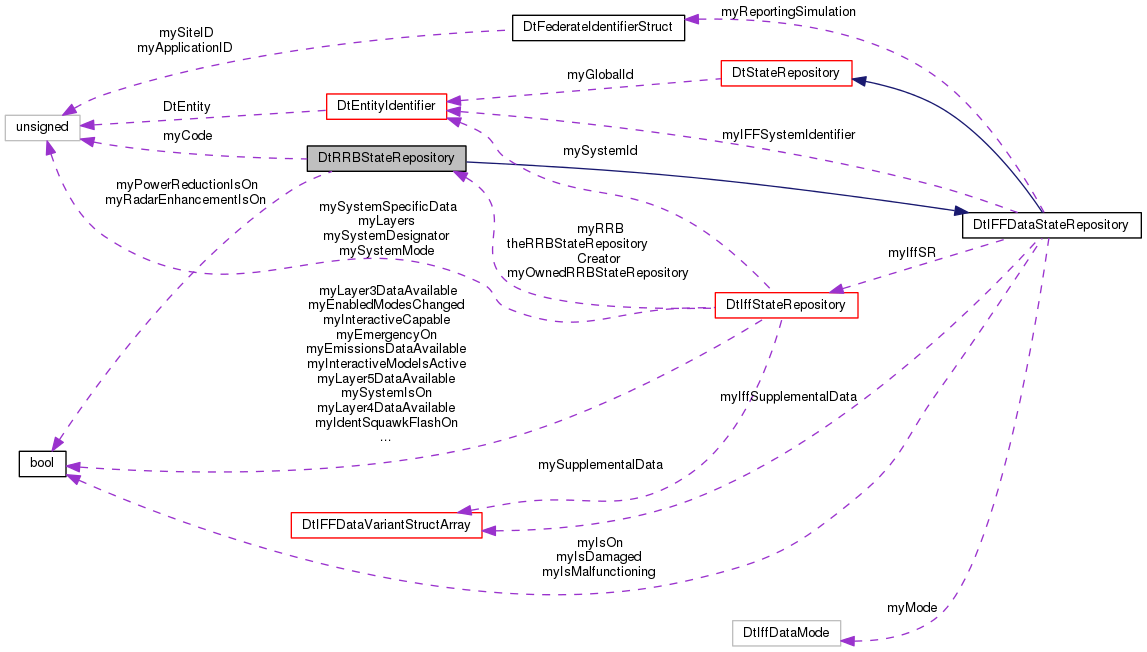

Collaboration diagram for DtRRBStateRepository:

Public Member Functions
	DtRRBStateRepository ()
	Constructor. More...
virtual	~DtRRBStateRepository ()
	Destructor. More...
	DtRRBStateRepository (const DtRRBStateRepository &orig)
	Copy Constructor. More...
DtRRBStateRepository &	operator= (const DtRRBStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
RRB-Specific Attributes
Set the Code attribute Parameters val RRB Code (range 0-16)
virtual void	setCode (DtU8 val)
	Get the Code attribute. More...
virtual DtU8	code () const
	Get the Code attribute. More...
virtual void	setPowerReductionIsOn (bool val)
	Set the PowerReductionIsOn attribute. More...
virtual bool	powerReductionIsOn () const
	Get the PowerReductionIsOn attribute. More...
virtual void	setRadarEnhancementIsOn (bool val)
	Set the RadarEnhancementIsOn attribute. More...
virtual bool	radarEnhancementIsOn () const
	Get the PowerReductionIsOn attribute. More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the SupplementalData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtRRBStateRepository *	create ()
	Create a DtRRBStateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtU8	myCode
bool	myPowerReductionIsOn
bool	myRadarEnhancementIsOn
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtRRBStateRepository are used to store state data for IFFData.RRB objects.

Constructor & Destructor Documentation

DtRRBStateRepository::DtRRBStateRepository

(

)

Constructor.

virtual DtRRBStateRepository::~DtRRBStateRepository ( )

virtual

Destructor.

DtRRBStateRepository::DtRRBStateRepository

(

const DtRRBStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtRRBStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

virtual DtU8 DtRRBStateRepository::code ( ) const

virtual

Get the Code attribute.

static DtRRBStateRepository* DtRRBStateRepository::create ( )

static

Create a DtRRBStateRepository.

DtRRBStateRepository& DtRRBStateRepository::operator=

(

const DtRRBStateRepository &

orig

)

Assignment Operator.

virtual bool DtRRBStateRepository::powerReductionIsOn ( ) const

virtual

Get the PowerReductionIsOn attribute.

virtual void DtRRBStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtRRBStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual bool DtRRBStateRepository::radarEnhancementIsOn ( ) const

virtual

Get the PowerReductionIsOn attribute.

virtual void DtRRBStateRepository::setCode ( DtU8  val )

virtual

Get the Code attribute.

virtual void DtRRBStateRepository::setPowerReductionIsOn ( bool  val )

virtual

Set the PowerReductionIsOn attribute.

Parameters

val	boolean Specifies whether or not power reduction is on

virtual void DtRRBStateRepository::setRadarEnhancementIsOn ( bool  val )

virtual

Set the RadarEnhancementIsOn attribute.

Parameters

val	boolean Specifies whether or not the radar enhancement is on

Member Data Documentation

DtU8 DtRRBStateRepository::myCode

protected

bool DtRRBStateRepository::myPowerReductionIsOn

protected

bool DtRRBStateRepository::myRadarEnhancementIsOn

protected

---

The documentation for this class was generated from the following file:

• iffRRBStateRepository.h
