DtRadioReceiverEncoder Class Reference

Instances of DtRadioReceiverEncoder are used to take state information from a DtRadioReceiverRepository and place it into a radio receiver PDU. More...

Inheritance diagram for DtRadioReceiverEncoder:

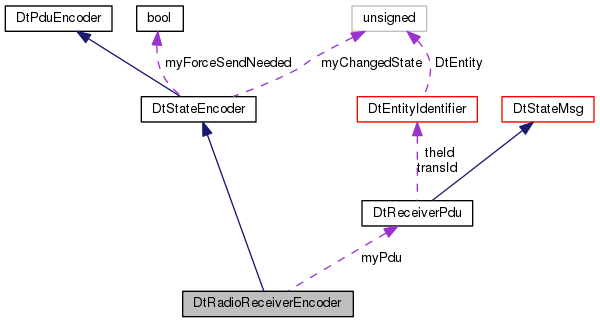

Collaboration diagram for DtRadioReceiverEncoder:

Public Member Functions
	DtRadioReceiverEncoder ()
	Constructor. More...
virtual	~DtRadioReceiverEncoder ()
	Destructor. More...
	DtRadioReceiverEncoder (const DtRadioReceiverEncoder &orig)
	Copy constructor. More...
DtRadioReceiverEncoder &	operator= (const DtRadioReceiverEncoder &orig)
	Assignment operator. More...
virtual DtReceiverPdu *	stateMsg (const DtRadioReceiverRepository &stateRep, const DtRadioReceiverRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
	DtCLONE_ENCODER (DtRadioReceiverEncoder)
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtRadioReceiverRepository &stateRep, const DtRadioReceiverRepository &asSeenByRemote)
	Returns true if a PDU needs to be sent, (based on thresholds, etc) false otherwise. More...

Protected Attributes
DtReceiverPdu	myPdu
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Instances of DtRadioReceiverEncoder are used to take state information from a DtRadioReceiverRepository and place it into a radio receiver PDU.

Constructor & Destructor Documentation

DtRadioReceiverEncoder::DtRadioReceiverEncoder

(

)

Constructor.

virtual DtRadioReceiverEncoder::~DtRadioReceiverEncoder ( )

virtual

Destructor.

DtRadioReceiverEncoder::DtRadioReceiverEncoder

(

const DtRadioReceiverEncoder &

orig

)

Copy constructor.

Member Function Documentation

DtRadioReceiverEncoder::DtCLONE_ENCODER

(

DtRadioReceiverEncoder

)

DtRadioReceiverEncoder& DtRadioReceiverEncoder::operator=

(

const DtRadioReceiverEncoder &

orig

)

Assignment operator.

virtual bool DtRadioReceiverEncoder::sendNeeded ( const DtRadioReceiverRepository &  stateRep, const DtRadioReceiverRepository &  asSeenByRemote  )

protectedvirtual

Returns true if a PDU needs to be sent, (based on thresholds, etc) false otherwise.

virtual DtReceiverPdu* DtRadioReceiverEncoder::stateMsg ( const DtRadioReceiverRepository &  stateRep, const DtRadioReceiverRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether a Receiver PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

Member Data Documentation

DtReceiverPdu DtRadioReceiverEncoder::myPdu

protected

---

The documentation for this class was generated from the following file:

• radioReceiverEncoderDIS.h
