DtReflectedAggregate Class Reference

Instances of this class provide a protocol independent interface to a reflected aggregate in a DIS environment. More...

Inheritance diagram for DtReflectedAggregate:

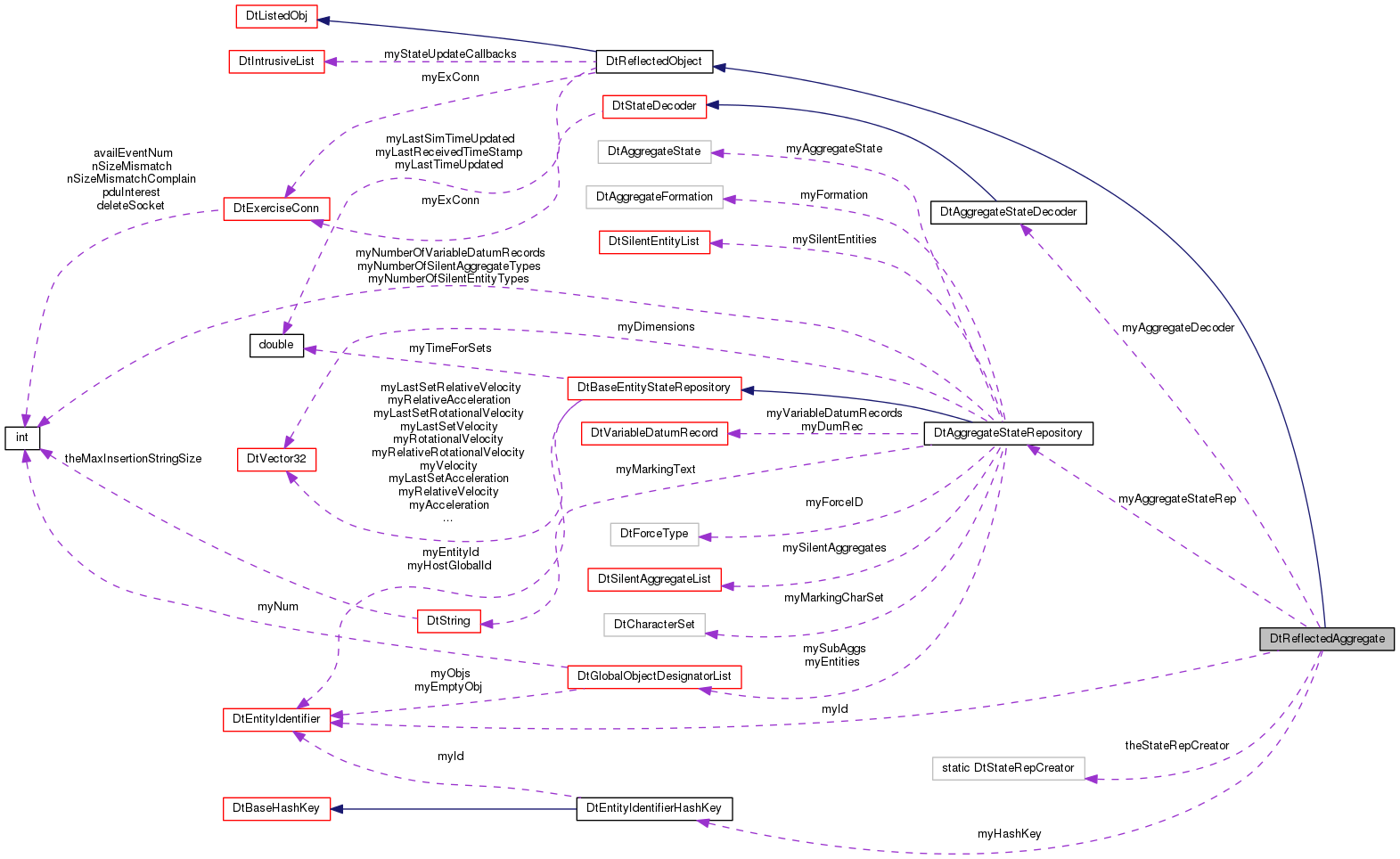

Collaboration diagram for DtReflectedAggregate:

Public Types
typedef DtAggregateStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositorys. More...

Public Member Functions
	DtReflectedAggregate (DtExerciseConn *conn, const DtEntityIdentifier &id, const DtEntityType &type)
	Constructor. More...
	DtReflectedAggregate (DtAggregateStateRepository *sr, DtExerciseConn *conn, const DtEntityIdentifier &id)
	Constructor that takes in a state repository. More...
virtual	~DtReflectedAggregate ()
	Destructor. More...
virtual DtAggregateStateRepository *	aggregateStateRep () const
	Returns a pointer to the AggregateStateRepository - through which you can inspect current state information. More...
virtual DtAggregateStateRepository *	asr () const
	Synonym for aggregateStateRep(). More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtAggregateStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our ASR. More...
virtual const DtEntityIdentifier &	aggregateID () const
	Returns the aggregate identifier. More...
virtual const DtObjectId &	id () const
	Get the aggregate's id. (For DIS, DtObjectId is DtEntityIdentifier). More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the aggregate's object's global object designator - for DIS, it's the same as its DtEntityIdentifier. More...
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an aggregate state PDU. More...
virtual void	processRelativeLocation (const DtRelativeLocationPdu &pdu)
virtual DtReflectedAggregate *	next () const
	Get the next and previous elements in the reflected aggregate list. More...
virtual DtReflectedAggregate *	prev () const
virtual DtReflectedAggregate *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list. More...
virtual DtReflectedAggregate *	wrapPrev () const
virtual void	addPostUpdateCallback (DtAggregateCallbackFunction cb, void *userData)
	Entity state callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtAggregateCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object. More...
virtual DtString	idString () const
	Get a string identification of this object. More...
virtual void	processAggregateState (const DtAggregateStatePdu &pdu)
	Process an entity state PDU. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedAggregate (const DtReflectedAggregate &orig)
	copy constructor – not implemented More...
DtReflectedAggregate &	operator= (const DtReflectedAggregate &orig)
	assignment operator – not implemented More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Protected Attributes
DtEntityIdentifier	myId
DtAggregateStateRepository *	myAggregateStateRep
DtAggregateStateDecoder *	myAggregateDecoder
DtEntityIdentifierHashKey	myHashKey
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of this class provide a protocol independent interface to a reflected aggregate in a DIS environment.

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtReflectedAggregate::DtStateRepCreator)()

Function prototype for functions that create DtAggregateStateRepositorys.

Constructor & Destructor Documentation

DtReflectedAggregate::DtReflectedAggregate	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)

Constructor.

DtReflectedAggregate::DtReflectedAggregate	(	DtAggregateStateRepository *	sr,
		DtExerciseConn *	conn,
		const DtEntityIdentifier &	id
	)

Constructor that takes in a state repository.

virtual DtReflectedAggregate::~DtReflectedAggregate ( )

virtual

Destructor.

DtReflectedAggregate::DtReflectedAggregate ( const DtReflectedAggregate &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedAggregate::addPostUpdateCallback ( DtAggregateCallbackFunction  cb, void *  userData  )

virtual

Entity state callback registration/deregistration.

virtual const DtEntityIdentifier& DtReflectedAggregate::aggregateID ( ) const

virtual

Returns the aggregate identifier.

virtual DtAggregateStateRepository* DtReflectedAggregate::aggregateStateRep ( ) const

virtual

Returns a pointer to the AggregateStateRepository - through which you can inspect current state information.

virtual DtAggregateStateRepository* DtReflectedAggregate::asr ( ) const

virtual

Synonym for aggregateStateRep().

virtual DtAggregateStateDecoder* DtReflectedAggregate::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages into our ASR.

virtual const DtGlobalObjectDesignator& DtReflectedAggregate::globalId ( ) const

virtual

Get the aggregate's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedAggregate::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedAggregate::id ( ) const

virtual

Get the aggregate's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedAggregate::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedAggregate* DtReflectedAggregate::next ( ) const

virtual

Get the next and previous elements in the reflected aggregate list.

DtReflectedAggregate& DtReflectedAggregate::operator= ( const DtReflectedAggregate &  orig )

protected

assignment operator – not implemented

virtual DtReflectedAggregate* DtReflectedAggregate::prev ( ) const

virtual

virtual void DtReflectedAggregate::processAggregateState ( const DtAggregateStatePdu &  pdu )

virtual

Process an entity state PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedAggregate::processRelativeLocation ( const DtRelativeLocationPdu &  pdu )

virtual

virtual void DtReflectedAggregate::processStateMessage ( const DtStateMsg &  msg )

virtual

Process an aggregate state PDU.

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedAggregate::removePostUpdateCallback ( DtAggregateCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedAggregate::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedAggregate::stateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls asr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedAggregate::stateRepCreator ( void  )

static

virtual DtReflectedAggregate* DtReflectedAggregate::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

virtual DtReflectedAggregate* DtReflectedAggregate::wrapPrev ( ) const

virtual

Member Data Documentation

DtAggregateStateDecoder* DtReflectedAggregate::myAggregateDecoder

protected

DtAggregateStateRepository* DtReflectedAggregate::myAggregateStateRep

protected

DtEntityIdentifierHashKey DtReflectedAggregate::myHashKey

protected

DtEntityIdentifier DtReflectedAggregate::myId

protected

DtStateRepCreator DtReflectedAggregate::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedAggregateDIS.h
