Instances of DtReflectedDesignator represent designator object simulated by remote applications. More...

Inheritance diagram for DtReflectedDesignator:

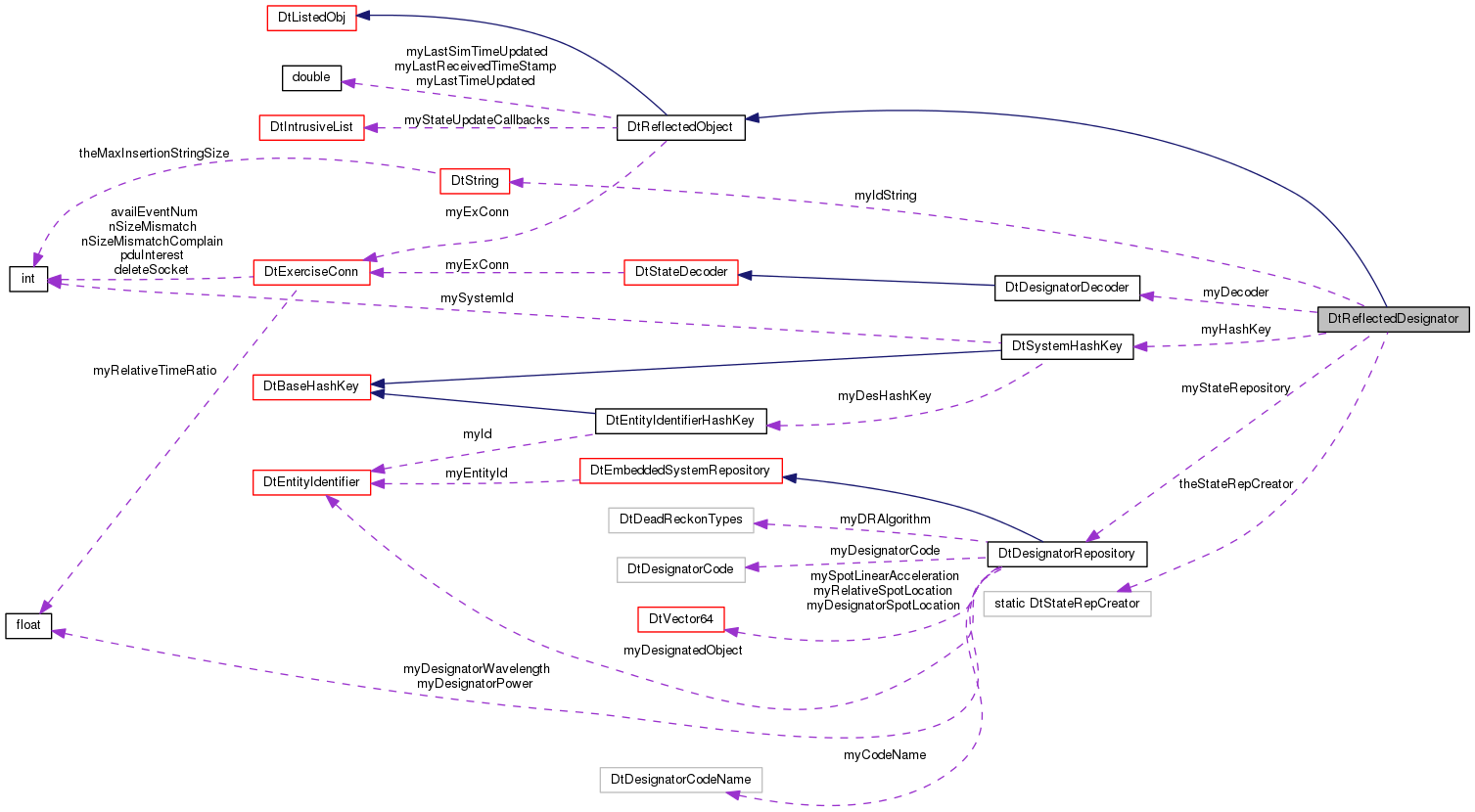

Collaboration diagram for DtReflectedDesignator:

Public Types
typedef DtDesignatorRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtDesignatorRepositories. More...

Public Member Functions
	DtReflectedDesignator (DtExerciseConn *conn, const DtGlobalObjectDesignator &designatingEntity, int designatorCode)
	Constructor. More...

virtual	~DtReflectedDesignator ()
	Destructor. More...

virtual DtDesignatorRepository *	designatorRep () const
	Get the designator's state repository. More...

virtual DtDesignatorRepository *	dsr () const
	Synonym for designatorRep(). More...

virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information. More...

virtual DtDesignatorDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages. More...

virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class. More...

virtual DtReflectedDesignator *	next () const
	Get the next remote designator. More...

virtual DtReflectedDesignator *	prev () const
	Get the previous remote designator. More...

virtual DtReflectedDesignator *	wrapNext () const
	Get the next remote designator. More...

virtual DtReflectedDesignator *	wrapPrev () const
	Get the previous remote designator. More...

virtual void	addPostUpdateCallback (DtDesignatorCallbackFunction cb, void *userData)
	Designator state callback registration/deregistration. More...

virtual void	removePostUpdateCallback (DtDesignatorCallbackFunction cb, void *userData)

virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object. More...

virtual DtString	idString () const
	Get a string identification of this object. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the designator entityId - for DIS, it's the same as its DtEntityIdentifier. More...

Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...

virtual	~DtReflectedObject ()
	destructor More...

virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...

virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...

virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...

virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...

virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...

virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...

virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...

virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...

virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...

Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...

virtual	~DtListedObj ()
	Destructor. More...

void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...

void *	prev () const

void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...

void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedDesignator (const DtReflectedDesignator &)
	Copy constructor - not implemented. More...

DtReflectedDesignator &	operator= (const DtReflectedDesignator &)
	Assignment operator - not implemented. More...

Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...

DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...

virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Protected Attributes
DtSystemHashKey	myHashKey

DtString	myIdString

DtDesignatorRepository *	myStateRepository

DtDesignatorDecoder *	myDecoder

Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn

DtIntrusiveList	myStateUpdateCallbacks

DtTime	myLastTimeUpdated

DtTime	myLastSimTimeUpdated

DtTime	myLastReceivedTimeStamp

Protected Attributes inherited from DtListedObj
DtList *	myList

DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedDesignator represent designator object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtDesignatorRepository*(* DtReflectedDesignator::DtStateRepCreator)()

Function prototype for functions that create DtDesignatorRepositories.

Constructor & Destructor Documentation

DtReflectedDesignator::DtReflectedDesignator	(	DtExerciseConn *	conn,
		const DtGlobalObjectDesignator &	designatingEntity,
		int	designatorCode
	)

Constructor.

virtual DtReflectedDesignator::~DtReflectedDesignator ( )

virtual

Destructor.

DtReflectedDesignator::DtReflectedDesignator ( const DtReflectedDesignator & )

protected

Copy constructor - not implemented.

Member Function Documentation

virtual void DtReflectedDesignator::addPostUpdateCallback	(	DtDesignatorCallbackFunction	cb,
		void *	userData
	)

virtual

Designator state callback registration/deregistration.

virtual DtDesignatorDecoder* DtReflectedDesignator::decoder ( )

inlinevirtual

Returns a pointer to the Decoder being used to decode state messages.

virtual DtDesignatorRepository* DtReflectedDesignator::designatorRep ( ) const

inlinevirtual

Get the designator's state repository.

virtual DtDesignatorRepository* DtReflectedDesignator::dsr ( ) const

inlinevirtual

Synonym for designatorRep().

virtual const DtGlobalObjectDesignator& DtReflectedDesignator::globalId ( ) const

virtual

Get the designator entityId - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedDesignator::hashKey ( ) const

inlinevirtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedDesignator::idString ( ) const

inlinevirtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedDesignator* DtReflectedDesignator::next ( ) const

virtual

Get the next remote designator.

DtReflectedDesignator& DtReflectedDesignator::operator= ( const DtReflectedDesignator & )

protected

Assignment operator - not implemented.

virtual DtReflectedDesignator* DtReflectedDesignator::prev ( ) const

virtual

Get the previous remote designator.

virtual void DtReflectedDesignator::processStateMessage ( const DtStateMsg & msg )

virtual

Overrides the implementation of the base class.

Processes a Designator PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedDesignator::removePostUpdateCallback	(	DtDesignatorCallbackFunction	cb,
		void *	userData
	)

virtual

static void DtReflectedDesignator::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedDesignator::stateRep ( ) const

inlinevirtual

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedDesignator::stateRepCreator ( void )

static

virtual DtReflectedDesignator* DtReflectedDesignator::wrapNext ( ) const

virtual

Get the next remote designator.

If at the end, it will cycle back to the first remote designator.

virtual DtReflectedDesignator* DtReflectedDesignator::wrapPrev ( ) const

virtual

Get the previous remote designator.

If at the beginning, it will cycle back to the last remote designator.

Member Data Documentation

DtDesignatorDecoder* DtReflectedDesignator::myDecoder

protected

DtSystemHashKey DtReflectedDesignator::myHashKey

protected

DtString DtReflectedDesignator::myIdString

protected

DtDesignatorRepository* DtReflectedDesignator::myStateRepository

protected

DtStateRepCreator DtReflectedDesignator::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

reflectedDesignatorDIS.h
