DtReflectedTimeAndDateList Class Reference

Instances of this class provide a protocol independent interface to a list of TimeAndDate objects in a DIS environment. More...

Inheritance diagram for DtReflectedTimeAndDateList:

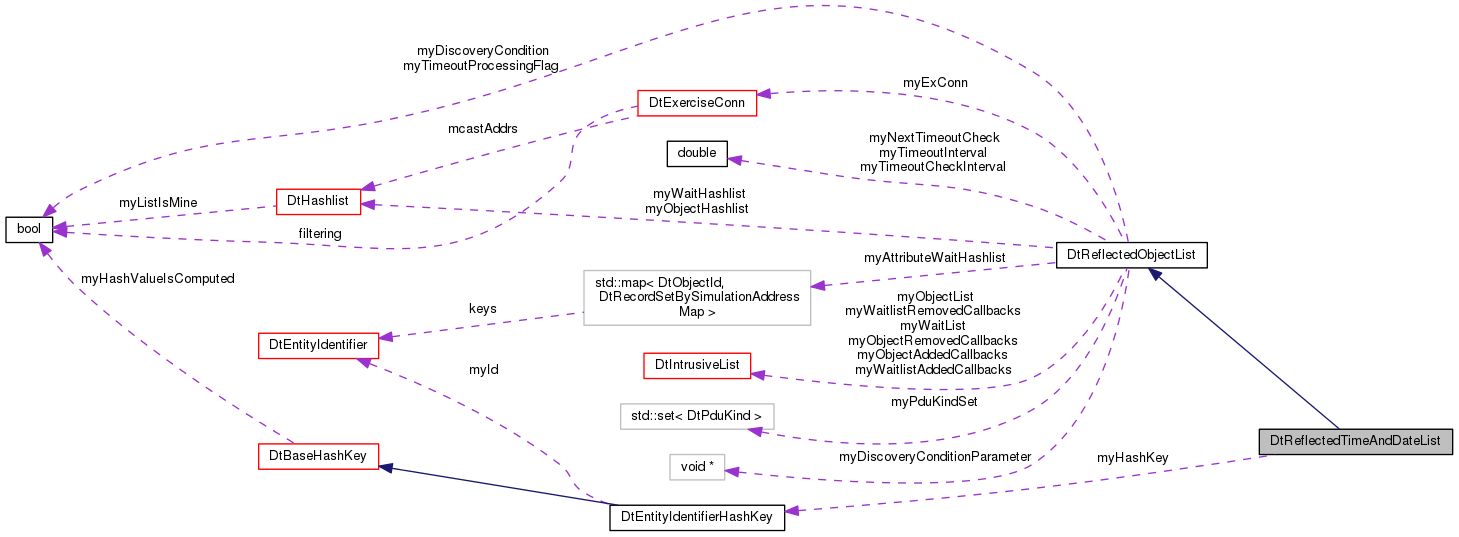

Collaboration diagram for DtReflectedTimeAndDateList:

Public Member Functions
	DtReflectedTimeAndDateList (DtExerciseConn *exConn)
	Constructor. More...
virtual	~DtReflectedTimeAndDateList ()
	Destructor. More...
virtual DtReflectedTimeAndDate *	first () const
virtual DtReflectedTimeAndDate *	last () const
virtual void	addTimeAndDateAdditionCallback (DtTimeAndDateStateCallbackFunction cb, void *userData)
	TimeAndDate added callback registration/deregistration. More...
virtual void	removeTimeAndDateAdditionCallback (DtTimeAndDateStateCallbackFunction cb, void *userData)
virtual void	addTimeAndDateRemovalCallback (DtTimeAndDateStateCallbackFunction cb, void *userData)
	TimeAndDate removed callback registration/deregistration. More...
virtual void	removeTimeAndDateRemovalCallback (DtTimeAndDateStateCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects. More...
virtual DtReflectedTimeAndDate *	processTimeAndDateState (const DtTimeAndDatePdu &pdu)
	Process an incoming TimeAndDate state pdu. More...
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...
virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete More...
virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU. More...
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects. More...
virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object. More...
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print () const
	Print the SRs of all objects. More...
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...
virtual DtTime	timeoutInterval ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref. More...
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it. More...
virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects. More...
virtual DtTime	timeoutCheckInterval () const
virtual void	setTimeoutCheckInterval (DtTime interval)
virtual void	addWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Callback registration for when objects are added or removed from the waitlist. More...
virtual void	removeWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Waitlist removed callback registration/deregistration. More...
virtual void	removeWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

Protected Member Functions
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message. More...
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. More...
virtual void	objectAdded (DtReflectedObject *obj)
	Called after an MAK_TroposphereLayer is added and before additional callbacks are processed. More...
virtual int	acceptPdu (const DtStateMsg &msg) const
	Determines if a PDU should be processed or not. More...
virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message. More...
virtual DtReflectedTimeAndDate *	newReflectedTimeAndDate () const
	Create a new reflected Aerodrome. More...
virtual void	timeAndDateAdded (DtReflectedTimeAndDate *tnd)
	Called after a reflected Aerodrome object is added and before additional callbacks are processed. More...
Protected Member Functions inherited from DtReflectedObjectList
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...
void	emptyLists ()
	Empty the object list and the timeout list. More...
void	emptyCallbackLists ()
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	processWaitlistAdditionCallbacks (DtReflectedObject *object)
	Process waitlist addition/removal callbacks. More...
virtual void	processWaitlistRemovalCallbacks (DtReflectedObject *object)
virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set. More...
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. More...
virtual void	processAttributePduCb (DtAttributeInteraction *inter)
virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)
virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)
virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	timeAndDateStateCb (DtTimeAndDatePdu *pdu, void *usr)
	Callback for the exercise connection. More...
Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...
static void	processAttributePduCb (DtAttributeInteraction *inter, void *usr)
static void	processAttributePduWaitListCb (DtReflectedObject *obj, void *userData)

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtIntrusiveList	myWaitlistAddedCallbacks
DtIntrusiveList	myWaitlistRemovedCallbacks
DtIntrusiveList	myObjectList
DtIntrusiveList	myWaitList
DtHashlist	myObjectHashlist
DtHashlist	myWaitHashlist
DtAttributesByObjectIdMap	myAttributeWaitHashlist
DtTime	myTimeoutInterval
DtTime	myNextTimeoutCheck
DtTime	myTimeoutCheckInterval
bool	myTimeoutProcessingFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
std::set< DtPduKind >	myPduKindSet

Private Member Functions
DtReflectedTimeAndDateList &	operator= (const DtReflectedTimeAndDateList &orig)
	Assignment operator – not implemented. More...
	DtReflectedTimeAndDateList (const DtReflectedTimeAndDateList &orig)
	Copy constructor – not implemented. More...

Detailed Description

Instances of this class provide a protocol independent interface to a list of TimeAndDate objects in a DIS environment.

TimeAndDate PDUs are used by VR-Forces to send the simulated date and time to other applications. These TimeAndDate objects have longer timeout and heartbeat values than other DIS objects. The default Timeout/Heartbeat times are 120 seconds and 60 seconds respectively.

Constructor & Destructor Documentation

DtReflectedTimeAndDateList::DtReflectedTimeAndDateList

(

DtExerciseConn *

exConn

)

Constructor.

virtual DtReflectedTimeAndDateList::~DtReflectedTimeAndDateList ( )

virtual

Destructor.

DtReflectedTimeAndDateList::DtReflectedTimeAndDateList ( const DtReflectedTimeAndDateList &  orig )

private

Copy constructor – not implemented.

Member Function Documentation

virtual int DtReflectedTimeAndDateList::acceptPdu ( const DtStateMsg &  msg ) const

protectedvirtual

Determines if a PDU should be processed or not.

Looks at the METOC Layer Record Type in the PDU for a TroposphereLayerRecord

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedTimeAndDateList::addTimeAndDateAdditionCallback ( DtTimeAndDateStateCallbackFunction  cb, void *  userData  )

virtual

TimeAndDate added callback registration/deregistration.

virtual void DtReflectedTimeAndDateList::addTimeAndDateRemovalCallback ( DtTimeAndDateStateCallbackFunction  cb, void *  userData  )

virtual

TimeAndDate removed callback registration/deregistration.

virtual DtReflectedTimeAndDate* DtReflectedTimeAndDateList::first ( ) const

virtual

virtual const DtBaseHashKey& DtReflectedTimeAndDateList::hashKeyFromStateMessage ( const DtStateMsg *  msg )

protectedvirtual

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedTimeAndDate* DtReflectedTimeAndDateList::last ( ) const

virtual

virtual DtReflectedObject* DtReflectedTimeAndDateList::newReflectedObj ( const DtStateMsg &  msg )

protectedvirtual

Create a new object from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedTimeAndDate* DtReflectedTimeAndDateList::newReflectedTimeAndDate ( ) const

protectedvirtual

Create a new reflected Aerodrome.

virtual void DtReflectedTimeAndDateList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called after an MAK_TroposphereLayer is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

Reimplemented from DtReflectedObjectList.

DtReflectedTimeAndDateList& DtReflectedTimeAndDateList::operator= ( const DtReflectedTimeAndDateList &  orig )

private

Assignment operator – not implemented.

virtual void DtReflectedTimeAndDateList::print ( )

virtual

Print the SRs of all objects.

virtual DtReflectedObject* DtReflectedTimeAndDateList::processStateMessage ( const DtStateMsg &  msg )

protectedvirtual

Process an incoming state message.

Reimplemented from DtReflectedObjectList.

virtual DtReflectedTimeAndDate* DtReflectedTimeAndDateList::processTimeAndDateState ( const DtTimeAndDatePdu &  pdu )

virtual

Process an incoming TimeAndDate state pdu.

Then calls down to base class processStateMessage().

virtual void DtReflectedTimeAndDateList::removeTimeAndDateAdditionCallback ( DtTimeAndDateStateCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedTimeAndDateList::removeTimeAndDateRemovalCallback ( DtTimeAndDateStateCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedTimeAndDateList::timeAndDateAdded ( DtReflectedTimeAndDate *  tnd )

protectedvirtual

Called after a reflected Aerodrome object is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedTimeAndDateList::timeAndDateStateCb ( DtTimeAndDatePdu *  pdu, void *  usr  )

staticprotected

Callback for the exercise connection.

Member Data Documentation

DtEntityIdentifierHashKey DtReflectedTimeAndDateList::myHashKey

protected

---

The documentation for this class was generated from the following file:

• reflectedTimeAndDateListDIS.h
