DtRunwayEncoder Class Reference

Instances of DtRunwayEncoder encode data from DtAerodromeStateRepository objects to the net structures to be sent to the network. More...

Inheritance diagram for DtRunwayEncoder:

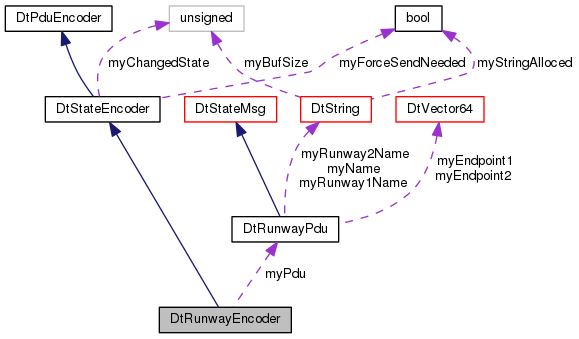

Collaboration diagram for DtRunwayEncoder:

Public Member Functions
	DtRunwayEncoder ()
	Default constructor. More...
virtual	~DtRunwayEncoder ()
	Destructor. More...
	DtRunwayEncoder (const DtRunwayEncoder &orig)
	Copy constructor. More...
DtRunwayEncoder &	operator= (const DtRunwayEncoder &orig)
	Assignment operator. More...
virtual DtRunwayPdu *	stateMsg (const DtRunwayStateRepository &stateRep, const DtRunwayStateRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
virtual void	setFinalPdu ()
	Sets the Final PDU status bit to indicate this is the last PDU for this object. More...
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtRunwayStateRepository &stateRep, const DtRunwayStateRepository &asSeenByRemote)
virtual void	fillOut (const DtRunwayStateRepository &stateRep, const DtRunwayStateRepository &asSeenByRemote, DtRunwayPdu *pdu)

Protected Attributes
DtRunwayPdu	myPdu
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Instances of DtRunwayEncoder encode data from DtAerodromeStateRepository objects to the net structures to be sent to the network.

Constructor & Destructor Documentation

DtRunwayEncoder::DtRunwayEncoder

(

)

Default constructor.

virtual DtRunwayEncoder::~DtRunwayEncoder ( )

virtual

Destructor.

DtRunwayEncoder::DtRunwayEncoder

(

const DtRunwayEncoder &

orig

)

Copy constructor.

Member Function Documentation

virtual void DtRunwayEncoder::fillOut ( const DtRunwayStateRepository &  stateRep, const DtRunwayStateRepository &  asSeenByRemote, DtRunwayPdu *  pdu  )

protectedvirtual

DtRunwayEncoder& DtRunwayEncoder::operator=

(

const DtRunwayEncoder &

orig

)

Assignment operator.

virtual bool DtRunwayEncoder::sendNeeded ( const DtRunwayStateRepository &  stateRep, const DtRunwayStateRepository &  asSeenByRemote  )

protectedvirtual

virtual void DtRunwayEncoder::setFinalPdu ( )

virtual

Sets the Final PDU status bit to indicate this is the last PDU for this object.

virtual DtRunwayPdu* DtRunwayEncoder::stateMsg ( const DtRunwayStateRepository &  stateRep, const DtRunwayStateRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether an PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

Member Data Documentation

DtRunwayPdu DtRunwayEncoder::myPdu

protected

---

The documentation for this class was generated from the following file:

• runwayEncoderDIS.h
