DtStateRepositoryExtensionDecoderFactory Class Reference

A DIS Exercise connection will create an instance of this class which allows state repository extension decoders to be registered and called automatically for both published and reflected objects. More...

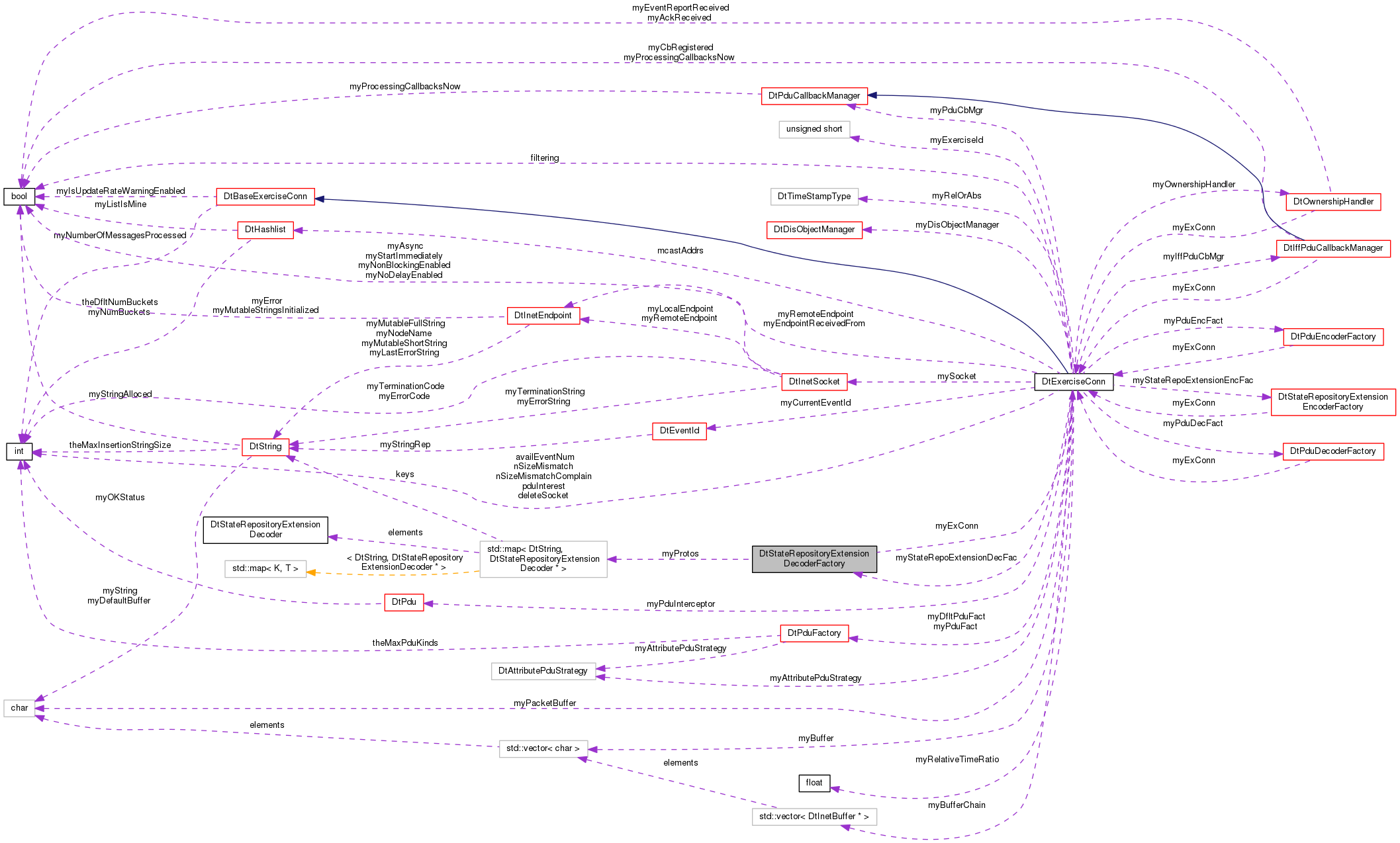

Collaboration diagram for DtStateRepositoryExtensionDecoderFactory:

Public Member Functions
	DtStateRepositoryExtensionDecoderFactory (DtExerciseConn *conn)
	~DtStateRepositoryExtensionDecoderFactory ()
DtStateRepositoryExtensionDecoder *	createDecoder (DtString extName)
virtual DtStateRepositoryExtensionDecoder *	addDecoder (DtString extName, DtStateRepositoryExtensionDecoder *dec)
	Add a decoder prototype to the factory. More...
virtual void	clearDecoder (DtString extName)
	remove this specific decoder from the factory. More...
virtual DtStateRepositoryExtensionDecoder *	decoder (DtString extName)
	Returns the decoder prototype associated with name by a previous call to addDecoder. More...

Protected Types
typedef std::map< DtString, DtStateRepositoryExtensionDecoder * >	ExtensionToDecoderMap

Protected Attributes
ExtensionToDecoderMap	myProtos
DtExerciseConn *	myExConn

Private Member Functions
	DtStateRepositoryExtensionDecoderFactory (const DtStateRepositoryExtensionDecoderFactory &orig)
	copy constructor - not implemented. More...
DtStateRepositoryExtensionDecoderFactory &	operator= (const DtStateRepositoryExtensionDecoderFactory &orig)
	assignment operator - not implemented. More...

Detailed Description

A DIS Exercise connection will create an instance of this class which allows state repository extension decoders to be registered and called automatically for both published and reflected objects.

Member Typedef Documentation

typedef std::map<DtString, DtStateRepositoryExtensionDecoder*> DtStateRepositoryExtensionDecoderFactory::ExtensionToDecoderMap

protected

Constructor & Destructor Documentation

DtStateRepositoryExtensionDecoderFactory::DtStateRepositoryExtensionDecoderFactory

(

DtExerciseConn *

conn

)

DtStateRepositoryExtensionDecoderFactory::~DtStateRepositoryExtensionDecoderFactory

(

)

DtStateRepositoryExtensionDecoderFactory::DtStateRepositoryExtensionDecoderFactory ( const DtStateRepositoryExtensionDecoderFactory &  orig )

private

copy constructor - not implemented.

Member Function Documentation

virtual DtStateRepositoryExtensionDecoder* DtStateRepositoryExtensionDecoderFactory::addDecoder ( DtString  extName, DtStateRepositoryExtensionDecoder *  dec  )

virtual

Add a decoder prototype to the factory.

The decoder prototype will be cloned by createDecoder when called for the appropriate name. Caller deletes the decoder, but AFTER the decoder factory no longer needs it. Returns any previous decoder which was replaced by the add.

virtual void DtStateRepositoryExtensionDecoderFactory::clearDecoder ( DtString  extName )

virtual

remove this specific decoder from the factory.

If another decoder is not added then this pdu will not decode correctly.

DtStateRepositoryExtensionDecoder* DtStateRepositoryExtensionDecoderFactory::createDecoder

(

DtString

extName

)

virtual DtStateRepositoryExtensionDecoder* DtStateRepositoryExtensionDecoderFactory::decoder ( DtString  extName )

virtual

Returns the decoder prototype associated with name by a previous call to addDecoder.

DtStateRepositoryExtensionDecoderFactory& DtStateRepositoryExtensionDecoderFactory::operator= ( const DtStateRepositoryExtensionDecoderFactory &  orig )

private

assignment operator - not implemented.

Member Data Documentation

DtExerciseConn* DtStateRepositoryExtensionDecoderFactory::myExConn

protected

ExtensionToDecoderMap DtStateRepositoryExtensionDecoderFactory::myProtos

protected

---

The documentation for this class was generated from the following file:

• stateRepositoryExtensionDecoderFactory.h
