This is the DtSubscribeStrategy class. It is the abstract base class for all derived interaction subscribe strategies. More...

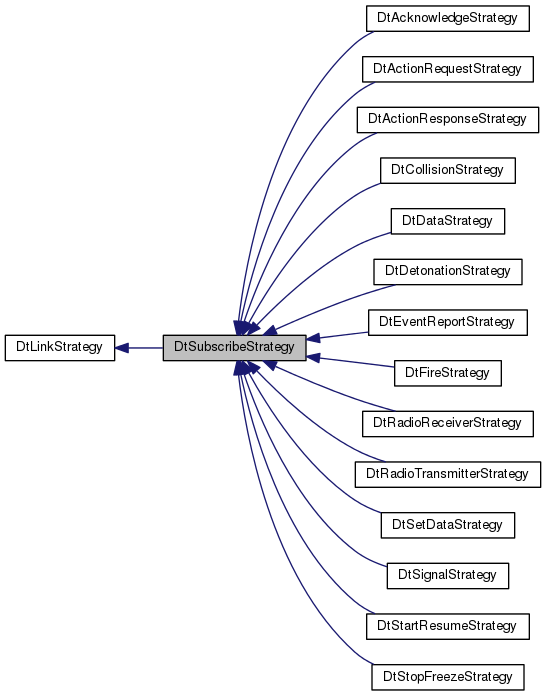

Inheritance diagram for DtSubscribeStrategy:

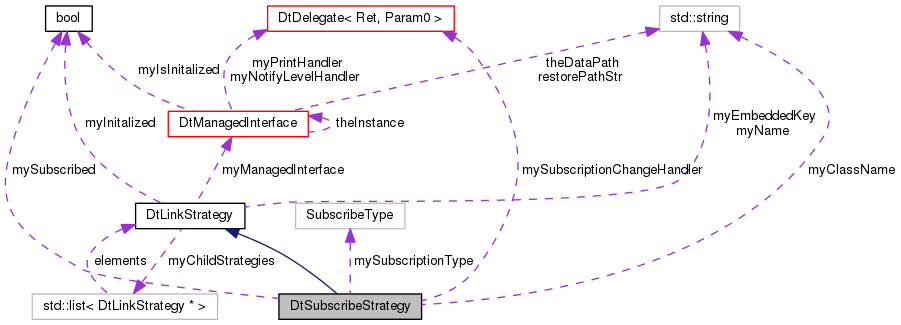

Collaboration diagram for DtSubscribeStrategy:

Public Member Functions
	DtSubscribeStrategy (std::string name, DtManagedInterface *link, std::string subscribeClassName, SubscribeMessage::SubscribeType subscribeType)
	constructor takes name More...

virtual	~DtSubscribeStrategy ()
	destructor More...

virtual void	shutdown ()
	Shutdown the strategy. More...

void	handleSubscriptionChange (DtMessage *msg)

Public Member Functions inherited from DtLinkStrategy
	DtLinkStrategy (const std::string &name, DtManagedInterface *link)
	constructor takes name More...

virtual	~DtLinkStrategy ()
	destructor More...

std::string	name ()
	Get the name of the strategy. More...

virtual bool	init ()=0
	Initialize the strategy. More...

virtual void	tick ()
	Tick the strategy to give it some CPU time. More...

virtual void	addChildStrategy (DtLinkStrategy *strategy)
	Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies. More...

virtual bool	removeChildStrategy (const std::string &name)

virtual DtLinkStrategy *	findStrategy (const std::string &name)

virtual std::string &	makeEmbeddedKey (std::string &embeddedKey, const std::string &hostGlobalId, unsigned embeddedIndex, const char *descriptor=nullptr)
	Combine the given host global/entity identifiers, embedded index, and optional descriptor to form the value of the given embedded key Return the embedded key. More...

Protected Member Functions
virtual void	addVrlCallback (DtExerciseConn *exConn)=0
	Add/Remove VR-Link C++ Interaction Callback. More...

virtual void	removeVrlCallback (DtExerciseConn *exConn)=0

Protected Attributes
DtMessageDelegate *	mySubscriptionChangeHandler

bool	mySubscribed

std::string	myClassName

SubscribeMessage::SubscribeType	mySubscriptionType

Protected Attributes inherited from DtLinkStrategy
DtManagedInterface *	myManagedInterface

std::string	myName

std::string	myEmbeddedKey

bool	myInitalized

std::list< DtLinkStrategy * >	myChildStrategies

Detailed Description

This is the DtSubscribeStrategy class. It is the abstract base class for all derived interaction subscribe strategies.

Constructor & Destructor Documentation

DtSubscribeStrategy::DtSubscribeStrategy	(	std::string	name,
		DtManagedInterface *	link,
		std::string	subscribeClassName,
		SubscribeMessage::SubscribeType	subscribeType
	)

constructor takes name

virtual DtSubscribeStrategy::~DtSubscribeStrategy ( )

virtual

destructor

virtual void DtSubscribeStrategy::addVrlCallback ( DtExerciseConn * exConn )

protectedpure virtual

Add/Remove VR-Link C++ Interaction Callback.

void DtSubscribeStrategy::handleSubscriptionChange ( DtMessage * msg )

virtual void DtSubscribeStrategy::removeVrlCallback ( DtExerciseConn * exConn )

protectedpure virtual

virtual void DtSubscribeStrategy::shutdown ( )

virtual

Shutdown the strategy.

Reimplemented from DtLinkStrategy.

std::string DtSubscribeStrategy::myClassName

protected

bool DtSubscribeStrategy::mySubscribed

protected

DtMessageDelegate* DtSubscribeStrategy::mySubscriptionChangeHandler

protected

SubscribeMessage::SubscribeType DtSubscribeStrategy::mySubscriptionType

protected

The documentation for this class was generated from the following file:
