Inheritance diagram for CustomIffStateMessage:

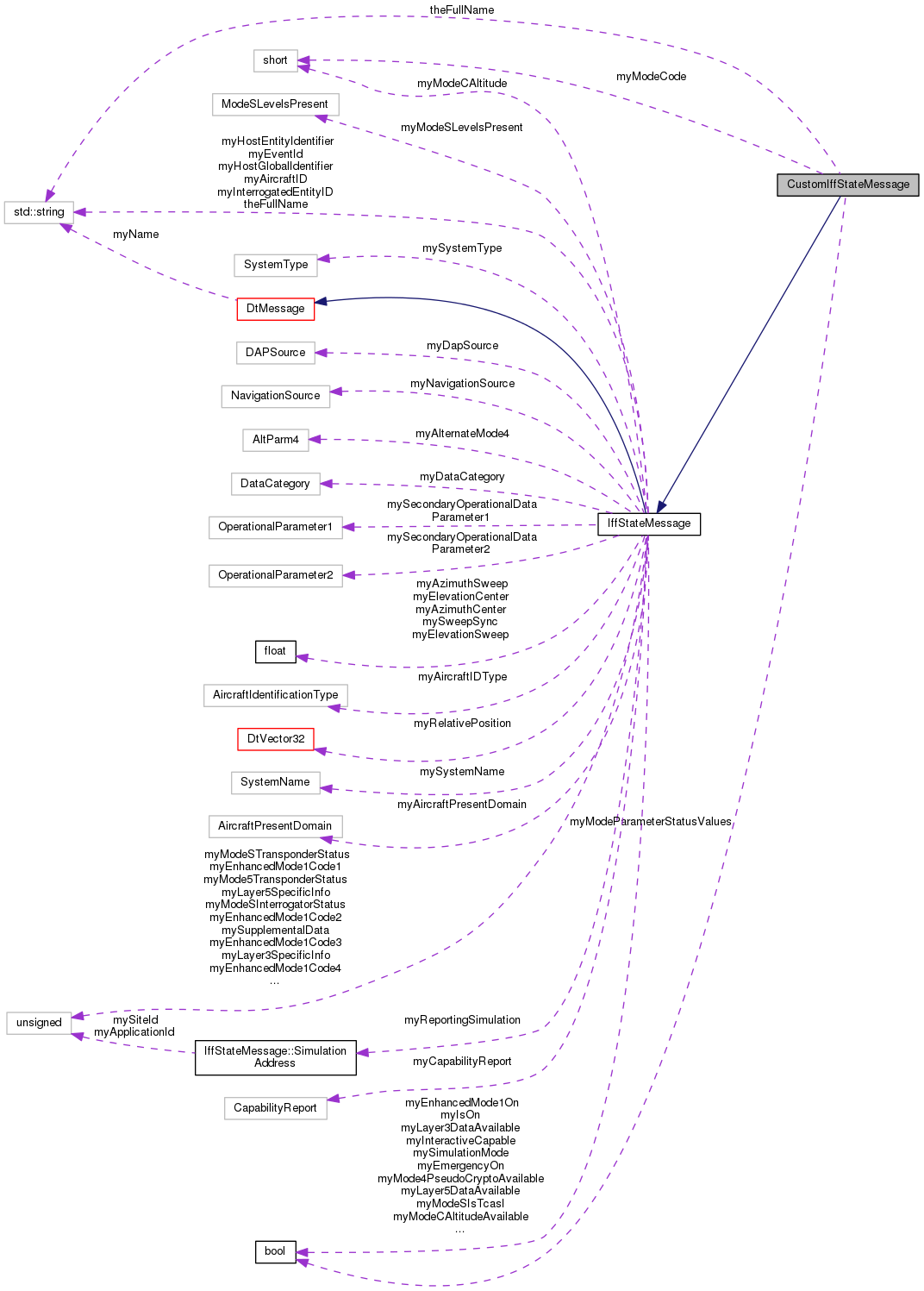

Collaboration diagram for CustomIffStateMessage:

Public Types
enum	DtModeOrParameterKind { Enabled = 0, IsDamaged = 1, IsMalfunctioning = 2, IsOn = 3 }

Public Types inherited from IffStateMessage
enum	CapabilityReport { CapabilityReport_NoCapability = 0, CapabilityReport_CommAB7Ground = 4, CapabilityReport_CommAB7Airborne = 5, CapabilityReport_CommAB7GroundAirborne = 6, CapabilityReport_DR1FS2345AirborneGround = 7, CapabilityReport_NoStatement = 255 }

enum	ModeSLevelsPresent { ModeSLevelsPresent_Level1 = 1, ModeSLevelsPresent_Level2Elementary = 2, ModeSLevelsPresent_Level2Enhanced = 3, ModeSLevelsPresent_Level3 = 4, ModeSLevelsPresent_Level4 = 5 }

enum	SystemName { SystemName_OtherSysName = 0, SystemName_MarkX = 1, SystemName_MarkXII = 2, SystemName_ATCRBS = 3, SystemName_Soviet = 4, SystemName_ModeS = 5, SystemName_MarkX_XII_ATCRBS = 6, SystemName_MarkX_XII_ATCRBS_ModeS = 7 }

enum	SystemType { SystemType_OtherSysType = 0, SystemType_Transponder = 1, SystemType_Interrogator = 2, SystemType_SovietTransponder = 3, SystemType_SovietInterrogator = 4 }

enum	AircraftPresentDomain { AircraftPresentDomain_NoStatement = 0, AircraftPresentDomain_Airborne = 1, AircraftPresentDomain_OnGroundSurface = 2 }

enum	OperationalParameter1 { OperationalParameter1_OtherOperationalParameter1 = 0 }

enum	DAPSource { DAPSource_IASBit = 0, DAPSource_MachNumberBit = 1, DAPSource_GroundSpeedBit = 2, DAPSource_MagneticHeadingBit = 3, DAPSource_TrackAngleRateBit = 4, DAPSource_TrueTrackAngleBit = 5, DAPSource_TrueAirspeedBit = 6, DAPSource_VerticalRateBit = 7 }

enum	AircraftIdentificationType { AircraftIdentificationType_NoStatement = 0, AircraftIdentificationType_FlightNumber = 1, AircraftIdentificationType_TailNumber = 2 }

enum	DataCategory { DataCategory_NoStatement = 0, DataCategory_FunctionalData = 1, DataCategory_DataLinkMessages = 2 }

enum	AltParm4 { AltParm4_Other = 0, AltParm4_Valid = 1, AltParm4_Invalid = 2, AltParm4_NoResponse = 3 }

enum	NavigationSource { NavigationSource_NoStatement = 0, NavigationSource_GPS = 1, NavigationSource_INS = 2, NavigationSource_INSGPS = 3 }

enum	OperationalParameter2 { OperationalParameter2_OtherOperationalParameter2 = 0 }

Public Member Functions
	CustomIffStateMessage ()

virtual	~CustomIffStateMessage ()

virtual void	setModeOrParameterVal (char type, int status, bool onOff)

virtual void	setModeOrParameterVal (int type, int status, bool onOff)

virtual bool	getModeOrParameterVal (char type, int status) const

virtual bool	getModeOrParameterVal (int type, int status) const

virtual void	setModeEnabled (int modeType, bool onOff)

virtual bool	modeEnabled (int modeType) const

virtual void	setModeEnabled (char modeType, bool onOff)

virtual bool	modeEnabled (char modeType) const

virtual void	setModeIsMalfunctioning (int modeType, bool onOff)

virtual bool	modeIsMalfunctioning (int modeType) const

virtual void	setModeIsMalfunctioning (char modeType, bool onOff)

virtual bool	modeIsMalfunctioning (char modeType) const

virtual void	setModeIsDamaged (int modeType, bool onOff)

virtual bool	modeIsDamaged (int modeType) const

virtual void	setModeIsDamaged (char modeType, bool onOff)

virtual bool	modeIsDamaged (char modeType) const

virtual void	setModeIsOn (int modeType, bool onOff)

virtual bool	modeIsOn (int modeType) const

virtual void	setModeIsOn (char modeType, bool onOff)

virtual bool	modeIsOn (char modeType) const

virtual unsigned short	modeCode (int modeCodeNum)

virtual void	setModeCode (int modeCodeNum, unsigned short val)

virtual int	messageSize ()
	this function needs to be in each derived class for decoding More...

Public Member Functions inherited from IffStateMessage
	IffStateMessage ()

virtual	~IffStateMessage ()

virtual std::string	getHostGlobalIdentifier ()

virtual void	setHostGlobalIdentifier (std::string val)

virtual unsigned short	getEmbeddedIndex ()

virtual void	setEmbeddedIndex (unsigned short val)

virtual SystemType	getSystemType ()

virtual void	setSystemType (SystemType val)

virtual std::string	getHostEntityIdentifier ()

virtual void	setHostEntityIdentifier (std::string val)

virtual DtVector32	getRelativePosition ()

virtual void	setRelativePosition (DtVector32 val)

virtual SystemName	getSystemName ()

virtual void	setSystemName (SystemName val)

virtual unsigned char	getSystemMode ()

virtual void	setSystemMode (unsigned char val)

virtual std::string	getEventId ()

virtual void	setEventId (std::string val)

virtual AltParm4	getAlternateMode4 ()

virtual void	setAlternateMode4 (AltParm4 val)

virtual bool	getSystemIsOn ()

virtual void	setSystemIsOn (bool val)

virtual bool	getSystemIsOperational ()

virtual void	setSystemIsOperational (bool val)

virtual bool	getSimulationMode ()

virtual void	setSimulationMode (bool val)

virtual bool	getInteractiveCapable ()

virtual void	setInteractiveCapable (bool val)

virtual unsigned short	getMode4PseudoCrypto ()

virtual void	setMode4PseudoCrypto (unsigned short val)

virtual bool	getMode4PseudoCryptoAvailable ()

virtual void	setMode4PseudoCryptoAvailable (bool val)

virtual bool	getModeSIsTcasI ()

virtual void	setModeSIsTcasI (bool val)

virtual bool	getEmergencyOn ()

virtual void	setEmergencyOn (bool val)

virtual bool	getIdentSquawkFlashOn ()

virtual void	setIdentSquawkFlashOn (bool val)

virtual bool	getUnmannedAircraftOn ()

virtual void	setUnmannedAircraftOn (bool val)

virtual bool	getModeCAltitudeAvailable ()

virtual void	setModeCAltitudeAvailable (bool val)

virtual short	getModeCAltitude ()

virtual void	setModeCAltitude (short val)

virtual bool	getStiOn ()

virtual void	setStiOn (bool val)

virtual unsigned char	getCode ()

virtual void	setCode (unsigned char val)

virtual bool	getPowerReduction ()

virtual void	setPowerReduction (bool val)

virtual bool	getIsDamaged ()

virtual void	setIsDamaged (bool val)

virtual bool	getIsMalfunctioning ()

virtual void	setIsMalfunctioning (bool val)

virtual bool	getIsOn ()

virtual void	setIsOn (bool val)

virtual bool	getRadarEnhancement ()

virtual void	setRadarEnhancement (bool val)

virtual bool	getLayer2DataAvailable ()

virtual void	setLayer2DataAvailable (bool val)

virtual bool	getLayer3DataAvailable ()

virtual void	setLayer3DataAvailable (bool val)

virtual bool	getLayer4DataAvailable ()

virtual void	setLayer4DataAvailable (bool val)

virtual bool	getLayer5DataAvailable ()

virtual void	setLayer5DataAvailable (bool val)

virtual unsigned int	getLayer2SpecificInfo ()

virtual void	setLayer2SpecificInfo (unsigned int val)

virtual unsigned int	getLayer3SpecificInfo ()

virtual void	setLayer3SpecificInfo (unsigned int val)

virtual unsigned int	getLayer4SpecificInfo ()

virtual void	setLayer4SpecificInfo (unsigned int val)

virtual unsigned int	getLayer5SpecificInfo ()

virtual void	setLayer5SpecificInfo (unsigned int val)

virtual float	getAzimuthCenter ()

virtual void	setAzimuthCenter (float val)

virtual float	getAzimuthSweep ()

virtual void	setAzimuthSweep (float val)

virtual float	getElevationCenter ()

virtual void	setElevationCenter (float val)

virtual float	getElevationSweep ()

virtual void	setElevationSweep (float val)

virtual float	getSweepSync ()

virtual void	setSweepSync (float val)

virtual OperationalParameter1	getSecondaryOperationalDataParameter1 ()

virtual void	setSecondaryOperationalDataParameter1 (OperationalParameter1 val)

virtual OperationalParameter2	getSecondaryOperationalDataParameter2 ()

virtual void	setSecondaryOperationalDataParameter2 (OperationalParameter2 val)

virtual unsigned char	getSystemSpecificData ()

virtual void	setSystemSpecificData (unsigned char val)

virtual SimulationAddress	getReportingSimulation ()

virtual void	setReportingSimulation (SimulationAddress val)

virtual unsigned int	getMessageFormatsPresent ()

virtual void	setMessageFormatsPresent (unsigned int val)

virtual unsigned char	getMode5InterrogatorStatus ()

virtual void	setMode5InterrogatorStatus (unsigned char val)

virtual std::string	getInterrogatedEntityID ()

virtual void	setInterrogatedEntityID (std::string val)

virtual unsigned short	getMode5TransponderStatus ()

virtual void	setMode5TransponderStatus (unsigned short val)

virtual unsigned short	getPin ()

virtual void	setPin (unsigned short val)

virtual unsigned int	getEnhancedMode1Code1 ()

virtual void	setEnhancedMode1Code1 (unsigned int val)

virtual unsigned int	getEnhancedMode1Code2 ()

virtual void	setEnhancedMode1Code2 (unsigned int val)

virtual unsigned int	getEnhancedMode1Code3 ()

virtual void	setEnhancedMode1Code3 (unsigned int val)

virtual unsigned int	getEnhancedMode1Code4 ()

virtual void	setEnhancedMode1Code4 (unsigned int val)

virtual bool	getEnhancedMode1On ()

virtual void	setEnhancedMode1On (bool val)

virtual bool	getEnhancedMode1DamageStatus ()

virtual void	setEnhancedMode1DamageStatus (bool val)

virtual bool	getEnhancedMode1MalfunctionStatus ()

virtual void	setEnhancedMode1MalfunctionStatus (bool val)

virtual unsigned short	getNationalOrigin ()

virtual void	setNationalOrigin (unsigned short val)

virtual unsigned char	getSupplementalData ()

virtual void	setSupplementalData (unsigned char val)

virtual NavigationSource	getNavigationSource ()

virtual void	setNavigationSource (NavigationSource val)

virtual unsigned char	getFigureOfMerit ()

virtual void	setFigureOfMerit (unsigned char val)

virtual ModeSLevelsPresent	getModeSLevelsPresent ()

virtual void	setModeSLevelsPresent (ModeSLevelsPresent val)

virtual unsigned char	getModeSInterrogatorStatus ()

virtual void	setModeSInterrogatorStatus (unsigned char val)

virtual unsigned short	getModeSTransponderStatus ()

virtual void	setModeSTransponderStatus (unsigned short val)

virtual AircraftPresentDomain	getAircraftPresentDomain ()

virtual void	setAircraftPresentDomain (AircraftPresentDomain val)

virtual std::string	getAircraftID ()

virtual void	setAircraftID (std::string val)

virtual unsigned int	getAircraftAddress ()

virtual void	setAircraftAddress (unsigned int val)

virtual AircraftIdentificationType	getAircraftIDType ()

virtual void	setAircraftIDType (AircraftIdentificationType val)

virtual DAPSource	getDapSource ()

virtual void	setDapSource (DAPSource val)

virtual unsigned short	getModeSAltitude ()

virtual void	setModeSAltitude (unsigned short val)

virtual CapabilityReport	getCapabilityReport ()

virtual void	setCapabilityReport (CapabilityReport val)

virtual unsigned char	getAvailableLayers ()

virtual void	setAvailableLayers (unsigned char val)

virtual DataCategory	getDataCategory ()

virtual void	setDataCategory (DataCategory val)

Public Member Functions inherited from DtMessage
	DtMessage ()
	constructor More...

virtual	~DtMessage ()
	destructor More...

virtual std::string	name () const
	Get the name of the message type. More...

virtual double	timeStamp ()

virtual void	setTimeStamp (double ts)

virtual unsigned char *	encode ()
	Encode the message as an array of bytes and return the bytes. More...

Static Public Member Functions
static DtMessage *	decode (unsigned char *buffer, int length)

static std::string	theMessageName ()

Static Public Member Functions inherited from IffStateMessage
static DtMessage *	decode (unsigned char *buffer, int length)

static std::string	theMessageName ()

Protected Member Functions
virtual void	serialize (DtStreamWriter &writer)

virtual void	deserialize (DtStreamReader &reader)

Protected Attributes
bool	myModeParameterStatusValues [7][4]
	Used for NatoIFF and SovietIFF mode and parameter values. More...

unsigned short	myModeCode [IFF_MODE_CODE_SIZE]

Protected Attributes inherited from IffStateMessage
std::string	myHostGlobalIdentifier

unsigned short	myEmbeddedIndex

SystemType	mySystemType

std::string	myHostEntityIdentifier

DtVector32	myRelativePosition

SystemName	mySystemName

unsigned char	mySystemMode

std::string	myEventId

AltParm4	myAlternateMode4

bool	mySystemIsOn

bool	mySystemIsOperational

bool	mySimulationMode

bool	myInteractiveCapable

unsigned short	myMode4PseudoCrypto

bool	myMode4PseudoCryptoAvailable

bool	myModeSIsTcasI

bool	myEmergencyOn

bool	myIdentSquawkFlashOn

bool	myUnmannedAircraftOn

bool	myModeCAltitudeAvailable

short	myModeCAltitude

bool	myStiOn

unsigned char	myCode

bool	myPowerReduction

bool	myIsDamaged

bool	myIsMalfunctioning

bool	myIsOn

bool	myRadarEnhancement

bool	myLayer2DataAvailable

bool	myLayer3DataAvailable

bool	myLayer4DataAvailable

bool	myLayer5DataAvailable

unsigned int	myLayer2SpecificInfo

unsigned int	myLayer3SpecificInfo

unsigned int	myLayer4SpecificInfo

unsigned int	myLayer5SpecificInfo

float	myAzimuthCenter

float	myAzimuthSweep

float	myElevationCenter

float	myElevationSweep

float	mySweepSync

OperationalParameter1	mySecondaryOperationalDataParameter1

OperationalParameter2	mySecondaryOperationalDataParameter2

unsigned char	mySystemSpecificData

SimulationAddress	myReportingSimulation

unsigned int	myMessageFormatsPresent

unsigned char	myMode5InterrogatorStatus

std::string	myInterrogatedEntityID

unsigned short	myMode5TransponderStatus

unsigned short	myPin

unsigned int	myEnhancedMode1Code1

unsigned int	myEnhancedMode1Code2

unsigned int	myEnhancedMode1Code3

unsigned int	myEnhancedMode1Code4

bool	myEnhancedMode1On

bool	myEnhancedMode1DamageStatus

bool	myEnhancedMode1MalfunctionStatus

unsigned short	myNationalOrigin

unsigned char	mySupplementalData

NavigationSource	myNavigationSource

unsigned char	myFigureOfMerit

ModeSLevelsPresent	myModeSLevelsPresent

unsigned char	myModeSInterrogatorStatus

unsigned short	myModeSTransponderStatus

AircraftPresentDomain	myAircraftPresentDomain

std::string	myAircraftID

unsigned int	myAircraftAddress

AircraftIdentificationType	myAircraftIDType

DAPSource	myDapSource

unsigned short	myModeSAltitude

CapabilityReport	myCapabilityReport

unsigned char	myAvailableLayers

DataCategory	myDataCategory

Protected Attributes inherited from DtMessage
std::string	myName

DtTime	myTimeStamp

Static Protected Attributes
static std::string	theFullName

Static Protected Attributes inherited from IffStateMessage
static std::string	theFullName

Member Enumeration Documentation

enum CustomIffStateMessage::DtModeOrParameterKind

Enumerator
Enabled
IsDamaged
IsMalfunctioning
IsOn

Constructor & Destructor Documentation

CustomIffStateMessage::CustomIffStateMessage ( )

virtual CustomIffStateMessage::~CustomIffStateMessage ( )

virtual

Member Function Documentation

static DtMessage* CustomIffStateMessage::decode	(	unsigned char *	buffer,
		int	length
	)

static

virtual void CustomIffStateMessage::deserialize ( DtStreamReader & reader )

protectedvirtual

Reimplemented from IffStateMessage.

virtual bool CustomIffStateMessage::getModeOrParameterVal	(	char	type,
		int	status
	)		const

virtual

virtual bool CustomIffStateMessage::getModeOrParameterVal	(	int	type,
		int	status
	)		const

virtual

virtual int CustomIffStateMessage::messageSize ( )

virtual

this function needs to be in each derived class for decoding

Get the size of the message data in bytes

Reimplemented from IffStateMessage.

virtual unsigned short CustomIffStateMessage::modeCode ( int modeCodeNum )

virtual

virtual bool CustomIffStateMessage::modeEnabled ( int modeType ) const

virtual

virtual bool CustomIffStateMessage::modeEnabled ( char modeType ) const

virtual

virtual bool CustomIffStateMessage::modeIsDamaged ( int modeType ) const

virtual

virtual bool CustomIffStateMessage::modeIsDamaged ( char modeType ) const

virtual

virtual bool CustomIffStateMessage::modeIsMalfunctioning ( int modeType ) const

virtual

virtual bool CustomIffStateMessage::modeIsMalfunctioning ( char modeType ) const

virtual

virtual bool CustomIffStateMessage::modeIsOn ( int modeType ) const

virtual

virtual bool CustomIffStateMessage::modeIsOn ( char modeType ) const

virtual

virtual void CustomIffStateMessage::serialize ( DtStreamWriter & writer )

protectedvirtual

Reimplemented from IffStateMessage.

virtual void CustomIffStateMessage::setModeCode	(	int	modeCodeNum,
		unsigned short	val
	)

virtual

virtual void CustomIffStateMessage::setModeEnabled	(	int	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeEnabled	(	char	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeIsDamaged	(	int	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeIsDamaged	(	char	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeIsMalfunctioning	(	int	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeIsMalfunctioning	(	char	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeIsOn	(	int	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeIsOn	(	char	modeType,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeOrParameterVal	(	char	type,
		int	status,
		bool	onOff
	)

virtual

virtual void CustomIffStateMessage::setModeOrParameterVal	(	int	type,
		int	status,
		bool	onOff
	)

virtual

static std::string CustomIffStateMessage::theMessageName ( )

static

Member Data Documentation

unsigned short CustomIffStateMessage::myModeCode[IFF_MODE_CODE_SIZE]

protected

bool CustomIffStateMessage::myModeParameterStatusValues[7][4]

protected

Used for NatoIFF and SovietIFF mode and parameter values.

std::string CustomIffStateMessage::theFullName

staticprotected

The documentation for this class was generated from the following file:

customIffState.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
