DtGriddedDataDecoder Class Reference

class DtGriddedDataDecoder: More...

Inheritance diagram for DtGriddedDataDecoder:

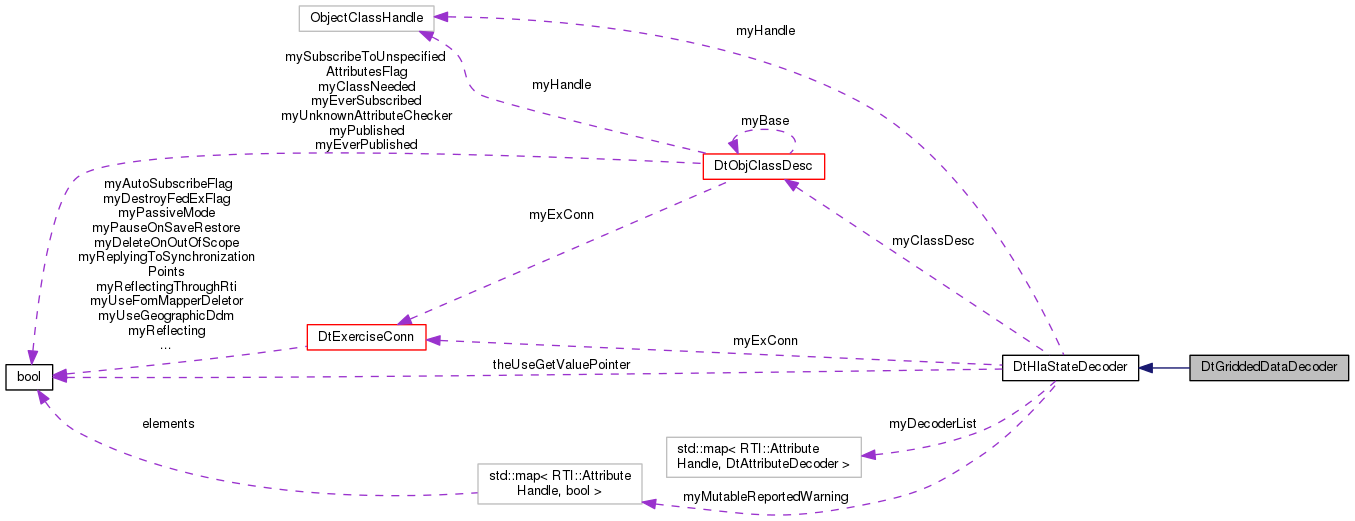

Collaboration diagram for DtGriddedDataDecoder:

Public Member Functions
	DtGriddedDataDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	constructor More...
virtual	~DtGriddedDataDecoder ()
	destructor More...
	DtGriddedDataDecoder (const DtGriddedDataDecoder &orig)
DtGriddedDataDecoder &	operator= (const DtGriddedDataDecoder &orig)
	assignment operator More...
Public Member Functions inherited from DtHlaStateDecoder
	DtHlaStateDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	constructor More...
virtual	~DtHlaStateDecoder ()
	destructor More...
	DtHlaStateDecoder (const DtHlaStateDecoder &orig)
	copy constructor More...
DtHlaStateDecoder &	operator= (const DtHlaStateDecoder &orig)
	assignment operator More...
DtAttributeDecoder	addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func)
	Add/Remove a decoding function for the attribute specified by handle. More...
DtAttributeDecoder	removeDecoder (RTI::AttributeHandle h)
DtAttributeDecoder	addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true)
	Add/Remove a decoding function for the attribute specified by name. More...
DtAttributeDecoder	removeDecoder (char *attrName, bool complain=true)
virtual DtAttributeDecoder	decoder (const RTI::AttributeHandle &handle) const
	Get the attribute decoder for the specified handle. More...
virtual void	decode (const DtStateMsg &msg, DtStateRepository *stateRep) const
	Decode the state message into the state repository. More...
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle. More...
virtual DtHlaStateDecoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtHlaStateDecoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

Static Public Member Functions
static DtHlaStateDecoder *	create (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	Create a DtGriddedDataDecoder. Caller responsibly for deletion. More...
Static Public Member Functions inherited from DtHlaStateDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...
static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length)
	Returns a pointer to the attribute data. More...
static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName)
	Gets the attribute data and checks the expected size. More...
static DtNetEventId *	eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index)
	Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More...
static std::wstring	wideStringFromHlaUnicodeString (char *buffer, int size, bool *error=nullptr)
	Gets data from an incoming buffer as a HlaUnicodeString and decodes it as a wide string. More...
static bool	getVectorFromArrayOfUuid (char *buffer, int size, std::vector< DtVrlUuid > &uuids)
	Gets data from an incoming buffer as an ArrayOfUuid and decodes it as a vector of type DtVrlUuid. More...

Protected Member Functions
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridIdentifier)
	Static decode<attrName> member fns. More...
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridID)
	DtDECLARE_GRIDDATA_ATTR_DECODER (FieldNumber)
	DtDECLARE_GRIDDATA_ATTR_DECODER (RecordNumber)
	DtDECLARE_GRIDDATA_ATTR_DECODER (RecordTotal)
	DtDECLARE_GRIDDATA_ATTR_DECODER (CoordinateSystem)
	DtDECLARE_GRIDDATA_ATTR_DECODER (NumberOfGridAxes)
	DtDECLARE_GRIDDATA_ATTR_DECODER (ConstantGrid)
	DtDECLARE_GRIDDATA_ATTR_DECODER (EnvironmentType)
	DtDECLARE_GRIDDATA_ATTR_DECODER (Orientation)
	DtDECLARE_GRIDDATA_ATTR_DECODER (SampleTime)
	DtDECLARE_GRIDDATA_ATTR_DECODER (TotalValues)
	DtDECLARE_GRIDDATA_ATTR_DECODER (VectorDimension)
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridAxisInfo)
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridAxisInfo_RPR_20)
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridDataInfo)
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridDataInfo_RPR_20)
	DtDECLARE_GRIDDATA_ATTR_DECODER (GridDataInfo_RPR2_Rev3)
Protected Member Functions inherited from DtHlaStateDecoder
virtual void	decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const
	Decode the attribute at the specified index in the attribute handle pair set. More...
virtual void	copyDecFuncs (const DtHlaStateDecoder &orig)

Additional Inherited Members
Public Types inherited from DtHlaStateDecoder
typedef void(*	DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex)
	Attribute decoding function declaration. More...
Static Public Attributes inherited from DtHlaStateDecoder
static bool	theUseGetValuePointer
Protected Types inherited from DtHlaStateDecoder
typedef std::map < RTI::AttributeHandle, DtAttributeDecoder >	AttributeHandleDecoderMap
typedef std::map < RTI::AttributeHandle, bool >	AttributeHandleBoolMap
Protected Attributes inherited from DtHlaStateDecoder
DtExerciseConn *	myExConn
DtObjClassDesc *	myClassDesc
RTI::ObjectClassHandle	myHandle
AttributeHandleDecoderMap	myDecoderList
	myDecoderList is a map of decoders for each attribute registered to this state. More...

Detailed Description

class DtGriddedDataDecoder:

Instances of DtGriddedDataDecoder are used to decode Gridded Data state messages into a state repository in an HLA environment.

Constructor & Destructor Documentation

DtGriddedDataDecoder::DtGriddedDataDecoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

constructor

virtual DtGriddedDataDecoder::~DtGriddedDataDecoder ( )

virtual

destructor

DtGriddedDataDecoder::DtGriddedDataDecoder

(

const DtGriddedDataDecoder &

orig

)

Member Function Documentation

static DtHlaStateDecoder* DtGriddedDataDecoder::create ( DtExerciseConn *  exConn, DtObjClassDesc *  classDesc  )

static

Create a DtGriddedDataDecoder. Caller responsibly for deletion.

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridIdentifier  )

protected

Static decode<attrName> member fns.

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridID  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( FieldNumber  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( RecordNumber  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( RecordTotal  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( CoordinateSystem  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( NumberOfGridAxes  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( ConstantGrid  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( EnvironmentType  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( Orientation  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( SampleTime  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( TotalValues  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( VectorDimension  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridAxisInfo  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridAxisInfo_RPR_20  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridDataInfo  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridDataInfo_RPR_20  )

protected

DtGriddedDataDecoder::DtDECLARE_GRIDDATA_ATTR_DECODER ( GridDataInfo_RPR2_Rev3  )

protected

DtGriddedDataDecoder& DtGriddedDataDecoder::operator=

(

const DtGriddedDataDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• griddedDataDecoderHLA.h
