Instances of DtIFFEmissionInteractionDecoder are used to decode data from the network into DtIFFEmissionInteraction objects. More...

Inheritance diagram for DtIFFEmissionInteractionDecoder:

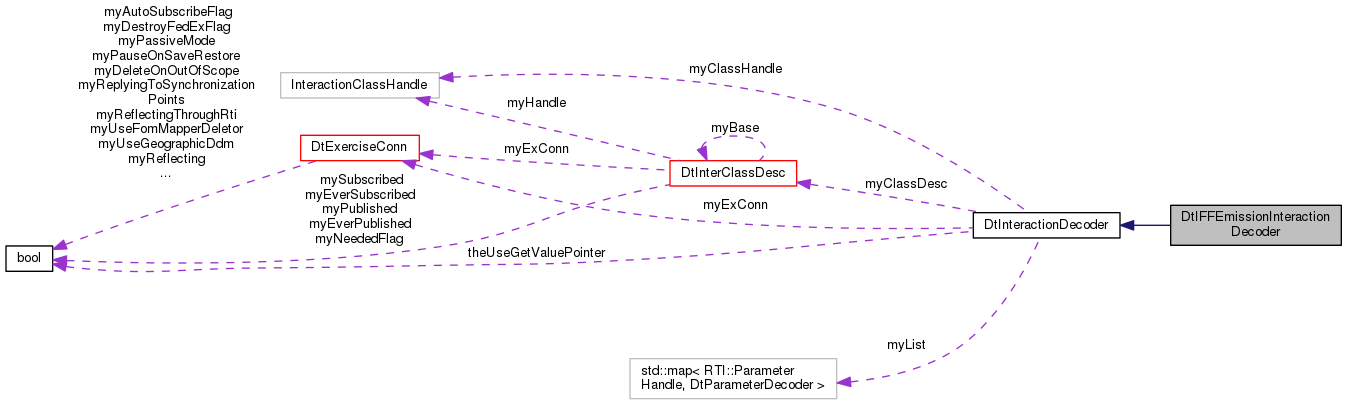

Collaboration diagram for DtIFFEmissionInteractionDecoder:

Public Member Functions
	DtIFFEmissionInteractionDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	Constructor. More...

virtual	~DtIFFEmissionInteractionDecoder ()
	Destructor. More...

	DtIFFEmissionInteractionDecoder (const DtIFFEmissionInteractionDecoder &orig)
	Copy constructor. More...

DtIFFEmissionInteractionDecoder &	operator= (const DtIFFEmissionInteractionDecoder &orig)
	Assignment operator. More...

Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	constructor More...

virtual	~DtInteractionDecoder ()
	destructor More...

DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...

DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...

virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...

virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValuePairSet &pvList)
	Decode the interaction. More...

virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...

virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Static Protected Member Functions
static void	decodeIFFSystemIdentifier (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes IFFSystemIdentifier from params into inter. More...

static void	decodeTransmissionIndicator (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes TransmissionIndicator from params into inter. More...

static void	decodeInterrogatingObjectIdentifier (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes InterrogatingObjectIdentifier from params into inter. More...

static void	decodeInterrogatedObjectIdentifier (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes InterrogatedObjectIdentifier from params into inter. More...

static void	decodeInteractiveEventIdentifier (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes InteractiveEventIdentifier from params into inter. More...

static void	decodeInterrogatedModes (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes InterrogatedModes from params into inter. More...

static void	decodeReportingSimulation (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes ReportingSimulation from params into inter. More...

static void	decodeDataCommunicationsSpecificInformation (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes DataCommunicationsSpecificInformation from params into inter. More...

static void	decodeInteractiveIFFData (DtIFFEmissionInteraction *inter, const RTI::ParameterHandleValuePairSet &params, int pairSetIndex)
	Decodes InteractiveIFFData from params into inter. More...

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...

Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...

static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...

static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, char *paramName)
	Gets the parameter data and checks the expected size. More...

static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...

static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...

Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer

Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...

DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...

virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn

DtInterClassDesc *	myClassDesc

RTI::InteractionClassHandle	myClassHandle

std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

Instances of DtIFFEmissionInteractionDecoder are used to decode data from the network into DtIFFEmissionInteraction objects.

Constructor & Destructor Documentation

DtIFFEmissionInteractionDecoder::DtIFFEmissionInteractionDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

Constructor.

virtual DtIFFEmissionInteractionDecoder::~DtIFFEmissionInteractionDecoder ( )

virtual

Destructor.

DtIFFEmissionInteractionDecoder::DtIFFEmissionInteractionDecoder ( const DtIFFEmissionInteractionDecoder & orig )

Copy constructor.

Member Function Documentation

static void DtIFFEmissionInteractionDecoder::decodeDataCommunicationsSpecificInformation	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes DataCommunicationsSpecificInformation from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeIFFSystemIdentifier	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes IFFSystemIdentifier from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeInteractiveEventIdentifier	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes InteractiveEventIdentifier from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeInteractiveIFFData	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes InteractiveIFFData from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeInterrogatedModes	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes InterrogatedModes from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeInterrogatedObjectIdentifier	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes InterrogatedObjectIdentifier from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeInterrogatingObjectIdentifier	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes InterrogatingObjectIdentifier from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeReportingSimulation	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes ReportingSimulation from params into inter.

static void DtIFFEmissionInteractionDecoder::decodeTransmissionIndicator	(	DtIFFEmissionInteraction *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	pairSetIndex
	)

staticprotected

Decodes TransmissionIndicator from params into inter.

DtIFFEmissionInteractionDecoder& DtIFFEmissionInteractionDecoder::operator= ( const DtIFFEmissionInteractionDecoder & orig )

Assignment operator.

The documentation for this class was generated from the following file:

iffEmissionInteractionDecoderHLA.h
