Inheritance diagram for DtIffPublisher:

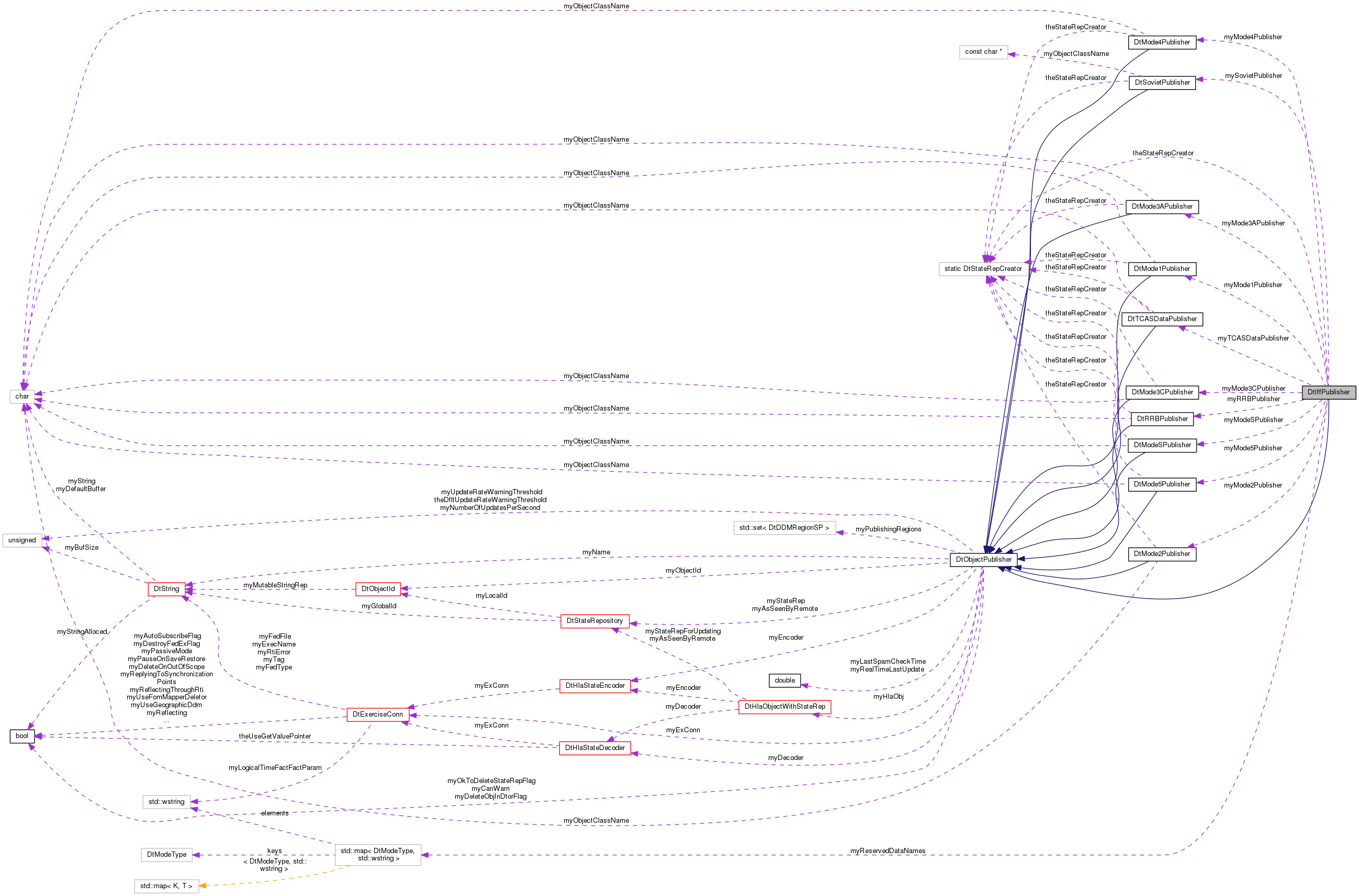

Collaboration diagram for DtIffPublisher:

Public Types
typedef DtIffStateRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtEntityStateRepositories. More...

Public Member Functions
	DtIffPublisher (DtIffStateRepository stateRepToUse, DtExerciseConn conn, const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor – State Rep Must have the NavaidsSysType set. More...

	DtIffPublisher (DtIffAtcNavaidsSysType type, DtExerciseConn conn, DtIffAtcNavaidsSysName systemName, DtEntityIdentifier entityId, DtVector32 relativePosition=DtVector32::zero(), std::vector< DtModeType > enabledModes={DtMode1, DtMode2, DtMode3A, DtMode3C, DtMode5, DtModeS, DtTCAS}, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor – State Rep Must have the NavaidsSysType set Accepts enableMode parameters to specify which modes are enabled for a given system. More...

	DtIffPublisher (RTI::ObjectClassHandle h, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtIffPublisher (DtIffAtcNavaidsSysType type, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtIffPublisher (DtHlaObjectWithStateRep obj, DtExerciseConn conn)
	Constructor that creates a publisher for an existing DtHlaObject. More...

virtual	~DtIffPublisher ()
	destructor More...

virtual bool	tick ()
	Tick the publisher, returns true if data is sent. More...

virtual DtIffStateRepository *	iffStateRep ()
	Returns a pointer to the IffStateRepository - through which you can set current state information. More...

virtual DtIffStateRepository *	isr ()
	Synonym for iffStateRep() More...

Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...

virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...

virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...

virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...

virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...

virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual const DtObjectId &	id () const
	Get the object's local identifier. More...

virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...

virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...

virtual const DtString &	name () const
	Get the object's name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...

virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent. More...

virtual void	forceUpdate (const RTI::AttributeHandleSet &set)

virtual bool	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...

virtual bool	deleteObjInDtorFlag () const

virtual const DtDDMRegionSet &	publishingRegions () const

virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...

virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...

virtual void	setUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets & overrides the default (static) updates per second for a specific instance If a negative integer is passed to it, it will use the difference of the max value of an unsigned short and the absolute value of the negative integer. More...

virtual unsigned short	updateRateWarningThreshold () const
	Returns the value of the overridden rate warning threshold. More...

virtual void	checkForUpdateRateWarning ()
	Helper function that determines whether or not to trigger a spam warning. More...

	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...

void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)

void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

static void	setDfltUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets the default (static) updates per second for any instance. More...

static unsigned short	dfltUpdateRateWarningThreshold ()
	Return the value of theDfltUpdateRateWarningThreshold. More...

Protected Member Functions
	DtIffPublisher (const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor which does not include the DtExerciseConn and does not register the HLA object. More...

	DtIffPublisher (const DtIffPublisher &orig)
	copy constructor – not implemented More...

DtIffPublisher &	operator= (const DtIffPublisher &orig)
	assignment operator – not implemented More...

const char *	objectClassNameFromType (DtIffAtcNavaidsSysType type)
	Non-virtual since called from constructor. More...

virtual void	initIffDataPublishers (DtExerciseConn conn, const char name, const DtDDMRegionSet regionSetToUse, DtIffAtcNavaidsSysType type, std::vector< DtModeType > enabledModesPtr=0)
	Creates IFFData publishers. More...

Protected Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...

virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes
DtMode1Publisher *	myMode1Publisher

DtMode2Publisher *	myMode2Publisher

DtMode3APublisher *	myMode3APublisher

DtMode3CPublisher *	myMode3CPublisher

DtMode4Publisher *	myMode4Publisher

DtMode5Publisher *	myMode5Publisher

DtModeSPublisher *	myModeSPublisher

DtTCASDataPublisher *	myTCASDataPublisher

DtSovietPublisher *	mySovietPublisher

DtRRBPublisher *	myRRBPublisher

std::map< DtModeType, std::wstring >	myReservedDataNames

Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

DtHlaStateEncoder *	myEncoder

DtHlaStateDecoder *	myDecoder

DtObjectId	myObjectId

bool	myOkToDeleteStateRepFlag

DtString	myName

bool	myDeleteObjInDtorFlag

DtDDMRegionSet	myPublishingRegions

DtTime	myRealTimeLastUpdate

DtTime	myLastSpamCheckTime

unsigned short	myNumberOfUpdatesPerSecond

unsigned short	myUpdateRateWarningThreshold

bool	myCanWarn

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Static Protected Attributes inherited from DtObjectPublisher
static unsigned short	theDfltUpdateRateWarningThreshold
	Static member that holds the value of the number of updates to be sent to trigger a spam warning. More...

Detailed Description

class DtIffPublisher:

Instances of IffPublisher are used for local or source simulations of "Iff" objects. The publisher sends data to the network when necessary. This class is derived from DtObjectPublisher, which does most of the work. The derived class mostly exists to provide type safety, and to configure the base object.

Member Typedef Documentation

typedef DtIffStateRepository*(* DtIffPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEntityStateRepositories.

Constructor & Destructor Documentation

DtIffPublisher::DtIffPublisher	(	DtIffStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor – State Rep Must have the NavaidsSysType set.

DtIffPublisher::DtIffPublisher	(	DtIffAtcNavaidsSysType	type,
		DtExerciseConn *	conn,
		DtIffAtcNavaidsSysName	systemName,
		DtEntityIdentifier	entityId,
		DtVector32	relativePosition = `DtVector32::zero()`,
		std::vector< DtModeType >	enabledModes = `{DtMode1, DtMode2, DtMode3A, DtMode3C, DtMode5, DtModeS, DtTCAS}`,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor – State Rep Must have the NavaidsSysType set Accepts enableMode parameters to specify which modes are enabled for a given system.

It also accepts the IFF System Type, indicating publishing of transponder, interrogator or other, etc

DtIffPublisher::DtIffPublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtIffPublisher::DtIffPublisher	(	DtIffAtcNavaidsSysType	type,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtIffPublisher::DtIffPublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtIffPublisher::~DtIffPublisher ( )

virtual

destructor

DtIffPublisher::DtIffPublisher	(	const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

protected

Constructor which does not include the DtExerciseConn and does not register the HLA object.

This is typically not desired, but may be useful in certain cases when a derived publisher wants to better control how the object is published.

DtIffPublisher::DtIffPublisher ( const DtIffPublisher & orig )

protected

copy constructor – not implemented

Member Function Documentation

DtIffStateRepository * DtIffPublisher::iffStateRep ( )

inlinevirtual

Returns a pointer to the IffStateRepository - through which you can set current state information.

References DtObjectPublisher::myStateRep.

virtual void DtIffPublisher::initIffDataPublishers	(	DtExerciseConn *	conn,
		const char *	name,
		const DtDDMRegionSet *	regionSetToUse,
		DtIffAtcNavaidsSysType	type,
		std::vector< DtModeType > *	enabledModesPtr = `0`
	)

protectedvirtual

Creates IFFData publishers.

Parameters

conn	The exercise connection
name	A user specifies name for the publisher
regionSetToUse	The DtDDMRegion
type	The IFF System Type, indicating publishing of transponder, interrogator or other, etc

DtIffStateRepository * DtIffPublisher::isr ( )

inlinevirtual

Synonym for iffStateRep()

References DtObjectPublisher::myStateRep.

const char* DtIffPublisher::objectClassNameFromType ( DtIffAtcNavaidsSysType type )

protected

Non-virtual since called from constructor.

If you don't like the default mapping between entity type and object class, just pass the object class handle you want to the constructor.

DtIffPublisher& DtIffPublisher::operator= ( const DtIffPublisher & orig )

protected

assignment operator – not implemented

static DtStateRepCreator DtIffPublisher::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

virtual bool DtIffPublisher::tick ( )

virtual

Tick the publisher, returns true if data is sent.

Reimplemented from DtObjectPublisher.

Member Data Documentation

DtMode1Publisher* DtIffPublisher::myMode1Publisher

protected

DtMode2Publisher* DtIffPublisher::myMode2Publisher

protected

DtMode3APublisher* DtIffPublisher::myMode3APublisher

protected

DtMode3CPublisher* DtIffPublisher::myMode3CPublisher

protected

DtMode4Publisher* DtIffPublisher::myMode4Publisher

protected

DtMode5Publisher* DtIffPublisher::myMode5Publisher

protected

DtModeSPublisher* DtIffPublisher::myModeSPublisher

protected

std::map<DtModeType, std::wstring> DtIffPublisher::myReservedDataNames

protected

DtRRBPublisher* DtIffPublisher::myRRBPublisher

protected

DtSovietPublisher* DtIffPublisher::mySovietPublisher

protected

DtTCASDataPublisher* DtIffPublisher::myTCASDataPublisher

protected

DtStateRepCreator DtIffPublisher::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

iffPublisherHLA.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
