Instances of DtReflectedEnvironmentProcess are used to represent an Instance of an EnvironmentProcess HLA Object which was published remotely. More...

Inheritance diagram for DtReflectedEnvironmentProcess:

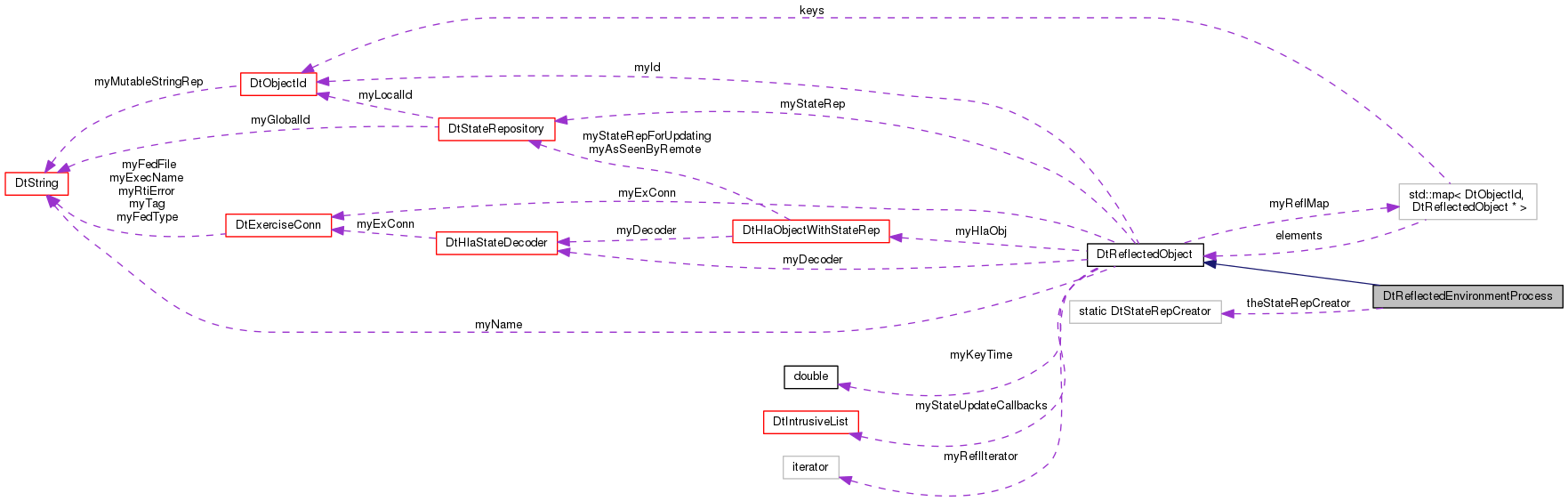

Collaboration diagram for DtReflectedEnvironmentProcess:

Public Types
typedef DtEnvironmentProcessRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtEnvironmentProcessRepositories. More...

Public Types inherited from DtReflectedObject
typedef DtStateRepository (	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedEnvironmentProcess (DtHlaObject obj, DtExerciseConn conn)
	constructor More...

virtual	~DtReflectedEnvironmentProcess ()
	destructor More...

virtual DtEnvironmentProcessRepository *	environmentProcessStateRep () const
	Get the environmental process's state repository. More...

virtual DtEnvironmentProcessRepository *	epsr () const
	Synonym for environmentProcessRep(). More...

virtual DtReflectedEnvironmentProcess *	next () const
	Get the next remote environmental process. More...

virtual DtReflectedEnvironmentProcess *	prev () const
	Get the previous remote environmental process. More...

virtual DtReflectedEnvironmentProcess *	wrapNext () const
	Get the next remote environmental process. More...

virtual DtReflectedEnvironmentProcess *	wrapPrev () const
	Get the previous remote environmental process. More...

virtual void	addPostUpdateCallback (DtEnvironmentProcessCallbackFunction cb, void *userData)
	Environmental process state callback registration/deregistration. More...

virtual void	removePostUpdateCallback (DtEnvironmentProcessCallbackFunction cb, void *userData)

Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn conn, DtStateRepository stateRep)
	Primary constructor. More...

	DtReflectedObject (DtHlaObject obj, DtExerciseConn conn, DtBaseStateRepCreator creator)
	Older constructor. More...

	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...

virtual	~DtReflectedObject ()
	destructor More...

virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...

virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...

virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...

virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...

virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...

virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...

virtual const DtString &	name () const
	Get the HLA object name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...

virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...

virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...

virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...

virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...

virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...

virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...

virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...

void	setHlaObject (DtHlaObject obj, DtHlaStateDecoder decoder=NULL)
	Start reflecting this object, using this decoder. More...

virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...

void	detachHlaObject ()
	Ends managing of current HLA object. More...

virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...

virtual DtTime	keyTime () const
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...

virtual void	setKeyTime (DtTime timeValue)
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Protected Member Functions
	DtReflectedEnvironmentProcess (const DtReflectedEnvironmentProcess &orig)
	copy constructor – not implemented More...

DtReflectedEnvironmentProcess &	operator= (const DtReflectedEnvironmentProcess &orig)
	assignment operator – not implemented More...

Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...

DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...

virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject obj, void usr)
	Callback from HlaObject to process post update callbacks. More...

Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtHlaStateDecoder *	myDecoder

DtIntrusiveList	myStateUpdateCallbacks

DtObjectId	myId

DtString	myName

DtTime	myKeyTime

DtRefHlaObjectMap::iterator	myReflIterator

DtRefHlaObjectMap *	myReflMap

Detailed Description

Instances of DtReflectedEnvironmentProcess are used to represent an Instance of an EnvironmentProcess HLA Object which was published remotely.

Examples: Environmental Process Example

Member Typedef Documentation

typedef DtEnvironmentProcessRepository*(* DtReflectedEnvironmentProcess::DtStateRepCreator)()

Function prototype for functions that create DtEnvironmentProcessRepositories.

Constructor & Destructor Documentation

DtReflectedEnvironmentProcess::DtReflectedEnvironmentProcess	(	DtHlaObject *	obj,
		DtExerciseConn *	conn
	)

constructor

virtual DtReflectedEnvironmentProcess::~DtReflectedEnvironmentProcess ( )

virtual

destructor

DtReflectedEnvironmentProcess::DtReflectedEnvironmentProcess ( const DtReflectedEnvironmentProcess & orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedEnvironmentProcess::addPostUpdateCallback	(	DtEnvironmentProcessCallbackFunction	cb,
		void *	userData
	)

virtual

Environmental process state callback registration/deregistration.

DtEnvironmentProcessRepository * DtReflectedEnvironmentProcess::environmentProcessStateRep ( ) const

inlinevirtual

Get the environmental process's state repository.

References DtReflectedObject::myStateRep.

DtEnvironmentProcessRepository * DtReflectedEnvironmentProcess::epsr ( ) const

inlinevirtual

Synonym for environmentProcessRep().

References DtReflectedObject::myStateRep.

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::next ( ) const

virtual

Get the next remote environmental process.

DtReflectedEnvironmentProcess& DtReflectedEnvironmentProcess::operator= ( const DtReflectedEnvironmentProcess & orig )

protected

assignment operator – not implemented

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::prev ( ) const

virtual

Get the previous remote environmental process.

virtual void DtReflectedEnvironmentProcess::removePostUpdateCallback	(	DtEnvironmentProcessCallbackFunction	cb,
		void *	userData
	)

virtual

static DtStateRepCreator DtReflectedEnvironmentProcess::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::wrapNext ( ) const

virtual

Get the next remote environmental process.

Will cycle back to the first remote designator.

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::wrapPrev ( ) const

virtual

Get the previous remote environmental process.

Will cycle back to the last remote designator.

Member Data Documentation

DtStateRepCreator DtReflectedEnvironmentProcess::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

reflectedEnvironmentProcessHLA.h
