class DtRepairCompleteInteraction: More...

Inheritance diagram for DtRepairCompleteInteraction:

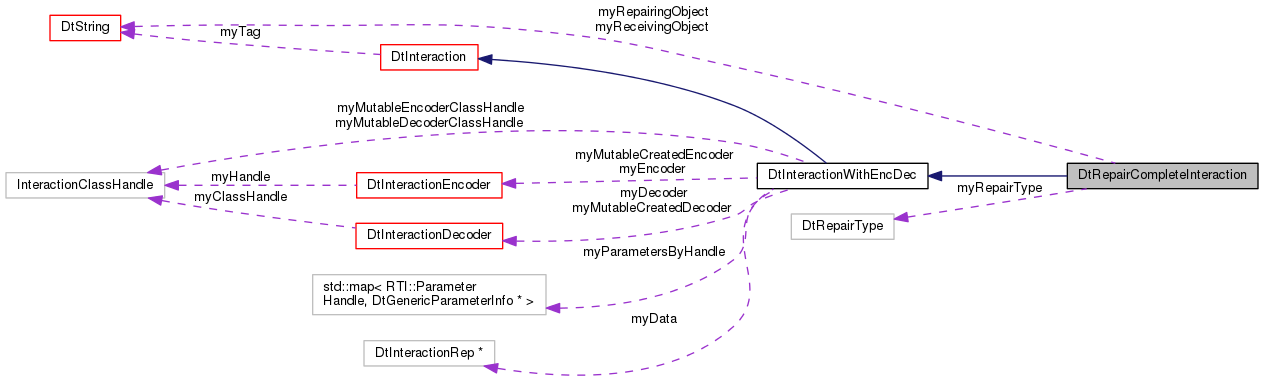

Collaboration diagram for DtRepairCompleteInteraction:

Public Member Functions
	DtRepairCompleteInteraction ()
	default constructor More...

virtual	~DtRepairCompleteInteraction ()
	destructor More...

	DtRepairCompleteInteraction (const DtRepairCompleteInteraction &orig)
	copy constructor More...

DtRepairCompleteInteraction &	operator= (const DtRepairCompleteInteraction &orig)
	assignment operator More...

virtual void	printData () const
	Print the interaction's data to DtInfo. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream. More...

virtual void	setReceivingId (const DtGlobalObjectDesignator &id)
	Set/Get the receiving object. More...

virtual const DtGlobalObjectDesignator &	receivingId () const

virtual void	setRepairingId (const DtGlobalObjectDesignator &id)
	Set/Get the repairing object. More...

virtual const DtGlobalObjectDesignator &	repairingId () const

virtual void	setRepairType (DtRepairType type)
	Set/Get the repair type. More...

virtual DtRepairType	repairType () const

virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.) More...

Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor More...

virtual	~DtInteractionWithEncDec ()
	destructor More...

	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor More...

DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator More...

virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor. More...

virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction. More...

virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Set contents from a parameter handle value pair set. More...

virtual void	useThese (DtInteractionEncoder enc, DtInteractionDecoder dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding. More...

virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using. More...

virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using. More...

virtual void	setParameterByHandle (const RTI::ParameterHandle &attrHdl, const char *attrValue, unsigned size)
	Set the Parameter with the given handle. More...

virtual const char *	getParameterByHandle (const RTI::ParameterHandle &attrHdl, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given handle. More...

virtual void	setParameterByName (const DtString &name, const char *attrValue, unsigned size)
	Set the Parameter with the given name. More...

virtual const char *	getParameterByName (const DtString &name, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given name. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc. More...

virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc. More...

virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc. More...

virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise. More...

virtual void	print () const
	Print the interaction's host rep data, including header. More...

virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream. More...

virtual void	printHeader () const
	Print the header info. More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream. More...

virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided. More...

virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters. More...

virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream. More...

virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection. More...

virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction. More...

virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not. More...

virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag. More...

virtual void	setTag (const DtString &tag)
	Set the user-defined tag. More...

virtual const DtString &	tag () const
	Get the user-defined tag. More...

virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message. More...

virtual void	setConveyedRegion (const RTI::Region *region)

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time. More...

virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions. More...

virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set. More...

virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle. More...

virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle. More...

Static Public Member Functions
static DtInteraction *	create ()
	Create a DtRepairCompleteInteraction. More...

static void	addCallback (DtExerciseConn conn, DtRepairCompleteInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs. More...

static void	removeCallback (DtExerciseConn conn, DtRepairCompleteInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp. More...

static bool	tagIsAsciiTime ()

static void	addCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes. More...

static void	removeCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class. More...

static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Attributes
DtGlobalObjectDesignator	myReceivingObject

DtGlobalObjectDesignator	myRepairingObject

DtRepairType	myRepairType

Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder

DtInteractionEncoder *	myEncoder

DtInteractionRep *	myData

std::map< RTI::ParameterHandle, DtGenericParameterInfo * >	myParametersByHandle
	parameters by handle. More...

Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc

DtExerciseConn *	myExConn

DtTime	myTime

DtTimeStampType	myTimeType

DtString	myTag

RTI::ParameterHandleValuePairSet *	myPvList

int	myPvListMaxSize

RTI::FedTime *	myFedTime

RTI::EventRetractionHandle	myRetractionHandle

const RTI::Region *	myConveyedRegion

bool	myCustomTagSet

Additional Inherited Members
Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder. More...

virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder. More...

virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction. More...

virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction. More...

Protected Member Functions inherited from DtInteraction
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use. More...

virtual RTI::ParameterHandleValuePairSet *	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps. More...

DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors). More...

Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

class DtRepairCompleteInteraction:

Instances of DtRepairCompleteInteraction are used to represent RepairComplete Interactions in the RPR FOM.

Constructor & Destructor Documentation

DtRepairCompleteInteraction::DtRepairCompleteInteraction ( )

default constructor

virtual DtRepairCompleteInteraction::~DtRepairCompleteInteraction ( )

virtual

destructor

DtRepairCompleteInteraction::DtRepairCompleteInteraction ( const DtRepairCompleteInteraction & orig )

copy constructor

Member Function Documentation

static void DtRepairCompleteInteraction::addCallback	(	DtExerciseConn *	conn,
		DtRepairCompleteInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtRepairCompleteInteraction::create ( )

static

Create a DtRepairCompleteInteraction.

Caller is responsible for deletion.

const char * DtRepairCompleteInteraction::name ( ) const

inlinevirtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

DtRepairCompleteInteraction& DtRepairCompleteInteraction::operator= ( const DtRepairCompleteInteraction & orig )

assignment operator

virtual void DtRepairCompleteInteraction::printData ( ) const

virtual

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtRepairCompleteInteraction::printDataToStream ( std::ostream & stream ) const

virtual

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

const DtGlobalObjectDesignator & DtRepairCompleteInteraction::receivingId ( ) const

inlinevirtual

References myReceivingObject.

static void DtRepairCompleteInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtRepairCompleteInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)
