Instances of DtAerodromeDecoder are used to decode data from the network into DtAerodromeStateRepository objects. More...

Inheritance diagram for DtAerodromeDecoder:

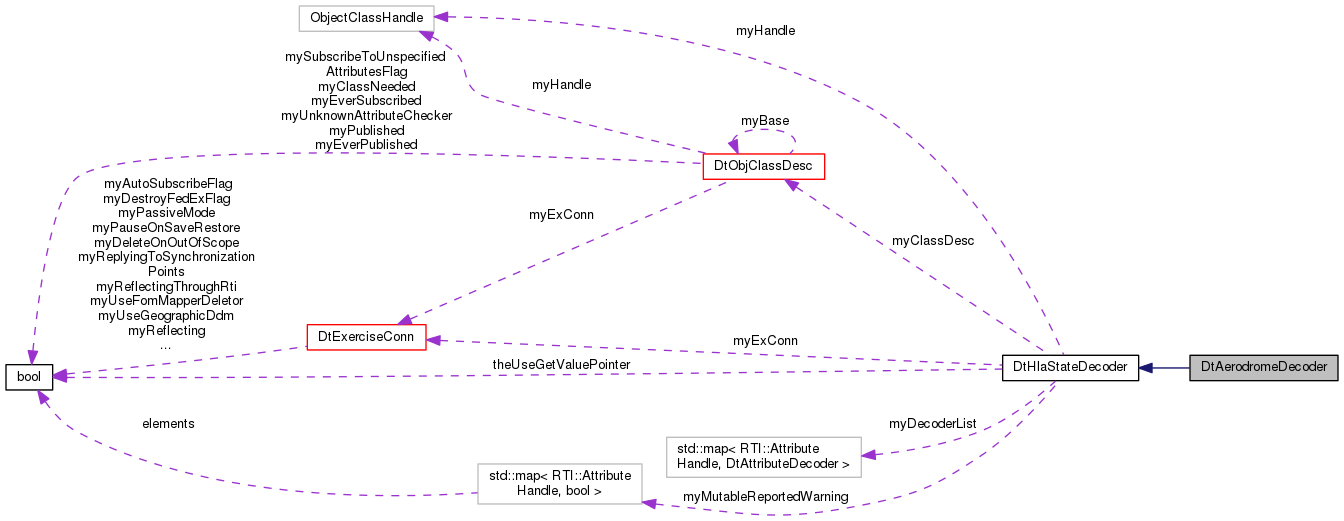

Collaboration diagram for DtAerodromeDecoder:

Public Member Functions
	DtAerodromeDecoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	Default constructor. More...

virtual	~DtAerodromeDecoder ()
	Destructor. More...

	DtAerodromeDecoder (const DtAerodromeDecoder &orig)
	Copy constructor. More...

DtAerodromeDecoder &	operator= (const DtAerodromeDecoder &orig)
	Assignment operator. More...

Public Member Functions inherited from DtHlaStateDecoder
	DtHlaStateDecoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtHlaStateDecoder ()
	destructor More...

	DtHlaStateDecoder (const DtHlaStateDecoder &orig)
	copy constructor More...

DtHlaStateDecoder &	operator= (const DtHlaStateDecoder &orig)
	assignment operator More...

DtAttributeDecoder	addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func)
	Add/Remove a decoding function for the attribute specified by handle. More...

DtAttributeDecoder	removeDecoder (RTI::AttributeHandle h)

DtAttributeDecoder	addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true)
	Add/Remove a decoding function for the attribute specified by name. More...

DtAttributeDecoder	removeDecoder (char *attrName, bool complain=true)

virtual DtAttributeDecoder	decoder (const RTI::AttributeHandle &handle) const
	Get the attribute decoder for the specified handle. More...

virtual void	decode (const DtStateMsg &msg, DtStateRepository *stateRep) const
	Decode the state message into the state repository. More...

virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle. More...

virtual DtHlaStateDecoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual DtHlaStateDecoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

Static Public Member Functions
static DtHlaStateDecoder *	create (DtExerciseConn exConn, DtObjClassDesc classDesc)
	Creates an instance of DtAerodromeDecoder. More...

Static Public Member Functions inherited from DtHlaStateDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...

static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length)
	Returns a pointer to the attribute data. More...

static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName)
	Gets the attribute data and checks the expected size. More...

static DtNetEventId *	eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index)
	Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More...

static std::wstring	wideStringFromHlaUnicodeString (char buffer, int size, bool error=nullptr)
	Gets data from an incoming buffer as a HlaUnicodeString and decodes it as a wide string. More...

static bool	getVectorFromArrayOfUuid (char *buffer, int size, std::vector< DtVrlUuid > &uuids)
	Gets data from an incoming buffer as an ArrayOfUuid and decodes it as a vector of type DtVrlUuid. More...

Static Protected Member Functions
static void	decodeUniqueId (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes UniqueId from attrs into rep. More...

static void	decodeForceIdentifier (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes ForceIdentifier from attrs into rep. More...

static void	decodeActive (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes Active from attrs into rep. More...

static void	decodeAirportCode (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes AirportCode from attrs into rep. More...

static void	decodeApronLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes ApronLight from attrs into rep. More...

static void	decodeApronFloodLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes ApronFloodLight from attrs into rep. More...

static void	decodeClearanceBarLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes ClearanceBarLight from attrs into rep. More...

static void	decodeTaxiwayCentreLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes TaxiwayCentreLight from attrs into rep. More...

static void	decodeTaxiwayEdgeLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes TaxiwayEdgeLight from attrs into rep. More...

static void	decodeTaxiwayIdentifierMarkerBoardLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes TaxiwayIdentifierMarkerBoardLight from attrs into rep. More...

static void	decodeUndercarriageInspectionSystemLight (DtAerodromeStateRepository *rep, const RTI::AttributeHandleValuePairSet &attrs, int pairSetIndex)
	Decodes UndercarriageInspectionSystemLight from attrs into rep. More...

Additional Inherited Members
Public Types inherited from DtHlaStateDecoder
typedef void(*	DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex)
	Attribute decoding function declaration. More...

Static Public Attributes inherited from DtHlaStateDecoder
static bool	theUseGetValuePointer

Protected Types inherited from DtHlaStateDecoder
typedef std::map < RTI::AttributeHandle, DtAttributeDecoder >	AttributeHandleDecoderMap

typedef std::map < RTI::AttributeHandle, bool >	AttributeHandleBoolMap

Protected Member Functions inherited from DtHlaStateDecoder
virtual void	decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const
	Decode the attribute at the specified index in the attribute handle pair set. More...

virtual void	copyDecFuncs (const DtHlaStateDecoder &orig)

Protected Attributes inherited from DtHlaStateDecoder
DtExerciseConn *	myExConn

DtObjClassDesc *	myClassDesc

RTI::ObjectClassHandle	myHandle

AttributeHandleDecoderMap	myDecoderList
	myDecoderList is a map of decoders for each attribute registered to this state. More...

Detailed Description

Instances of DtAerodromeDecoder are used to decode data from the network into DtAerodromeStateRepository objects.

Constructor & Destructor Documentation

DtAerodromeDecoder::DtAerodromeDecoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

Default constructor.

virtual DtAerodromeDecoder::~DtAerodromeDecoder ( )

virtual

Destructor.

DtAerodromeDecoder::DtAerodromeDecoder ( const DtAerodromeDecoder & orig )

Copy constructor.

Member Function Documentation

static DtHlaStateDecoder* DtAerodromeDecoder::create	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

static

Creates an instance of DtAerodromeDecoder.

static void DtAerodromeDecoder::decodeActive	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes Active from attrs into rep.

static void DtAerodromeDecoder::decodeAirportCode	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes AirportCode from attrs into rep.

static void DtAerodromeDecoder::decodeApronFloodLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes ApronFloodLight from attrs into rep.

static void DtAerodromeDecoder::decodeApronLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes ApronLight from attrs into rep.

static void DtAerodromeDecoder::decodeClearanceBarLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes ClearanceBarLight from attrs into rep.

static void DtAerodromeDecoder::decodeForceIdentifier	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes ForceIdentifier from attrs into rep.

static void DtAerodromeDecoder::decodeTaxiwayCentreLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes TaxiwayCentreLight from attrs into rep.

static void DtAerodromeDecoder::decodeTaxiwayEdgeLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes TaxiwayEdgeLight from attrs into rep.

static void DtAerodromeDecoder::decodeTaxiwayIdentifierMarkerBoardLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes TaxiwayIdentifierMarkerBoardLight from attrs into rep.

static void DtAerodromeDecoder::decodeUndercarriageInspectionSystemLight	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes UndercarriageInspectionSystemLight from attrs into rep.

static void DtAerodromeDecoder::decodeUniqueId	(	DtAerodromeStateRepository *	rep,
		const RTI::AttributeHandleValuePairSet &	attrs,
		int	pairSetIndex
	)

staticprotected

Decodes UniqueId from attrs into rep.

DtAerodromeDecoder& DtAerodromeDecoder::operator= ( const DtAerodromeDecoder & orig )

Assignment operator.

The documentation for this class was generated from the following file:

aerodromeDecoderHLA.h
