DtAircraftLightingRecord Class Reference

Attribute record for sending extended Aircraft lighting information across the network. More...

Inheritance diagram for DtAircraftLightingRecord:

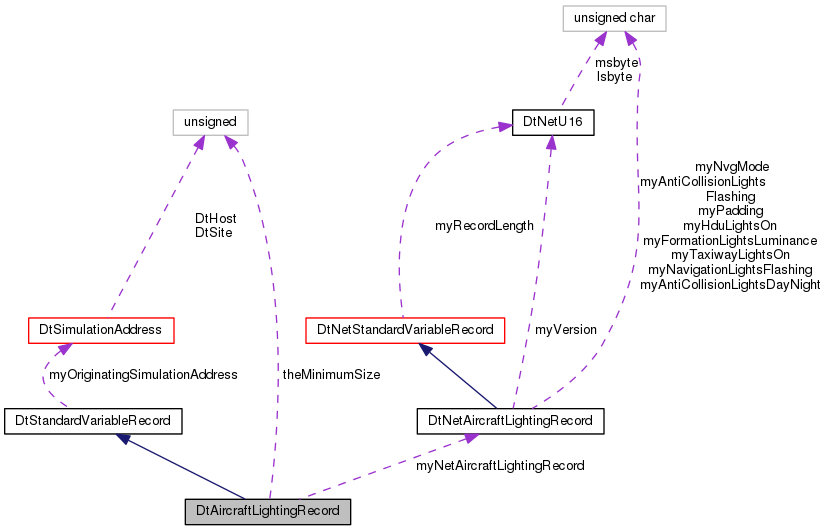

Collaboration diagram for DtAircraftLightingRecord:

Public Member Functions
	DtAircraftLightingRecord ()
	Constructor. More...
	DtAircraftLightingRecord (unsigned int dataType)
	Constructor with record type specified. More...
	DtAircraftLightingRecord (const DtAircraftLightingRecord &orig)
	Copy Constructor. More...
	DtAircraftLightingRecord (void *netBuffer, unsigned int size)
	Net Constructor. More...
virtual	~DtAircraftLightingRecord ()
	Destructor. More...
virtual bool	operator== (const DtAircraftLightingRecord &other)
	Equals operator. More...
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator. More...
virtual void	setAntiCollisionLightsDayNight (const DtAntiCollisionLightsDayNight &lights)
	Set the AntiCollisionLighsDayNight Enum. More...
virtual const DtAntiCollisionLightsDayNight	antiCollisionLightsDayNight () const
	Get the AntiCollisionLightsDayNight. More...
virtual void	setAntiCollisionLightsFlashing (const DtAntiCollisionLightsFlashing &lights)
	Set the antiCollisionLightsFlashing. More...
virtual const DtAntiCollisionLightsFlashing	antiCollisionLightsFlashing () const
	Get the antiCollisionLightsFlashing. More...
virtual void	setFormationLightsLuminance (DtU8 s)
	Set the formationLightsLuminance. More...
virtual const DtU8	formationLightsLuminance () const
	Get the formationLightsLuminance. More...
virtual void	setNavigationLightsFlashing (const DtNavigationLightsFlashing &lights)
	Set the navigationLightsFlashing. More...
virtual const DtNavigationLightsFlashing	navigationLightsFlashing () const
	Get the navigationLightsFlashing. More...
virtual void	setNvgMode (const DtNvgMode &mode)
	Set the NvgMode. More...
virtual const DtNvgMode	nvgMode () const
	Get the NvgMode. More...
virtual void	setTaxiwayLightsOn (const bool &status)
	Set the taxiwayLightsOn. More...
virtual const bool	taxiwayLightsOn () const
	Get the taxiwayLightsOn. More...
virtual void	setHduLightsOn (const bool &status)
	Set the HDULightsOn. More...
virtual const bool	hduLightsOn () const
	Get the HDULightsOn. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from Network Representation from the given location. More...
virtual unsigned	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Get/Set Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Get/Set Record Length. More...
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes. More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...
static unsigned int	recordTypeToUse ()
	Return the DI-Guy Action record type for uuid. More...
static void	setRecordTypeToUse (unsigned int typeToUse)
	Set the record type to use. More...

Protected Attributes
DtNetAircraftLightingRecord	myNetAircraftLightingRecord
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Static Protected Attributes
static const unsigned int	theMinimumSize

Detailed Description

Attribute record for sending extended Aircraft lighting information across the network.

Constructor & Destructor Documentation

DtAircraftLightingRecord::DtAircraftLightingRecord

(

)

Constructor.

DtAircraftLightingRecord::DtAircraftLightingRecord

(

unsigned int

dataType

)

Constructor with record type specified.

DtAircraftLightingRecord::DtAircraftLightingRecord

(

const DtAircraftLightingRecord &

orig

)

Copy Constructor.

DtAircraftLightingRecord::DtAircraftLightingRecord	(	void *	netBuffer,
		unsigned int	size
	)

Net Constructor.

virtual DtAircraftLightingRecord::~DtAircraftLightingRecord ( )

virtual

Destructor.

Member Function Documentation

virtual const DtAntiCollisionLightsDayNight DtAircraftLightingRecord::antiCollisionLightsDayNight ( ) const

virtual

Get the AntiCollisionLightsDayNight.

virtual const DtAntiCollisionLightsFlashing DtAircraftLightingRecord::antiCollisionLightsFlashing ( ) const

virtual

Get the antiCollisionLightsFlashing.

virtual DtStandardVariableRecord* DtAircraftLightingRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtAircraftLightingRecord::create ( void *  addr, unsigned int  length  )

static

Creator of an unknown record for registering in a factory.

virtual const DtU8 DtAircraftLightingRecord::formationLightsLuminance ( ) const

virtual

Get the formationLightsLuminance.

virtual const bool DtAircraftLightingRecord::hduLightsOn ( ) const

virtual

Get the HDULightsOn.

virtual const DtNavigationLightsFlashing DtAircraftLightingRecord::navigationLightsFlashing ( ) const

virtual

Get the navigationLightsFlashing.

virtual unsigned int DtAircraftLightingRecord::netSize ( )

virtual

Returns the size of the network representation (including padding bytes)

Reimplemented from DtStandardVariableRecord.

virtual const DtNvgMode DtAircraftLightingRecord::nvgMode ( ) const

virtual

Get the NvgMode.

virtual bool DtAircraftLightingRecord::operator== ( const DtAircraftLightingRecord &  other )

virtual

Equals operator.

virtual bool DtAircraftLightingRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

virtual void DtAircraftLightingRecord::printData ( ) const

virtual

Prints the data to DtInfo.

Reimplemented from DtStandardVariableRecord.

virtual void DtAircraftLightingRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtAircraftLightingRecord::recordLength ( ) const

virtual

Get/Set Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtAircraftLightingRecord::recordType ( ) const

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static unsigned int DtAircraftLightingRecord::recordTypeToUse ( )

static

Return the DI-Guy Action record type for uuid.

virtual void DtAircraftLightingRecord::setAntiCollisionLightsDayNight ( const DtAntiCollisionLightsDayNight &  lights )

virtual

Set the AntiCollisionLighsDayNight Enum.

virtual void DtAircraftLightingRecord::setAntiCollisionLightsFlashing ( const DtAntiCollisionLightsFlashing &  lights )

virtual

Set the antiCollisionLightsFlashing.

virtual void DtAircraftLightingRecord::setFormationLightsLuminance ( DtU8  s )

virtual

Set the formationLightsLuminance.

virtual void DtAircraftLightingRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from Network Representation from the given location.

Memory must exist for life of the variable record

Implements DtStandardVariableRecord.

virtual void DtAircraftLightingRecord::setHduLightsOn ( const bool &  status )

virtual

Set the HDULightsOn.

virtual void DtAircraftLightingRecord::setNavigationLightsFlashing ( const DtNavigationLightsFlashing &  lights )

virtual

Set the navigationLightsFlashing.

virtual void DtAircraftLightingRecord::setNvgMode ( const DtNvgMode &  mode )

virtual

Set the NvgMode.

virtual void DtAircraftLightingRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtAircraftLightingRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static void DtAircraftLightingRecord::setRecordTypeToUse ( unsigned int  typeToUse )

static

Set the record type to use.

virtual void DtAircraftLightingRecord::setTaxiwayLightsOn ( const bool &  status )

virtual

Set the taxiwayLightsOn.

virtual const bool DtAircraftLightingRecord::taxiwayLightsOn ( ) const

virtual

Get the taxiwayLightsOn.

virtual unsigned DtAircraftLightingRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

virtual void DtAircraftLightingRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetAircraftLightingRecord DtAircraftLightingRecord::myNetAircraftLightingRecord

protected

const unsigned int DtAircraftLightingRecord::theMinimumSize

staticprotected

---

The documentation for this class was generated from the following file:

• aircraftLightingRecord.h
