DtMode1StateRepository Class Reference

Instances of DtMode1StateRepository are used to store state data for IFFData.Mode1 objects. More...

Inheritance diagram for DtMode1StateRepository:

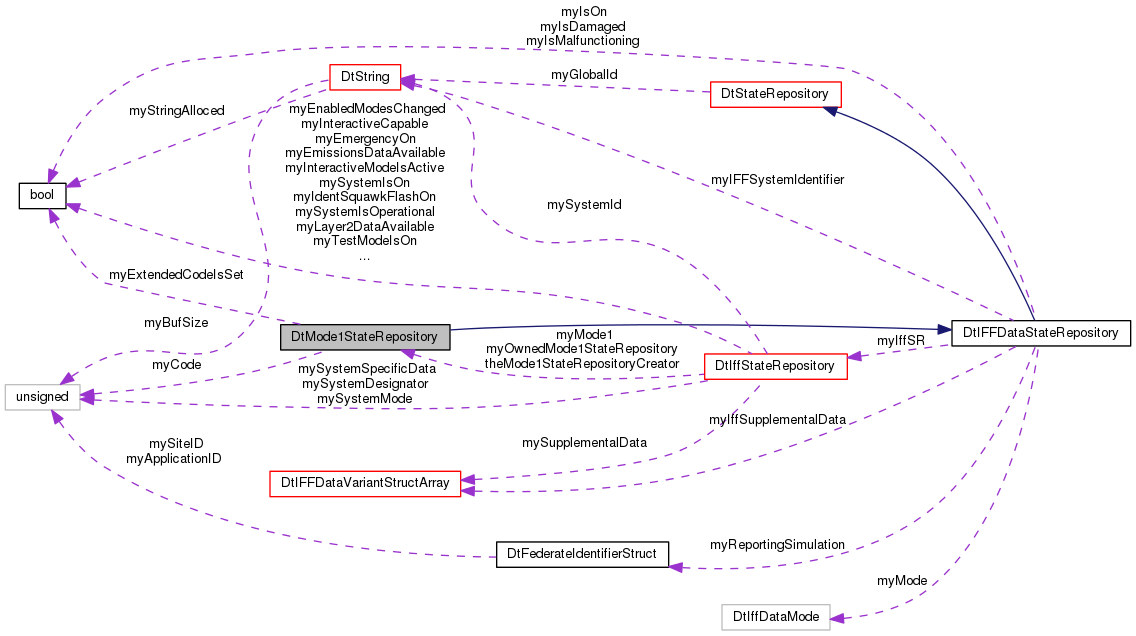

Collaboration diagram for DtMode1StateRepository:

Public Member Functions
	DtMode1StateRepository ()
	Constructor. More...
virtual	~DtMode1StateRepository ()
	Destructor. More...
	DtMode1StateRepository (const DtMode1StateRepository &orig)
	Copy Constructor. More...
DtMode1StateRepository &	operator= (const DtMode1StateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
Mode1 Transponder-Specific Attributes
Set the Code attribute Parameters val Specifies two octal values in the range 00 to 73 with the first digit in the range 0 to 7 and the second digit in the range 0 to 3 reading left to right
virtual void	setCode (DtU16 val)
	Get the Code attribute. More...
virtual DtU16	code () const
	Get the Code attribute. More...
virtual void	setExtendedCodeIsSet (bool val)
	Set the ExtendedCodeIsSet attribute. More...
virtual bool	extendedCodeIsSet () const
	Get the ExtendedCodeIsSet attribute. More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the SupplementalData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtMode1StateRepository *	create ()
	Create a DtMode1StateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtU16	myCode
bool	myExtendedCodeIsSet
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtMode1StateRepository are used to store state data for IFFData.Mode1 objects.

Constructor & Destructor Documentation

DtMode1StateRepository::DtMode1StateRepository

(

)

Constructor.

virtual DtMode1StateRepository::~DtMode1StateRepository ( )

virtual

Destructor.

DtMode1StateRepository::DtMode1StateRepository

(

const DtMode1StateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtMode1StateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

virtual DtU16 DtMode1StateRepository::code ( ) const

virtual

Get the Code attribute.

static DtMode1StateRepository* DtMode1StateRepository::create ( )

static

Create a DtMode1StateRepository.

virtual bool DtMode1StateRepository::extendedCodeIsSet ( ) const

virtual

Get the ExtendedCodeIsSet attribute.

DtMode1StateRepository& DtMode1StateRepository::operator=

(

const DtMode1StateRepository &

orig

)

Assignment Operator.

virtual void DtMode1StateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode1StateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode1StateRepository::setCode ( DtU16  val )

virtual

Get the Code attribute.

virtual void DtMode1StateRepository::setExtendedCodeIsSet ( bool  val )

virtual

Set the ExtendedCodeIsSet attribute.

Parameters

val	boolean Specifies whether or not Mark XIIA Enhanced Mode 1 is on

Member Data Documentation

DtU16 DtMode1StateRepository::myCode

protected

bool DtMode1StateRepository::myExtendedCodeIsSet

protected

---

The documentation for this class was generated from the following file:

• iffMode1StateRepository.h
