VR-Link API Documentation for HLA 1516
|
Instances of DtMode2StateRepository are used to store state data for IFFData.Mode2 objects. More...

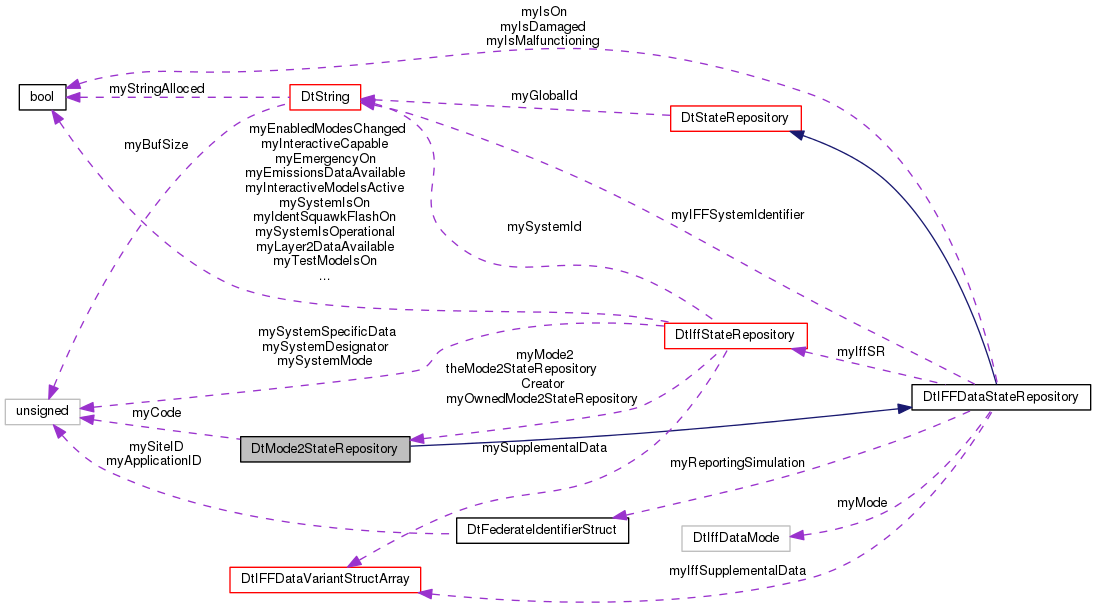

Inheritance diagram for DtMode2StateRepository: Collaboration diagram for DtMode2StateRepository:Public Member Functions | |||
| DtMode2StateRepository () | |||
| Constructor. More... | |||
| virtual | ~DtMode2StateRepository () | ||
| Destructor. More... | |||
| DtMode2StateRepository (const DtMode2StateRepository &orig) | |||
| Copy Constructor. More... | |||
| DtMode2StateRepository & | operator= (const DtMode2StateRepository &orig) | ||
| Assignment Operator. More... | |||
| virtual DtStateRepository * | clone (bool copy) const | ||
| Return a copy/empty object of the same type as this. More... | |||
| virtual void | printData () const | ||
| Print data to the DtInfo stream. More... | |||
| virtual void | printDataToStream (std::ostream &stream) const | ||
| Print data to the specified stream. More... | |||
Mode2 Transponder-Specific Attributes | |||
Set the Code attribute
| |||
| virtual void | setCode (DtU16 val) | ||
| Get the Code attribute. More... | |||
| virtual DtU16 | code () const | ||
| Get the Code attribute. More... | |||
| Public Member Functions inherited from DtIFFDataStateRepository | |||
| DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk) | |||
| Constructor. More... | |||
| virtual | ~DtIFFDataStateRepository () | ||
| Destructor. More... | |||
| DtIFFDataStateRepository (const DtIFFDataStateRepository &orig) | |||
| Copy Constructor. More... | |||
| DtIFFDataStateRepository & | operator= (const DtIFFDataStateRepository &orig) | ||
| Assignment Operator. More... | |||
| virtual void | setIsOn (bool val) | ||
| Set the IsOn attribute. More... | |||
| virtual bool | isOn () const | ||
| Get the IsOn attribute. More... | |||
| virtual void | setIsDamaged (bool val) | ||
| Set the IsDamaged attribute. More... | |||
| virtual bool | isDamaged () const | ||
| Get the IsDamaged attribute. More... | |||
| virtual void | setIsMalfunctioning (bool val) | ||
| Set the IsMalfunctioning attribute. More... | |||
| virtual bool | isMalfunctioning () const | ||
| Get the IsMalfunctioning attribute. More... | |||
| virtual void | setIFFSystemIdentifier (const DtGlobalObjectDesignator &val) | ||
| Set the IFFSystemIdentifier. More... | |||
| virtual const DtGlobalObjectDesignator & | IFFSystemIdentifier () const | ||
| Get the IFFSystemIdentifier. More... | |||
| virtual void | setIFFData (const DtIFFDataVariantStructArray &val) | ||
| Set the SupplementalData. More... | |||
| virtual const DtIFFDataVariantStructArray & | IFFData () const | ||
| Get the IFFSystemIdentifier. More... | |||
| virtual void | setReportingSimulation (const DtFederateIdentifierStruct &val) | ||
| Set the ReportingSimulation attribute. More... | |||
| virtual const DtFederateIdentifierStruct & | reportingSimulation () const | ||
| Get the ReportingSimulation. More... | |||
| virtual void | setIffStateRepository (const DtIffStateRepository *sr) | ||
| virtual const DtIffStateRepository * | isr () const | ||
| Public Member Functions inherited from DtStateRepository | |||
| DtStateRepository () | |||
| default constructor More... | |||
| DtStateRepository (const DtStateRepository &orig) | |||
| copy constructor More... | |||
| virtual | ~DtStateRepository () | ||
| destructor More... | |||
| DtStateRepository & | operator= (const DtStateRepository &orig) | ||
| assignment operator More... | |||
| virtual void | setGlobalId (const DtString &id) | ||
| Get/Set global identifier, or name. More... | |||
| virtual const DtString & | globalId () const | ||
| virtual void | setLocalId (const DtObjectId &id) | ||
| Get/Set local identifier, or handle. More... | |||
| virtual const DtObjectId & | localId () const | ||
| virtual bool | publishesAttribute (const RTI::AttributeHandle &val) const | ||
| Returns true if the attribute is published. More... | |||
| virtual void | setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size) | ||
| Set the attribute with the given handle. More... | |||
| virtual const char * | getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const | ||
| Get a pointer to attribute value for the attribute with the given handle. More... | |||
| virtual void | setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj) | ||
| Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More... | |||
| virtual const char * | getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const | ||
| Get a pointer to attribute value for the attribute with the given name. More... | |||
| virtual const char * | getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const | ||
| Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More... | |||
| virtual DtStateRepositoryExtension * | stateRepositoryExtension (DtString srExtName) const | ||
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |||
| virtual std::vector< DtString > | stateRepositoryExtensionNames () const | ||
| Returns a set of the registered state repository extension names. More... | |||
| virtual void | setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions) | ||
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |||
| virtual const std::map < DtString, DtStateRepositoryExtension * > | stateRepositoryExtensions () const | ||
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |||
Static Public Member Functions | |
| static DtMode2StateRepository * | create () |
| Create a DtMode2StateRepository. More... | |
| Static Public Member Functions inherited from DtIFFDataStateRepository | |
| static DtIFFDataStateRepository * | create () |
| Create a DtIFFDataStateRepository. More... | |
| Static Public Member Functions inherited from DtStateRepository | |
| static bool | addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc) |
| The following functions are for extending state repositories through State Repository Extension classes. More... | |
Protected Attributes | |
| DtU16 | myCode |
| Protected Attributes inherited from DtIFFDataStateRepository | |
| DtGlobalObjectDesignator | myIFFSystemIdentifier |
| DtIFFDataVariantStructArray | myIffSupplementalData |
| DtFederateIdentifierStruct | myReportingSimulation |
| DtIffDataMode | myMode |
| const DtIffStateRepository * | myIffSR |
| bool | myIsOn |
| bool | myIsDamaged |
| bool | myIsMalfunctioning |
Additional Inherited Members | |
| Public Types inherited from DtStateRepository | |
| typedef std::map< DtString, DtStateRepositoryExtension * > | DtStateRepositoryExtensionMap |
| Public Attributes inherited from DtStateRepository | |
| DtString | myGlobalId |
| DtObjectId | myLocalId |
| std::map< RTI::AttributeHandle, DtGenericAttributeInfo * > | myAttributesByHandle |
| Attributes by handle. More... | |
| DtStateRepositoryExtensionMap | myStateRepositoryExtensionMap |
| Static Public Attributes inherited from DtStateRepository | |
| static std::map< DtString, DtSrExtCreatorFnc > | theStateRepositoryExtensionCreatorMap |
Instances of DtMode2StateRepository are used to store state data for IFFData.Mode2 objects.
| DtMode2StateRepository::DtMode2StateRepository | ( | ) |
Constructor.
|
virtual |
Destructor.
| DtMode2StateRepository::DtMode2StateRepository | ( | const DtMode2StateRepository & | orig | ) |
Copy Constructor.
|
virtual |
Return a copy/empty object of the same type as this.
Reimplemented from DtIFFDataStateRepository.
|
virtual |
Get the Code attribute.
|
static |
Create a DtMode2StateRepository.
| DtMode2StateRepository& DtMode2StateRepository::operator= | ( | const DtMode2StateRepository & | orig | ) |
Assignment Operator.
|
virtual |
Print data to the DtInfo stream.
Reimplemented from DtIFFDataStateRepository.
|
virtual |
Print data to the specified stream.
Reimplemented from DtIFFDataStateRepository.
|
virtual |
Get the Code attribute.
|
protected |
