DtRRBStateRepository Class Reference

Instances of DtRRBStateRepository are used to store state data for IFFData.RRB objects. More...

Inheritance diagram for DtRRBStateRepository:

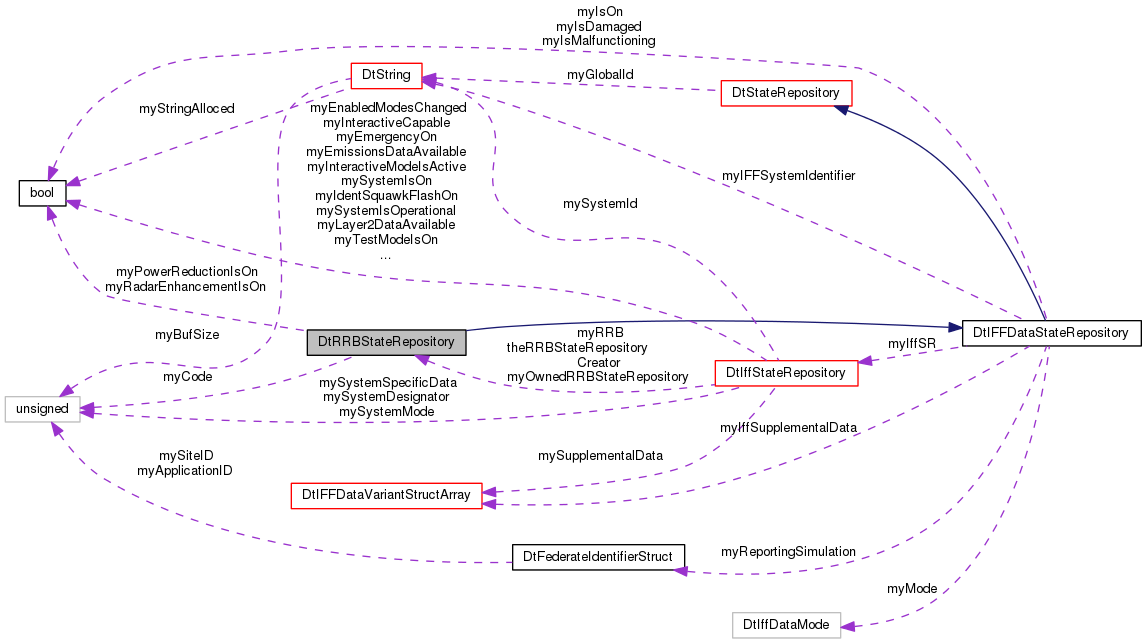

Collaboration diagram for DtRRBStateRepository:

Public Member Functions
	DtRRBStateRepository ()
	Constructor. More...
virtual	~DtRRBStateRepository ()
	Destructor. More...
	DtRRBStateRepository (const DtRRBStateRepository &orig)
	Copy Constructor. More...
DtRRBStateRepository &	operator= (const DtRRBStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
RRB-Specific Attributes
Set the Code attribute Parameters val RRB Code (range 0-16)
virtual void	setCode (DtU8 val)
	Get the Code attribute. More...
virtual DtU8	code () const
	Get the Code attribute. More...
virtual void	setPowerReductionIsOn (bool val)
	Set the PowerReductionIsOn attribute. More...
virtual bool	powerReductionIsOn () const
	Get the PowerReductionIsOn attribute. More...
virtual void	setRadarEnhancementIsOn (bool val)
	Set the RadarEnhancementIsOn attribute. More...
virtual bool	radarEnhancementIsOn () const
	Get the PowerReductionIsOn attribute. More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the SupplementalData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtRRBStateRepository *	create ()
	Create a DtRRBStateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtU8	myCode
bool	myPowerReductionIsOn
bool	myRadarEnhancementIsOn
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtRRBStateRepository are used to store state data for IFFData.RRB objects.

Constructor & Destructor Documentation

DtRRBStateRepository::DtRRBStateRepository

(

)

Constructor.

virtual DtRRBStateRepository::~DtRRBStateRepository ( )

virtual

Destructor.

DtRRBStateRepository::DtRRBStateRepository

(

const DtRRBStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtRRBStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

virtual DtU8 DtRRBStateRepository::code ( ) const

virtual

Get the Code attribute.

static DtRRBStateRepository* DtRRBStateRepository::create ( )

static

Create a DtRRBStateRepository.

DtRRBStateRepository& DtRRBStateRepository::operator=

(

const DtRRBStateRepository &

orig

)

Assignment Operator.

virtual bool DtRRBStateRepository::powerReductionIsOn ( ) const

virtual

Get the PowerReductionIsOn attribute.

virtual void DtRRBStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtRRBStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual bool DtRRBStateRepository::radarEnhancementIsOn ( ) const

virtual

Get the PowerReductionIsOn attribute.

virtual void DtRRBStateRepository::setCode ( DtU8  val )

virtual

Get the Code attribute.

virtual void DtRRBStateRepository::setPowerReductionIsOn ( bool  val )

virtual

Set the PowerReductionIsOn attribute.

Parameters

val	boolean Specifies whether or not power reduction is on

virtual void DtRRBStateRepository::setRadarEnhancementIsOn ( bool  val )

virtual

Set the RadarEnhancementIsOn attribute.

Parameters

val	boolean Specifies whether or not the radar enhancement is on

Member Data Documentation

DtU8 DtRRBStateRepository::myCode

protected

bool DtRRBStateRepository::myPowerReductionIsOn

protected

bool DtRRBStateRepository::myRadarEnhancementIsOn

protected

---

The documentation for this class was generated from the following file:

• iffRRBStateRepository.h
