DtEncodedAudioRadioSignalEncoder Class Reference

class DtEncodedAudioRadioSignalEncoder: More...

Inheritance diagram for DtEncodedAudioRadioSignalEncoder:

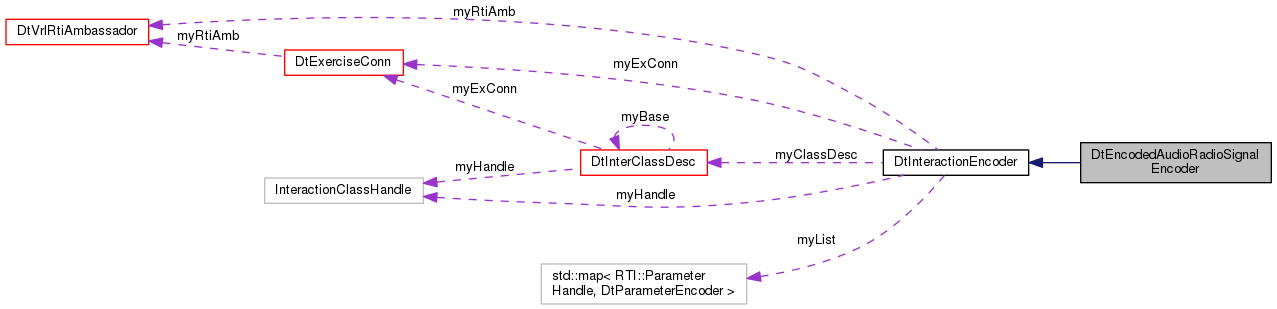

Collaboration diagram for DtEncodedAudioRadioSignalEncoder:

Public Member Functions
	DtEncodedAudioRadioSignalEncoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	default constructor More...
virtual	~DtEncodedAudioRadioSignalEncoder ()
	destructor More...
	DtEncodedAudioRadioSignalEncoder (const DtEncodedAudioRadioSignalEncoder &orig)
	copy constructor More...
DtEncodedAudioRadioSignalEncoder &	operator= (const DtEncodedAudioRadioSignalEncoder &orig)
	assignment operator More...
Public Member Functions inherited from DtInteractionEncoder
	DtInteractionEncoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionEncoder ()
	destructor More...
	DtInteractionEncoder (const DtInteractionEncoder &orig)
	copy constructor More...
DtInteractionEncoder &	operator= (const DtInteractionEncoder &orig)
	assignment operator More...
virtual DtParameterEncoder	addEncoder (RTI::ParameterHandle hand, DtParameterEncoder func)
	Add a parameter encoder function by parameter handle. More...
virtual DtParameterEncoder	addEncoder (char *name, DtParameterEncoder proc)
	Add a parameter encoder function by parameter name. More...
virtual DtParameterEncoder	encoder (RTI::ParameterHandle hand)
	Get the parameter encoder for the specified handle. More...
virtual void	encode (const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *pvList)
	Encode necessary values from the protocol-independent interaction. More...
virtual RTI::InteractionClassHandle	interClassHandle ()
	Get the object's class handle. More...
virtual DtInteractionEncoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionEncoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (HostRadioIndex)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (TransmitterSignalEncodingType)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (SignalSampleRate)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (SampleCount)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (SignalDataLength)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (SignalData)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (HostRadioID)
	RPR FOM <= 0.8 compatibility. More...
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (EncodingType)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (SampleRate)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER (AudioData)
	RPR FOM > 2.0007. More...

Additional Inherited Members
Public Types inherited from DtInteractionEncoder
typedef void(*	DtParameterEncoder )(const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
	Attribute encoding function declaration. More...
Static Public Member Functions inherited from DtInteractionEncoder
static void	encodeGenericParameter (const DtInteractionWithEncDec &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
Protected Attributes inherited from DtInteractionEncoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
DtVrlRtiAmbassador *	myRtiAmb
RTI::InteractionClassHandle	myHandle
std::map< RTI::ParameterHandle, DtParameterEncoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

class DtEncodedAudioRadioSignalEncoder:

Instances of DtEncodedAudioRadioSignalEncoder are used to encode and interaction message for an audio radio signal state repository in an HLA environment.

Constructor & Destructor Documentation

DtEncodedAudioRadioSignalEncoder::DtEncodedAudioRadioSignalEncoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

default constructor

virtual DtEncodedAudioRadioSignalEncoder::~DtEncodedAudioRadioSignalEncoder ( )

virtual

destructor

DtEncodedAudioRadioSignalEncoder::DtEncodedAudioRadioSignalEncoder

(

const DtEncodedAudioRadioSignalEncoder &

orig

)

copy constructor

Member Function Documentation

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( HostRadioIndex  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( TransmitterSignalEncodingType  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( SignalSampleRate  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( SampleCount  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( SignalDataLength  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( SignalData  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( HostRadioID  )

protected

RPR FOM <= 0.8 compatibility.

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( EncodingType  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( SampleRate  )

protected

DtEncodedAudioRadioSignalEncoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_ENCODER ( AudioData  )

protected

RPR FOM > 2.0007.

DtEncodedAudioRadioSignalEncoder& DtEncodedAudioRadioSignalEncoder::operator=

(

const DtEncodedAudioRadioSignalEncoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• encodedAudioRadioSignalEncoder.h
