class DtReflectedPointObjectList: More...

Inheritance diagram for DtReflectedPointObjectList:

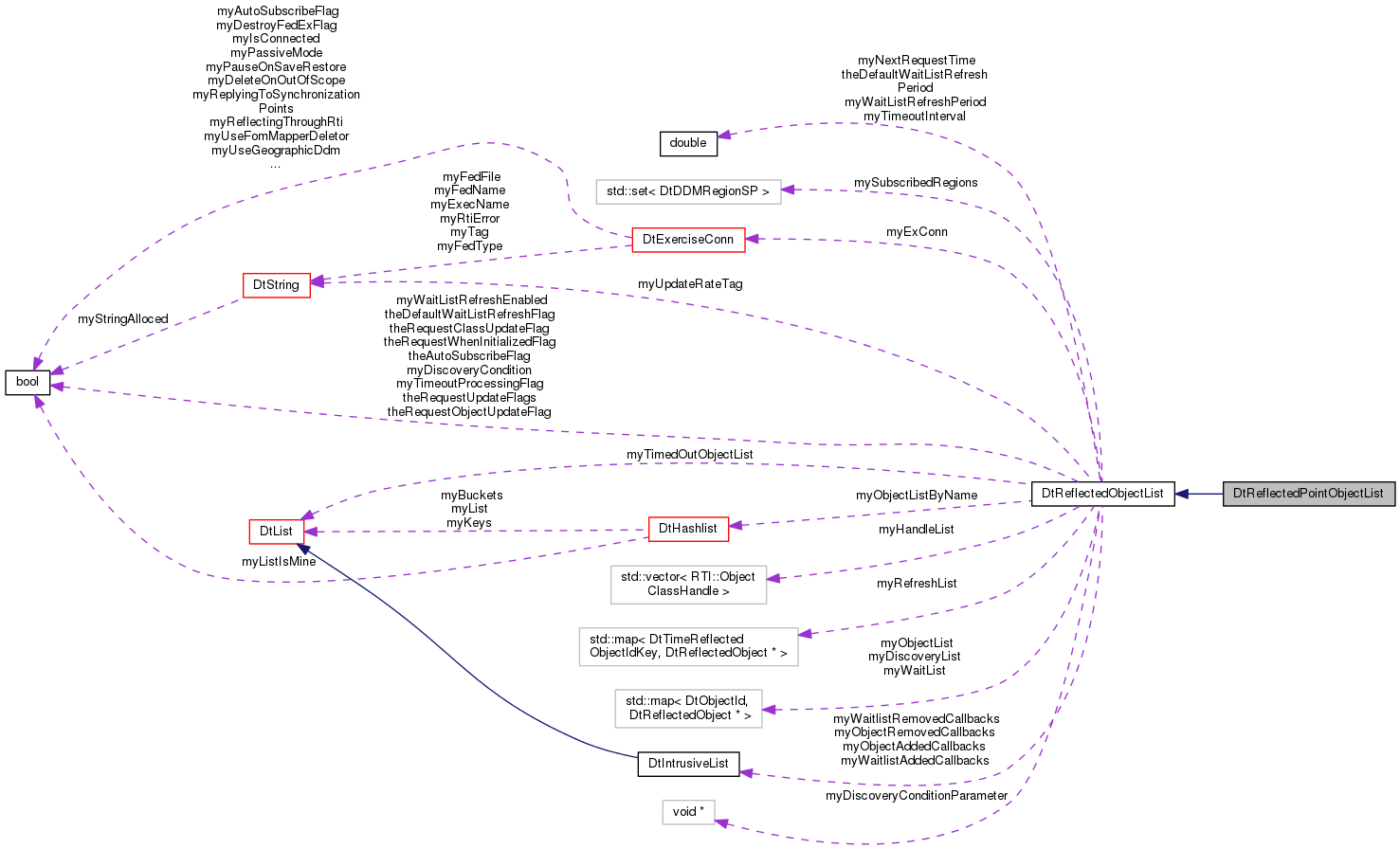

Collaboration diagram for DtReflectedPointObjectList:

Public Member Functions
	DtReflectedPointObjectList (DtExerciseConn exConn, const DtDDMRegionSet regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper. More...

	DtReflectedPointObjectList (DtExerciseConn exConn, const DtList handleList, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList. More...

virtual	~DtReflectedPointObjectList ()
	destructor More...

virtual DtReflectedPointObject *	lookup (RTI::ObjectHandle id)
	Look up point object by identifier. More...

virtual DtReflectedPointObject *	lookup (const DtGlobalObjectDesignator &objName)
	Look up point object by name. More...

virtual DtReflectedPointObject *	first () const
	Get the first/last point object in the list. More...

virtual DtReflectedPointObject *	last () const

virtual void	addPointObjectAdditionCallback (DtPointObjectCallbackFunction cb, void *userData)
	Point Object added callback registration/deregistration. More...

virtual void	removePointObjectAdditionCallback (DtPointObjectCallbackFunction cb, void *userData)

virtual void	addPointObjectRemovalCallback (DtPointObjectCallbackFunction cb, void *userData)
	Point Object removed callback registration/deregistration. More...

virtual void	removePointObjectRemovalCallback (DtPointObjectCallbackFunction cb, void *userData)

Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn exConn, const DtDDMRegionSet regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor. More...

virtual	~DtReflectedObjectList ()
	destructor More...

virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier. More...

virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3). More...

virtual int	count () const
	Get number of objects. More...

virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...

virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered. More...

virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object. More...

virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...

virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...

virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	print ()
	Print the SRs of all objects. More...

virtual void	printWaitList ()
	Print the SRs of all waiting objects (most likely will have mostly bad data). More...

virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...

virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs. More...

virtual bool	requestsEnabled () const
	Get whether or not to process requests for reflected objects that were just discovered or are waiting for updates (to meet discovery criteria). More...

virtual int	numberObjectsWaiting () const
	Return the number of objects in the wait list. More...

virtual void	checkDiscoveryConditionForWaitList ()
	Check discovery conditions for all items in wait list. More...

virtual DtTime	nextRequestTime () const
	Return the time when the next request will be made for entries in the wait refresh list. More...

virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the reflected list. More...

virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...

virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to. More...

virtual void	addWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Callback registration for when objects are added or removed from the waitlist. More...

virtual void	removeWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Waitlist removed callback registration/deregistration. More...

virtual void	removeWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...

virtual DtReflectedObject *	lastObj () const
	Get the first/last object in the list. More...

virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...

virtual DtTime	timeoutInterval () const
	Set/Get the remote object timeout period. More...

virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will resend request updates for objects which remain on wait list because they have not met discovery criteria. More...

virtual bool	waitListRefreshEnabled () const
	Set whether or not we will resend request updates for objects which remain on wait list because they have not met discovery criteria. More...

virtual void	setWaitListRefreshPeriod (DtTime period)
	Set/Get the wait list refresh period. More...

virtual DtTime	waitListRefreshPeriod () const
	Set/Get the wait list refresh period. More...

virtual DtReflectedObject *	firstWaitingObj () const
	Get the first/last object in the wait list. More...

virtual DtReflectedObject *	lastWaitingObj () const
	Get the first/last object in the wait list. More...

Protected Member Functions
	DtReflectedPointObjectList (const DtReflectedPointObjectList &orig)
	copy constructor More...

DtReflectedPointObjectList &	operator= (const DtReflectedPointObjectList &orig)
	assignment operator More...

virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function. Here, we create a DtReflectedPointObject. More...

virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote point object has been added to the list. More...

virtual const DtList *	dfltHandleList ()
	Returns a DtList of RTI::ObjectClassHandles that represent the list of object classes to which this list should subscribe. More...

Protected Member Functions inherited from DtReflectedObjectList
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network. More...

virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out. More...

virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...

virtual void	doRequestUpdates ()
	Request an update for discovered objects. More...

virtual void	removeAndDelete (DtReflectedObject obj, char msg=nullptr)
	Remove the remote object from the list if found and delete it. More...

virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...

virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it. More...

virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out. More...

virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class. More...

virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className. More...

virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once. More...

void	emptyLists ()
	Empty the object list and the timeout list. More...

void	emptyCallbackLists ()
	Empty the callback lists. More...

virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...

virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)

virtual void	processWaitlistAdditionCallbacks (DtReflectedObject *object)
	Process waitlist addition/removal callbacks. More...

virtual void	processWaitlistRemovalCallbacks (DtReflectedObject *object)

virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list. More...

virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)

virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within. More...

virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks. More...

virtual void	addToWaitList (DtReflectedObject *refObj)
	Add refObj to wait list. More...

virtual void	removeFromWaitList (DtReflectedObject *refObj)
	Remove refObj from wait list. More...

virtual void	addToRefreshList (DtReflectedObject *refObj, DtTime timeToRefresh)
	Add refObj to refresh list. More...

virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier. More...

virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name. More...

void	unsubscribeRegions ()

const DtString &	updateRateSubscriptionName () const
	Return the name of the update rate associated with our subscription, if any. More...

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static bool	requestUpdateFlags ()
	Get flag that indicates if any requests are enabled (class, object, or initialized) More...

static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects(). More...

static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...

static bool	autoSubscribeFlag ()
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...

static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...

static bool	requestClassUpdateFlag ()
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...

static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it. More...

static bool	requestObjectUpdateFlag ()
	Set/Get flag that determines whether we request updates from an object as we discover it. More...

static void	setRequestWhenInitializedFlag (bool onOff)
	Set/Get flag that determines whether we request updates for wait listed objects only when all known VRLStateObject instances are initialized. More...

static bool	requestWhenInitializedFlag ()
	Set/Get flag that determines whether we request updates for wait listed objects only when all known VRLStateObject instances are initialized. More...

static void	setDefaultWaitListRefreshFlag (bool onOff)
	Set/Get the default wait list enabled flag value. More...

static bool	defaultWaitListRefreshFlag ()
	Set/Get the default wait list enabled flag value. More...

static void	setDefaultWaitListRefreshPeriod (DtTime period)
	Set/Get the default wait list refresh period. More...

static DtTime	defaultWaitListRefreshPeriod ()
	Set/Get the default wait list refresh period. More...

Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject hlaObj, void rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject(). More...

static void	removeObjectCb (DtHlaObject hlaObj, void rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject(). More...

static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject obj, void usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect(). More...

static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...

static void	doRequestUpdatesPostDrainCb (void *usr)
	Calls doRequestUpdates. More...

static void	postUpdateCb (DtReflectedObject obj, void usr)
	Calls checkDiscoveryCondition. More...

Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn

DtRefHlaObjectMap	myObjectList

DtHashList	myObjectListByName

DtRefHlaObjectMap	myWaitList

DtRefHlaObjectMap	myDiscoveryList

DtRefHlaObjectTimeMap	myRefreshList

bool	myWaitListRefreshEnabled

DtTime	myNextRequestTime

DtTime	myWaitListRefreshPeriod

DtList	myTimedOutObjectList

DtTime	myTimeoutInterval

bool	myTimeoutProcessingFlag

std::vector < RTI::ObjectClassHandle >	myHandleList

DtIntrusiveList	myObjectAddedCallbacks

DtIntrusiveList	myObjectRemovedCallbacks

DtIntrusiveList	myWaitlistAddedCallbacks

DtIntrusiveList	myWaitlistRemovedCallbacks

DtDiscoveryCondition	myDiscoveryCondition

void *	myDiscoveryConditionParameter

DtDDMRegionSet	mySubscribedRegions

DtString	myUpdateRateTag

Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag

static bool	theRequestClassUpdateFlag

static bool	theRequestObjectUpdateFlag

static bool	theRequestWhenInitializedFlag

static bool	theRequestUpdateFlags

static bool	theDefaultWaitListRefreshFlag

static DtTime	theDefaultWaitListRefreshPeriod

Detailed Description

class DtReflectedPointObjectList:

Instances of DtReflectedPointObjectList manage the list of of remote Point Objects in the exercise.

Constructor & Destructor Documentation

DtReflectedPointObjectList::DtReflectedPointObjectList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse = `0`,
		const DtString &	updateRateTag = `DtString("")`
	)

Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.

DtReflectedPointObjectList::DtReflectedPointObjectList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtDDMRegionSet *	regionSetToUse = `0`,
		const DtString &	updateRateTag = `DtString("")`
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedPointObjectList::~DtReflectedPointObjectList ( )

virtual

destructor

DtReflectedPointObjectList::DtReflectedPointObjectList ( const DtReflectedPointObjectList & orig )

protected

copy constructor

Member Function Documentation

virtual void DtReflectedPointObjectList::addPointObjectAdditionCallback	(	DtPointObjectCallbackFunction	cb,
		void *	userData
	)

virtual

Point Object added callback registration/deregistration.

virtual void DtReflectedPointObjectList::addPointObjectRemovalCallback	(	DtPointObjectCallbackFunction	cb,
		void *	userData
	)

virtual

Point Object removed callback registration/deregistration.

virtual const DtList* DtReflectedPointObjectList::dfltHandleList ( )

protectedvirtual

Returns a DtList of RTI::ObjectClassHandles that represent the list of object classes to which this list should subscribe.

virtual DtReflectedPointObject* DtReflectedPointObjectList::first ( ) const

virtual

Get the first/last point object in the list.

virtual DtReflectedPointObject* DtReflectedPointObjectList::last ( ) const

virtual

virtual DtReflectedPointObject* DtReflectedPointObjectList::lookup ( RTI::ObjectHandle id )

virtual

Look up point object by identifier.

virtual DtReflectedPointObject* DtReflectedPointObjectList::lookup ( const DtGlobalObjectDesignator & objName )

virtual

Look up point object by name.

virtual DtReflectedObject* DtReflectedPointObjectList::newReflectedObject ( DtHlaObject * obj ) const

protectedvirtual

Override of virtual function. Here, we create a DtReflectedPointObject.

Implements DtReflectedObjectList.

virtual void DtReflectedPointObjectList::objectAdded ( DtReflectedObject * obj )

protectedvirtual

Called from processDiscoverObject() after a remote point object has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition. obj will be an instance of a class derived from DtReflectedObj.

Reimplemented from DtReflectedObjectList.

DtReflectedPointObjectList& DtReflectedPointObjectList::operator= ( const DtReflectedPointObjectList & orig )

protected

assignment operator

virtual void DtReflectedPointObjectList::removePointObjectAdditionCallback	(	DtPointObjectCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedPointObjectList::removePointObjectRemovalCallback	(	DtPointObjectCallbackFunction	cb,
		void *	userData
	)

virtual

The documentation for this class was generated from the following file:

reflectedPointObjectListHLA.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
