This class encodes a Test interaction from a TestInteraction object. More...

Inheritance diagram for TestEncoder:

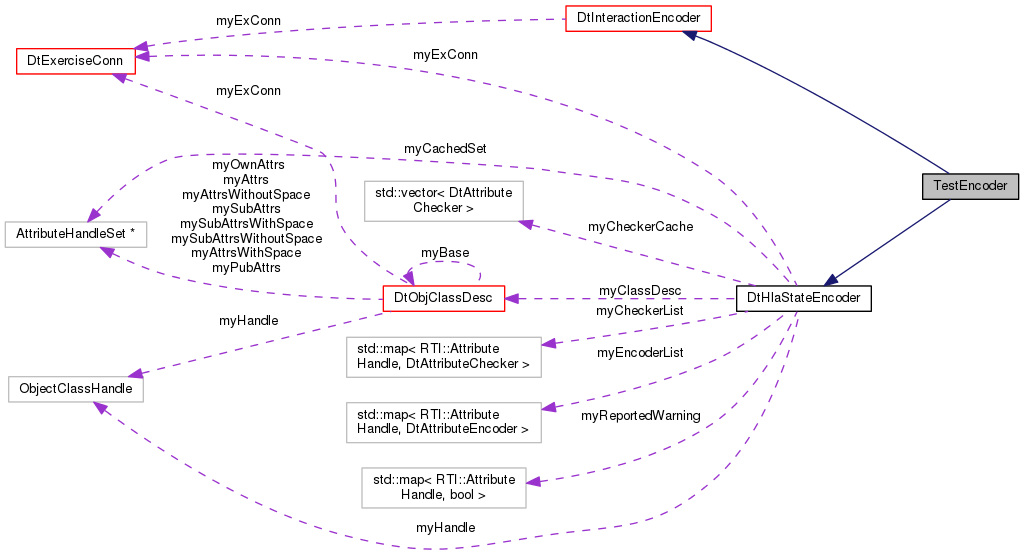

Collaboration diagram for TestEncoder:

Public Member Functions
	TestEncoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	Constructor. More...

virtual	~TestEncoder ()
	Destructor. More...

	TestEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	default constructor More...

virtual	~TestEncoder ()
	destructor More...

Public Member Functions inherited from DtHlaStateEncoder
	DtHlaStateEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtHlaStateEncoder ()
	destructor More...

	DtHlaStateEncoder (const DtHlaStateEncoder &orig)
	copy constructor More...

DtHlaStateEncoder &	operator= (const DtHlaStateEncoder &orig)
	assignment operator More...

DtAttributeEncoder	addEncoder (RTI::AttributeHandle hand, DtAttributeEncoder func)
	Add/Remove an encoding function for the attribute specified by handle. More...

DtAttributeEncoder	removeEncoder (RTI::AttributeHandle hand)

DtAttributeEncoder	addEncoder (char *name, DtAttributeEncoder func, bool complain=true)
	Add/Remove an encoding function for the attribute specified by name. More...

DtAttributeEncoder	removeEncoder (char *name, bool complain=true)

DtAttributeChecker	addChecker (RTI::AttributeHandle hand, DtAttributeChecker func)
	Add/Remove a checker function for the attribute specified by handle. More...

DtAttributeChecker	removeChecker (RTI::AttributeHandle hand)

DtAttributeChecker	addChecker (char *name, DtAttributeChecker func, bool complain=true)
	Add/Remove a checker function for the attribute specified by name. More...

DtAttributeChecker	removeChecker (char *name, bool complain=true)

DtAttributeEncoder	encoder (const RTI::AttributeHandle &handle)
	Get the attribute encoder for the specified handle. More...

DtAttributeChecker	checker (const RTI::AttributeHandle &handle)
	Get the attribute checker for the specified handle. More...

virtual void	encode (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, const RTI::AttributeHandleSet &neededAttrs, const RTI::AttributeHandleSet &includeThese, DtStateMsg *msg)
	Encode necessary values from the state repository. More...

virtual RTI::ObjectClassHandle	objectClassHandle ()
	Get the object's class handle. More...

virtual DtHlaStateEncoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

virtual DtHlaStateEncoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual void	preCalculateEligible (const RTI::AttributeHandleSet &neededAttrs)

Public Member Functions inherited from DtInteractionEncoder
	DtInteractionEncoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	constructor More...

virtual	~DtInteractionEncoder ()
	destructor More...

	DtInteractionEncoder (const DtInteractionEncoder &orig)
	copy constructor More...

DtInteractionEncoder &	operator= (const DtInteractionEncoder &orig)
	assignment operator More...

virtual DtParameterEncoder	addEncoder (RTI::ParameterHandle hand, DtParameterEncoder func)
	Add a parameter encoder function by parameter handle. More...

virtual DtParameterEncoder	addEncoder (char *name, DtParameterEncoder proc)
	Add a parameter encoder function by parameter name. More...

virtual DtParameterEncoder	encoder (RTI::ParameterHandle hand)
	Get the parameter encoder for the specified handle. More...

virtual void	encode (const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *pvList)
	Encode necessary values from the protocol-independent interaction. More...

virtual RTI::InteractionClassHandle	interClassHandle ()
	Get the object's class handle. More...

virtual DtInteractionEncoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual DtInteractionEncoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_TEST_PARAM_ENCODER (Number)
	Individual parameter encoding functions - one for each parameter. More...

	DtDECLARE_TEST_PARAM_ENCODER (Vector)
	Individual parameter encoding functions - one for each parameter. More...

	DtDECLARE_TEST_ATTR_ENCODER (Number)
	Individual attribute encoding functions - one for each attribute. More...

	DtDECLARE_TEST_ATTR_ENCODER (Vector)

	DtDECLARE_TEST_ATTR_CHECKER (Number)
	Individual attribute checking functions - one for each attribute. More...

	DtDECLARE_TEST_ATTR_CHECKER (Vector)

Additional Inherited Members
Public Types inherited from DtHlaStateEncoder
typedef void(*	DtAttributeEncoder )(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle)
	Attribute encoding function declaration. More...

typedef bool(*	DtAttributeChecker )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	Attribute checking function declaration. More...

typedef bool(*	DtAttributeCheckerWithHandle )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, RTI::AttributeHandle handle)
	Attribute checking function declaration that takes a handle and checks the specific attribute pointed to by that handle. More...

Public Types inherited from DtInteractionEncoder
typedef void(*	DtParameterEncoder )(const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
	Attribute encoding function declaration. More...

Static Public Member Functions inherited from DtHlaStateEncoder
static bool	trueChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 1, meaning that the attribute for which it is being used will be deemed necessary to send on every tick. More...

static bool	falseChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 0, meaning that the attribute for which it is being used will never be deemed necessary to send. More...

static void	wideStringToHlaUnicodeString (const std::wstring &wideString, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle attrHandle)
	Puts a unicode widestring into a buffer of the appropriate size and adds it to the attribute value list with it's attribute handle. More...

Static Public Member Functions inherited from DtInteractionEncoder
static void	encodeGenericParameter (const DtInteractionWithEncDec &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)

Protected Attributes inherited from DtHlaStateEncoder
DtExerciseConn *	myExConn

DtObjClassDesc *	myClassDesc

RTI::ObjectClassHandle	myHandle

std::map< RTI::AttributeHandle, DtAttributeEncoder >	myEncoderList
	myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items. More...

std::map< RTI::AttributeHandle, DtAttributeChecker >	myCheckerList

std::vector< DtAttributeChecker >	myCheckerCache
	This is a helper variable that pre-lookups decoder functions in order to avoid making map calls on every update. More...

const RTI::AttributeHandleSet *	myCachedSet

std::map< RTI::AttributeHandle, bool >	myReportedWarning
	myReportedWarning is an array for keeping track of which warnings have already been reported More...

Protected Attributes inherited from DtInteractionEncoder
DtExerciseConn *	myExConn

DtInterClassDesc *	myClassDesc

DtVrlRtiAmbassador *	myRtiAmb

RTI::InteractionClassHandle	myHandle

std::map< RTI::ParameterHandle, DtParameterEncoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

This class encodes a Test interaction from a TestInteraction object.

The TestEncoder class.

Constructor & Destructor Documentation

TestEncoder::TestEncoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

Constructor.

virtual TestEncoder::~TestEncoder ( )

virtual

Destructor.

TestEncoder::TestEncoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

default constructor

virtual TestEncoder::~TestEncoder ( )

virtual

destructor

Member Function Documentation

TestEncoder::DtDECLARE_TEST_ATTR_CHECKER ( Number )

protected

Individual attribute checking functions - one for each attribute.

This macro expands to look like this: static bool needNumber(const TestStateRepository& rep, const TestStateRepository& asSeenByRemote);

TestEncoder::DtDECLARE_TEST_ATTR_CHECKER ( Vector )

protected

TestEncoder::DtDECLARE_TEST_ATTR_ENCODER ( Number )

protected

Individual attribute encoding functions - one for each attribute.

This macro expands to look like this: static void encodeNumber(const TestStateRepository& rep, RTI::AttributeHandleValuePairSet* attrs, RTI::AttributeHandle attrHandle)

TestEncoder::DtDECLARE_TEST_ATTR_ENCODER ( Vector )

protected

TestEncoder::DtDECLARE_TEST_PARAM_ENCODER ( Number )

protected

Individual parameter encoding functions - one for each parameter.

These macros expand to look like this: static void encodeNumber(const TestInteraction& inter, RTI::ParameterHandleValuePairSet* params, RTI::ParameterHandle paramHandle);

TestEncoder::DtDECLARE_TEST_PARAM_ENCODER ( Vector )

protected

Individual parameter encoding functions - one for each parameter.

These macros expand to look like this: static void encodeNumber(const TestInteraction& inter, RTI::ParameterHandleValuePairSet* params, RTI::ParameterHandle paramHandle);
